Displays2go CDSTAND2BK Bedienungsanleitung

LEFT VIEW

Lower Left Tube

LEFT VIEW

Upper Left Tube

Lower Right Tube

BACK VIEW

RIGHT VIEW

Upper Right Tube

BACK VIEW

RIGHT VIEW

D1 D2

C2C1

3a 3b

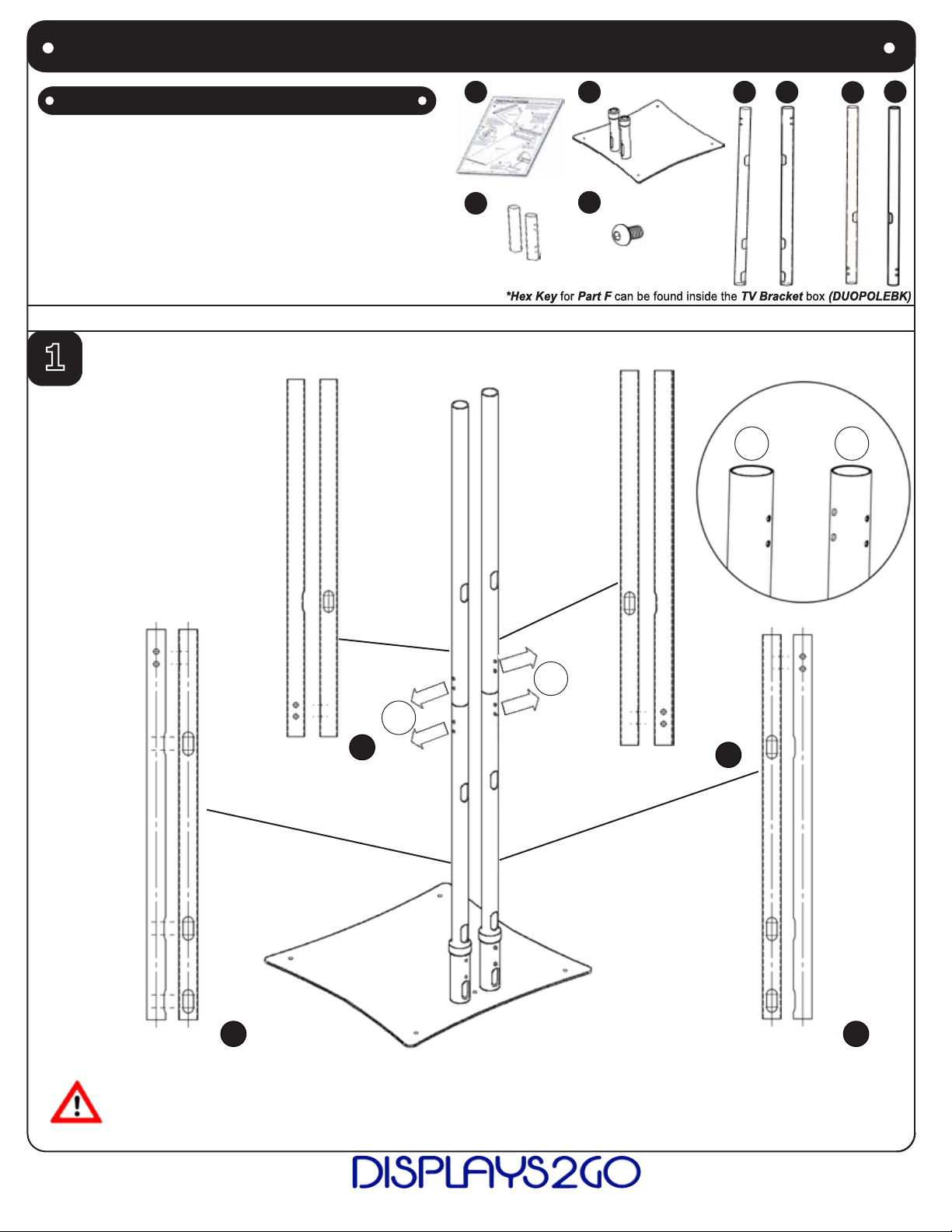

A. Instructions 1

B. Metal Base 1

C1. Lower Round Tube (Left) 1

C2. Lower Round Tube (Right) 1

D1. Upper Round Tube (Left) 1

D2. Upper Round Tube (Right) 1

E. Tube Connector 2

F. Pan Head Screw 12

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE START THE ASSEMBLING.

FLAT BASE TV STAND

Parts

55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392

Open small box, lay out 4 long Tubes (C1, C2, D1, D2) on a flat surface. See picture below to

identify where each tube goes to (upper or lower, left or right).

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE START THE ASSEMBLING.

FLAT BASE TV STAND

Parts

55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392

CAUTION: 1. METAL BASE IS HEAVY! AT LEAST 2 PEOPLE SHOULD LIFT/MOVE TO PREVENT ANY

PHYSICAL INJURY FROM MISHANDLING.

2. ALWAYS PLACE THE UNIT ON A HARD, FLAT SURFACE. DO NOT PLACE THE UNIT IN

WHERE IT MAY BE IMPACTED OR MOVED. FAILURE TO DO SO COULD CAUSE SEVERE

BODILY INJURY.

Tighten 4 Screws (Part F) against the

surface of lower poles with hex key.

Insert Tube Connectors (Part E) into the

Fixed Lower Tubes. Hold it in place when

lining up holes. (Align with the top holes on

Lower Tubes)

Insert Upper Tubes (Part D) intoTube

Connectors from above. The holes should

line up with the holes on Connectors.

Fasten 4 Screws (Part F) with hex key.

Ensure the 2 slot cutouts are facing

the same direction as other cutouts

on the Lower Tubes.

Insert Lower Tube into the upright on

the Metal Base.

Ensure slot cutouts on uprights

and Lower Tubes align with

each other.

Holes at top of Lower Tubes should

face outward, to align with the holes on

Tube Connectors. (See STEP 4)

Before assembling, remove packing materials.

Carefully place the Metal Base (Part B) on a

hard, flat ground.

Fix Lower Tubes by tightening 4 screws at

bottom of the TV Stand.

Fix Tube Connector (Part E) on top of the

Lower Tube.

Insert Upper Tubes with Connectors.

Insert 4 Screws (Part F) through Lower

Tubes into Connectors. Fasten screws

with hex key.

If securing the whole unit to the floor,

use hardware through 4 corner holes

to fix the base.

ALL SCREWS MUST BE SECURELY TIGHTENED BEFORE USING TV STAND.

FLAT BASE TV STAND

55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392

Still have questions? No worries. If you’re confused during any step, just call the number located at the

bottom of the Instruction pages. Our friendly representative will be more than happy to assist you.

Distance between 2 TVs

Extrution

Tube

1. Before starting, measure and calculate the minimum

distance between 2 TVs while hanging on FLTBSPTBBK,

without interfering with each other.

2. Avoid fastening Extrutions at the joint area of 2

Tubes, where screws could interfere with the Extru-

sions.

3. Hang the lower TV first, then the upper one. It

could be difficult to hang the lower TV last as there

might not be enough room.

* TIPS:

Adjust Extrution up and down as

needed for desired result.

NOTE:

(1) FLTBSPTBBK can hold dual flat TVs up to 70”, depending

on different layouts and orientation.

(2) TVs can not be rotated while 2 TVs are hung on the stand at

the same time.

(3) Image on the right shows 2 same size TVs, which the height

is the minimum distance required. STEP 1. must be done if

hanging 2 different size TVs, or hanging any 2 TVs at different

orientations.

FLAT BASE TV STAND

For 2 TVs hanging ONLY

55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392

CAUTION: 1. AT LEAST 2 PEOPLE SHOULD LIFT/HANG TVs.

2. BE CAREFUL IF USE LADDERS OR STANDING ABOVE THE GROUND.

3. DO NOT ADJUST THE POSITION OF EXTRUSION WHEN TV IS ON THE BRACKET.

4. DO NOT USE CASTERS. HOLES IN THE BASE ARE FOR MOUNTING ONTO FLOOR ONLY.

2nd operation

Hang Upper TV

1st operation

Hang Lower TV

* TIPS:

It is easier to accomplish this task

by increasing the gas between 2

TVs.

Bracket mounted on TV can be

adjusted up and down to best fit

and locate both TVs on the stand.

Still have questions? No worries. If you’re confused during any step, just call the number located at the

bottom of the Instruction pages. Our friendly representative will be more than happy to assist you.
