DIVERSITECH ASURITY PROCP-22S Bedienungsanleitung

Installation Instructions

Standard Applications

Models: PROCP-22S, PROCP-22S-230,

PROCP-22ST, PROCP-22ST-230

Condensate

Pump Pro

ASURITYTM

CONDENSATE MANAGEMENT PAGE 2

INTRODUCTION

SAFETY INFORMATION

Please read, understand, and follow all safety instructions. Failure to follow

instructions may result in property damage, serious injury, or death.

DANGER

ALWAYS disconnect power prior to moving, adjusting, or servicing

pump or attached systems. DO NOT use this pump in the presence of

spraying or standing water. Failure to do so could result in a fatal electric

shock.

WARNING: FIRE AND EXPLOSION HAZARD

DO NOT use this pump to move ammable or explosive liquids. DO

NOT use this pump in explosive or ammable environments.

Carbon monoxide hazard. Ensure that pump is mounted away from heat

exchanger or wiring. If you are unsure of any items in this manual, please

consult a professional and DO NOT attempt to install this product.

CALIFORNIA PROPOSITION 65

This product may contain chemicals known to the state of California to

cause cancer, birth defects, or other reproductive harm. Wash hands

after handling this product.

CAUTION: FLOOD RISK

Personal injury or property damage can result from an inoperative

pump. If a ood has occurred, DO NOT walk in wet area until all power

has been turned o. Check with local electric company or a qualied

electrician before disconnecting any electrical service prior to pump

removal.

WARNING

Supply voltage and frequency must match what is shown on pump

nameplate. Source voltages lower than the rated supply can reduce

performance and cause pump to overheat.

Pump must be level and should be mounted to or placed on a solid

surface or oor.

DO NOT cover pump air vents. Pump is air cooled. DO NOT cover

vent holes located on top or sides of the pump housing. Pump may be

operated continuously as long as air vents are not covered.

Pump should be stored indoors. The chosen location should be clean

and dry.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

www.diversitech.com | 800.995.2222 PAGE 3

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play

with the appliance.

TEMPERATURE RATING (NOT TESTED FOR HOT WATER)

• Continuous duty 140˚F

• Max inlet temperature 160˚F

• Not suitable for contact with steam or gases that exceed 160˚F.

GENERAL INFORMATION

This pump is designed to automatically remove the condensate water that

collects from appliances such as air conditioners and de-humidiers. The

pump has a built-in tank that collects water from the appliance. When water

collected reaches sucient level inside pump tank, pump switches on and

pumps water to a remote location for disposal.

When tank is suciently empty, pump automatically switches o. Pump is

capable of lifting water up to 22 ft. and is equipped with a check valve that

prevents water from owing back into tank when pump shuts o.

The pump is equipped with a switch that activates when water in the

tank reaches an overow condition. The overow safety switch may be

connected to turn o the appliance if high water condition occurs.

FEATURES

Metal Hang Tabs

Lengüetas colgantes

de metal

Inlet Hole

Oricio de entrada

Inlet Hole Cover

Cubierta

Check valve

Válvula de control

Overow Safety Switch

Interruptor de seguridad de rebose

ASURITYTM

CONDENSATE MANAGEMENT PAGE 4

PACKAGE CONTENTS

SPECIFICATIONS

PART DESCRIPTION QUANTITY

A Condensate Pump 1

BInlet Hole Covers 3

PROCP-22S

PROCP-22ST

PROCP-22S-230

PROCP-22ST-230

Rated Voltage 120 Volts/60Hz 220 Volts/60 Hz

Rated Current Draw 1.9 Amps 1.0 Amps

Head Height 22 ft. maximum 22 ft. maximum

Flow Rate at Zero Head 1.6 GPM 1.0 GPM

Product Weight 5 lbs. 5 lbs.

Inlet Height from Base 4.4" 4.4"

www.diversitech.com | 800.995.2222 PAGE 5

INSTALLATION

MOUNTING OPTIONS

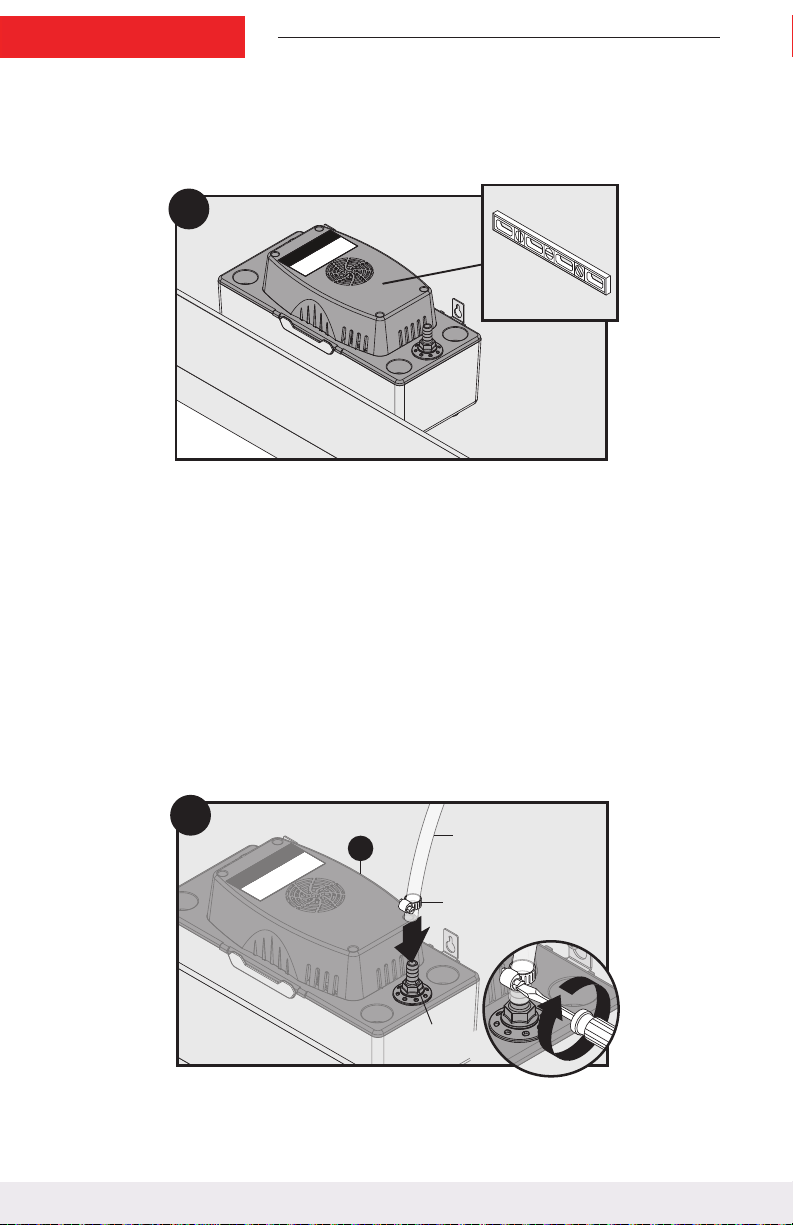

1A. PLACE ON FLOOR

Determine condensate pump location.

1B. ATTACH TO WALL

Attach condensate pump with screws (8” between mounting tabs).

OPTION: REVERSE TOP IF NECESSARY

Pump top may be rotated 180˚

to allow access to pump outlet

or power connection.

(20.3 cm)

Mounting tab

Languette de

montage

Pestaña

de montaje

ASURITYTM

CONDENSATE MANAGEMENT PAGE 6

INSTALLATION (continued)

2. LEVEL UNIT

Ensure that condensate pump is level.

OUTLET CONNECTIONS

3. INSTALL OUTLET TUBE CONNECTION

Attach plastic tubing to check valve and secure with hose clamp. Route

tubing up and away from condensate pump (avoid compressing or

kinking tubing).

3/8" Clear vinyl plastic tubing

Tubería de plástico de vinilo

transparente de 9,53 mm

5/8" Hose clamp

Abrazadera para manguera

de 15,9 mm

Check valve

Válvula de control

www.diversitech.com | 800.995.2222 PAGE 7

INSTALLATION (continued)

INLET CONNECTIONS

4. INSTALL INLET TUBE CONNECTIONS

Install condensate drain tubing into one of the four inlet holes, making

sure tubing is straight.

If installing to a humidier, a

“P” trap should be used.

INLET COVERS

5. INSTALL INLET COVERS

Insert inlet covers in remaining condensate pump inlet holes.

Inlet holes

Orificios de entrada

Inlet tubing

Tubería de

entrada

Inlet holes

Orificios

de entrada

45˚ angle

ángulo de 45 ˚

Inlet tubing

Tubería de

entrada

To condensate pump

A la bomba de

condensación

“P” trap

Trampa en P

Condensate drain tubing

Tubería de drenaje de

condensación

To humidifier

Al humidificador de condensación

ASURITYTM

CONDENSATE MANAGEMENT PAGE 8

INSTALLATION (continued)

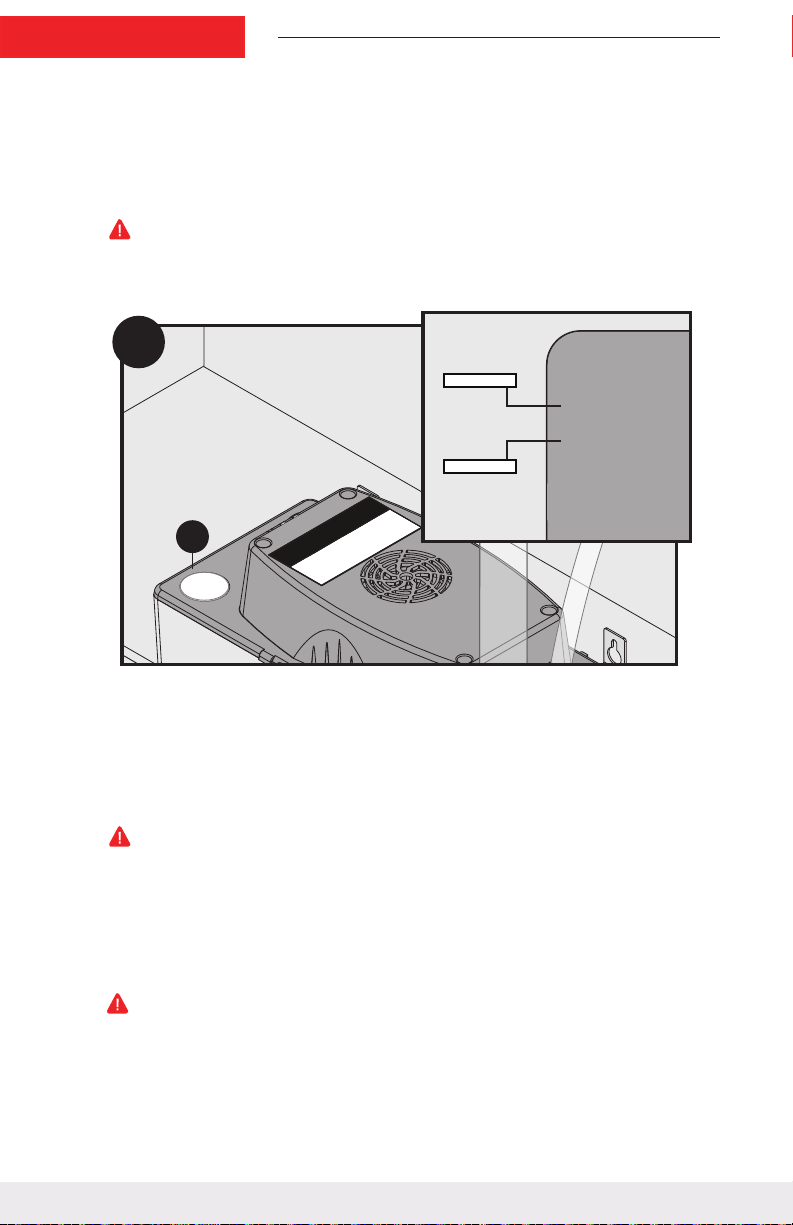

6. SAFETY SWITCH CONNECTION

Connect overow safety switch terminals as shown in wiring diagram.

WARNING: RISK OF ELECTRIC SHOCK

Ensure that power to appliance and pump is shut o before

attempting this step! Failure to follow these warnings will void the

warranty and could result in a fatal electric shock.

ELECTRICAL CONNECTION

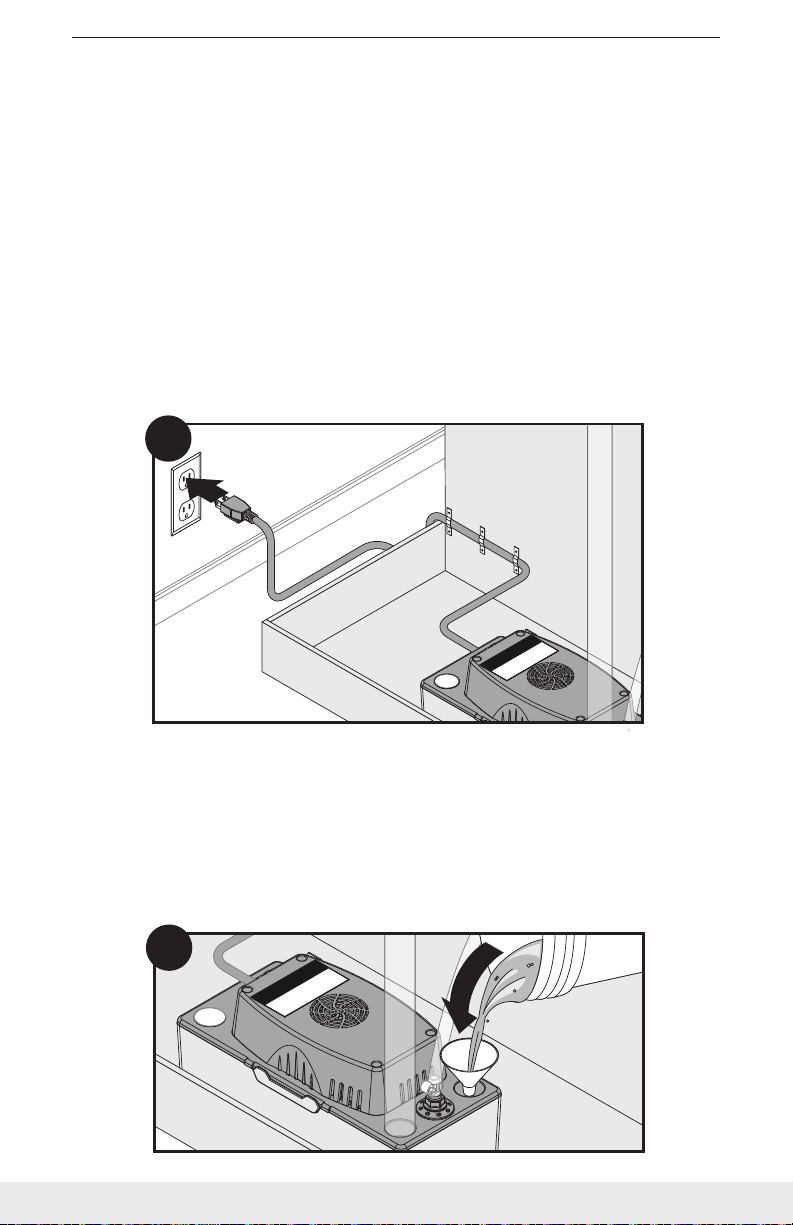

7. ELECTRICAL CONNECTION

WARNING: RISK OF ELECTRIC SHOCK

This pump is supplied with a grounding conductor and grounding-

type attachment plug.To reduce the risk of electric shock, be certain

that it is connected only to a properly grounded, grounding-type

receptacle. This pump must be properly connected to power

following the National Electric Code (NEC). Failure to follow these

warnings will void warranty and could result in a fatal electric shock.

This pump is supplied with a grounding conductor and grounding

type attachment plug. To reduce the risk of electric shock, be certain

that it is connected only to a properly grounded, grounding-type

receptacle.

YWGR

Shut-Down Circuit*

*Overflow Switch is normally

closed and opens when a high

water level is detected.

Connect this circuit in series

with the appropriate 24V

shut-down circuit for the

appliance.

www.diversitech.com | 800.995.2222 PAGE 9

INSTALLATION (continued)

Plug Note: Removal of the wall side electrical plug may be

permissible if:

1. The power leads, after plug removal, are connected directly

within an approved junction or conduit box, as judged by the local

authority having jurisdiction.

  2.Themodicationisperformedbyaqualiedtechnician.

  3.Themodicationmeetscodecompliantrequirementsaccording 

to the local authority.

This modication does not void the factory warranty. Final

installations should always be inspected and approved by the local

authority according to the requirements set forth by

the same local authority.

OPERATION

1. TESTING FLOAT

Manually ll the tank with water. The pump motor will turn on and the

fan will be audible. Ensure that the fan blades are moving by looking

through the top of the pump. Ensure that water is pumping out of the

outlet tube.

ASURITYTM

CONDENSATE MANAGEMENT PAGE 10

OPERATION (CONTINUED)

2. TESTING OVERFLOW SWITCH (IF CONNECTED)

Remove the top of the pump from the tank. Move the oat up by

hand until the pump motor turns on and the fan is audible. If overow

safety switch is wired correctly, the appliance will shut down, and the

condensate pump will pump out water.

MAINTENANCE AND DISASSEMBLY

ALWAYS disconnect power before performing maintenance. Pump and

deck may be removed from tank by pushing tabs located on tank sides

away from deck while lifting on pump cover.

Periodically inspect the

condensate pump tank

to ensure it is free of

accumulated dirt or sludge.

DO NOT use solvent

cleaners. Clean tank with

soap and warm water only.

Check valve may be removed

for cleaning or replacement

by unscrewing with a 5/8”

wrench.

Clean inlet and outlet piping.

Reassemble system and

check for correct operation.
