Dixon ZTR 6000 Series Bedienungsanleitung
6000 SERIES
FORWARD MOUNT
ZTR®MOWERS
Operator's Manual
2001
Page 2
IMPORTANT - READ CAREFULLY
The Dixon®ZTR®Mower is both easy and fun to operate. However, any power
mower must be operated properly to be safe. It is not a toy or a recreational vehicle.
Before you start to use the mower, read the operator's manual carefully and become
completely familiar with the controls.
The information in this operator's manual applies to all Dixon®ZTR®6000 Series
Commercial Mowers. Your Dixon dealer will gladly answer any questions.
See your dealer for warranty service, parts and repairs.
DIXON INDUSTRIES, INC.
ABLOUNTInternationalInc.Co.
PO BOX 1569
COFFEYVILLEKS 673370945
3162512000
Page 3
INDEX
SAFETY ..................................................................Pages 4-9
WARRANTYPOLICY............................................Page 10
SPECIFICATIONS .................................................Page 11
SEAT ADJUSTMENT INSTRUCTIONS............. Page 12
CONTROLS...........................................................Pages 13-16
OPERATIONINSTRUCTIONS ...........................Pages 17-21
CAREANDMAINTENANCE ...............................Pages 22-34
STANDARD SERVICE PARTS LIST.....................Page 35
TROUBLESHOOTING .........................................Pages 36-37
6000 Series Forward Mount
PartNo. 13090-0700
Page 4
...read and understand this manual to prevent injuries.
RIDING LAWNMOWERS, IF IMPROPERLY OPERATED,
CAN CAUSE SERIOUS INJURY OR DEATH

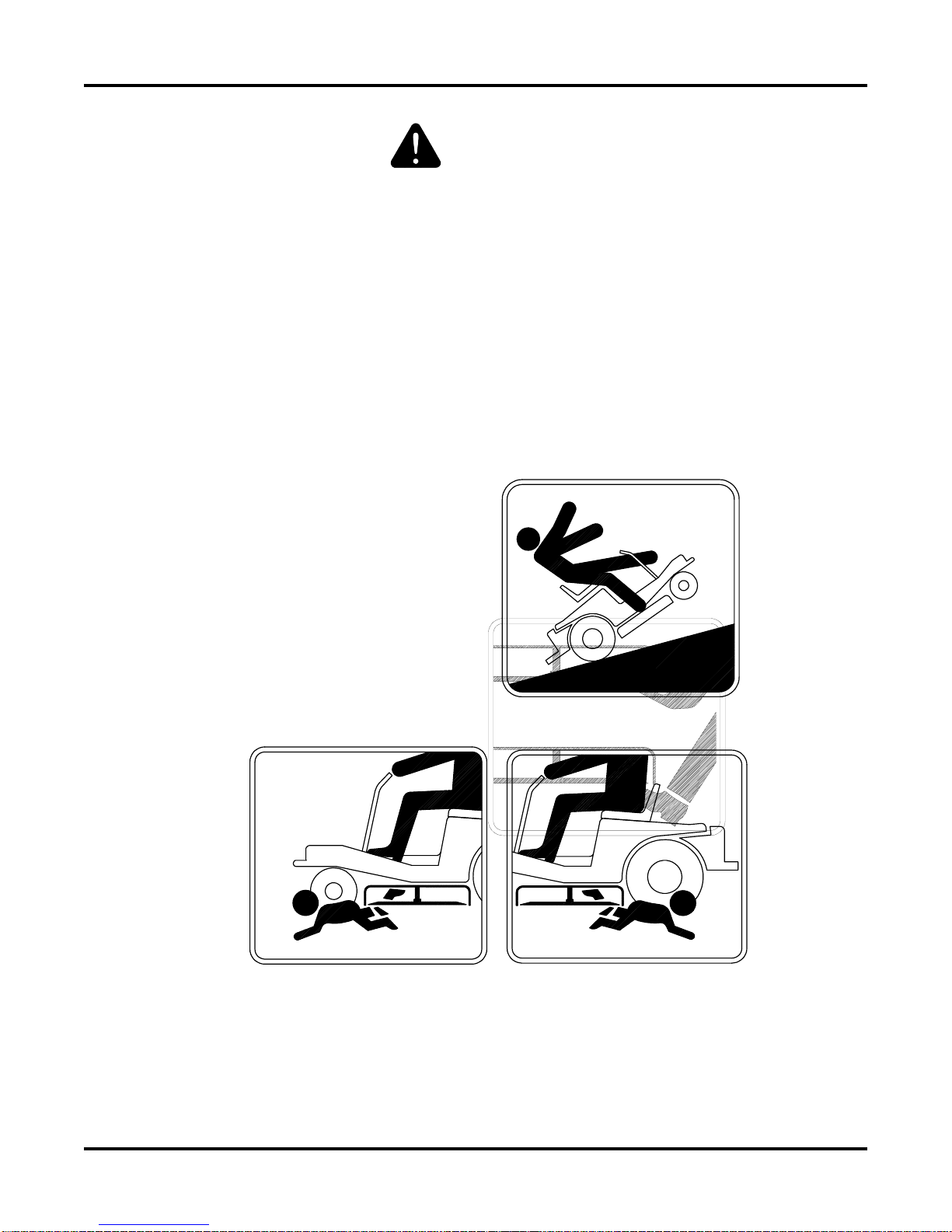

The most common causes of injury to the operator or bystander...
SAFETY
BLADE CONTACT TIP-OVER
BACK-OVERRUNOVER
Page 5

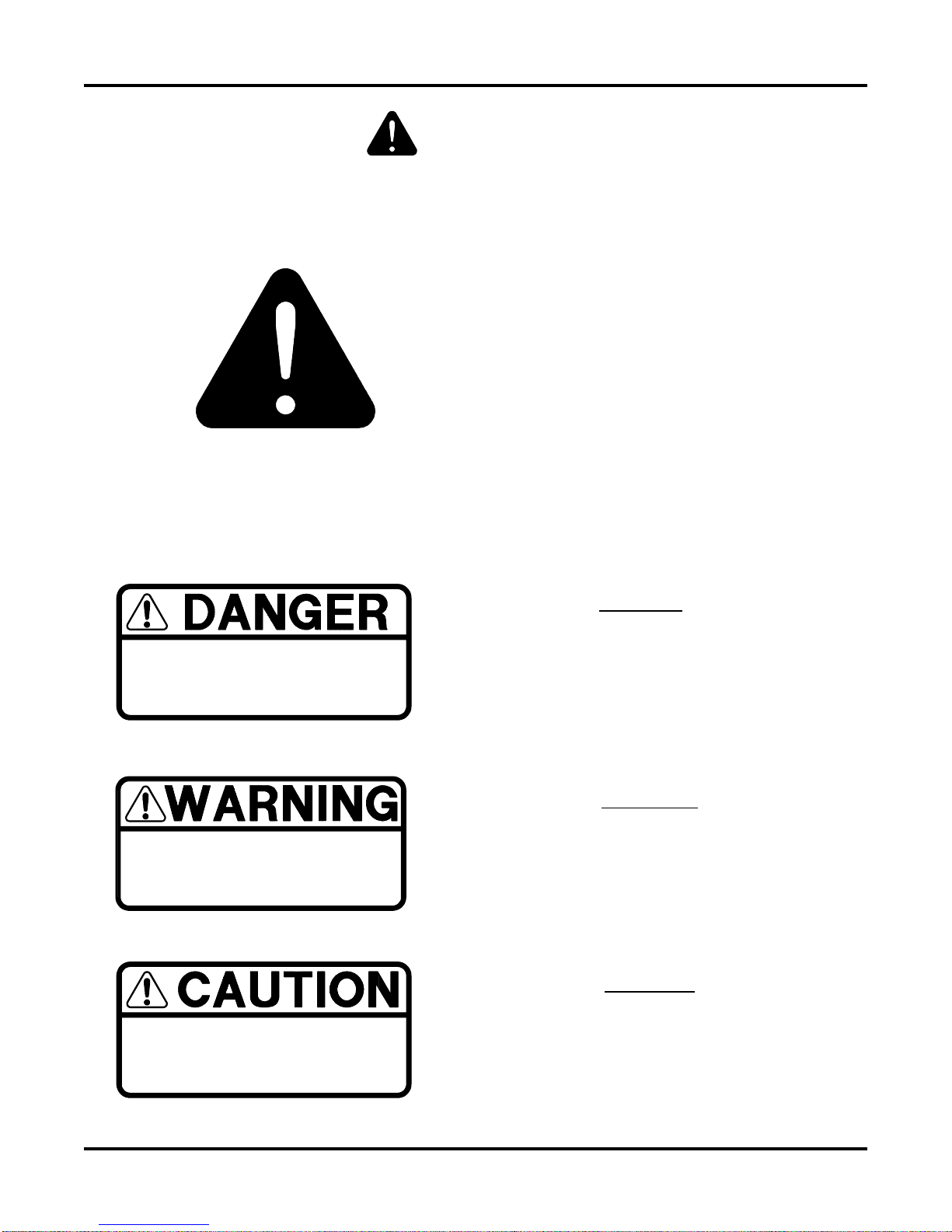

SAFETY SYMBOLS
Safety Alert Symbol
When you see this symbol,
BE ALERTto the potential for injury.
Follow recommended safety precautions and safe operating
practices.
Danger
indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
Warning
indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Caution
indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
SAFETY
Page 6
GENERALOPERATION:
• Read, understand, and follow all instructions in the manual and on the mower before starting.
• Only allow responsible adults, who are familiar with the instructions, to operate the mower.
• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.
• Be sure the area is clear of other people before mowing. Stop mower if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while
backing.
• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower
without either the entire grass catcher or the deflector in place.
• Slow down before turning.
• Never leave a running mower unattended. Always turn off blades, set parking brake, stop engine, and
remove key before dismounting.
• Turn off blades when not mowing.
• Stop engine before removing grass catcher or unclogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the mower while under the influence of alcohol or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the mower into a trailer or truck. Do not ride the mower when
loading & unloading.
• Always wear safety goggles or safety glasses with side shields when operating mower.
• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-
related injuries. These operators should evaluate their ability to operate the riding mower safely enough
to protect themselves and others from serious injury.
• Follow the manufacturer's recommendation for wheel weights or counterweights.
•Maintain or replace safety and instruction labels, as necessary.
WARNING: The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
Thiscuttingmoweriscapableofamputatinghands&feet,
andthrowingobjects.
Failuretoobservethefollowingsafetyinstructionscouldresultin
seriousinjuryordeath.
SAFETY
Page 7
SAFETY
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control and tip-over accidents,
which can result in severe injury or death.
All slopes require extra caution.
If you cannot back up the slope or if you feel uneasy on it, do not mow it!
DO
Mow across the slope with your Dixon ZTR - never up or down.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide
obstacles.
Useslow speed. Tiresmay losetraction onslopes eventhough thebrakesarefunctioningproperly.
Useextracarewithgrasscatchersorotherattachments. Thesecanchangethestabilityofthemower.
Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or
direction.
Avoidstartingorstoppingona slope. Iftireslose traction,disengagethe bladesandproceed slowly
down the slope.
If front wheels lift off the ground, pull the levers back to stabilize the mower.
DO NOT
Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could cause sliding.
Do not try to stabilize the mower by putting your foot on the ground.
Do not use grass catcher on steep slopes.
Page 8
SAFETY
Tragic accidents can occur if the operator is not alert to the
presence of children.
Children are attracted to lawn mowers and the mowing activity.
NEVER assume children will stay where they were last seen.
Be alert to avoid accidents.
• Keep children out of the mowing area and under the watchful care of another
responsible adult.
• Be alert and turn mower off if a child enters the area.
• Before and during backing, look behind and DOWN for small children.
• Never carry children. They may fall off and be seriously injured or interfere with
safe mower operation.
• Never allow children to operate the mower.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that
may obscure vision.
CHILDREN:
Page 9
SAFETY
SERVICE:
• Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.
Use only an approved container.
Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.
Do not smoke.
Never refuel the mower indoors.
Never store the mower or fuel container inside a building where there is an open flame,
If fuel is spilled on clothing, change clothing immediately.
To prevent fire and explosion caused by static electricity:
Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always
place containers on the ground away from your vehicle before filling.
When practical, remove gas-powered equipment from the truck or trailer and refuel it on the
ground. If this is not possible, then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
If a gasoline dispenser nozzle must be used, keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is complete. Do not use a nozzle lock-
open device.
• Never run a mower inside a closed area. The exhaust fumes are toxic.
• Keep nuts and bolts tight, especially blade attachment bolts, and keep equipment in good condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Keep mower free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage. Allow mower to
cool before storing.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.
• Grass catcher components are subject to wear, damage, and deterioration, which could expose moving
parts or allow objects to be thrown. Frequently check components and replace with original equipment
parts, when necessary.
• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when
servicing them.
• Batteries contain sulfuric acid. To prevent burns avoid contact with skin, eyes and clothing. To
prevent a fire or explosion keep sparks and open flames away from battery.
•Before disconnecting the negative (-) ground cable, make sure all switches are OFF.
Page 10
DIXONINDUSTRIES,INC.
aBLOUNTcompany
AIRPORTINDUSTRIALPARK
PO BOX 1569
COFFEYVILLEKS 67337 0945
316 251 2000
FAX 316 251 4117
DIXON LIMITED WARRANTY POLICY - COMMERCIAL MODELS
Models 6000 & 7000
WARRANTY: Home Owner Application: This Dixon Warranty term is for a period of two (2) years from date of
purchase. Commercial Application: Dixon mowers used for commercial application are warranted for 1 year from
the date of purchase or 400 hours whichever comes first. Commercial use is specified as use other than, or in
addition to, mowing at owner's primary place of residence.
DIXON ZTR MOWERS ARE WARRANTED AGAINST DEFECTS IN MATERIALS
AND WORKMANSHIP AND PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS INCLUDING
LABOR COSTS. THIS WARRANTY IS SUBJECT TO THE FOLLOWING CONDITIONS
AND LIMITATIONS:
1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.
2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon
warranty policy and allowances. All warranty claims must be approved by Dixon Industries, Inc.
3. Battery warranty: Limited to 90 days from date of purchase.
4. Accessories Warranty (Grass Catchers, Snow Blades, Covers, etc.): Limited to 90 days from date of purchase.
5 Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or alteration. The
use of parts or components other than those supplied by Dixon Industries, Inc. VOIDS ALL WARRANTY.
6. The following items are not covered by this warranty policy:
(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon dealer's
place of business.
(b) Routine maintenance or adjustments.
(c) Belts/cutting blades/HydroGear filters.
(d) Engines -- All engines used on Dixon ZTR mowers are warranted by each individual engine
manufacturer.
(e) Any costs or expense of providing substitute equipment while repair work is being performed on a
warranted mower.
7. There is no other express warranty. Implied warranties, including those of merchantability and fitness for a
particular purpose, are limited to the same duration of the express warranty, and to the extent permitted by
law any and all implied warranties are excluded. Liabilities for consequential damages under any and all
warranties are excluded.
Blue/Customer Yellow/Dealer White/Dixon Ind.
WARRANTY VALIDATION: At the time of sale, selling dealer must review each portion of this warranty
document, complete the information section below, secure customer's signature &send copy to Dixon Industries, Inc.
DATE OF PURCHASE MODEL S/N
Owner's Name Dealership
Address Address
Owner's Signature Dealer's Signature
Andere Handbücher für ZTR 6000 Series
3
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Dixon Rasenmäher Handbücher
Dixon
Dixon DX254 / 966651201 Bedienungsanleitung
Dixon
Dixon ZTR 5000 Series Bedienungsanleitung
Dixon
Dixon ZTR421, ZTR422, ZTR423 Bedienungsanleitung
Dixon
Dixon SpeedZTR 46 CE Bedienungsanleitung
Dixon
Dixon ZTR 6601 Bedienungsanleitung
Dixon
Dixon ZTR 5601 Bedienungsanleitung
Dixon
Dixon ZTR 4421 Gebrauchsanweisung
Dixon
Dixon ZTR 966504101 Bedienungsanleitung
Dixon
Dixon ZTR 560 Bedienungsanleitung
Dixon
Dixon RAM XS5025BF / 968999725 Bedienungsanleitung
Dixon
Dixon ZTR 8000 Series Bedienungsanleitung
Dixon
Dixon D17K38 Bedienungsanleitung
Dixon
Dixon BLACK BEAR ZTR 34/968999564 Bedienungsanleitung
Dixon
Dixon Ultra 52 Bedienungsanleitung
Dixon
Dixon ZTR 8000D Series Bedienungsanleitung
Dixon
Dixon RAM 48ZT Bedienungsanleitung
Dixon
Dixon Black Bear 11249-106 Installationshandbuch
Dixon
Dixon ZTR 4426 Bedienungsanleitung
Dixon
Dixon ZTR 5421 Bedienungsanleitung
Dixon
Dixon D22KH46 Bedienungsanleitung
Beliebte Rasenmäher Handbücher anderer Marken
TALEN TOOLS
TALEN TOOLS AVR HGM30 Bedienungsanleitung
DEWEZE
DEWEZE ATM-725 Bedienungsanleitung
Weed Eater
Weed Eater 180083 Bedienungsanleitung
Husqvarna
Husqvarna Poulan Pro PP185A42 Bedienungsanleitung
Better Outdoor Products
Better Outdoor Products Quick Series Bedienungsanleitung
Cub Cadet
Cub Cadet 23HP Z-Force 60 Betriebsanleitung
