DMP Electronics 7800 Series Installationsanleitung

INSTALLATION AND PROGRAMMING GUIDE

7800 Series

Graphic Touchscreen Keypad

System Armed

TO DAY

WEDNESDAY

98 77

CURRENT

HI LO

85 68

HI LO

98 77

Panic

Chime

Reset

Favorites

MON 5:35 PMMON 5:35 PM

ARMED

TABLE OF CONTENTS

About the Keypad ......................... 1

Keypad Features............................2

Programmable Carousel Menu .......................3

Enter Characters........................... 4

Install the Keypad..........................6

Remove the Cover ...............................................6

Wire the Keypad...................................................7

Wire for Access Control ....................................9

Wire the Electronic Lock .................................11

Wire the 333 Suppressor ..................................11

Mount the Keypad ........................13

Program the Keypad ................... 15

Custom Card Format....................21

Carousel Z-Wave Items.....................................27

Shortcut Items......................................................28

Additional Programming............29

Update the Keypad ........................................... 30

Test the Keypad ............................31

End User Training ........................ 32

Arm and Disarm the System...........................32

Use Access Control ............................................34

Wiring Speciﬁcations..................36

Public Card Formats ................... 37

Accessories................................... 38

Readers and Credentials ............39

Compliance Speciﬁcations ........ 41

Certiﬁcations................................43

FCC Information ..........................44

Industry Canada Information.....45

7800 Series Installation and Programming Guide 1

ABOUT THE KEYPAD

7800 Series Graphic Touchscreen Keypads oer ﬂexible features and functionality. Each

keypad provides optional panic keys, an AC Power/Armed LED, an internal speaker, a

simple terminal connection to a 4-wire keypad bus, and optional backboxes for conduit or

wall-mount applications. Each model provides its own distinct functionality.

7873

Provides a built-in

proximity card reader

designed to read proximity

credentials.

Provides four fully-

programmable Class B,

Style A, supervised, power

limited protection zones

that can be programmed

for a variety of burglary

and access control

applications.

Provides a door strike relay

and allows Wiegand input

from external card readers.

7872

Provides a built-in

proximity card reader

designed to read DMP/HID

proximity credentials.

Provides four fully-

programmable Class B,

Style A, supervised, power

limited protection zones

that can be programmed

for a variety of burglary

and access control

applications.

7873H

Provides the same

functionality as the 7873

keypad.

Allows the keypad digits to

automatically randomize

on user code entry.

Features an integrated

privacy ﬁlter on the keypad

screen.

7800 Series Installation and Programming Guide2

KEYPAD FEATURES

System Armed

TO DAY

WEDNESDAY

98 77

CURRENT

HI LO

85 68

HI LO

98 77

Panic

Chime

Reset

Favorites

MON 5:35 PMMON 5:35 PM

ARMED

Armed/Power

LEDs &

Proximity Reader

Dealer Logo

Carousel Menu

Local

Weather

Interactive

Arming/Disarming

Shield Press the

Navigation Arrows

or touch and drag

the menu to scroll

Figure 1: Keypad Features

7800 Series Installation and Programming Guide 3

PROGRAMMABLE CAROUSEL MENU

The carousel menu allows the user to pick and choose what displays within the carousel

menu on the home screen. Press Options in the carousel menu. From here, adjust the

keypad screen brightness, keypad tone, and keypad volume. Press a box under Display

In Menu to select that option to display in the carousel menu. Press that box again to

deselect that option. See Figure2.

MODEL NUMBER 7800 V110 0961017

Display In Menu

Chime

Reset

Easy Exit

Check In

Brightness

Tone

Volume

Figure 2: Keypad Options

7800 Series Installation and Programming Guide4

ENTER CHARACTERS

Number Pad

1. Choose a character from the table.

2. Identify the Number the character

correlates with and press that

number on the number pad.

3. Identify the Select Area for the

character and press that select area

on the keypad. Press that select area

again for the lowercase letter. See

Figure 3.

4. When the desired character displays

on the keypad, return to Step 1 to

enter another character or press CMD

if ﬁnished.

Standard Keyboard

• Press ABC to enter uppercase letters.

• Press abc to enter lowercase letters.

• Press !@# to enter special characters.

• Press 123 to enter numbers and to return to the number pad. See Figure 4.

NUMBER SELECT AREA

12 3 4

1A B C ( [ {

2D E F ) ] }

3G H I ! ^ ~

4J K L ? “ |

5M N O / \ `

6P Q R & $

7S T U @ %

8V W X , =

9Y Z Space : _ ;

0- + . ‘ * < # >

7800 Series Installation and Programming Guide 5

Figure 4: Standard Keyboard

1 2 3 4

5 6 7 8

9 0 CMD

ABC DEF GHI JKL

MNO PQR STU VWX

ABC

!@#

123

q w e r t y u i o p

a s d f g h j k l

zx c v b n m CMD

Select Areas

1 2 3 4

5 6 7 8

9 0 CMD

ABC

!@#

ABC DEF GHI JKL

MNO PQR STU VWX

ENTER CODE:

Return

to Home

Screen

1 43

Figure 3: Number Pad

Uppercase/

Lowercase

Letters

Special

Characters

Number Pad

7800 Series Installation and Programming Guide6

INSTALL THE KEYPAD

REMOVE THE COVER

The keypad housing is made up of two parts:

the cover, which contains the circuit board and

components, and the base.

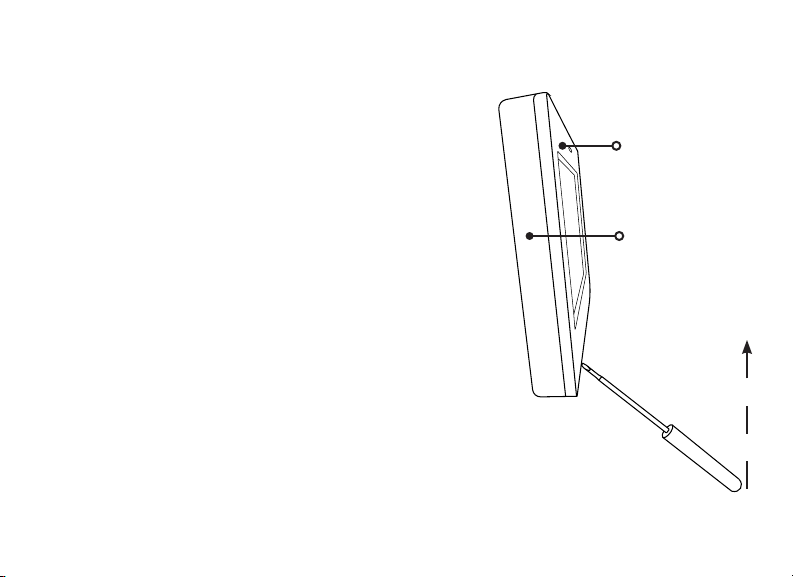

To separate the keypad cover and from the base,

insert a slotted-tip screwdriver into one of the

slots on the bottom of the keypad and lift the

screwdriver upward. Repeat with the other slot.

Separate the cover from the base and set the cover

containing the keypad components aside. See

Figure 5.

Figure 5: Separate the

Keypad Housing

Cover

Base
