Dometic COOLFREEZE CDF16 Bedienungsanleitung

CDF16

Compressor Cooler

Operating manual . . . . . . . . . . . . . . . . . . . . .5

Kompressor-Kühlbox

Bedienungsanleitung . . . . . . . . . . . . . . . . . 17

Glacière à compression

Notice d’utilisation . . . . . . . . . . . . . . . . . . . 31

Nevera por compresor

Instrucciones de uso . . . . . . . . . . . . . . . . . .45

Geleira com compressor

Manual de instruções . . . . . . . . . . . . . . . . .59

Frigorifero a compressore

Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .73

Compressorkoelbox

Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .87

Kompressor-køleboks

Betjeningsvejledning . . . . . . . . . . . . . . . . 101

Kylbox med kompressor

Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 113

Kjøleboks med kompressor

Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 125

Kompressori-kylmälaatikko

Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 137

Компрессорный холодильник

Инструкция по эксплуатации . . . . . . . . . 149

Przenośna lodówka

kompresorowa

Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 163

Chladiaci box s kompresorom

Návod na obsluhu. . . . . . . . . . . . . . . . . . . 177

Kompresorový chladicí box

Návod k obsluze . . . . . . . . . . . . . . . . . . . . 189

Kompresszor hűtőláda

Használati utasítás. . . . . . . . . . . . . . . . . . . 201

COOLING BOXES

COOLFREEZE

cdf16-O-16s.book Seite 1 Dienstag, 14. März 2017 1:06 13

CoolFreeze CDF16

ERROR

POWER

134 5 6 7

NORMAL

USE

EMERGENCY

OVERRIDE

cdf16-O-16s.book Seite 3 Dienstag, 14. März 2017 1:06 13

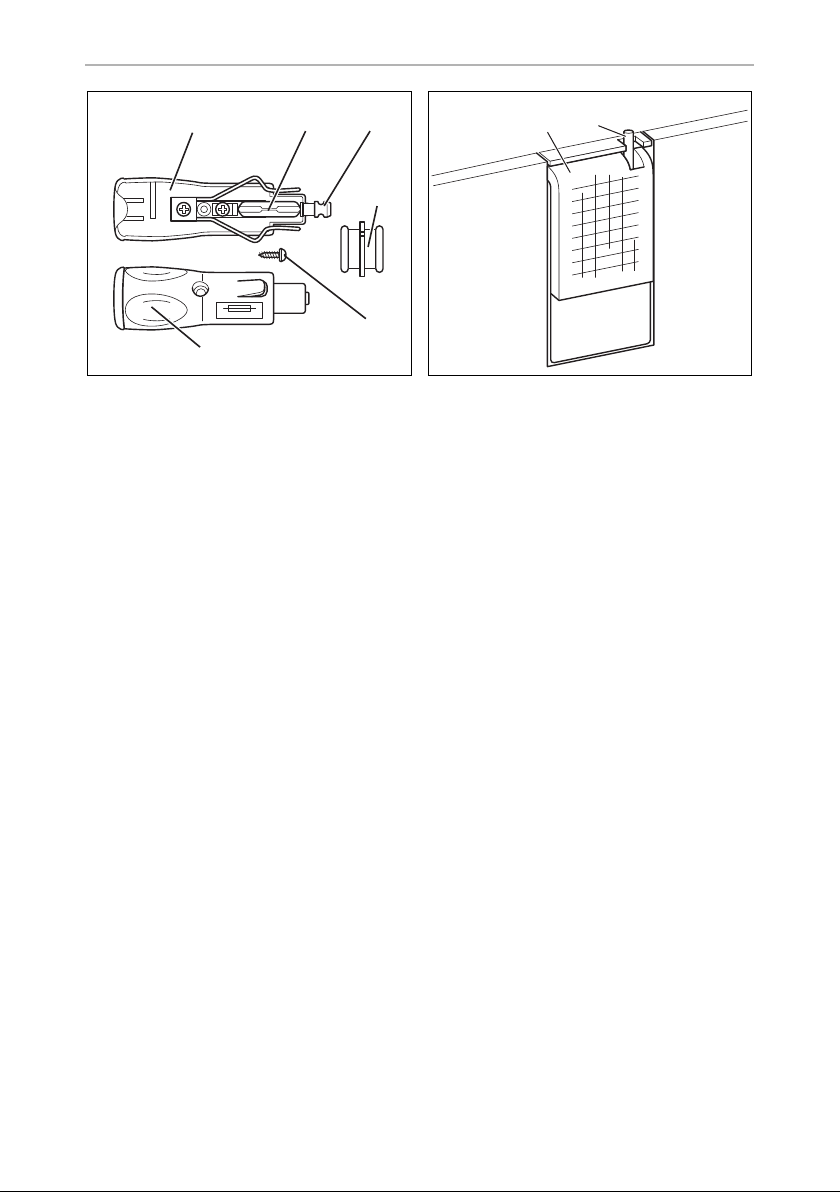

CoolFreeze CDF16

1 2 3

1 2

cdf16-O-16s.book Seite 4 Dienstag, 14. März 2017 1:06 13

CoolFreeze CDF16

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

cdf16-O-16s.book Seite 5 Dienstag, 14. März 2017 1:06 13

Explanation of symbols CoolFreeze CDF16

1 Explanation of symbols

2 Safety instructions

2.1 General safety

!WARNING!

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Improper

repairs can lead to considerable hazards.

•This device can be used by childrenaged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or

serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

cdf16-O-16s.book Seite 6 Dienstag, 14. März 2017 1:06 13

CoolFreeze CDF16 Safety instructions

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the device.

•Children must be supervised to ensure that they do not play with the

device.

•Always keep and use the device out of the reach of children under the

age of 8 years.

•Do not store any explosive substances such as spray cans with a

flammable propellant in the device.

!CAUTION!

•Disconnect the device from the power supply

– before each cleaning and maintenance

– after every use

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the device to a DC plug socket in the vehicle (e. g.

cigarette lighter) with the DC cable.

•Never pull the plug out of the socket by the cable.

•Disconnect the cooler and other power consuming devices from the

battery before connecting the quick charging device.

•Disconnect the cooler or switch it off when you turn off the engine.

Otherwise you may discharge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The cooling device contains inflammable cyclopentane in the

insulation. The gases in the insulation material require special disposal

procedures. Deliver the device at the end of its life-cycle to an appro-

priate recycling.

2.2 Operating the device safely

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

cdf16-O-16s.book Seite 7 Dienstag, 14. März 2017 1:06 13

Scope of delivery CoolFreeze CDF16

ANOTICE!

•Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

•Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that

arises during operation does not build up. Make sure that the device

is sufficiently far away from walls and other objects so that the air can

circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the device in water.

•Protect the device and the cable against heat and moisture.

3Scopeofdelivery

4 Intended use

The cooler is suitable for cooling and freezing foods. The device is also suitable for

use on boats.

The device is designed to be operated from a 12 Vgor 24 Vgon-board supply

socket of a vehicle (e. g. cigarette lighter), boat or caravan..

Quantity Description

1 Cooler

1 Connection cable for 12/24 Vgconnection

1 Operating manual

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

cdf16-O-16s.book Seite 8 Dienstag, 14. März 2017 1:06 13

CoolFreeze CDF16 Function description

5 Function description

The cooler can chill products, keep them cool as well as freeze them. A mainte-

nance-free refrigerant circuit with compressor provides the cooling. The extra strong

insulation and powerful compressor ensure especially fast cooling.

The cooler is portable.

When used on boats, the cooler can be withstand a constant heel (inclination) of 30°.

An integrated battery monitor can be set to protect your vehicle battery from

discharging to dangerously low levels

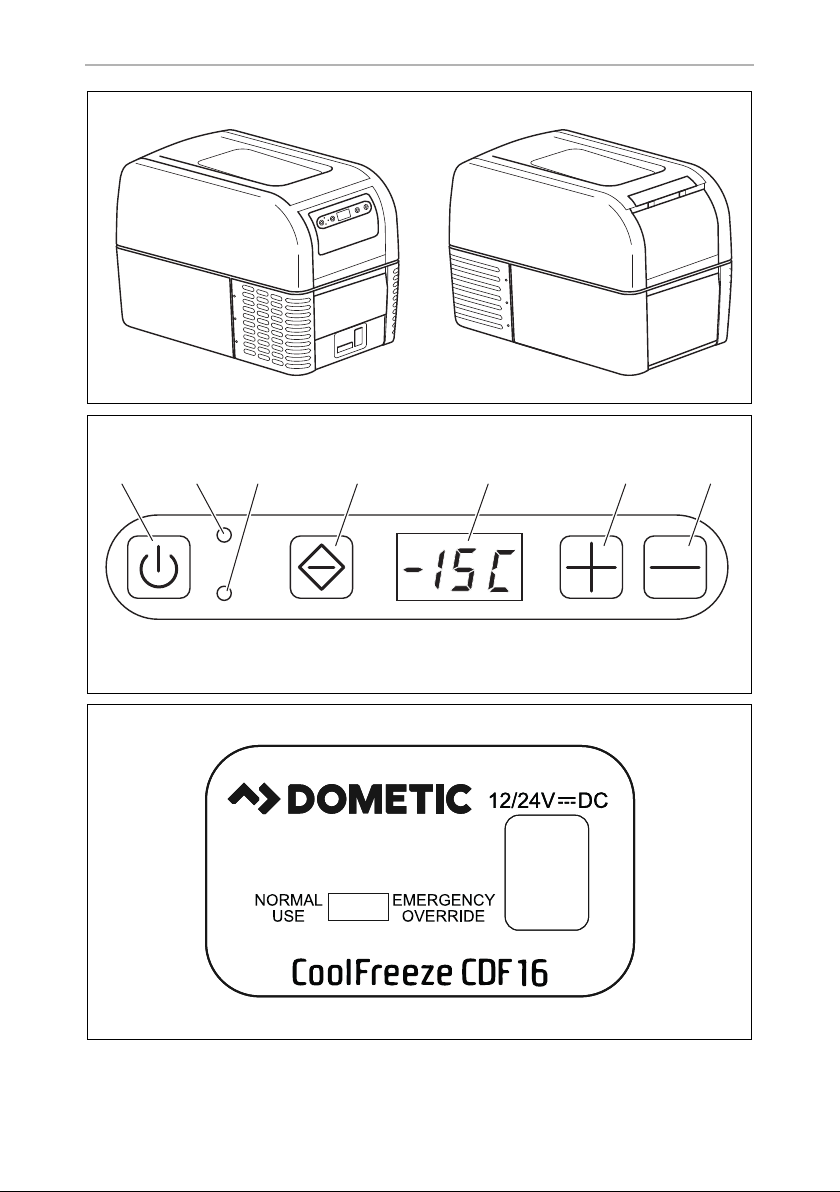

5.1 Operating and display elements

fig. 2, page 3

Item Description Explanation

1ON

OFF button

Switches the cooler on or off when the button is pressed for

between one and two seconds

2 POWER Status indication

LED lights up green: Compressor is on

LED lights up orange: Compressor is off

LED flashes orange: Display switched off

automatically due to low

battery voltage

3 ERROR LED flashes red: Device is switched on but not

ready for operation

4 SET Selects the input mode

– Temperature setting

– Celsius or Fahrenheit display

– Set battery monitor

5 – Display, shows the information

The first three digits of the four-digit display show the

temperature, the fourth digit shows the temperature unit

(°C or °F).

6 UP + Press once to increase the value

7 DOWN – Press once to decrease the value

cdf16-O-16s.book Seite 9 Dienstag, 14. März 2017 1:06 13

Operation CoolFreeze CDF16

6Operation

6.1 Before initial use

6.2 Energy saving tips

•Choose a well ventilated installation location which is protected against direct

sunlight.

•Allow warm food to cool down first before placing it in the cooling device to

keep cool.

•Do not open the cooling device more often than necessary.

•Do not leave the cooling device open for longer than necessary.

•Defrost the cooler once a layer of ice forms.

•Avoid unnecessary low temperatures.

6.3 Connecting the cooler

The cooler can be operated with 12 Vgor 24 Vg.

For safety reasons the cooler is equipped with an electronic system to prevent the

polarityreversal. Thisprotectsthe cooleragainstshort-circuiting when connectingto

a battery.

➤Plug the 12/24-V connection cable into the DC voltage socket and also into the

cigarette lighter or a 12 V or 24 V socket.

NOTE

Before starting your new cooler for the first time, you should clean it

inside and outside with a damp cloth for hygienic reasons (please also

refer to the chapter “Cleaning and maintenance” on page 14).

NOTICE! Danger of damage!

Disconnect the cooler and other consumer units from the battery before

you connect the battery to a quick charging device.

Overvoltage can damage the electronics of the device.

cdf16-O-16s.book Seite 10 Dienstag, 14. März 2017 1:06 13

CoolFreeze CDF16 Operation

6.4 Using the battery monitor

If the cooler is operated when the vehicle ignition is switched off, the cooler switches

off automatically as soon as the supply voltage falls below a set level. The cooler will

switch back on once the battery has been recharged to the restart voltage level.

In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and

“MED” (see the following table).

➤Switch on the cooler.

➤Press the “SET” button three times.

➤Use the “UP +” and “DOWN –” buttons to select the battery monitor mode.

✓The selected mode then appears in the display for a few seconds. The display

flashes several times before it returns to the current temperature.

NOTICE! Danger of damage!

When switched off by the battery monitor, the battery will no longer be

fully charged. Avoid starting repeatedly or operating current consumers

without longer charging phases. Ensure that the battery is recharged.

Battery monitor mode LOW MED HIGH

Switch-off voltage at 12 V 10,6 V ± 0,3 V 11,4 V ± 0,3 V 11,8 V ± 0,3 V

Restartvoltage at 12 V 11,6 V ± 0,3 V 12,2 V ± 0,3 V 12,6 V ± 0,3 V

Switch-off voltage at 24 V 22,0 V ± 0,3 V 24,1 V ± 0,3 V 24,6 V ± 0,3 V

Restart voltage at 24 V 23,5 V ± 0,3 V 25,3 V ± 0,3 V 26,2 V ± 0,3 V

NOTE

When the cooler is supplied by the starter battery, select the battery

monitor mode “HIGH”. If the cooler is connected to a supply battery,

the battery monitor mode “LOW” will suffice.

cdf16-O-16s.book Seite 11 Dienstag, 14. März 2017 1:06 13

Andere Handbücher für COOLFREEZE CDF16

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Dometic Autozubehör Handbücher

Dometic

Dometic PerfectView CAM 360 AHD Bedienungsanleitung

Dometic

Dometic 747AFRM17 Series Handbuch

Dometic

Dometic RTX1000 Bedienungsanleitung

Dometic

Dometic CoolAir SPX1200C Bedienungsanleitung

Dometic

Dometic CAM1000 Bedienungsanleitung

Dometic

Dometic COOLAIR RT780 Bedienungsanleitung

Dometic

Dometic Mini Heki S FL Bedienungsanleitung

Dometic

Dometic SPX1200T Bedienungsanleitung

Dometic

Dometic PerfectView CAM360 Bedienungsanleitung

Dometic

Dometic SMRTSTACRV Bedienungsanleitung

Dometic

Dometic 3314998.000 Bedienungsanleitung

Dometic

Dometic PerfectView Switch 300 Bedienungsanleitung

Dometic

Dometic RTX1000 Bedienungsanleitung

Dometic

Dometic PERFECTROOF Bedienungsanleitung

Dometic

Dometic Oceanair Skysol Track Small Manual Bedienungsanleitung

Dometic

Dometic RVMAN1 Bedienungsanleitung

Dometic

Dometic COOLAIR RT780 Bedienungsanleitung

Dometic

Dometic Oceanair Skyvenetian Bedienungsanleitung

Dometic

Dometic RKE 400 Bedienungsanleitung

Dometic

Dometic IBIS4 Series Bedienungsanleitung

Dometic

Dometic COOLAIR SPX1200I Bedienungsanleitung

Dometic

Dometic Oceanair Skysol Frame Manual Bedienungsanleitung

Dometic

Dometic PerfectView M70IP Bedienungsanleitung

Dometic

Dometic Heki2 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
