A 803 K

Operating instructions

Fig 1

1. Warnings and directions

These warnings are provided in the interest of safety. You must read them

carefully before installing or using the appliance!

This product is designed to be operated by adults. hildren should not be

allowed to tamper with the controls or play with the product.

Any electrical work required to install this appliance should be carried out by

a qualified electrician.

It is dangerous to alter the specifications or modify this product in any way.

The absorption refrigerator is designed to be used specifically for the storage

of edible foodstuffs and drinks only.

There are working parts in this product which heat up. Always ensure that

there is adequate ventilation as a failure to do this will result in component

failure and possible food loss (refer to relevant instructions for unit installation

under point 4.).

Before defrosting, cleaning or maintenance work is carried out, be sure to

switch off the appliance and unplug it. Shut down gas operation!

Manufacturers' food storage recommendations should be strictly adhered to.

Refer to relevant instructions for food and drink storage under point 13.

Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause injury or more

serious malfunctioning. This product should be serviced by an authorised

Service Engineer, and only genuine spare parts should be used.

2. Area of use

The unit may not be installed in motor vehicles and boats when using the gas

operation method!

Operation using liquid gas is permitted only in well ventilated rooms - which

have a capacity (length x width x height) of at least 20 m3and have a window

(which can e opened) or a door to the outside - or out of doors

Outdoor use includes tents (awnings) which are well ventilated throughout unit

operation and flat garden terraces.

There are no restrictions on electrical operation.

Site of operation must be protected from rain and other water sources.

Dear customer,

please read the instruction book and all additional information

before using the appliance. It is most important that they should be

retained with the appliance for future reference!

3. Storage of gas cylinders

Liquid gas cylinders should never be stored in unventilated areas or below

ground (funnel-shaped holes). Avoid direct sunlight. The gas cylinder should not

be exposed to temperatures in excess of 50° .

4. Installation

To be installed horizontally on a smooth, firm or any other appropriate surface.

If necessary, adjust/align using a spirit level or a water-filled vessel.

There should be a distance of at least 10cm between the back of the unit and

any other object (wall).

Avoid placing unit in direct sunlight and next to other sources of heat.

Ventilating ducts of the refrigerator should be kept clear of all obstructions to

ensure a good air circulation.

This will result in a good, energy-saving cooling system.

5. Cleaning

Before initial use and after defrosting or before prolonged periods of disuse,

clean the unit containers and door with luke-warm water and, if necessary,

washing-up liquid. Warning: do not inadvertently press or force the opened door

past its stop-point (this could cause the hinges to break). Never use scouring or

corrosive agents to clean the unit. Wipe cleaned surfaces dry with a soft cloth.

6. A/C operation

Do not use any additional form of energy (batteries/gas).

heck that the supply voltage and line voltage data correspond to the type-plate

in the unit.

WAR I G - THIS APPLIA CE MUST BE EARTHED!

If a 13 amps (B.S. 1363) fused-plug is used, it should be fitted with a 3 amp fuse.

In other cases, the circuit to which the refrigerator is connected should be fitted

with a 5 amp fuse.

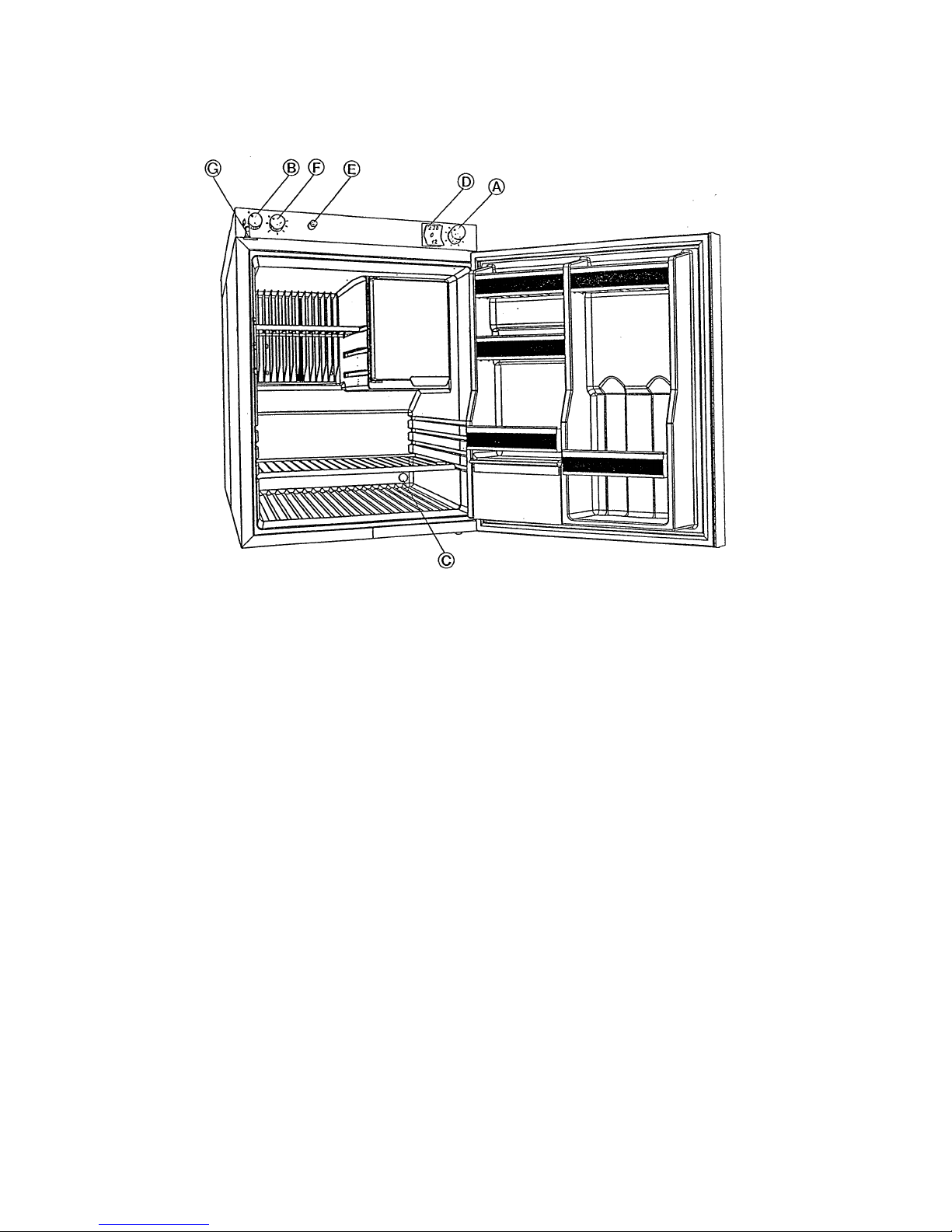

To turn on (Fig. 1)

- 3-way-switch (D) should be in position 230V.

- Turn thermostat knob (A) clockwise to position 6/MAX. Only after

approximately 1 hour will the unit become noticably cool (frost on

evaporator).

- The temperature can be regulated using the thermostat knob: '0'=off, 1-6

increasing degrees of coolness.

- After sufficient cooling (approximately 5 hours), the thermostat position can

be set to a lower temperature, between 2-5. The thermostat will now

automatically regulate the set temperature.

To turn off (Fig. 1)

- 3-way-switch (D) should be in position '0'.

- Turn thermostat knob (A) anticlockwise to position '0' (a slight resistance will

be felt just before this position).

- Pull out mains plug.

7. D/C operation

Do not use any additional form of energy (mains/gas). A safety fuse must be

installed in the electricity supply between battery and refrigerator in a duct.

12 V: maximum 15 amps; 24 V: maximum 7.5 amps.

It is not necessary to consider the polarity when connecting the unit. heck that

the battery voltage and line voltage data correspond to the type-plate on the

back of the unit.

If no batteries are used independently of the vehicle, the mobile cooler should

not be operational when the vehicle is in motion, since the battery can discharge

to the extent that the vehicle engine cannot restart when the vehicle is at a

standstill.

During transport, the door safety button (G) must remain depressed, so that the

door is kept in a closed and safe position.

Recommendation: before journey, pre-cool the unit using A/ operation.

To turn on

Plug the car plug must be mounted according to your car on the connecting

cable into the plug connector/cigarette lighter.

When using battery operation, the cooling performance is not thermostatically

regulated, i.e. knob (A) is ineffective.

When knob (A) is ineffective or if the temperature is unnecessarily too low:

Turn off unit

Pull out plug from socket.

max. cable lengths

able cross section 12 V 24 V

2.5 mm2until 2.5 m 5 m

4.0 mm2until 4.0 m 8 m

6.0 mm2until 6.0 m 12 m

8. Liquid gas operation

Do not use any additional form of energy (mains/battery). The unit must not be

connected to town or natural gas pipelines. It is only suitable for use with

propane/butane gas (e.g. alor Gas, amping Gaz, aravangas, etc).

The refrigerator is equipped for a specific gas-pressure, corresponding to the

standard pressure of the country in which it is sold. The rating-plate states the

pressure which is correct. It is important that a non adjustable pressure-

regulator is used to reduce the pressure in the gas cylinder to the operating

pressure specified on the rating-plate, no other pressure may be used.

eedle valve operated gas control taps are OT suitable for use with this

appliance and must not be used as a substitute for a pressure regulator.

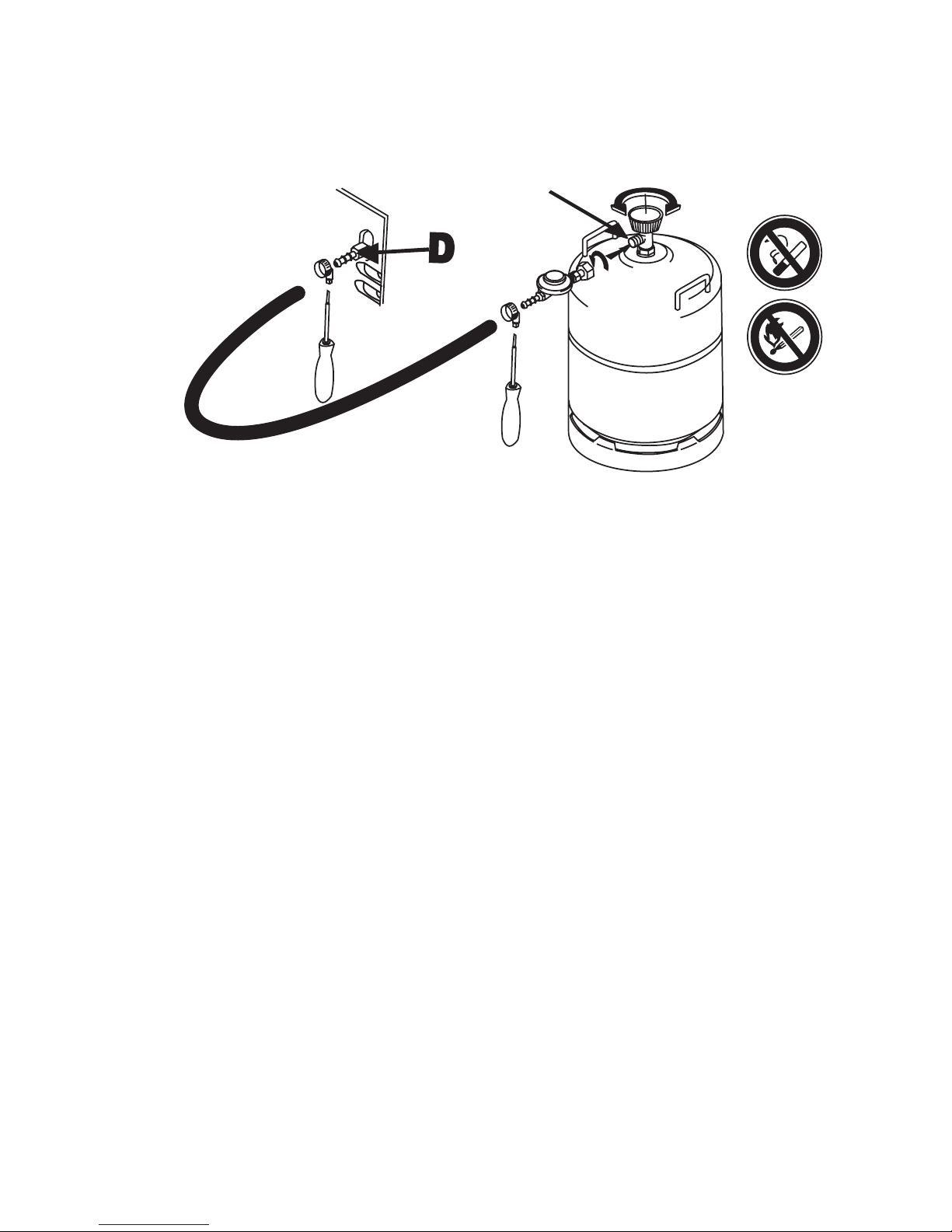

9. Connection of gas supply

Always connect in the following sequence:

GAS BOTTLE →→PRESSURE-REGULATOR →→APPLIA CE.

The gas bottle must only be used in an upright position and particular care must

be taken every time the appliance is connected to the gas bottle to ensure that

there are no leaks, that the gas pipe (rubber hose) is not under tension or

kinked, and that it is not in contact with hot surfaces.

The connection pipe and gas bottle should always be located in positions where

they will not be tripped over or otherwise inadvertently disturbed.

Before attempting to light the burner, every time after connection, turn on the

gas at the bottle and check the gas connections for leaks by applying a soap

and water solution over them and watching for bubbles, which would indicate a

leak.

For your safety

Do not check for leaks with a naked flame!

Do not smoke while checking for leaks!

10. Gas equipment system (Fig. 1)

The gas equipment consists of a multiple value (B) [value with built-in

thermoelectric ignition control], the piezo-gas lighter (E), a burner with sparking

plug and the gasthermostat.

Knob (B) can be turned to 2 function positions:

:large flame = gas-flow open;

:out position = gas supply to burner is closed.

If, for any reason the gas flame extinguishes, the ignition control is working

automatically and shuts off gas supply.

11. Igniting the gas burner (Fig. 1/2)

1. 3-way-switch (D) should be in position "0"

2. Open gas cylinder or pressure regulating valve.

3. Turn knob (F) to position 6.

4. Turn knob (B) anticlockwise to the MAX position, press and hold down.

5. After approximately 10 seconds, press knob (E) several times. After ignition,

hold down knob (B) for a further 20-30 seconds before releasing.

The flame can be controlled by aperture ( ).

Should no ignition occur, repeat the ignition process after 1 minute.

(This could lake longer than 10 seconds if the unit has been out of operation

for a prolonged period or after replacing the gas cylinder. ause: air in the

lines.)

6. When a sufficient low internal temperature of the refrigerator has been

reached, it may be necessary to set the control knob (F) to MIN-position,

particularly at night, in cool weather conditions or when the refrigerator is

only lightly loaded, respectively the ambient temperature is below +18° , in

order to avoid overfreezing the contents.

12. Shutting down gas operation (Fig. 1/2)

1. lose gas cylinder or pressure regulating valve.

2. Turn knob (B) clockwise to the off position.

13. Food and drink storage

- Foodstuffs and drinks should always be stored sealed in the unit. Thus,

changes in taste and smell are avoided.

- Food and drink should be so placed in the cooler so as to allow air to

circulate freely.

-Do not place hot food or drinks in the cooler!

-Under no circumstances should inflammable liquids and/or gases be

stored in the cooler. Explosion hazard!

14. Defrosting and measures for prolonged

periods of disuse

A build up of too much ice on the evaporator hinders cooling of the unit and thus

reduces effectiveness. Therefore, it is recommended to defrost the mobile

cooler as soon as an approximately 5mm thick layer of ice has formed. This is

done by turning off the unit and removing any food or drink therin. Never use

heated appliances, heaters, etc. to speed up the defrosting process! If

necessary, a cloth dipped in warm water can be placed on the unit to help the

defrosting process. After defrosting, clean up the defrosted water with a clean

cloth and clean the cooler containers as described in chapter 4.

Should the unit be out of operation for a prolonged period, turn off unit and

remove contents. After defrosting, the cooler should be cleaned carefully and

dried.

To avoid any unpleasant smells forming in the cooler, the lid should be left

slightly open.

15. Measures after prolonged periods of disuse

Should the refrigerator not function correctly after being switched on, place the

unit upside down WITHOUT ANY ONNE TING POWER SUPPLY. After a few

minutes return the refrigerator to its correct position and switch on again.

Should the unit still not fuction correctly, repeat the process several times.

16. Maintenance

hanging the gas filter: the cellulose gas filter is situated at the back in the gas

connection piece. When it becomes necessary to replace the gas filter, remove

the filter from the duct and replace it with a new one. Any other maintenance and

repair works, especially those relating to the cooling aggregate and the gas-

burner system, may only be undertaken by authorized customer service points.

17. After-sales service

Should a problem arise with the unit, please check the following before

contacting customer service:

- is the unit suitably placed and is it well ventilated?

- is the unit placed on a flat surface?

- does the socket supply current?

- is the connecting cable damaged in any way?

- is there a loose connection?

- has the plug been properly plugged into the socket?

- has the electrothermostat been correctly adjusted?

- in the case of gas operation, has the safety pilot knob (regulator) been

pressed down long enough?

- has the regulating knob been turned to the correct position?

- is the gas cylinder or pressure regulating valve open?

- does the liquid gas cylinder still contain gas? If no liquid movement is evident

on shaking the cylinder, then the gas cylinder is empty.

- are several operating methods being used simultaneously?

- have warm foodstuffs been stored in the cooler?

- was a too large a quantity of food or drink stored at any one time? Food and

drink should be so stored as to allow free air circulation. Do not use paper or

plastic plates. Always keep containers for liquids sealed.

When contacting our customer service department, please indicate the unit

type, product number, serial number and type of defect.

We accept responsibility for the perfect condition of the unit, the guarantee

being in accordance with our garantee conditions.

18. Technical Data

Gas operation butane (propane):

Rated thermal loading: 189 W (195W)

Min. thermal loading: 112 W (115W)

onnected load, gas: 13.6 g/h (13,9g/h)

onnection pressure: 28-30/37 mbar

ategory: l3+

limate class: 'N'

Electric operation

220 V - 240 V (mains) 50 Hz: 130/50 W

12 V/24 V (car battery): 120 W

apacity: 70 l

Refrigerant: 0.54 kg NH3+ H2O

The refrigeration cycle has been checked for leaks.

Depending on the model, the controls can be positioned either at the top (as

depicted) or at the bottom (no picture). Operation is the same in both cases (Fig. 1).

The appliance does not contain any CFCs/HCFCs.

Sodium chromate is used for corrosion protection (less than 2 weight % of the

coolant).

19. Recycling

After unpacking the appliance, the packing materials should e delivered to a local

collection site. At the end of its useful lifetime, the appliance should e delivered

to a specialised collection and reprocessing firm, which reclaims the usa le

materials. The rest is properly destroyed.

This appliance complies with the following EE directives:

- LVD-Directive 73/23/EE with amendment 90/683/EE ;

- EM -Directive 89/336/EE ;

- Gas-Directive 90/396/EE .

Fig 2

seal

Andere Dometic Kühlschrank Handbücher

Dometic

Dometic RM 5310 Bedienungsanleitung

Dometic

Dometic HiPro 3000 Bedienungsanleitung

Dometic

Dometic RMS8 Series Bedienungsanleitung

Dometic

Dometic 9600029484 Handbuch

Dometic

Dometic DS 300 H Bedienungsanleitung

Dometic

Dometic SILENCIOHC Bedienungsanleitung

Dometic

Dometic TL200 Bedienungsanleitung

Dometic

Dometic RMS 8400 RMS 8401 Bedienungsanleitung

Dometic

Dometic F400 Bedienungsanleitung

Dometic

Dometic COOLMATIC PPCRX50 Bedienungsanleitung

Dometic

Dometic Coolmatic RPD50 Bedienungsanleitung

Dometic

Dometic DMR 7-Series Handbuch

Dometic

Dometic MYFRIDGE MF 5M Bedienungsanleitung

Dometic

Dometic TropiCool TC14 Bedienungsanleitung

Dometic

Dometic CFX3 25 Bedienungsanleitung

Dometic

Dometic REFRIGERATION 10-Series Bedienungsanleitung

Dometic

Dometic RC10.4T.70 Bedienungsanleitung

Dometic

Dometic HIPRO CRUISE N40SCL Bedienungsanleitung

Dometic

Dometic SUPERCOOLER RC 4000 Bedienungsanleitung

Dometic

Dometic L-2083 Betriebsanleitung

Dometic

Dometic NDR1062 Bedienungsanleitung

Dometic

Dometic Americana Bedienungsanleitung

Dometic

Dometic RM 7801 L Bedienungsanleitung

Dometic

Dometic RMT 7855 Original Betriebsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
