Dormakaba T900 Bedienungsanleitung

Installation instructions

T900 Tubular Lock

76019012 02/18 www.dormakaba.us

1 - INSIDE LEVER ASSEMBLY

2 - OUTSIDE LEVER ASSEMBLY

3 - SPINDLE/SPRING (2)

4 - LATCHBOLT ASSEMBLY

5 - LATCH FACEPLATE

6 - LATCH/STRIKE SCREWS

7 - STRIKE

8 - DUST BOX

9 - LOCKING PIN (T940 ONLY)

10 - MOUNTING SCREWS

11 - INSIDE ROSE

Tools required

Phillips screwdriver

1” hole saw

2-1/8” hole saw

Chisel (wood only)

1.1 Prepare door - use included template

Fig 1

BACKSET

5/32”

[4]

DEEP

Ø1”

[25.4]

HOLE

1” or 1-1/8”

[28.6]

2-1/4”

[57.2]

Ø2-1/8”

[54.0]

HOLE

1.2 Prepare frame for strike plate

Fig 2

(2) COMBO SCREWS

T & FL STRIKE - #8-32

ANSI STRIKE - #12-24

1 Tubular lock installation

℄OF LATCH

FRONT AND

STRIKE

NOTE: T-strike is typical

for this lock set.

NOTE: See product

section of website for

other available strike

templates.

Installation instructions

www.dormakaba.us76019012 02/18

REHAND LATCH:

PULL PLUNGER AND

ROTATE 180°.

NOTE:

THREADED HOLE MUST FACE

INSIDE OF DOOR.

(2) COMBO SCREWS

#8-32 X 3/4"

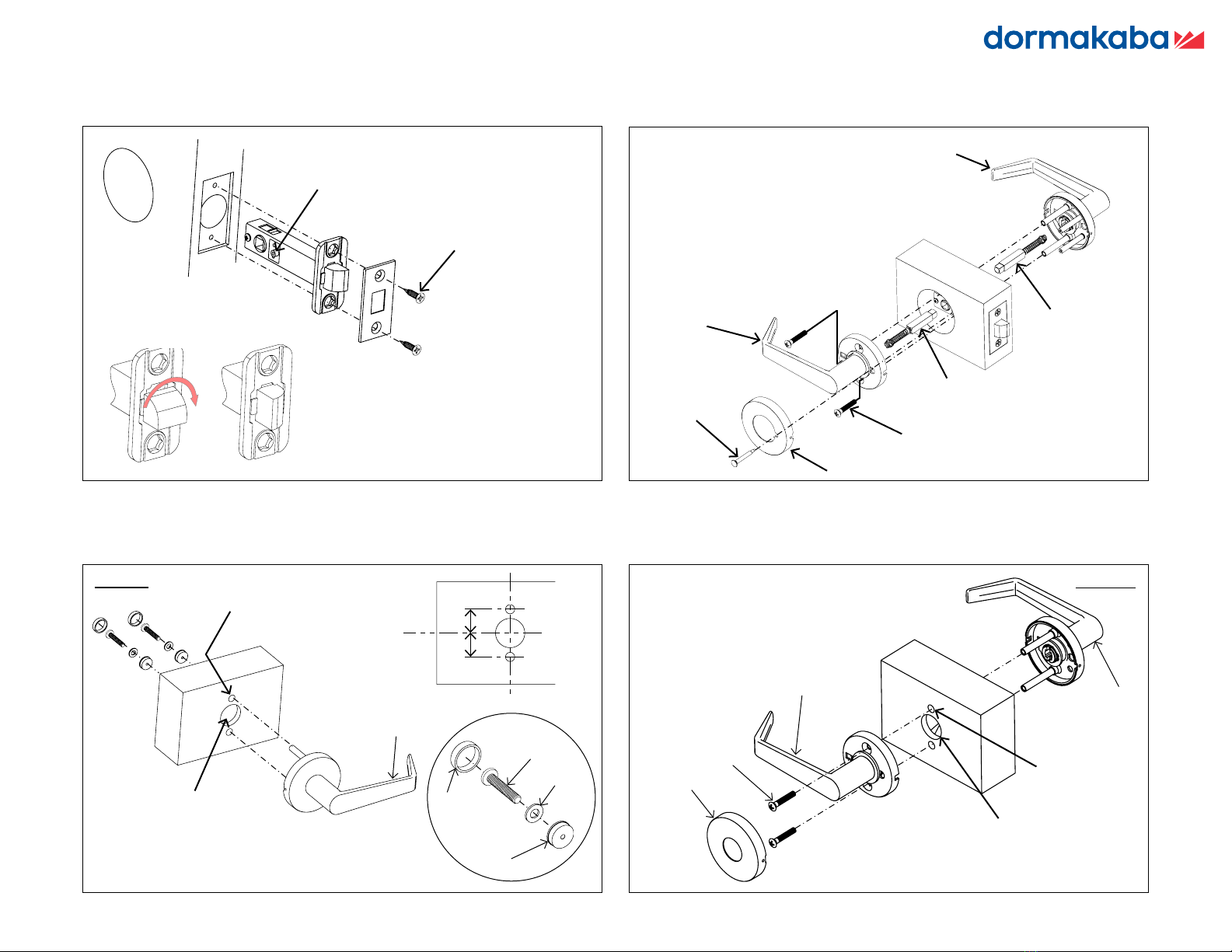

1.3 Secure latch to door 1.4 Secure lever to door

Fig 3 Fig 4

1.3.1 Rehand latch if necessary.

1.3.2 Secure latch to door using

included fasteners.

1.4.1 Slide spindles into both sides

of the latch.

1.4.2 Install inside and outside lever

assemblies through door.

1.4.3 Secure with included

fasteners.

1.4.4 Slide rose over inside lever

and secure with included pin.

(2) SCREWS

#10-32 X 1"

SPINDLE

INSIDE ROSE

INSIDE

LEVER

ASSEMBLY

OUTSIDE

LEVER

ASSEMBLY

Fig 1

2 Dummy trim installation

LOCK

℄

13/16"

[21]

13/16"

[21]

SINGLE

1" HOLE [25.4]

1/4" DEEP [6.4] MIN.

THIS SIDE

(2) 5/16" [7.9]

THRU HOLES

1 - INSIDE LEVER ASSEMBLY

2 - OUTSIDE LEVER ASSEMBLY

3 - MOUNTING SCREW (DOUBLE)

4 - ROSE

5 - MOUNTING SCREW (SINGLE)

6 - FLAT WASHER

7 - CUP WASHER

8 - CAP

DOUBLE

1" HOLE [25.4]

1/4" DEEP [6.4] MIN.

BOTH SIDES

(2) 5/16" [7.9]

THRU HOLE

Fig 2
