Thank you for choosing a Euroscreen®to be part of your AV

installation. We hope it will bring you many hours of entertainment and/or

education depending on your preference. Please read through the

manual completely before installation and usage.

Tack för att ni valt en Euroscreen®som en del i er AV-installation. Vi hop-

pas den kan ge er många timmar av underhållning och/eller

utbildning, beroende på aktivitet. Läs igenom hela manualen innan

installation och användning.

CAUTION:CAUTION: Modications to the instal-

lation must be wired and connected by a

certied electrician!

VARNING:VARNING: Ändringar av installationen

måste kopplas av behörig elektriker!

Read this rst / Läs detta först

Assembly / Montering

EN: The Euroscreen®Odin case is intended to be

mounted in the ceiling, at the endcaps. Use either the supplied chains or by other

means using the endcaps.

DraperEurope recommends that each side should be able to carry 250kg

(500kg in total) for a minimum x2 safety margin.

Keep the screen horizontal at all times during transport and installation!

The case is prepared with multiple fastening points.

ALL FOUR CORNERS MUST BE FASTENED

(see g 1).

SE: Euroscreen®Odin är avsedd att installeras i tak, med gavlarna som fästpunkter.

Använd antingen de medföljande kedjorna eller annat lämpligt sätt via gavlarna.

DraperEurope rekommenderar att varje sidas fästpunkt dimensioneras för att

kunna bära 250kg (totalt 500kg) för en säkerhetsmarginal på minst x2.

Se till att hålla lmduken i horisontellt läge under

transport och installation!

Kassetten är försedd med ett ertal infästningspunkter.

KASSETTEN MÅSTE FÄSTAS I ALLA FYRA HÖRN

(se g 1).

g 1

g 2

EN: The lifting eyebolt must be adjusted to aling with

the lifting direction before lifting. It shall be placed so

no turning or bending forces are applied to the eyebolt.

If the chains are replaced with other lifting equipment

the lifting angle may never exceed 45° from the

vertical plane (see g 2)!

Lifting equipment should be checked once a

month and undergo a thorough inspection at least

once a year.

SE: Öglebulten skall justeras i dragriktningen före

belastning. Öglebulten skall placeras så inga vrid- eller

böjkraften belastar den.

Om kedjorna ersätts av annan lyftutrustning får lyftvin-

keln aldrig överstiga 45° från vertikalplanet

(se g 2)!

Lyftutrustning bör kontrolleras minst en gång i

månaden och ska genomgå en grundlig inspektion

minst en gång om året.

A A

B B

C C

D D

SHEET 1 OF 1

DRAWN

CHECKED

MFG

APPROVED

niclas.bexelius 2019-11-12

DWG NO

TITLE

SIZE

SCALE

REV

1 : 1

MAX 45°

g 5

Removing the lid / Ta bort locket

g 4

EN:

To remove the lid at the bottom, unscrew the middle

screws in the bottom row on both sides (see g 3).

Remove the lid by tilting it up-and-out (see g4).

Any other work on the screen casing shall be done

with the screen safely placed on oorlevel!

SE:

För att ta bort bottenstycket, skruva bort de mittersta

skruvarna i botten på båda sidor (se g 3).

Avlägsna locket genom att föra det upp-och-ut (se g 4).

Allt annat arbete på kassetten skall utföras med kas-

setten säkert placerad i marknivå.

g 3

g 7

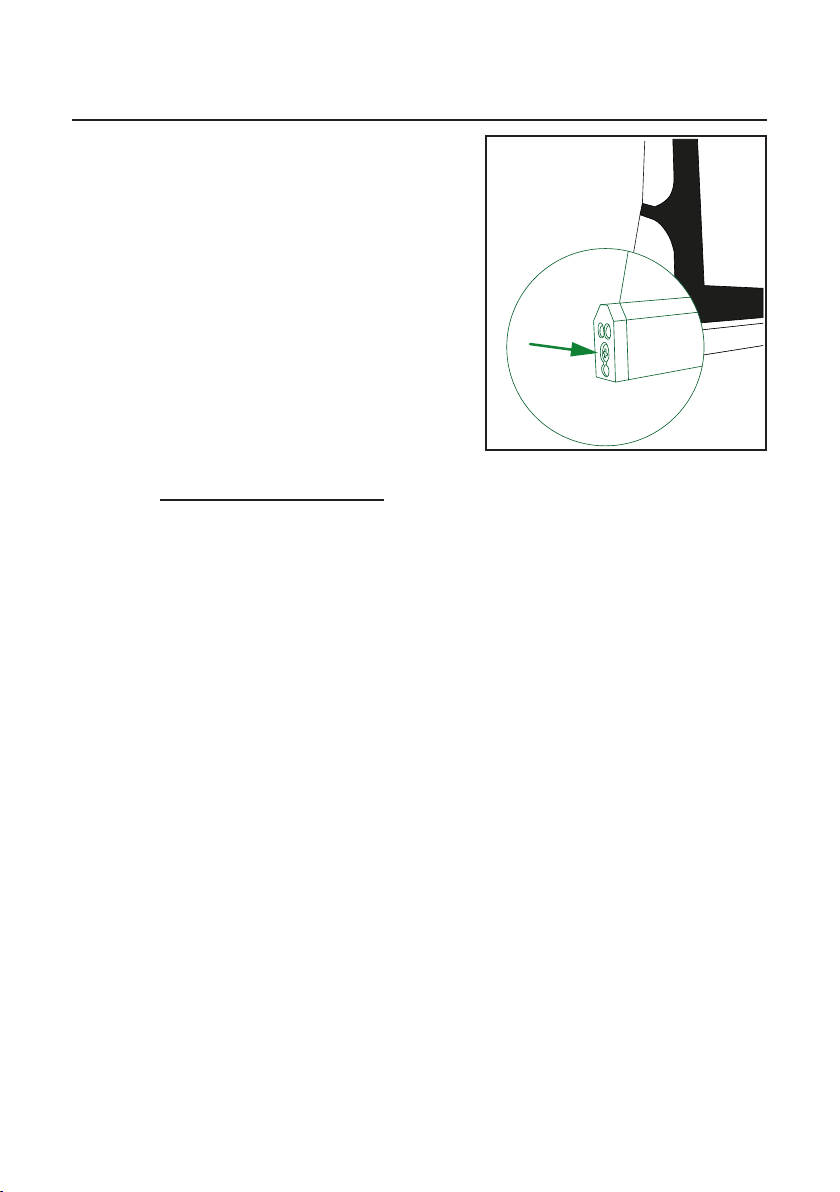

Tensioning / Trådspänning

OPTIONAL

EN: To keep the surface at you may need to adjust the

tensioning as the surface will change with time and

temperature. This is done with the tensioning screw

marked in g 7. It is adjustable with 1/6 turn increments.

Only adjust it in a single increment at a time!

1. Carefully lift the bottom bar with a rm grip

2. Press the screw in 2-3mm to unlock it and turn it

clockwise to increase the tension, anti-clockwise to

decrease it

3. Let the screw come out and lock again

4. Leave the screen to hang and set for a minute

5. Repeat procedure if necessary

TILLVAL

SE: För att bibehålla ytan slät kan trådarnas spänning

behöva justeras emellanåt. Detta beror på att dukmatrialet

ändras med tid och temperatur. Justeringen görs med

skruven som markerats i g 7. Tråden kan justeras i

1/6-dels varv per steg. Justera endast med 1 steg åt

gången!

1. Lyft försiktigt bottenprolen med ett stadigt grepp

2. Tryck in skruven 2-3mm för att släppa låset och vrid

skruven medsols för att spänna tråden, motsols för att

släppa efter

3. Släpp ut skruven så att den hakar i sitt lås igen

4. Låt duken hänga och ”sätta sig” några minuter

5. Repetera om nödvändigt

REACH

Conformity of regulations

Draper Europe AB manufactures AV equipment Products are controlled and certied by the below listed regulations.

REACH

Registration, evaluation, authorisation and limitation of chemicals. Regulation (EC) No 1907/2006 of the European

Parliament and of the European Council concerning the Registration, Evaluation, Authorisation and Restriction of

Chemicals (REACH).

All screen surfaces of Euroscreen®projection screens are approved by the REACH regulation.

ECHA

European Chemicals Agency (ECHA) gathers information on the properties of manufacturers and importers chemical

substances, which will allow their safe handling, and to register the information in a central database.

Euroscreen®projection screens are printed with colours containing the following components:

CAS 1333-86-4, CAS 112-36-7, CAS 96-48-0, CAS 143-24-8, CAS 1559-34-8, CAS 2687-91-4,

CAS 111-90-0, CAS 34590-94-8 and CAS 126-86-3. These are all approved by ECHA.

RoHS

Restriction of Hazardous Substances Directive (RoHS) directive restricts the use of six hazardous materials in the

manufacture of various types of electronic and electrical equipment.

All electrical devises used in Euroscreen®products are RoHS certied.

WEEE

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European Community directive

2002/96/EC on waste electrical and electronic equipment (WEEE) which, together with the RoHS Directive 2002/95/

EC, setting collection, recycling and recovery targets for all types of electrical goods.Applicable Euroscreen®products

are labeled with the WEEE symbol.

FR2000

FR2000 is an integrated management system for quality, environment, competence enhancement, health and safety.

This systems is derived from; ISO 9001, ISO 14001,SS 62 40 70, the Swedish work environment authority regarding

systematic environmental progress, and the Swedish rescue services agency regarding systematic re safety, SRVFS

2004:3.

Draper Europe AB is certied by FR2000 since 2010.

FTI

Producers responsibilty for recycling of packaging material is regulated by SFS 2006:1273. The recycling process of

packaging material is handled for its members by a central organization called FTI.

Draper Europe AB is a member of FTI.

Declaration of Conformity

Draper Europe conrms that Euroscreen®Electric meets Machinery Directive 2006/95/EG & EMC Directive 2004/108/EC.

This is an EN61140 Class I product with internal separation instead of protective conductor (EN61140 7.2.2 Note 2).

Euroscreens®are CE-approved.

Lyftkomponenterna till ODINTM uppfyller kraven i ISO3266 och Maskindirektivet 2006/42/EG.
