Vigor2600 plus Series introduction

LED Indicators and

Back Panels

Each of the Vigor2600 plus series router has different front and rear panels. Before you

begin to install, please take a moment to become more familiar with the LEDindicators and

rear panels. The following sections describe the models individually.

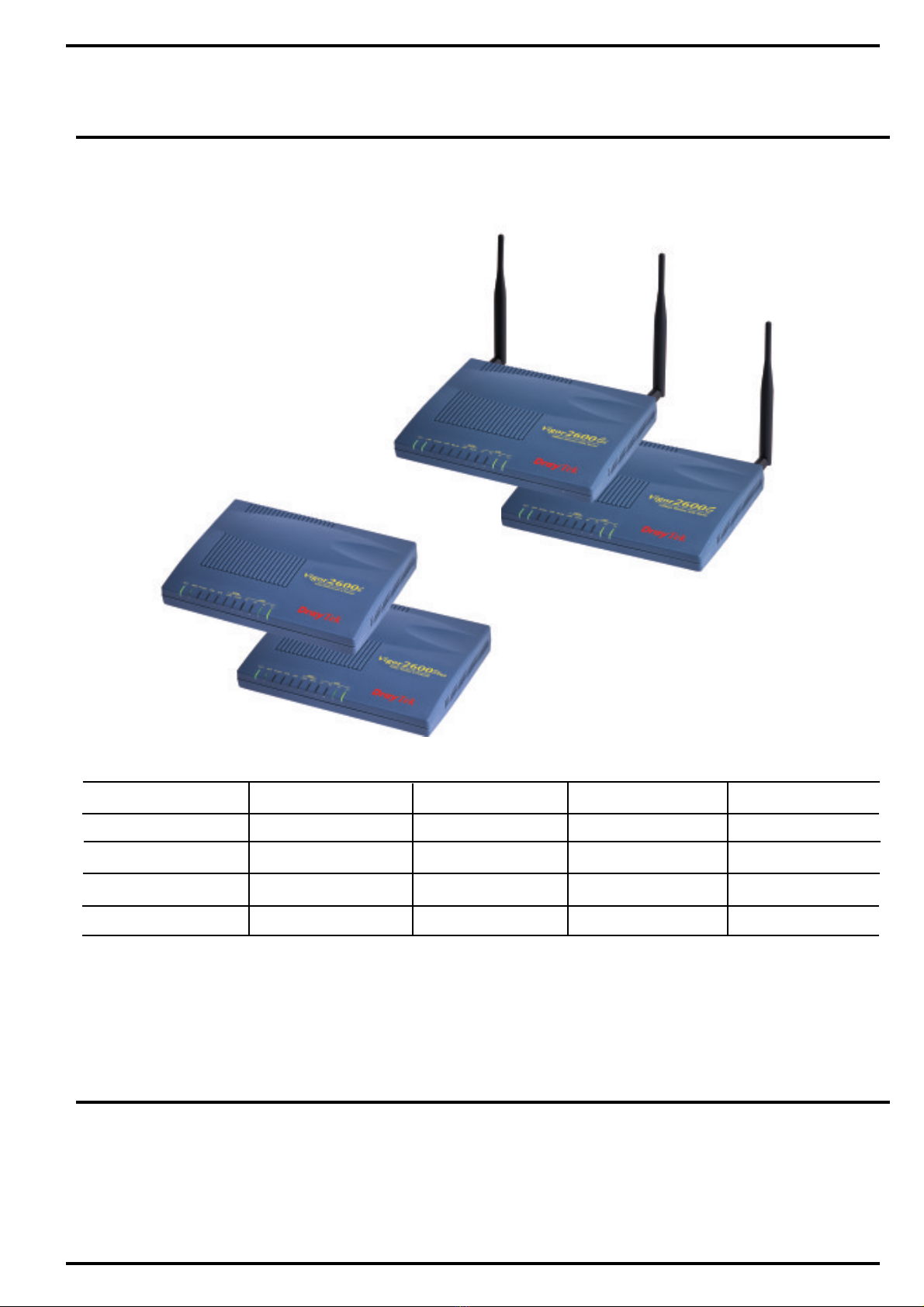

The Vigor2600 plus series is an Internet access solution for your LAN which not only provides shared web surfing

but countless other value-added features such as Firewall / Security, VPN, multimedia support, USB interface

printer server, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.

Annex A / Annex B

ISDN Backup

Wireless AP

ADSL Routers

Vigor2600i Vigor2600Gi

* / *

Vigor2600plus

* / *

Vigor2600G

* / *

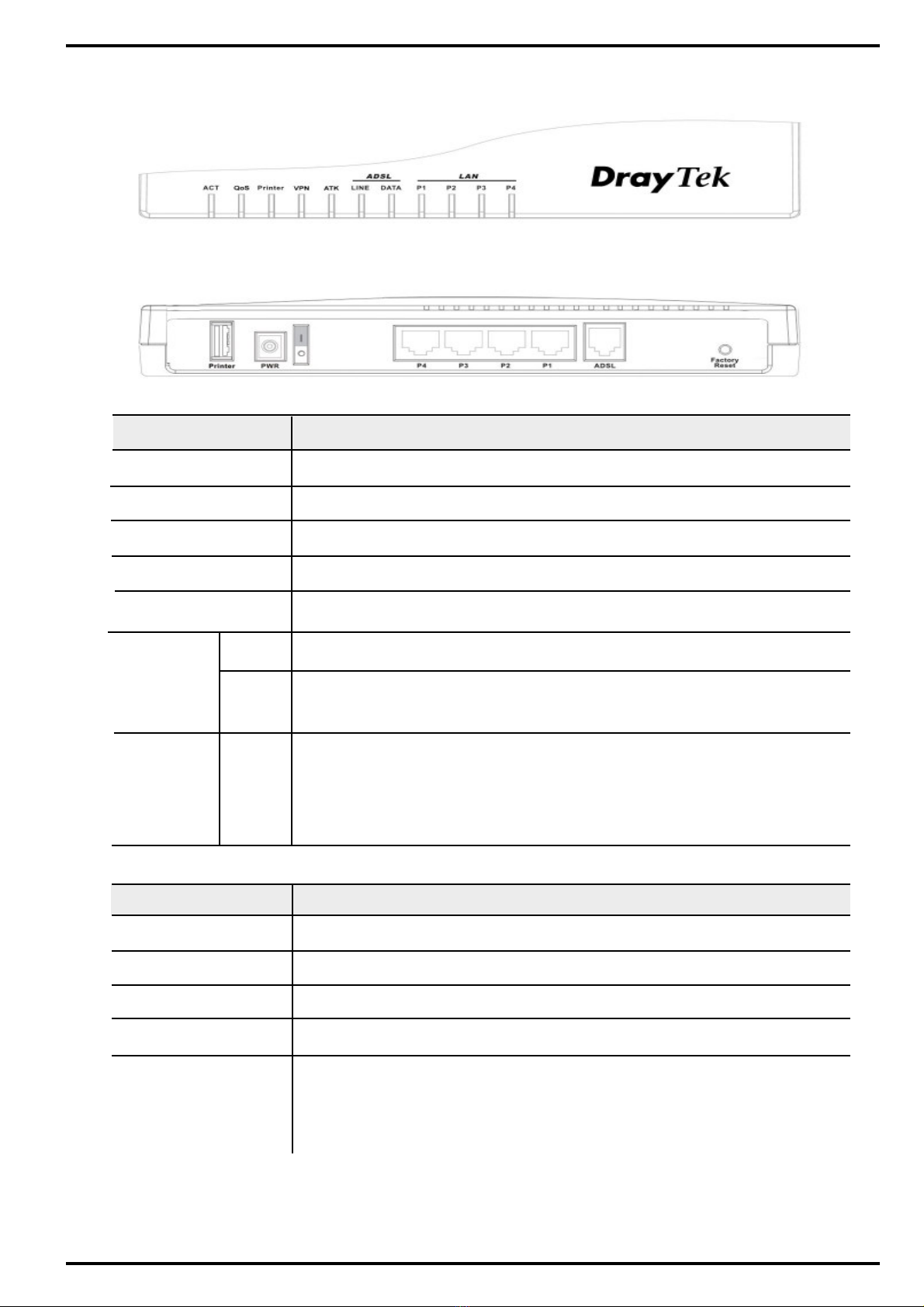

LED Indicators Descriptions

Descriptions

Back Panels

Vigor2600plus

ACT (Activity) Blink when power is supplied to the router and the router is running normally.

P1, P2,

P3, P4

These indicators are dual-colour LEDs:

- OFF indicates that no device is connected to the LAN port.

- Yellow means the port is connected to a 10Mbps device.

- Green indicates to connected device is 100Mbps.

- BLINKING indicates that Ethernet packets are passing through the port.

PWR

Printer USB socket to connect a printer with USB interface.

Only the power adapter comes with the package can be connected to the PWR.

These switch ports should be connected to your local PCs.

P1, P2, P3, P4

The restore default settings : While the router is running (ACT LED blinking),

press the button and hold for more than five seconds. The ACT LED begins to

blink rapidly, then release the button. The router will restart with the factory

default configuration.

Factory Reset

LAN

ADSL To connect to the ADSL-enabled telephone line.

ON when the QoS function is active.

QoS

Printer ON when the USB interface printer is ready

VPN

Blinking when the router suffers from the Dos(Denial of Service) attacks.

ATK

ON when the VPN is active.

ADSL

LINE

DATA

ON when the ADSL network is show time.

Blinking indicates the DSL protocols start hankshaking.

The light will remain still when data transmission is available.

LED Indicators Descriptions

Descriptions

Back Panels

ACT (Activity) Blink when power is supplied to the router and the router is running normally.

VPN ON when the VPN is active.

PWR

Printer USB socket to connect a printer with USB interface.

Only the power adapter comes with the package can be connected to the PWR.

These switch ports should be connected to your local PCs.P1, P2, P3, P4

The restore default settings : While the router is running (ACT LED blinking),

press the button and hold for more than five seconds. The ACT LED begins to

blink rapidly, then release the button. The router will restart with the factory default

configuration.

Factory Reset

Vigor2600i

ADSL To connect to the ADSL-enabled telephone line.

Printer ON when the USB interface printer is ready

Blinking when the router suffers from the Dos(Denial of Service) attacks.

ATK

ADSL

LINE

DATA

ON when the ADSL network is show time.

Blinking indicates the DSL protocols start hankshaking.

The light will remain still when data transmission is available.

P1, P2,

P3, P4

LAN

These indicators are dual-colour LEDs:

- OFF indicates that no device is connected to the LAN port.

- Yellow means the port is connected to a 10Mbps device.

- Green indicates to connected device is 100Mbps.

- BLINKING indicates that Ethernet packets are passing through the port.

ISDN ON when the ISDN network is correctly setup.

BLINKING when there is a successful remote connection on the ISDN BRI B1 / B2

channel.

Note: for some NT-I boxes, the ISDN LED light will go OFF when the ISDN line has

been idle a while. When the router is dialling or answering a call it will go ON again

ISDN Connected to an external NT1(or NT1+) box provided by your ISDN service provider.

LED Indicators Descriptions

Descriptions

Back Panels

ACT (Activity) Blink when power is supplied to the router and the router is running normally.

P1, P2,

P3, P4

PWR

Printer USB socket to connect a printer with USB interface.

Only the power adapter comes with the package can be connected to the PWR.

These switch ports should be connected to your local PCs.

P1, P2, P3, P4

The restore default settings : While the router is running (ACT LED blinking),

press the button and hold for more than five seconds. The ACT LED begins to

blink rapidly, then release the button. The router will restart with the factory

default configuration.

Factory Reset

LAN

These indicators are dual-colour LEDs:

- OFF indicates that no device is connected to the LAN port.

- Yellow means the port is connected to a 10Mbps device.

- Green indicates to connected device is 100Mbps.

- BLINKING indicates that Ethernet packets are passing through the port.

To connect analog phone.

ADSL To connect to the ADSL-enabled telephone line.

ON when the QoS function is active.

QoS

V1, V2

Printer ON when the USB interface printer is ready

VPN

ON when the wireless LAN is ready.

ON when the VPN is active.

ADSL

LINE

DATA

ON when the ADSL network is show time.

Blinking indicates the DSL protocols start hankshaking.

The light will remain still when data transmission is available.

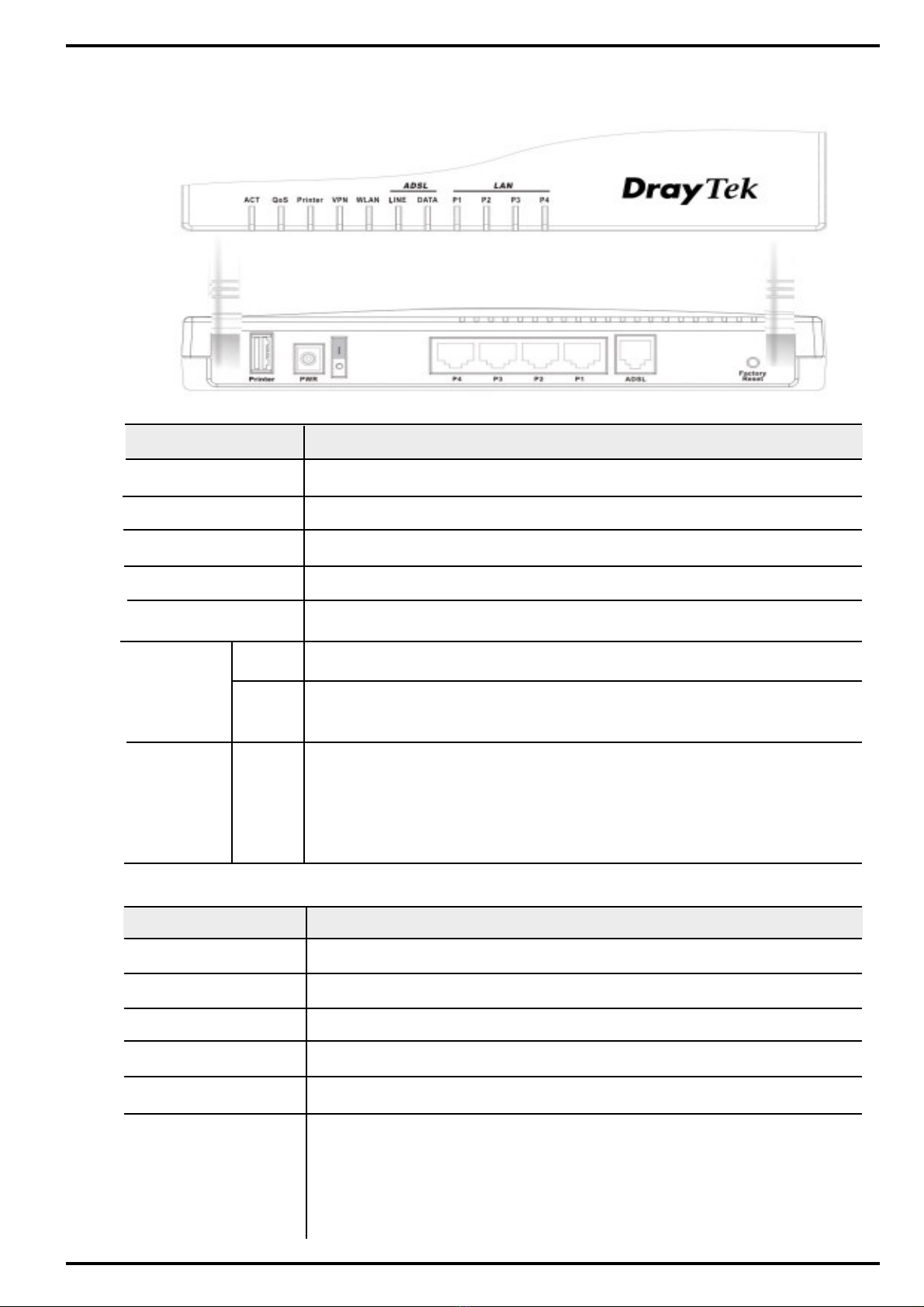

Vigor2600G

WLAN

LED Indicators Descriptions

Descriptions

Back Panels

ACT (Activity) Blink when power is supplied to the router and the router is running normally.

VPN ON when the VPN is active.

PWR

Printer USB socket to connect a printer with USB interface.

Only the power adapter comes with the package can be connected to the PWR.

These switch ports should be connected to your local PCs.P1, P2, P3, P4

The restore default settings : While the router is running (ACT LED blinking),

press the button and hold for more than five seconds. The ACT LED begins to

blink rapidly, then release the button. The router will restart with the factory default

configuration.

Factory Reset

ADSL To connect to the ADSL-enabled telephone line.

Printer ON when the USB interface printer is ready

ADSL

LINE

DATA

ON when the ADSL network is show time.

Blinking indicates the DSL protocols start hankshaking.

The light will remain still when data transmission is available.

P1, P2,

P3, P4

LAN

These indicators are dual-colour LEDs:

- OFF indicates that no device is connected to the LAN port.

- Yellow means the port is connected to a 10Mbps device.

- Green indicates to connected device is 100Mbps.

- BLINKING indicates that Ethernet packets are passing through the port.

ISDN ON when the ISDN network is correctly setup.

BLINKING when there is a successful remote connection on the ISDN BRI B1 / B2

channel.

Note: for some NT-I boxes, the ISDN LED light will go OFF when the ISDN line has

been idle a while. When the router is dialling or answering a call it will go ON again

ISDN Connected to an external NT1(or NT1+) box provided by your ISDN service provider.

Vigor2600Gi

WLAN ON when the wireless LAN is ready.

Declarations

protected by copyright. No part may be reproduced, transmitted, transcribed, stored

in a retrieval system, or translated into any language without written permission from

the copyright holders.

The following trademarks are used in this document:

. Microsoft is a registered trademark of Microsoft Corp.

. Windows,Windows 95, 98, Me, NT, 2000, XP and Explorer are trademarks of

Microsoft Corp.

. Apple and Mac OS are registered trademarks of Apple Computer Inc.

Other products may be trademarks or registered trademarks of their respective

manufacturers.

Trademarks

Safety Instructions

Warranty

. Read the installation guide thoroughly before you set up the router.

. The router is a complicated electronic unit that may be repaired only be authorized

and qualified personnel. Do not try to open or repair the router yourself.

. Do not place the router in a damp or humid place, e.g. a bathroom.

. The router should be used in a sheltered area, within a temperature range of +5 to +40

Celsius.

. Do not expose the router to direct sunlight or other heat sources. The housing and

electronic components may be damaged by direct sunlight or heat sources.

. Keep the package out of reach of children.

. When you want to dispose of the router, please follow local regulations on

conservation of the environment.

We warrant to the original end user (purchaser) that the router wil be free from any

defects in workmanship or materials for a period of three (3) years from the date of

purchase from the dealer. Please keep your purchase receipt in a safe place as it

serves as proof of date of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship

and/or materials, we will, at our discretion, repair or replace the defective products

or components, without charge for either parts or labor, to whatever extent we

deem necessary tore-store the product to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally equivalent product

of equal value, and will be offered solely at our discretion. This warranty will not

apply if the product is modified, misused, tampered with, damaged by an act of God,

or subjected to abnormal working conditions. The warranty does not cover the

bundled or licensed software of other vendors. Defects which do not significantly

affect the usability of the product will not be covered by the warranty.We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

European Community

Be A Registered

Owner

Firmware & Tools

Updates

Hereby, we declare that the router is in compliance with the essential requirements

and other relevant provisions of R&TTEDirective 99/5/EC.

Web registration is preferred. You can register your Vigor router via http://

www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the

address found on the reverse side of the card.

Due to the continuous evolution of DrayTek ADSL & Router technology, all

routers will be regularly upgraded. Please consult the DrayTek web site for more

information on newest firmware, tools and documents.

http://www.draytek.com.tw

Vigor2600 plus Series Quick Start Guide

Identify your variant

Delivery check

Aim of this

chapter

Quickly connect your router to the Internet

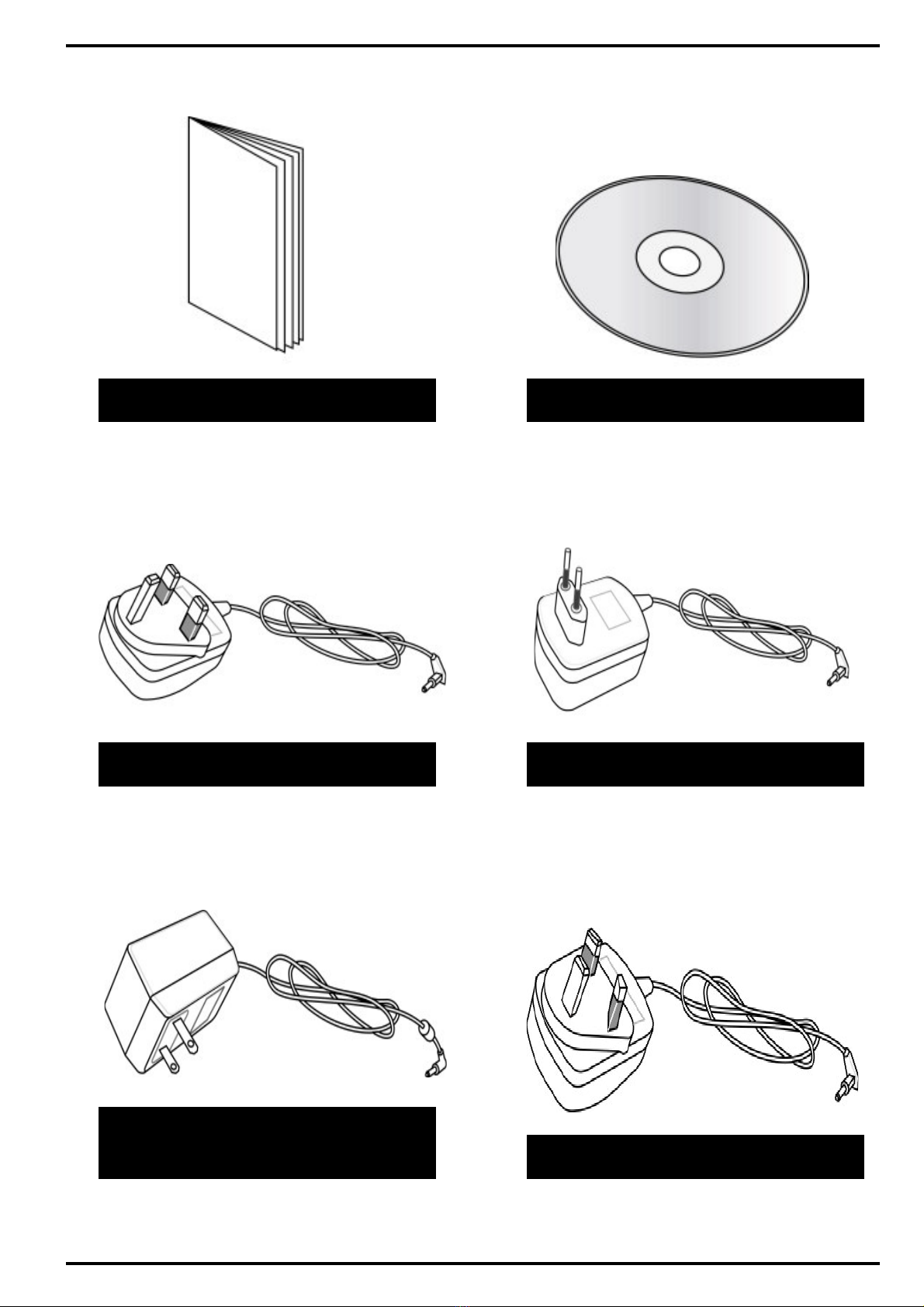

Check your router package for the following items :

The Router

1 printed Quick StartGuide with warranty/ registration card

1 CDincludes detailed User Manual in electronic form, released firmware and

utilities

1 AC power supply adapter (black)

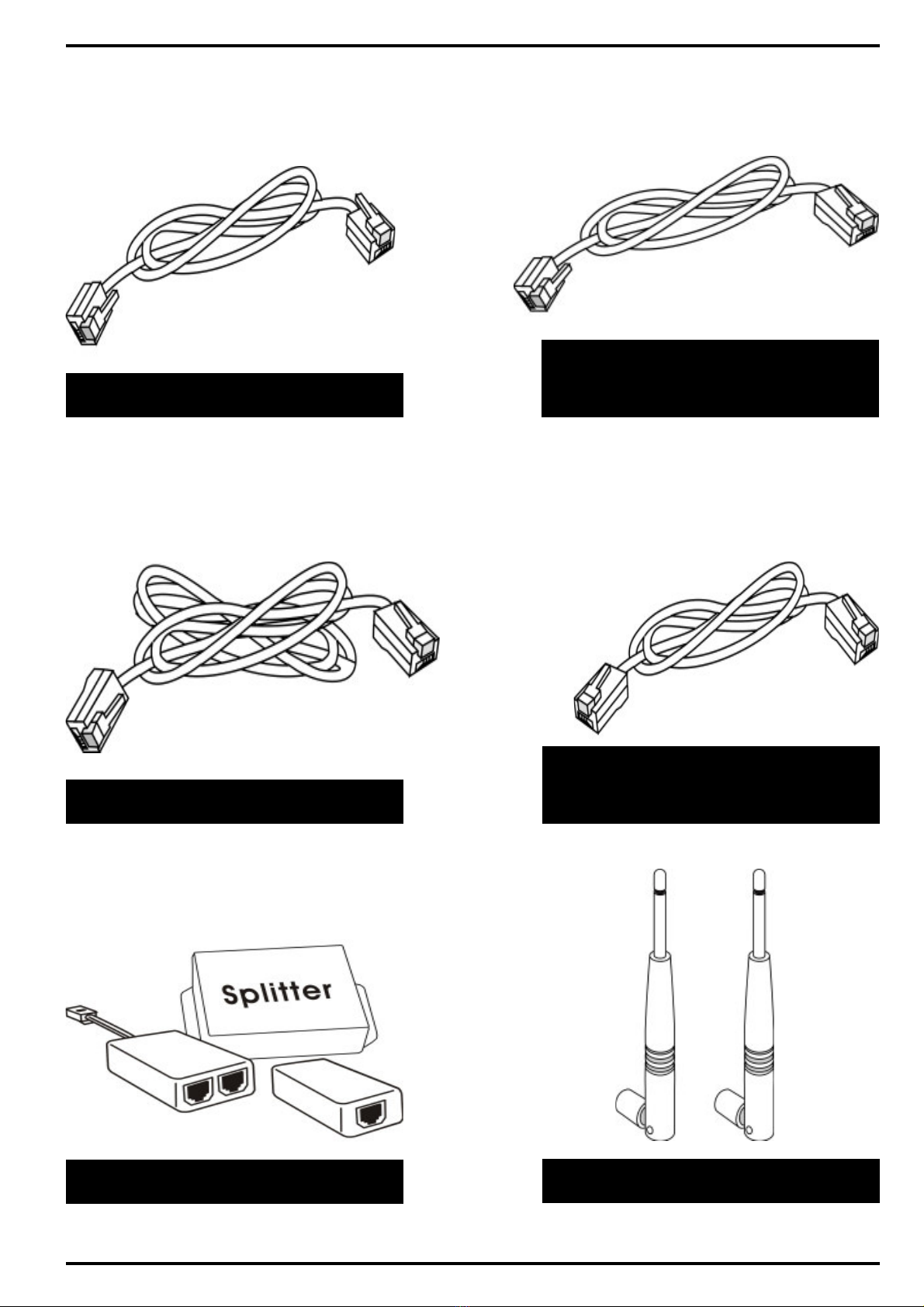

1 Ethernet LAN cable (blue) for connection to a computer or hub

1 ADSL line cable (RJ-11 to RJ-45 for Switzerland and the Netherlands only)

(RJ-11 to RJ-11 for other Annex A countries)

(RJ-45 to RJ-45 for Annex B countries)

1 ISDN line cable (RJ-45, black) for Vigor2600i and Gi only

2 external antennas for V2600G and V2600Gi only.

Please read page 9,10

Your router package should contain all these items. If any item is

missing or damaged, contact your dealer or our Customer Service

Department immediately.

The Vigor2600 puls series all containAnnex A/Annex B models,

please check if the package is suitble for your use by checking the

information from bottom of Vigor2600 plus series router.

Annex A : is for connecting to an analog POTS line

Annex B : is for connecting to a digital ISDN line

UK-type power adapter

EU-type power adapter

AU/NZ-type power adapter

USA/Taiwan-type power

adapter

Manual

RJ-11 to RJ-11(Annex A)

RJ-11 to RJ-45(Annex B)

Dutch/Swiss User

RJ-45(Enternet)

RJ-45 to RJ-45

(Annex B,ISDN)

Filter/Splitter(Optional) Antennas for G/Gi only

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Draytek Netzwerk-Router Handbücher

Draytek

Draytek Vigor 2950 Bedienungsanleitung

Draytek

Draytek Vigor 2700 Series Bedienungsanleitung

Draytek

Draytek Vigor 2900 Series Bedienungsanleitung

Draytek

Draytek VigorSwitch P1080 Bedienungsanleitung

Draytek

Draytek Vigor3910 Series Bedienungsanleitung

Draytek

Draytek Vigor2765 Series Bedienungsanleitung

Draytek

Draytek Vigor3300V+ Bedienungsanleitung

Draytek

Draytek VigorPro 5300 Bedienungsanleitung

Draytek

Draytek Vigor 3100 Series Bedienungsanleitung

Draytek

Draytek Vigor2920n Bedienungsanleitung

Draytek

Draytek Vigor2122 Series Bedienungsanleitung

Draytek

Draytek Vigor Router 11ax Series Bedienungsanleitung

Draytek

Draytek Vigor 2925 Series Bedienungsanleitung

Draytek

Draytek VIGOR2820 series Bedienungsanleitung

Draytek

Draytek Vigor2500V Bedienungsanleitung

Draytek

Draytek VigorLTE 200n Bedienungsanleitung

Draytek

Draytek Vigor3300 Series Bedienungsanleitung

Draytek

Draytek Vigor 2760 Series Bedienungsanleitung

Draytek

Draytek Vigor 2925n Bedienungsanleitung

Draytek

Draytek VigorPro 5500 Referenzhandbuch

Draytek

Draytek Vigor 3100 Series Bedienungsanleitung

Draytek

Draytek Vigor 2927 Series Bedienungsanleitung

Draytek

Draytek Vigor 2800Gi Referenzhandbuch

Draytek

Draytek Vigor2962 Series Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
