Migo Rollator

Owner’s Handbook

Migo

2/12

Parts Description

1 Handgrip

2 Adjustable handle tubing

3 Brake

4 Height adjustment knob

5 Rear wheel

6 Frame

7 Front wheel (castor)

8 Basket

9 Seat

10 Tray

11 Brake cable

11/12

10/12

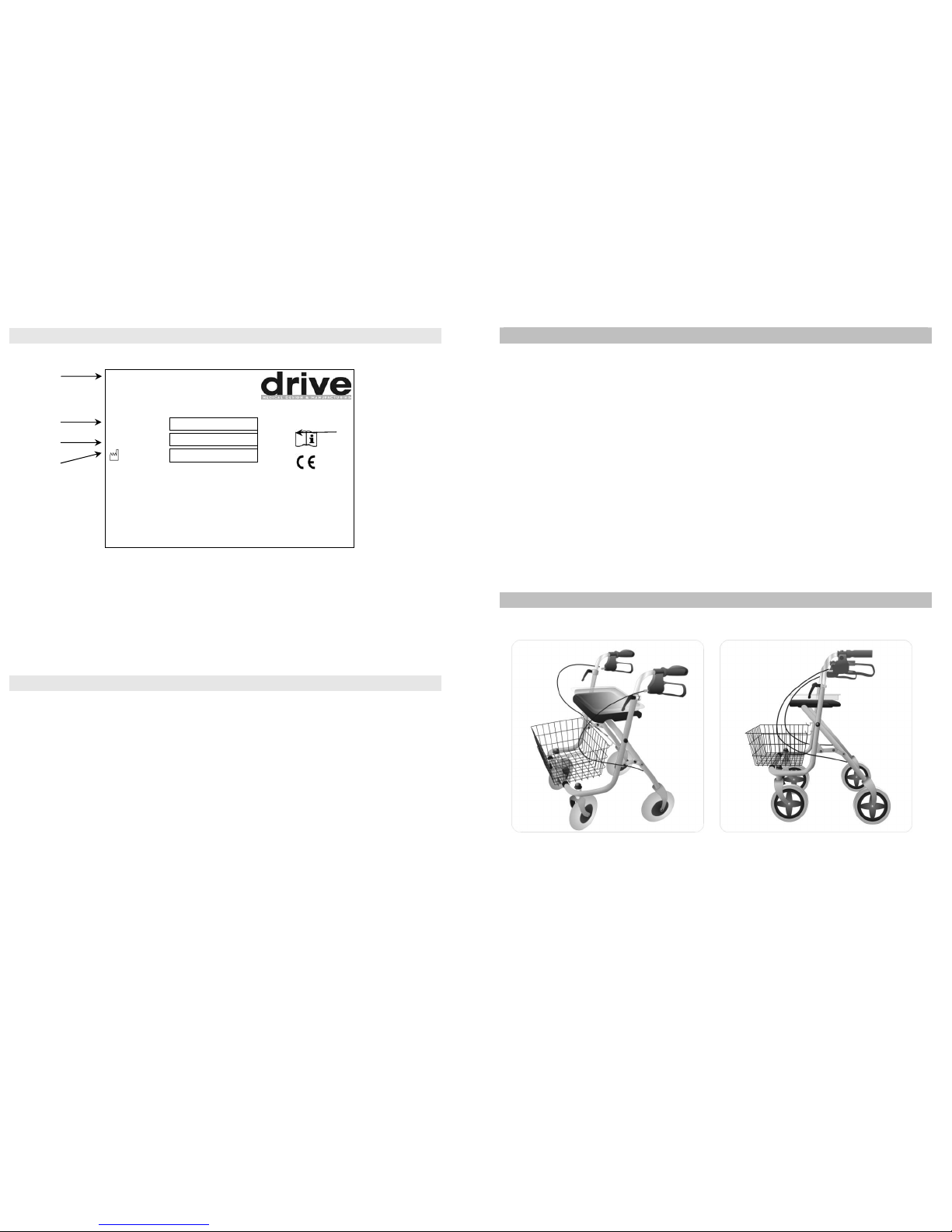

CE Label

Rollator – walking aid

Migo

REF 723 100 000

SN XXX XXX

(MM/YYYY) 12-2005

Max. Belastung - Max. load: 130 kg

Max. Belastung Korb – Max. load basket: 5.0 kg

Die Griffe müssen parallel zur Gehrichtung eingestellt sein!

Handgrips must be adjusted parallel to the walking direction!

Für Innen- und Außenbereich – For indoor and outdoor use!

Max. Breite – Max. width: 570 mm

Drive Medical GmbH & Co. KG · 88316 Isny/Allgäu (Germany)

1. Product Name

2. Article Number

3. Serial Number

4. Date of Manufacture

5. Attention: See Operating Instructions

Warranty

We issue a warranty of 24 months from date of purchase. The covers the

product for manufacturing and design defects. It does not cover accidental

damage or wear and tear.

Some consumable items (such as tyres, brake cables) and paintwork are

not covered by a 12 month warranty. For full warranty details please

contact you Drive Medical dealer.

Subject to technical alterations. Errors and omissions excepted.

3/12

Introduction

The Migo rollator is designed to aid the user to walk and, as an option,

carry items such as shopping. It also includes a seat for user comfort and

convenience.

The Migo is ideal for indoor and outdoor use, and has a 130kg (20 stone)

weight capacity. It is intended to be lightweight and portable whilst

offering stability and security to the user.

All Drive Medical walkers are manufactured to the highest quality

standards and are CE marked.

They provide a robust and visually appealing product whilst being a cost-

effective solution to some mobility problems.

The Migo comes with basket, tray and owner’s handbook.

Model

Migo with 50mm wheels Migo with 35mm wheels

4/12

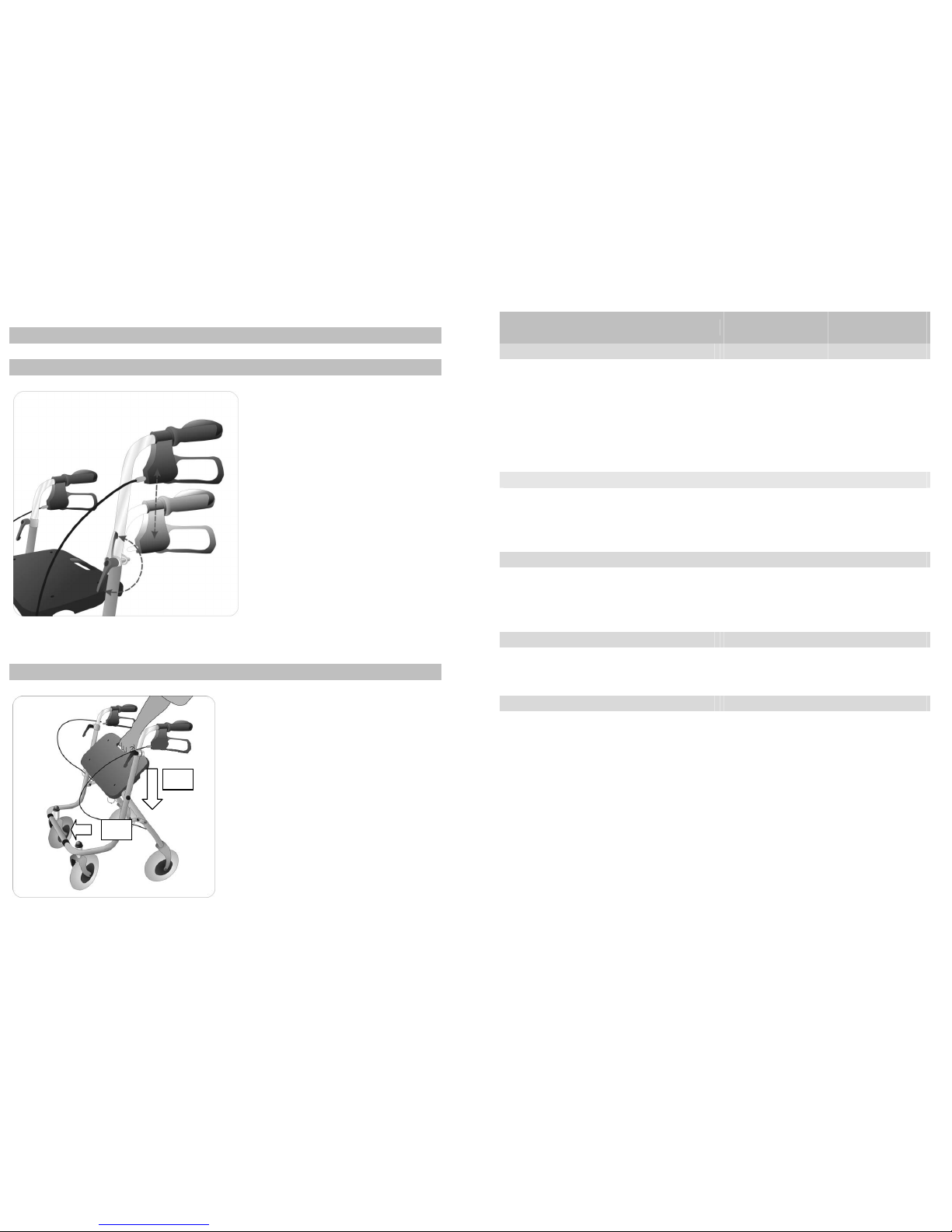

Installation

Height adjustable handgrips

Insert the handgrip tubing into

the frame to at least to the

“Maximum” marking.

Turn the adjustment knob

clockwise on both handgrips.

Ensure both handgrips are the

same height.

To adjust the height, turn the

adjustment knob anticlockwise to

slacken. Adjust the handgrip to

required height then turn the

knob clockwise to secure.

To Unfold

Stand the rollator on its wheels.

Push the front frame forward by

pushing down on the handgrips

whilst pulling backwards until the

rollator stands unaided. Then push

the seat down until it clicks into

place on the crossbar.

9/12

Migo With 50mm

wheels

With 35mm

wheels

Dimensions

Length 600 mm (23.6“)

Width 570 mm (22.4”) 565 mm (22.2”)

Width between handgrips 445 mm (17.5“)

Width between rear wheels 430 mm (16.9”)

Handgrip heights 800 – 940 mm(31.5” – 37”)

Seat height 600 mm (23.6“)

Seat depth / width 255 / 380 mm (10“ / 15“)

Dimensions Folded

Legth folded 270 mm (10.6“)

Height folded 920 mm (36.2”)

Height folded without handgrips 775 mm (30.5”)

Weight

Without basket and tray 9.9 kg (22lb) 8.9 kg (20lb)

With basket and tray 10.9 kg (24lb) 9.9 kg (22lb)

Basket only 0.7 kg (1.5lb)

Tray only 0.3 kg (0.7lb)

Weight Capacities

Maximum user mass 130 kg (20.4 stone)

Maximum weight - basket 5.0 kg (11lb)

Maximum weight – tray 5.0 kg (11lb)

Materials Used

Precision steel tube and high-qualit

plastic

8/12

Do not stand on the rollator.

The rollator is not suitable for use

as wheelchair, and should only be

used by one person at a time.

Cleaning and Maintenance

•Clean regularly by hand with a damp cloth

•Do not use any abrasive or corrosive detergents

•Screws and fasteners must be checked regularly and if necessary

retightened.

Technical Data

Side Front

5/12

Fitting the Basket and Tray

Hook in the basket on to the

hooks at the frame under the seat

plate and place the tray with its

small feet in the holes in the seat

plate (see picture).

Operating the Brakes

To apply the brake squeeze the

lever towards the handgrip (see

picture).

Always brake slowly and steady, and

use both left and right brakes

simultaneously.

6/12

To apply the parking brakes, press

the brake lever down (see picture)

until it locks the wheels. To unlock

the brake pull upwards on the lever

towards the handgrip.

Always use both brakes.

Braking performance can change as the brake cable and tyre become worn

in. Always check the brakes prior to use.

Brake Adjustment

For desired braking strength manually adjust the screw on the housing of

the brake (picture 1) or adjust using a suitable tool (not included) on the

brake cable (picture 2).

7/12

Sitting

Position the walking device on an

even and solid surface. Then lock

the brakes (parking position). The

rollator must stand and must not

slip. Sit straight up and do not

lean backwards (see picture).

Folding / Transport / Storage

Pull the seat upwards with the handle. The rollator can be lifted or trailed

by the seat handle.

Safety Instructions

•Use only as an aid for walking.

•Use only on even and solid surfaces.

•Maximum weight limit (user mass) is 130kg (20 stone).

•Only use the tray for small objects (not exceeding 5kg / 11lb in total).

not place sharp or hot objects in the basket.

1 2 3
