VANTAGE HD6000T/NZ

USER MANUAL

Version 2.0

ontents

Safety instructions ................................ 1

Chapter 1

Before You Begin................................... 2

General Features................................. 2

Accessories.......................................... 2

Chapter 2

Controls and Functions ........................ 3

Front Panel .......................................... 3

Rear Panel........................................... 3

Remote Control Unit ............................ 4

Chapter 3

Connections........................................... 5

Location of your receiver........................ 5

Connecting your receiver to antenna ..... 5

Connecting your analog receiver ........... 5

Connecting your receiver to TV.............. 5

Connecting your receiver to VCR

(depending on model) ............................ 5

Connecting external audio/Hi-Fi system ... 5

Connecting digital audio system ............ 5

Chapter 4

Initial Settings and Operations............. 6

Menu Information................................. 6

Getting Started..................................... 7

Selecting the OSD Language................. 7

Auto Scanning........................................ 7

Basic Operation ................................... 8

Switching Channel ................................. 8

Volume Control....................................... 8

Info Bar................................................... 8

Selecting the soundtrack........................ 8

Selecting the OSD teletext, VBI teletext, Subtitle and DVB subtitle

............................................................... 8

MoSAic .................................................. 9

Sleep Timer Function ............................. 9

Zoom Function ....................................... 9

Channel List ........................................... 9

To view channel list in speciﬁc order

(Alphabet/Provider/HD).......................... 9

Electronic Program Guide (EPG)........... 9

Chapter 5

Menu Map............................................... 10

Main Menu.............................................. 10

Installation............................................ 11

Auto Scanning........................................ 11

Manual Scanning ................................... 11

Defaults Setting...................................... 11

System Setup....................................... 12

Language Setting................................... 12

OSD Setting ........................................... 12

Media Settings ....................................... 12

Time Setting ........................................... 13

Reservation Setting................................ 13

System Information ................................ 13

Channel Setup ..................................... 14

Delete Channels..................................... 14

Delete All Channels................................ 14

Favorite Channels.................................. 14

Edit Channels......................................... 14

Parental Lock....................................... 15

Channel Lock ......................................... 15

Lock Control........................................... 15

Change Pin Code................................... 15

Game ................................................... 16

Multimedia............................................ 16

Recording Programs............................. 17

Connecting an external Hard Disk Drive 17

Hard Disk Drive Type ............................. 17

Formatting Your Hard Drive.................... 17

Quick record........................................... 17

Recording from EPG.............................. 18

Recording with Parental Lock ................ 18

Catch Play.............................................. 18

Reservation and Timer Settings............. 19

Editing .................................................... 19

Playback options.................................... 19

Software Manager.................................. 20

Troubleshooting .................................... 21

Speciﬁcations ........................................ 22

afety Instructions

This product has been manufactured to satisfy the international safety standards.

Please read all of safety and operating instructions before operating the product and keep this manual for future reference.

MAINS SUPPLY

AC 90-250V~, 50/60Hz

Operate your product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied

to your home, consult your local power company. Disconnect the STB from the mains before you start any maintenance or installation

procedures.

OVERLOADING

Do not overload a wall outlet, extension cord or adapter as this may result in electric ﬁre or shock.

LIQUIDS

The product should not be exposed to any liquids such as dripping or splashing. No objects ﬁlled with liquids, such as vases, should be

placed on the apparatus,

CLEANING

Before cleaning, disconnect the product from the wall outlet, Use a cloth lightly dampened with water (no solvents) to clean the exterior.

VENTILATION

The slots on top of the product must be left uncovered to allow proper airﬂow to the unit. Do not stand the product on soft furnishings or

carpets. Do not expose the product to direct sunlight, place it near a heater. Do not stack electronic equipment on top of the product.

ATTACHMENTS

Do not use any attachment that is recommended by the manufacturer it may cause a hazard or damage the product.

CONNECTION TO THE TV

Disconnect the product from the mains before connecting or disconnecting the cable from the antenna. Failure to do so can damage the

TV.

LOCATION

Place the product indoors in order not to expose to lightning, rain or sunlight.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including ampliﬁer) that product heat.

LIGHTNING, or NOT IN USE

Unplug the product from the wall outlet and disconnect the cable during a lightning storm or when unused for a long time.

SERVICING

Do not attempt service that this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazard.

Refer all servicing to qualiﬁed service personnel.

“The mains plug is used as the disconnect device. Then disconnect device shall remain readily operable”

General Features

• Accurate, Brilliant Friendly OSD with Full Function

• MPEG-2 (MP@ML), MPEG-2 (MP@HL), MPEG4 AVC/H.264, HP@L4

• Digital Tuner with Loop-through

• 16 Bit Colors Graphic User Interface

• Multi-language Menu

• 13-digit VFD (Time clock in Stand-by mode)

• OSD Teletext Supported

• EPG (Electronic Program Guide) for On-screen Channel Information

• Installation by Easy Setup Guide

• 10,000 Channels

• User-friendly Data Editing Function

• Favorite Channel and Parental Lock Function

• RS232C Port for Additional Information Service and Upgrading System Software

• S/PDIF OUT Optical and Coaxial

• HDMI

• SVIDEO OUT

•

PVR Ready

•

Time-Shift

•

USB Port

Accessories

• User’s Manual

• Remote Control Unit

• Batteries

• HDMI Cable

efore You Begin

ontrols and Functions

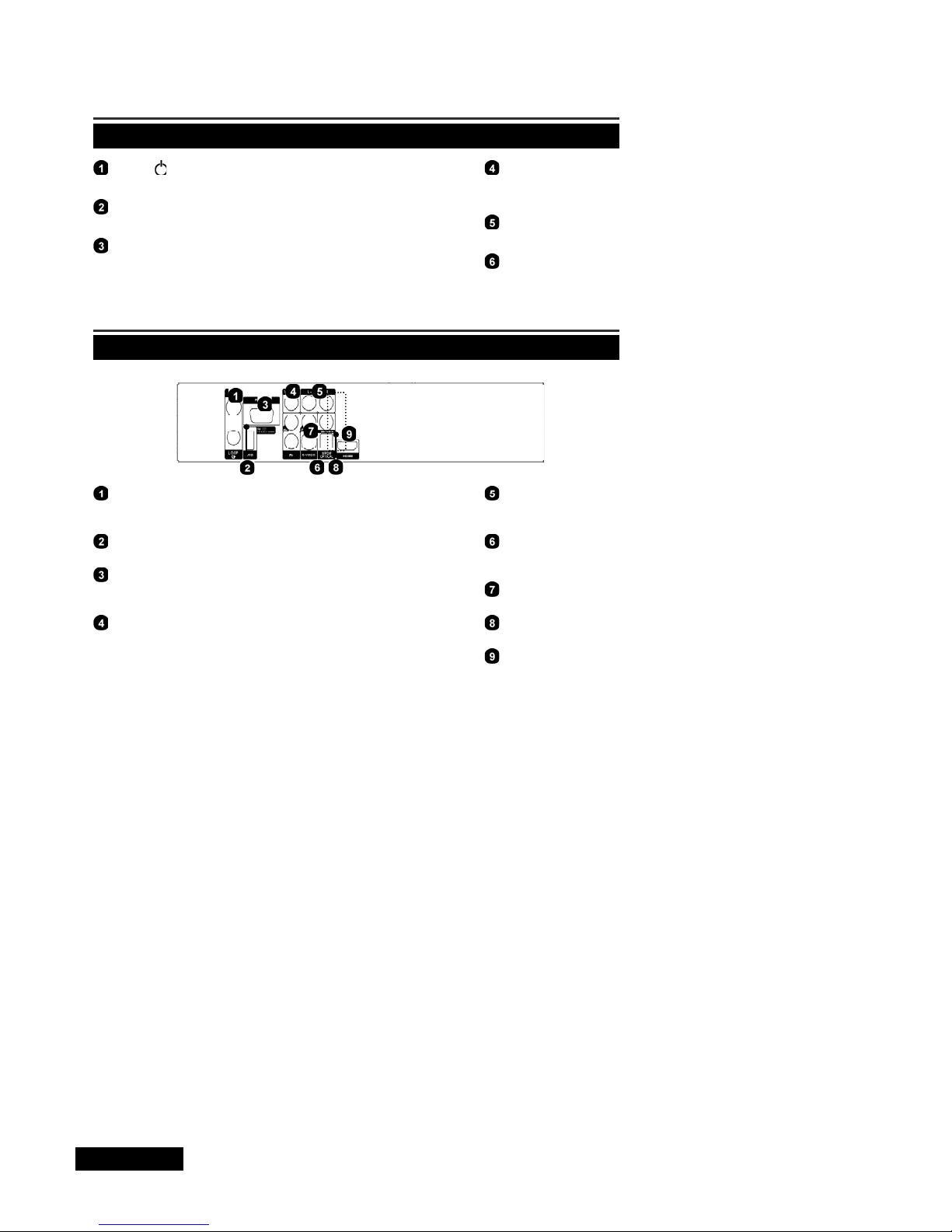

Front Panel

Power ( ) button

Turns your receiver On/Off.

Arrow (◄/►)buttons

Adjusts the volume and moves the cursor left/right on the menu

Arrow (▲/▼)buttons

Changes channels or moves the cursor up/down on the menu.

MENU button

Displays the menu

Exits from the current menu or goes to the previous menu

OK button

Conﬁrms selection

DISPLAY

Displays channel information

Displays local time in Standby mode

Rear Panel

RF IN (Optional)

It Connects to the terrestrial antenna for DTV signal.

INPUT signal.

USB

Connects to the External HDD or USB storage with USB cable.

RS-232C

Connect to a PC.

RS232 transfers data to the external computer.

VIDEO OUT

Connects to video input jack on TV or any external Video

system.

AUDIO OUT, LEFT / RIGHT

Connects to audio input jacks on TV or any external audio

system.

Y Pb Pr OUT

Connects to video input jack on TV or any external Video

system.

S-Video OUT

Connects to the TV with S-Video cable

S/PDIF OUT Optical & Coaxial

Connects to a digital audio component with optical cable.

HDMI

Connects to the TV with HDMI cable

Remote Control Unit

Power ( ) button for TV & STB

Turns your receiver & TV On/Off.

Numeric (0~9) buttons

Controls the number entry and changes program channel

directly.

Mode ( ) button

Switches between TV and Radio channel list.

Sleep ( ) button

Shows the time setting for the sleep-timer.

MoSAic ( ) button

Displays multi picture section.

Arrow (◄/►)or OK buttons

Adjusts the volume level or moves the cursor left or right on the

menu.

Arrow (▲/▼)or OK buttons

Changes channels or moves the cursor up or down on the

menu.

Menu ( ) button

Displays the menu

Exits from the current menu or goes to the previous menu.

Mute ( ) button

Mutes audio output.

Last button

Shows Viewed Channel List.

Audio ( ) button

Shows the Input Audio information.

OK button

Shows Channel list while watching TV or listening to the Radio.

Guide ( ) button

Shows the TV program guide.

VOL +/- buttons

Adjusts the volume level.

Zoom ( ) button

Zooms in the selected screen.

The Zooming location changes by pressing direction buttons.

(x2 →normal)

Text ( ) button

Changes to the teletext mode.

INFO ( ) button

Displays program information in the screen.

Back ( ) button

Goes to previous menu. The changed values are to be saved.

List ( ) button

Shows channel list.

PR +/- buttons

Changes channel up or down.

Page (+/-) buttons

Moves up or down pages on the menu and TV/Radio List.

FAV (♥)button

Go to the last channel you’ve watched in the Favorite Channel

List 1.

And if pressed angina, you can see the last channel you’ve

watched in the next Favorite Channel List2. Repeat pressing the

button until no more Favorite Channel is found. Then it returns to

the current channel.

REW button

Rewinds the recorded programs to x8.

Play button

Play the recorder programs

Shows the recorded program in the media player.

FWD button

Fast forward the recorded program to x16.

Record button

Starts to record programs.

Stop button

Stops to record the program and to play the program.

Pause button

Pauses and play the program.

V.Format button

Set the Video format.

Media button

Shows Media Player.

Time Shift button

Starts Time shift function.

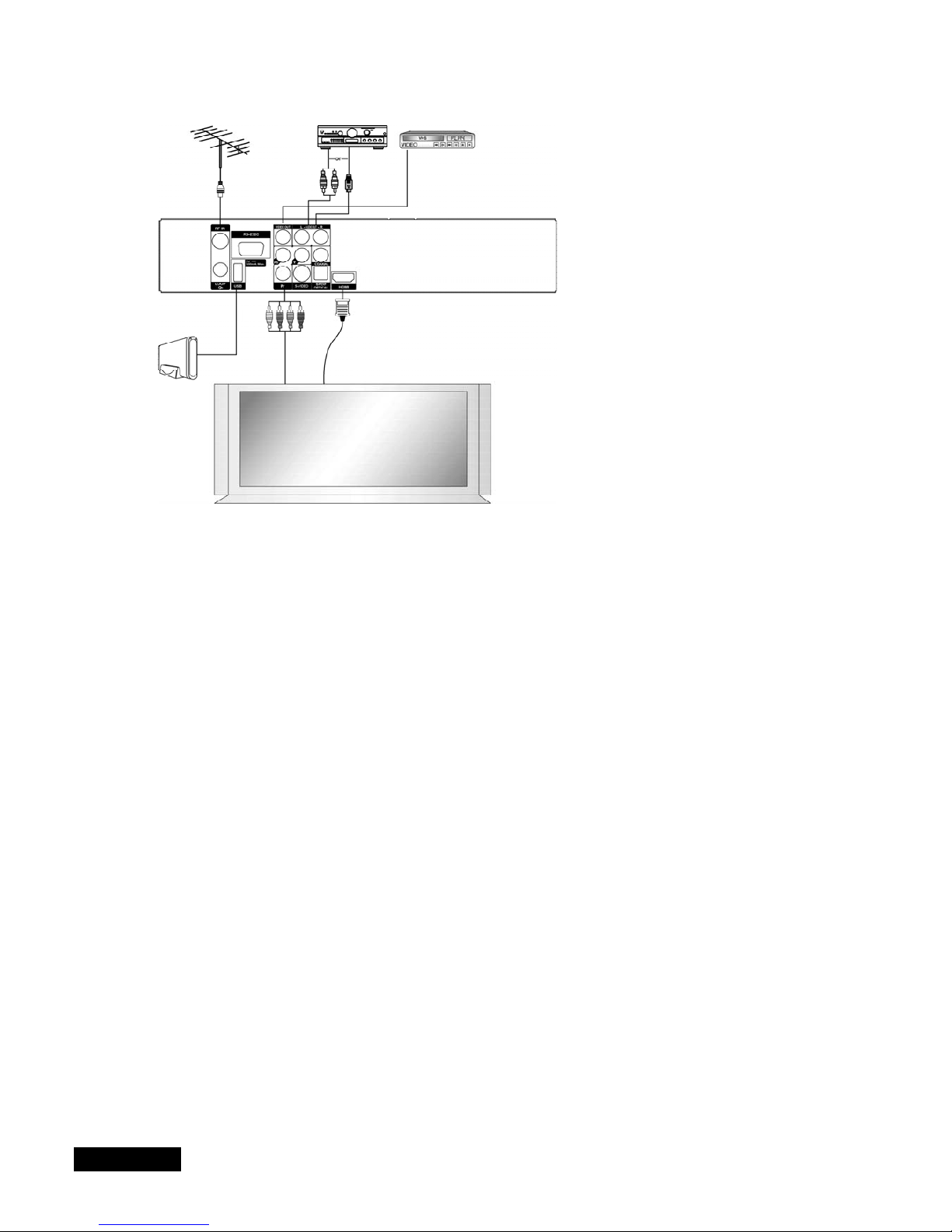

onnections

ocation of your receiver

• Install your receiver in horizontal position

• Do not put any heavy stuff such as a TV on your receiver

• Do not install your receiver in the places as follows: Vibrating place, direct sunrays, Humid place, too high or low temperature, and no

ventilated place.

Connecting your receiver with anntenna

After installing your antenna system, connect the coaxial cable from of your antenna to “RF IN” terminal marked at the rear panel of your

receiver. All cable connectors should be ﬁnger-tightened; do not use any kind of wrench while tightening connectors.

Connecting your analog receiver

To facilitate the use of analog receivers to view analog channels, this product has been provided with a loop through terminal marked as

“Loop”. Connect the coaxial cable from this terminal to the RF input terminal of your analog receiver. The receiver will pass through signals

to your analog receiver via the “Loop” connection.

Connecting your receiver to TV

To connect your receiver with your television, you can use 4 different methods; via RCA cable, SCART cable, HDMI cable or YUV.

Connect the RF cable to the terminal marked “RF OUT” on the rear panel of your receiver and its other end to the TV RF input socket.

Connect the Video/Audio RCA cables from the Video OUT/AUDIO OUT (LEFT, RIGHT) on the rear of your receiver to the Video INPUT/

AUDIO INPUT (LEFT, RIGHT) jacks on the TV. In the case of connecting your TV through SCART cable, connect the SCART connector

marked TV to the respective SCART port on the TV. (depend on model)

Connect the HDMI cable to the terminal marked “HDMI” on the rear panel of your receiver and its other end to the TV HDMI input.

Connecting your receiver to VCR (depending on model)

To connect a VCR, your receiver has been provided with SCART at the rear marked “VCR”. Using a SCART connector, the VCR can be

connected to your receiver.

Connecting external audio/Hi-Fi system

To connect any external Audio Hi-Fi system, your receiver has been provided with two RCA connectors at the rear panel of your receiver,

marked with AUDIO L and R respectively to connect the left and right Audio on the external audio/Hi-Fi system.

Connecting digital audio system

Connect a cable between S/PDIF OUT at the rear panel of your receiver and S/PDIF INPUT COAXIAL or OPTICAL on the Digital Audio

System.

nitial Settings and Operations

Menu Information

A menu is a ﬁeld of text shown on the TV screen. Selectable lines are generally activated

(highlighted). No-activated lines cannot be selected. Most of menus show short information at

the bottom of the screen.

This menu consists of 7 main menus:

• Installation • Game

• System Setup • Multimedia

• Channel Setup • Conditional Access

• Parental Lock

1 Using the Arrow (▲/▼)buttons you can move upwards and downwards on the menus.

On the menus, you can search channels using this button.

2When you have reached the required subject menu, press the OK button to conﬁrm your

choice.

3On the menus, you can select menu items using the Arrow (◄/►)buttons.

4When you want to return to the previous menu with saving the change, press the Back (

)button.

5When you want to exit from the current menu, press the Menu ( )button.

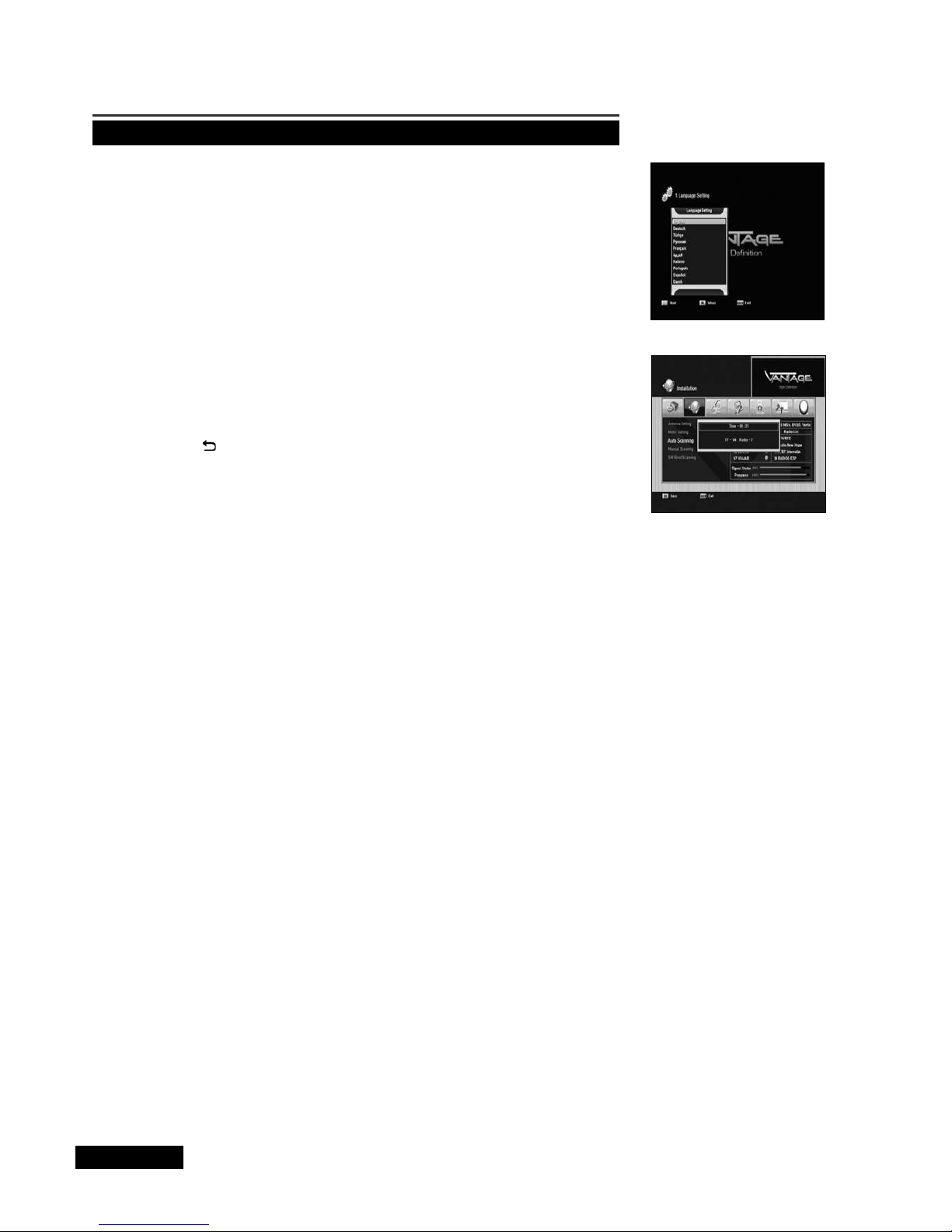

Getting Started

To start your receiver for the ﬁrst time, you must select the language for displaying menus and

you should set parameters for system conﬁguration and scan terrestrial channels. Perform the

following setup procedure for scanning the transmition towers. Follow the instructions below

to scan terrestrial channels. You can enjoy watching TV or listening to the Radio after the

procedure completes.

1 Turn on your TV and receiver.

Language Setting menu will appear automatically.

OSD Language is highlighted.

Selecting the On Screen Display (OSD) Language

2Select the OSD language of your choice using the Arrow (◄/►)buttons.

You will see the selected language on the OSD menu.

3Select Installation using the Arrow (◄/►)buttons.

Auto Scanning

1Press the OK button, auto Scanning will start.

2Press the OK button to save the changes.

3Press the Back ( )button to exit from the menu and press the Arrow (▲/▼)buttons to

select the desired channel. Now you can watch TV or listen to the Radio

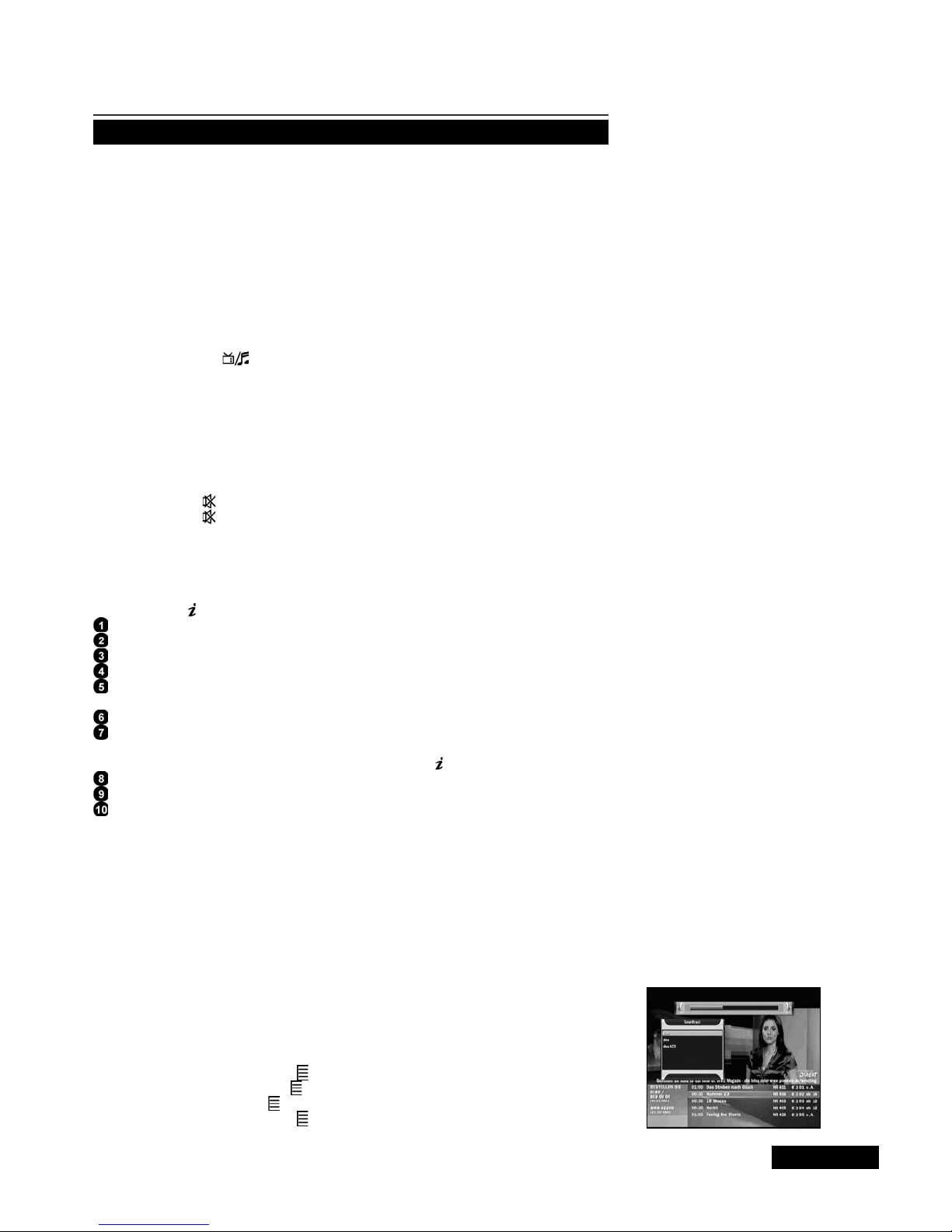

Basic Operation

This section explains various functions while watching TV or listening to the Radio.

Switching Channel

You can switch the current channel by three different methods.

• Method 1: Press the Arrow (▲/▼)buttons or PR+/- buttons.

• Method 2: To select a channel directly, select a channel using the Numeric (0~9) button.

• Method 3:

1To display the channel list, press the OK button.

2Select a channel you want to watch using the Arrow (▲/▼)buttons and then press the

OK button.

• If there are multiple channels, use the Page (+/-) or the Arrow (◄/►)buttons to move

to channels by page.

• Press the Mode ( ) button to switch between the TV and Radio channel.

• Method 4: How to move to the watched channel.

1Press the last button with RCU.

2Press OK button after a channel selection by using the Arrow (▲/▼) with RCU.

3Press OK button to exit.

Volume Control

To control the volume:

• Press the VOL+/- or the Arrow (◄/►)buttons.

• Press the Mute ( )button to turn the sound off.

• Press the Mute ( )button again or the VOL+/- or Arrow (◄/►)buttons to cancel muting.

Info Bar

Channel information always appears for a speciﬁc period of time whenever you switch

channels.

General Information

Press the INFO ( )button; you can see general information of the current channel.

Channel number and name

Current time

Signal Level

Signal Quality

Icons: HD channel, Locked channel, Radio Channel, Scrambled channel, Subtitle, Teletext

information

EPG information.

Conditional Access

Detailed Channel Information

You can see detailed channel information pressing the INFO ( )button again.

You can see detailed channel information pressing the INFO button again.

Frequency, Video PID, Audio PID, PCR PID

Display the stream information.

Selecting the soundtrack

You can select the audio language, soundtrack, or sound mode.

1Press the Audio (Yellow) button.

2Press the Arrow (▲/▼)buttons to select the audio language or soundtrack and press the

OK button.

3Press the Arrow (◄/►)buttons to select the sound mode from Stereo, Mono left, or

Mono Right.

4Stream information.

Selecting the OSD teletext, VBI teletext, Subtitle and DVB

subtitle

You can choose the OSD teletext, VBI teletext, subtitle and DVB subtitle for the current

live TV program if provided from the broadcasting station.

• OSD teletext: Press the Text () button

• VBI teletext: Press the Text () button twice.

• Subtitle: Press the Text () button three times.

• DVB subtitle: Press the Text () button four times.

Inhaltsverzeichnis

Andere DTV Solutions Empfänger Handbücher

DTV Solutions

DTV Solutions Homecast HT9200 Bedienungsanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
