Duerkopp Adler 511 Betriebsanleitung

511

CNC-Automat für Riegel- und Kurznähte

CNC automat for bartacking seams

and short seams

Bedienanleitung / Operating Instructions

Aufstellanleitung / Installation Instructions

Serviceanleitung /Service Instructions

Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 5 21/ 9 25-00 Telefax+49(0)521/9252435www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

08/2009 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 511001

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise

Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG

verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,

even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Contents Page:

Part 3: Service Instructions for the 511 Class

(Edition 08.2009)

1. General .................................................... 3

2. Arm Shaft

2.1 Preparatoryadjustmentwork........................................ 4

2.2 Assemblyofthecrank............................................ 5

2.3 Armshaftpositioning ............................................ 6

2.4 Bevel gear for the hand wheel ....................................... 8

2.5 Adjust bobbin winder............................................. 9

2.6 Thread-trimmer cam ............................................. 10

2.7 Crankshaft drive to the hook shaft..................................... 11

2.8 Sewingmotorclutch............................................. 12

2.9 Referencepositionofthesewingmotor ................................. 13

2.9.1 Positionoftheinitiator............................................ 13

2.9.2 Adjustreferenceposition.......................................... 14

3. Hook, Looping Stroke, and Needle Bar Height

3.1 Drivershaft .................................................. 17

3.2 Gearsegmentonthecamshaft ...................................... 18

3.3 Gearsegmenttothedrivershaft...................................... 19

3.4 Needle bar height............................................... 20

3.5 Distance between hook tip and needle .................................. 21

3.6 Looping stroke and needle protection................................... 22

4. Thread-Guiding Parts

4.1 Threadtake-uplever............................................. 23

4.2 Thread regulator ............................................... 25

5. Thread Trimmer

5.1 Thread trimmer magnet ........................................... 26

5.2 Position of the hook knife .......................................... 27

5.3 Cutting pressure / Position of the stationary knife ........................... 28

5.4 Thread guide sheet.............................................. 30

6. Material Feed

6.1 Gauge for reference position ........................................ 31

6.2 Referenceposition.............................................. 32

6.3 Position of the fabric clamps and the rest plate to the needle .................... 34

6.4 Fabricclamplifting.............................................. 35

7. Oil Lubrication ................................................ 36

7.1 Oilcirculation................................................. 37

7.2 Oilpump.................................................... 38

8. Replacing the Control Unit ........................................ 39

9. Maintenance ................................................. 39

1. General

These service instructions describe the adjustment of the automatic

bartacker 511.

CAUTION !

The operations described in these service instructions may only be

carried out by qualified staff or other properly trained persons!

Caution – Risk of injury !

Always switch off the main switch before any repair, alteration or

maintenance.

Adjustment work and function testing that takes place while the

machine is running should be carried out only under observance of all

safety measures and with the greatest possible caution.

These service instructions describe the adjustment of the automatic

bartacker in a logical order. Please observe that various setting

positions are dependent on each other. Thus it is essential that the

settings be conducted while keeping to the order described. For all

adjustments of parts involved in the stitch formation, a new undamaged

needle must be inserted.

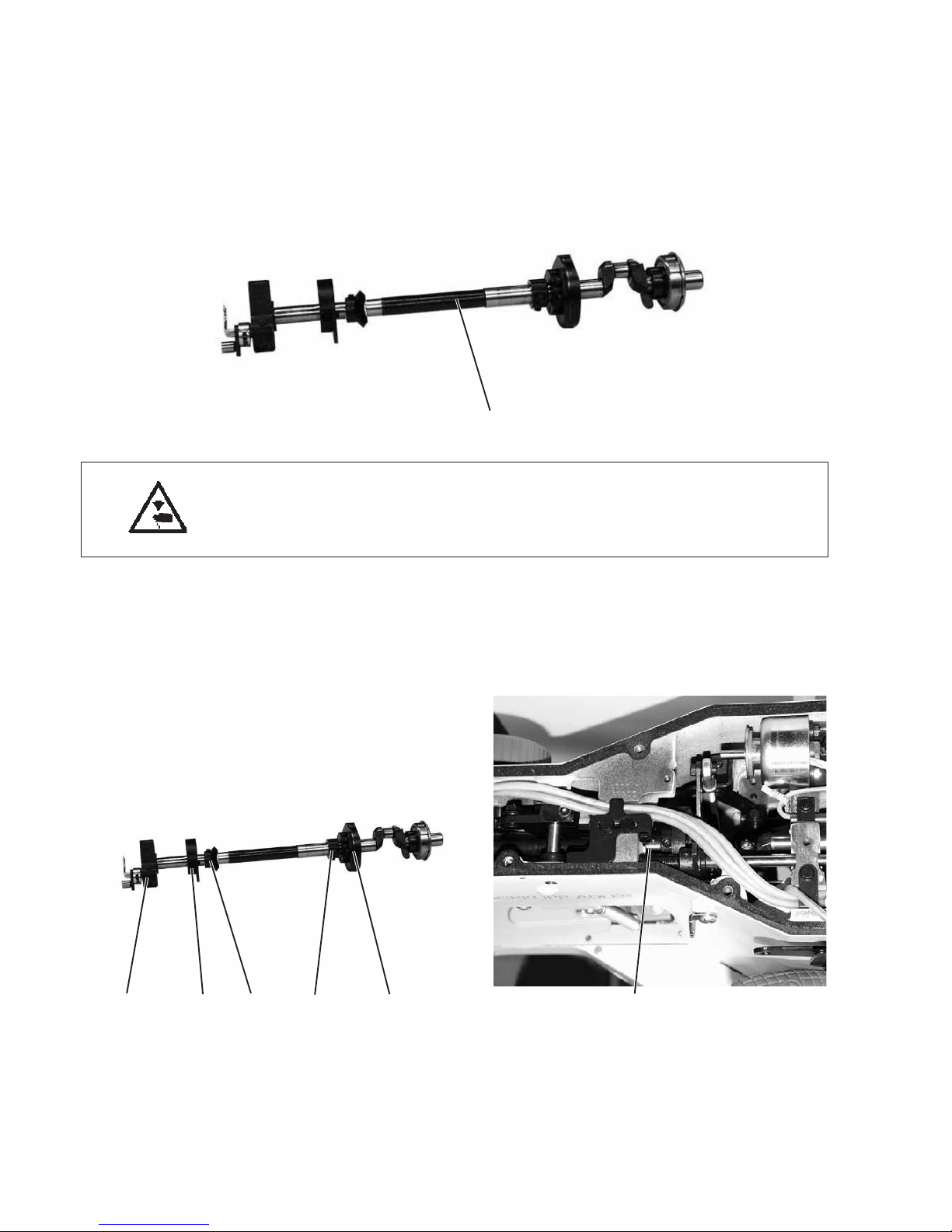

2. Arm Shaft

2.1 Preparatory adjustment work

Some of the adjustments at the arm shaft 1 are easier to carry out if

the thread trimming mechanism 3 is removed.

Caution – Risk of injury !

Turnthemainswitchoff.

Remove and mount the thread trimming mechanism only when the

automatic bartacker is switched off.

Remove mechanism

–Unscrew arm cover.

–Loosen screw 4 at the thread trimmer magnet.

–Unscrew screws 2 and 5 and take off thread trimming

mechanism 3.

Mount mechanism

–Push thread trimming mechanism 3 on the magnet and place it on

the machine head.

–Insert screws 2 and 5 and screw tight.

–Tighten screw 4 at the thread trimmer magnet.

–Adjust thread trimmer (see chapter 5).

5432

2.2 Assembly of the crank

Caution – Risk of injury !

Turnthemainswitchoff.

Remove and mount the crank only when the automatic bartacker is

switched off.

Rule:

The crank 4 has to be mounted on the arm shaft 1 in such a way that

the pivot 3 of the screw 2 reaches into the drill-hole on the arm shaft.

The screw 2 is the first screw in the direction of rotation.

Assembly

–Push crank 4 on arm shaft 1.

–Turn crank 4 so that its first drill-hole in the direction of rotation is

located above the drill-hole in the arm shaft 1. Insert screw 2 with

pivot 3 and screw tight.

–Insert screw 5 and tighten.

2.3 Arm shaft positioning

Caution – Risk of injury !

Turnthemainswitchoff.

Check and adjust the position of the arm shaft only when the automatic

bartacker is switched off.

Rule and control

The arm shaft 1 should have no axial backlash, but it must not move

too sluggishly.

–Check the arm shaft with regard to axial backlash and

sluggishness.

Adjusting

–Loosen screws at the thread trimmer cam 2.

–Loosen screws at the adjusting ring 3.

–Loosen screws at the bevel gear 4.

–Loosen screws at the bobbin winder wheel 5.

6 543 2 3

Andere Handbücher für 511

Inhaltsverzeichnis

Andere Duerkopp Adler Nähmaschine Handbücher

Duerkopp Adler

Duerkopp Adler 841-27 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 868 Betriebsanleitung

Duerkopp Adler

Duerkopp Adler 525-105 Leitfaden

Duerkopp Adler

Duerkopp Adler 4280i-6 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 467 Betriebsanleitung

Duerkopp Adler

Duerkopp Adler 1180i-5 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 204-102 Leitfaden

Duerkopp Adler

Duerkopp Adler 4280-2 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 523i Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 559 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 550-16-23 Betriebsanleitung

Duerkopp Adler

Duerkopp Adler 556 Leitfaden

Duerkopp Adler

Duerkopp Adler 267 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 269 Leitfaden

Duerkopp Adler

Duerkopp Adler 550-767 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler N291 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 579 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 467 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 506-3 Betriebsanleitung

Duerkopp Adler

Duerkopp Adler 4260-6 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 527 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 550-12-5 Leitfaden

Duerkopp Adler

Duerkopp Adler 175 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 887 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung
