888

Spezialnähmaschine

Betriebsanleitung

Instruction manual

Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 521 / 9 25-00 • Telefax +49 (0) 521 / 9 25 24 35 • www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

09/2010 Rev. index: 04.0 Printed in Federal Republic of Germany 0791 888740

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise

Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG

verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,

even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Contents Page:

Part 2: Installation Instructions Class 888 – Original Instructions

1 Scope of delivery ............................................. 3

2 Transport packing of assembled machine ............................. 4

3 Assembling the stand

3.1 Assemblingthestandcomponents ................................... 4

3.2 Assemblingthetabletop ......................................... 5

3.2.1 Assemblingthetabletopinthemachinewiththemotoronthetabletop ............ 5

3.2.2 Assemblingthetabletopwiththemotoronthemachinehead(directdrive) .......... 6

3.2.3 Mounting the pressure regulator for the sewing foot to the table top ............... 7

3.3 Settingtheworkingheight ........................................ 9

4 Assembling the machine head

4.1 Fittingthemachinehead ......................................... 10

4.2 FittingthemachineheaddrivewithaV-belt.............................. 11

4.3 Fittingthebeltguards ........................................... 12

4.4 Adjustmentofpedalposition....................................... 13

4.5 Fittingthekneeleverandoilpumppipe ................................ 14

4.6 Fittingtheproximityswitch........................................ 15

4.7 Fitting the connecting cable, control panel

andsewingdiodelamponthemachinehead ............................. 16

5 Electrical connection

5.1 Electricalconnectiontolowvoltagenetwork............................. 17

5.1.1 Sewinglighttransformerconnectiontonetworkvoltage ...................... 18

5.2. Grounding .................................................. 19

5.3 Connection of head to Efka DC1550/DA321G drive ......................... 20

5.4 Mounting the M-Control PCB ....................................... 21

5.5 SettingtheswitchontheM-ControlPCB................................ 22

6 Adjustment of Efka positioning motor (drive)

6.1 Settingofpositioningmotor(drive)parameters............................ 23

6.1.1 Settingofparametersbythe“autoselect”function.......................... 23

6.1.2 SettingofEfkadriveparametersspecificforclass888....................... 23

6.1.3 Valuesofparametersspecificforthisclass888............................ 24

6.2 Settingofmachinepositioning...................................... 24

6.2.1 Positiondefinition.............................................. 24

6.2.2 Setting the machine positioning for DC1550/DA321G drive .................... 24

6.2.3 Checking of set positions ......................................... 25

6.3 Masterreset ................................................. 25

7 Pneumatic connection .......................................... 26

8 Lubrication ................................................. 27

Contents Page:

9 Sewing test ................................................. 27

1 Scope of delivery

The purchaser can order a complete machine, or some components

only. Prior to setting up, please check that all the required parts are

present.

This description refers to a special sewing machine, of which all

individual components can completely be delivered by

Dürkopp Adler AG. A complete supply of the disassembled machine

depends on the selected drive and consists of the following

components:

Machine with the motor (drive) Machine with the direct drive

on the table top on the machine head

Obligatory components:

Machine head (1) Machine head (1)

Accessories (includes oil tank (2), Accessories (includes oil tank (2),

yarn stand (3), tools and other items yarn stand (3), tools and other items

Set of parts for motor (includes belt guard (4), drive Set of parts with motor (includes direct drive (5),

belt pulley and other parts dependent on drive) belt guard (4) and other parts)

Optional components:

Stand (6) Stand (6)

Drive (7) Control panel (8)

Control panel (8) Maintenance unit (9)*

Pneumatic connection package (10)*

*only for subclasses with pneumatics

2 Transport packing of assembled machine

If the machine is supplied in assembled condition, the following

transport packing must be removed:

–Safety straps and wooden battens on the machine head and

stand.

–Safety blocks and straps on the sewing drive.

3 Assembling the stand

3.1 Assembling the stand components

–Mount the frame according to the picture. Mount the pedal (1)

provisionally. Its position will be adjusted after the whole machine

is complete.

–Adjust the screw (2) so that the stand is stable.

3.2 Assembling the table top

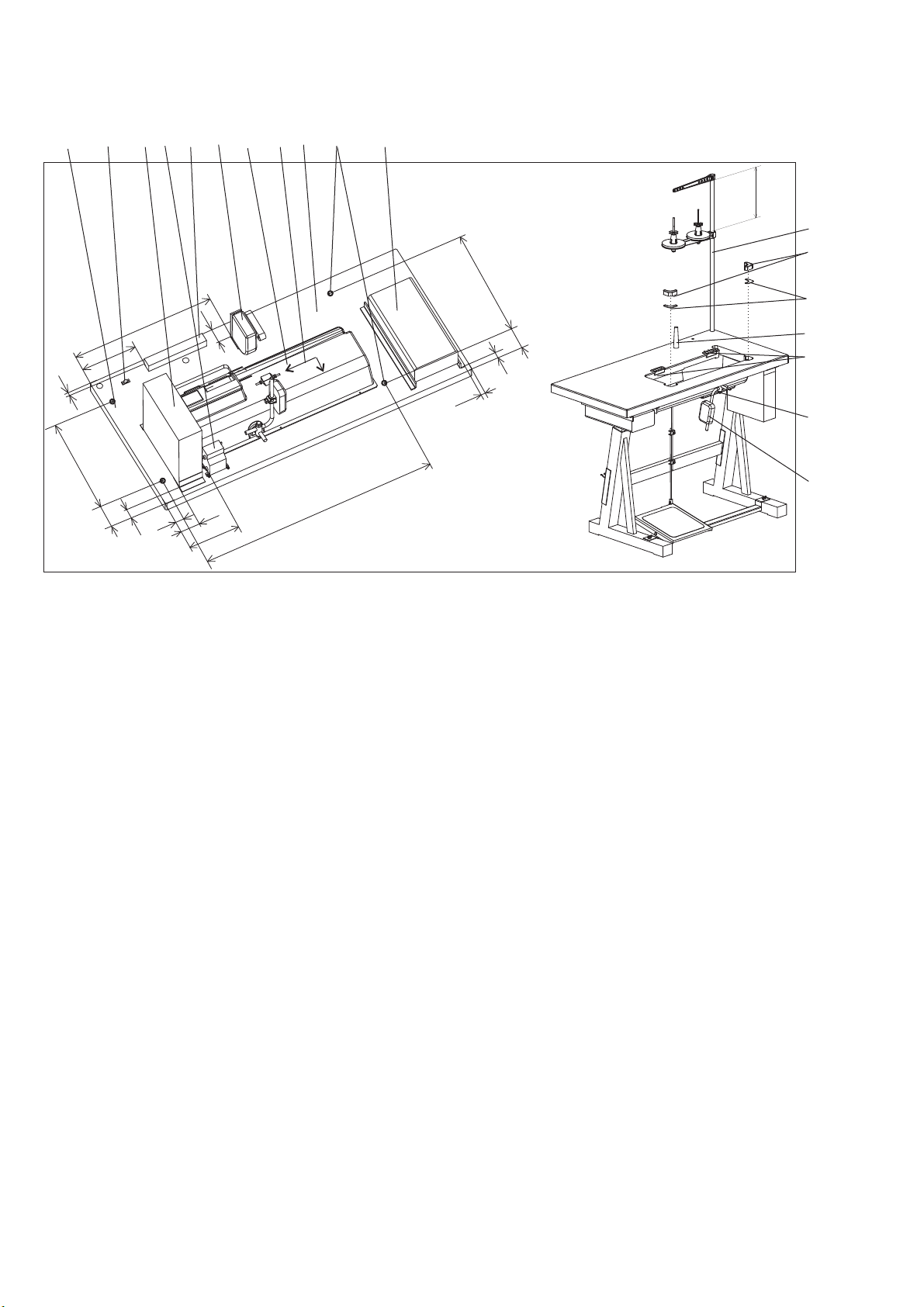

3.2.1 Assembling the table top in the machine with the motor on the table top

–Turn the table top (1) upside down.

–Screw the drawer (2).

–Put the oil sump (3) on the recess in the table top and slide it in the

arrow direction (4) till the relevant protrusions of the oil sump are

seated on the recess contour. Screw the oil sump.

–Screw the drive (5).

–Screw the sewing lamp transformer (6) – if there is any.

–Screw the cable clip (7).

–Screw the electric cable channel (8).

–Screw the switch (9).

–Mount electric cables according to the instructions in chapter 5.

–Pre-bore the holes (10). Attach the table plate to the stand with

woodscrews (B8 x 35). Then turn the stand to normal position.

–Insert the yarn stand (11) in the hole in the table plate and secure it with

the nuts and washers. Fit and align the yarn reel and unwinding holders.

–Insert the machine head support pin (12).

–Place the hinge bottoms (13) for the machine head into the cutout

of the table plate (1) and tighten the screws.

–Insert the wedges (14) in the recess corners.

–Insert the rubber cushions (15).

–Remove the blinds from the bushing (16).

–Remove the knee lever (17) and guide through the opening, as

shown in the illustration.

328

140

770

30 50

185

368 80

110 7 69 58 4 3 10

260

3.2.2 Assembling the table top with the motor on the machine head (direct drive)

–Turn the table top (1) upside down.

–Screw the electric cable channel (2).

–Screw the pedal position sensor (3).

–Screw the electric cable clip (4).

–Put the oil sump on (5) and slide it in the arrow direction (6) till the

relevant protrusions of the oil sump are seated on the recess

contour. Screw the oil sump.

–Screw the drawer (7).

–Pre-bore the holes for wood screws and screw the drive control

box (8).

–Screw the sewing lamp transformer (9) – if there is any.

–Mount electric cables according to the instructions in chapter 5.

–Pre-bore the holes (10). Attach the table plate to the stand with

woodscrews (B8 x 35). Then turn the stand to normal position.

–Insert the yarn stand (11) in the hole in the table plate and secure

it with the nuts and washers. Fit and align the yarn reel and

unwinding holders.

–Insert the machine head support pin (12).

–Place the hinge bottoms (13) for the machine head into the cutout

of the table plate (1) and tighten the screws.

–Insert the wedges (14) in the recess corners.

–Insert the rubber cushions (15).

–Remove the blind from the bushing (16).

–Remove the knee lever (17) and guide through the opening, as

shown in the illustration.

328

770

30 72

185

368 80

10 2 69 58 13 10

260

460

180

Andere Handbücher für 888

Inhaltsverzeichnis

Andere Duerkopp Adler Nähmaschine Handbücher

Duerkopp Adler

Duerkopp Adler 2180-1 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 609 Leitfaden

Duerkopp Adler

Duerkopp Adler 745-34 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 4180i-5 Leitfaden

Duerkopp Adler

Duerkopp Adler 1280i-6 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 251-140040 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 868 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 250 Leitfaden

Duerkopp Adler

Duerkopp Adler 869 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 550-12-23 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 4182i-1 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 961-16-2 Leitfaden

Duerkopp Adler

Duerkopp Adler 510 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 570 Leitfaden

Duerkopp Adler

Duerkopp Adler Electropneumatic Fullness Kit 0175 590044 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 887 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 366 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 867-M PREMIUM Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 745-26 Leitfaden

Duerkopp Adler

Duerkopp Adler 205-64 Leitfaden

Duerkopp Adler

Duerkopp Adler 4181i-3 Leitfaden

Duerkopp Adler

Duerkopp Adler 739-23 Technische Daten

Duerkopp Adler

Duerkopp Adler 550-767 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 669 Premium Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung
