Duerkopp Adler 609 Bedienungsanleitung

609

Spezialnähmaschine

Betriebsanleitung

Instruction manual

Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 521 / 9 25-00 • Telefax +49 (0) 521 / 9 25 24 35 • www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

10/2007 Rev. index: 01.0 Printed in Federal Republic of Germany 0791 609741

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise

Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG

verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,

even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Content page:

Preface and general safety instructions

Part 1: Operating Instructions class 609

(Edition 10/2007)

1. Product description ............................................ 5

2. Designated use ............................................... 5

3. Subclasses .................................................. 6

4. Optional equipments ........................................... 6

5. Technical Data ................................................ 7

6. Operation

6.1 Threading the needle thread ........................................ 8

6.2 Adjusting the needle thread tension ................................... 8

6.3 Opening the needle thread tensioner ................................... 9

6.4 Winding on the hook thread......................................... 10

6.5 Fitting the hook-thread bobbin ....................................... 11

6.6 Adjusting the hook-thread tension .................................... 12

6.7 Inserting and changing the needle .................................... 13

6.8 Adjustingthesewingfootstroke ..................................... 14

6.9 Adjustingthesewingfootpressure.................................... 15

7. Control unit and operating panel

7.1 General .................................................... 16

7.2 SewingdriveHoHsingHVP70-4-ED-2-CE ............................... 16

7.2.1 Control unit keys (sewing mode)...................................... 17

7.2.2 Operating panel keys (Type C300) .................................... 18

7.2.3 Changing the parameter values ...................................... 19

8. Sewing..................................................... 19

9. Maintenance

9.1 Cleaning and testing ............................................. 23

9.2 Lubrication................................................... 24

1. Product description

The DÜRKOPP ADLER 609 is a single needle double lockstitch

cylinder arm machine for attaching and basting works on jackets,

coats, suit jackets and the like.

The machine is equipped with an integrated DC direct drive and an

operating panel for the programming of the sewing parameters.

·Double lockstitch cylinder arm machine

·Integrated direct current direct drive

·Easy operating by means of the external operating panel.

·Automatic thread trimmer under the throat plate.

·Small horizontal hook.

·Integrated winder for the bobbin thread.

·Simple pulling of the thread when moving the material through

eccentric actuated tension release.

·Easy processing of materials up to 19 mm thick.

·Simplified inserting of the material through the reverse function of

the needle.

·Easy handling through cylindrical covering on the free arm.

2. Designated use

The 609 is a special sewing machine designed for sewing light to

medium-heavy material. Such material is generally made of textile

fibers, but it may also be leather. It is used in the clothing, footwear

and leatherwear industries as in domestic and motor-vehicle

upholstery.

This special sewing machine can also be used to produce so-called

technical seams. In this case, however, the operator must assess the

possible dangers which may arise (with which DÜRKOPP ADLER AG

would be happy to assist), since such applications are on the one hand

relatively unusual and, on the other, so varied that no single set of

criteria can cover them all.

The outcome of this assessment may require appropriate safety

measures to be taken.

Generally only dry material may be sewn with this machine. The

material may be no thicker than 9 mm when compressed by the

lowered sewing feet. The material may not contain any hard objects,

since if it does the machine may not be operated without an

eye-protection device. No such device is currently available.

The seam is generally produced with textile-fibre sewing thread of

gauge up to 80/3 Nm. Before using any other thread the possible

dangers arising must be assessed and appropriate safety measures

taken if necessary.

This special sewing machine may be set up and operated only in dry,

well-maintained premises. If the sewing machine is used in premises

which are not dry and well-maintained it may be necessary to take

further precautions (which should be agreed in advance - see EN

60204-31:1999).

As manufacturers of industrial sewing machines we proceed on the

assumption that personnel who work on our products will have

received training at least sufficient to acquaint them with all normal

operations and any possible hazards which these may involve.

3. Subclasses

609-100101 Single needle double lockstitch free-arm machine for

manual material feed.

4. Optional equipments

Order No. Optional equipment

MG55 400344 Stand

with table plate 1060x550

0609 590014 Table extension

for accomplishing attaching work flat, table top

1400 x 550mm

9822 510026 Sewing lamp

with flexible arm, lamp 12V/20W

9822 510027 Table clamp

for clamping the sewing lamp onto the table plate.

9870 001021 Add-on kit socket for the sewing lamp

for the electrical connection under the table top.

Further available documents concerning the class 609

0791 609801 Parts List

0791 609641 Service Instructions

5. Technical data

Rated noise value Lc:

Workplace-related emission value in accordance with DIN

45635-48-A-1-KL2

Lc = xx dB (A)

Class: 609

Stitch length: manual

Sewing foot stroke: 15 mm

Speed: 800 [min-1]

Material: double Skai 1,6 mm 900 g/m2DIN 53352

Needle system: 134-35

Needle thickness (depending on the equipment no.) [Nm] 80 - 100

Max. thread thickness: [Nm] 80/3

Speed:

-max. [min

-1] 1000

- ex factory [min-1] 800

Max. stitch length: manual

Max. sewing foot stroke: [mm] 19,5

Max. clearance under the sewing foot with the needle bar

positioned: [mm] 20

Rated voltage: 1 x 220-240V, 50/60HZ

Dimensions:

- Stand MG 55-3 [mm] 1540 x 1060 x 550

Working height:

- Stand MG 55-3 [mm] 750 - 900

Weight (only the machine head) [KG] 32

6. Operation

6.1 Threading the needle thread

Caution: Danger of injury!

Turn off the main switch !

The needle thread may only be threaded with the sewing machine

switched off.

6.2 Adjusting the needle thread tension

Pre-tension

In order to guarantee a safe function of the thread trimmer with the

class 609, it is necessary that the needle thread is under residual

tension when the main tensioner 2 is open.

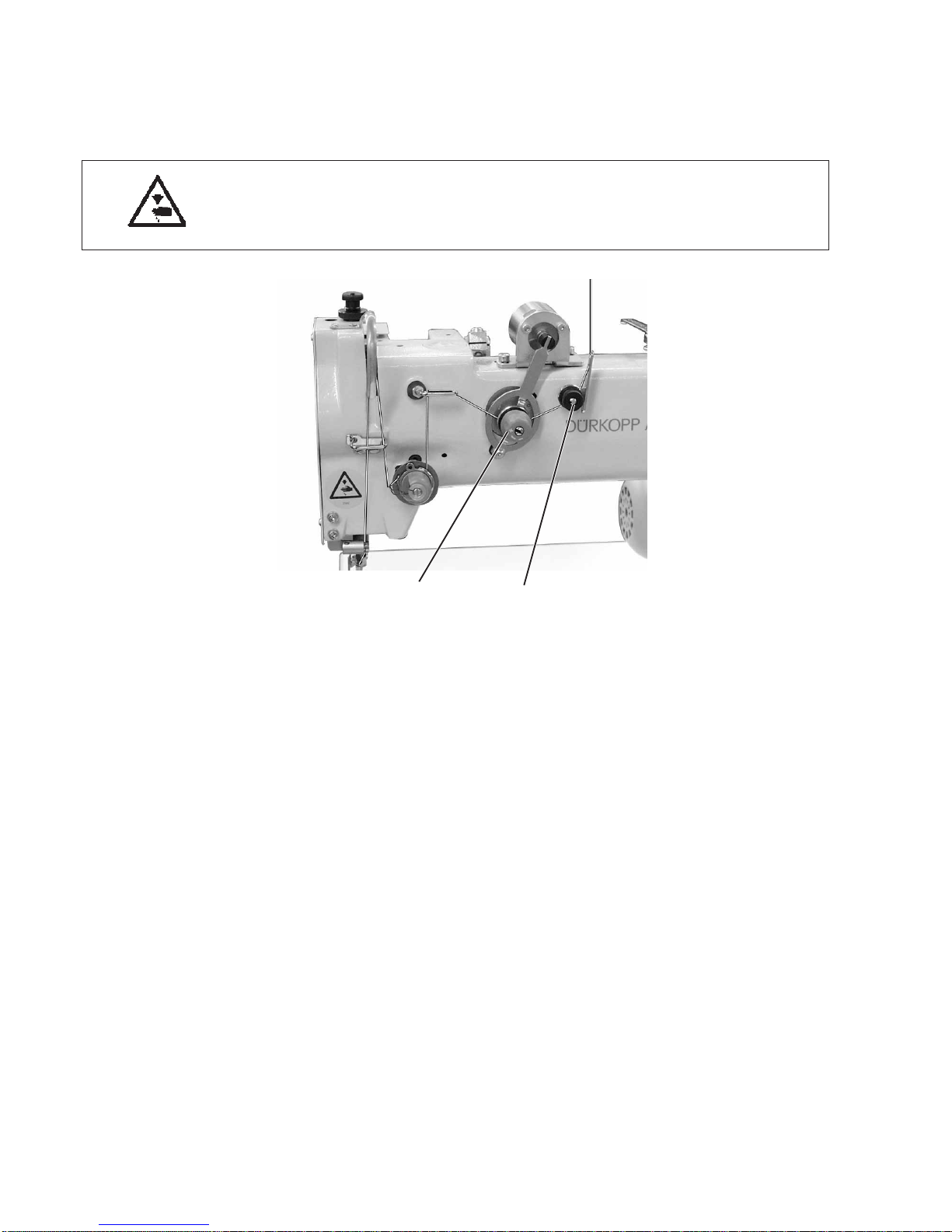

The residual tension is generated by the pre-tensioner 1.

The pre-tensioner 1 determines the length of the needle thread end

after the thread trimming.

The pre-tension 1 should be set lower than the main tension 2.

–Adjust the pre-tension 1 by turning the knurled nut.

–After major changes on pre-tension 1, adjust the main tension 2

accordingly.

Main tension

The main tensioner 2 should be set to the minimum possible tension.

The looping of the threads must be in the center of the material (see

fig. a).

With thin material excessive thread tension can cause unwanted

gathering and thread breakage.

–Adjust the main tensioner 2 so that the stitches are uniform.

Andere Handbücher für 609

Inhaltsverzeichnis

Andere Duerkopp Adler Nähmaschine Handbücher

Duerkopp Adler

Duerkopp Adler 4280i-6 Leitfaden

Duerkopp Adler

Duerkopp Adler 171 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 550-16-23 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 4180-1 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 910 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 550-8-2 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 868 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler N291 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 69-373 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 1230i-6 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 251-140040 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 272-160362 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 4181-1 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 744-122 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 175 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 745-34 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 467-65 Leitfaden

Duerkopp Adler

Duerkopp Adler Z110 Leitfaden

Duerkopp Adler

Duerkopp Adler DACeco M-TYPE Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 869 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 4181i-3 Leitfaden

Duerkopp Adler

Duerkopp Adler 4182-1 Fehlerbehebungshandbuch

Duerkopp Adler

Duerkopp Adler 506 Bedienungsanleitung

Duerkopp Adler

Duerkopp Adler 171 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung
