Duerkopp Adler 251-140040 Bedienungsanleitung

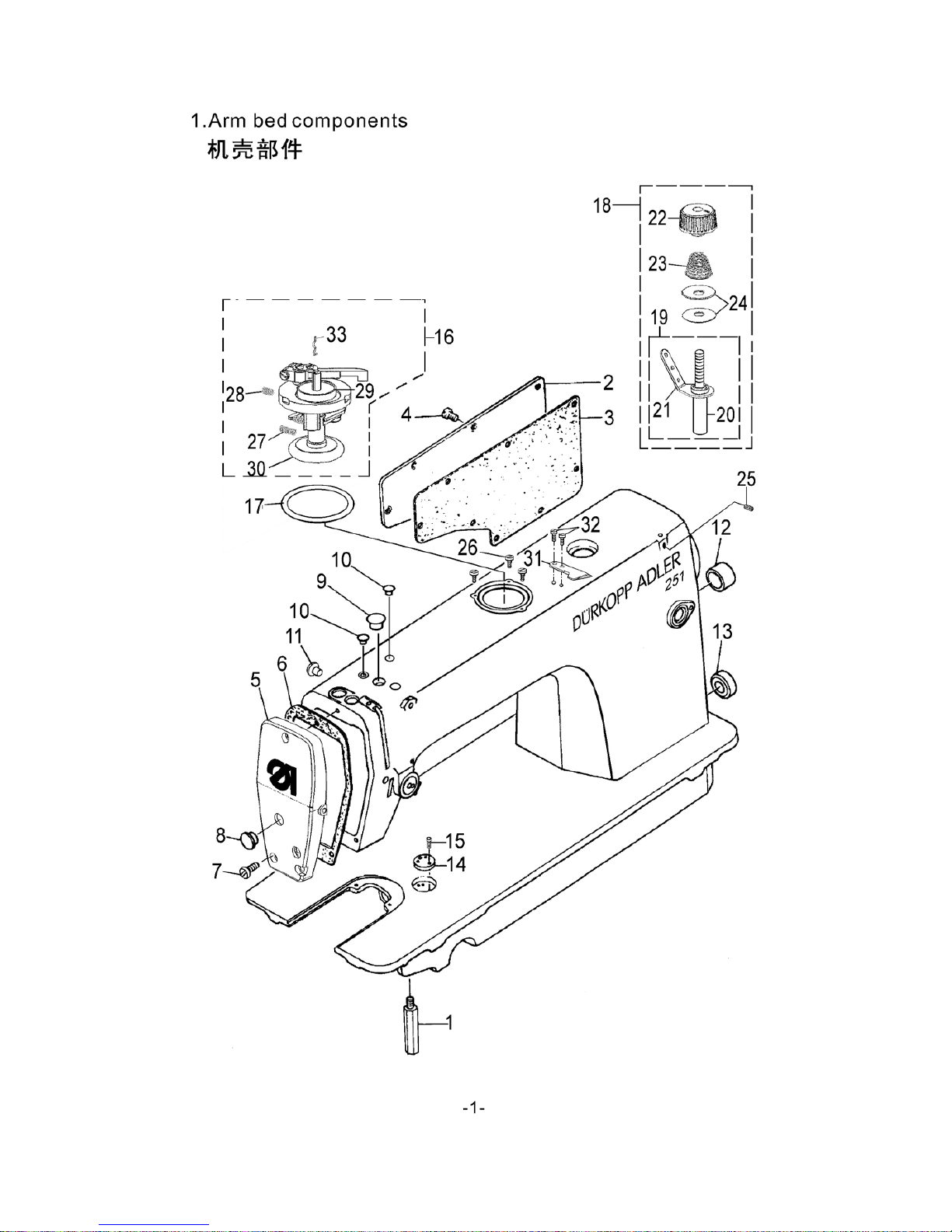

1.Arm bed components 1.

ᴎ໇䚼ӊ

ᑣো ӊো Description ৡ⿄ Qty

1 0251 GS0548 Bed screw stud ᑩᑻᬃ󰵦 4

2 0251 GK239 Side plate ৢにᵓ 1

3 0251 GR3340 Gasket ৢにᵓൿ 1

4 0251 GS053 Screw 3/16-28 L=9 ৢにᵓ㶎䩝3/16-28 L=9 8

5 0251 GR6245 Face plate arm 䴶ᵓ 1

6 0251 GR6162 Gasket 䴶ᵓൿ 1

7 0251 GS5198 Scew 3/16-28 L=12 䴶ᵓ㶎䩝3/16-28 L=12 3

8 0251 GR6163 Rubber plug 䴶ᵓ䇗㡖㶎ᄨา 2

9 0251 GR6164 Rubber plug 䩜ᴚ᳆ᶘ㶎ᄨา 1

10 0251 GR6165 Rubber plug ᣥ㒓䖲ᴚ䫔㶎ᄨา 1

11 0251 GR6168 Rubber plug Ꮉ㡎ᄨา 1

12 0251 GR6166 Rubber plug 䗕᭭䇗㡖㶎ᄨา 2

13 0251 GR6167 Rubber plug ϟ䕈Ⳇᄨา 1

14 0251 GR5791 Scale base plate 󰵼ሎᑻ 1

15 0251 GS5054 Scew 11/64-40 L=5 󰵼ሎᑻ㶎䩝11/64-40 L=5 2

16 0251 GR6250V17 Bobbin winder asm 㒩㒓఼˄䚼ӊ˅ 1

17 0251 GRD1172 Bobbin winder cushion washer 㒩㒓఼ᆚᇕൿ 1

18 0251 GR6204V5 Thread tension comp 㒩㒓ᓴ࡯䚼ӊ 1

19 0251 GR6205V2 Thread tension shaft comp 㒩㒓ᓴ࡯䕈䚼ӊ (1)

20 0251 GZ1152 Thread tension shaft 㒩㒓ᓴ࡯䕈 ((1))

21 0251 GR5013 Threading plate 㒩㒓ᓴ࡯䖛㒓ᵓ ((1))

22 0251 GL1040 Nut 㒩㒓ᓴ࡯ᮟ䪂㶎↡ (1)

23 0251 GW1107 Spring 㒩㒓ᓴ࡯ᔍㇻ (1)

24 0251 GR6284 Thread tension disk 㒩㒓఼ᓴ࡯།㒓Ⲭ (2)

25 0251 GS04 Screw 15/64-28 L=10.5 㒩㒓ᓴ࡯఼㋻೎㶎䩝15/64-28 L=10.5 1

26 0251 GS5187 Screw 11/64-40 L=6 㒩㒓఼ᅝ㺙㶎䩝 11/64-40 L=6 3

27 0251 GW1106 Spring 㒩㒓䕈ᑻᔍㇻ (1)

28 0251 GW1104 Spring ࡼ԰ᵓ໡ԡᔍㇻ (1)

29 0251 GR6257 Bobbin Supper ẁᖗᑻ (1)

30 0251 GR6261 O-ring 㒩㒓䕂‵㛊೜ (1)

31 0251 GR6201 Thread trimmer ࡆ㒓ߔ 1

32 0251 GS5188 Screw 9/64-40 L=4 ࡆ㒓ߔ㶎䩝 9/64-40 L=4 2

33 0251 GW1105 Spring 㒩㒓䕈ᔍㇻ (1)

ˉ2ˉ

-3-

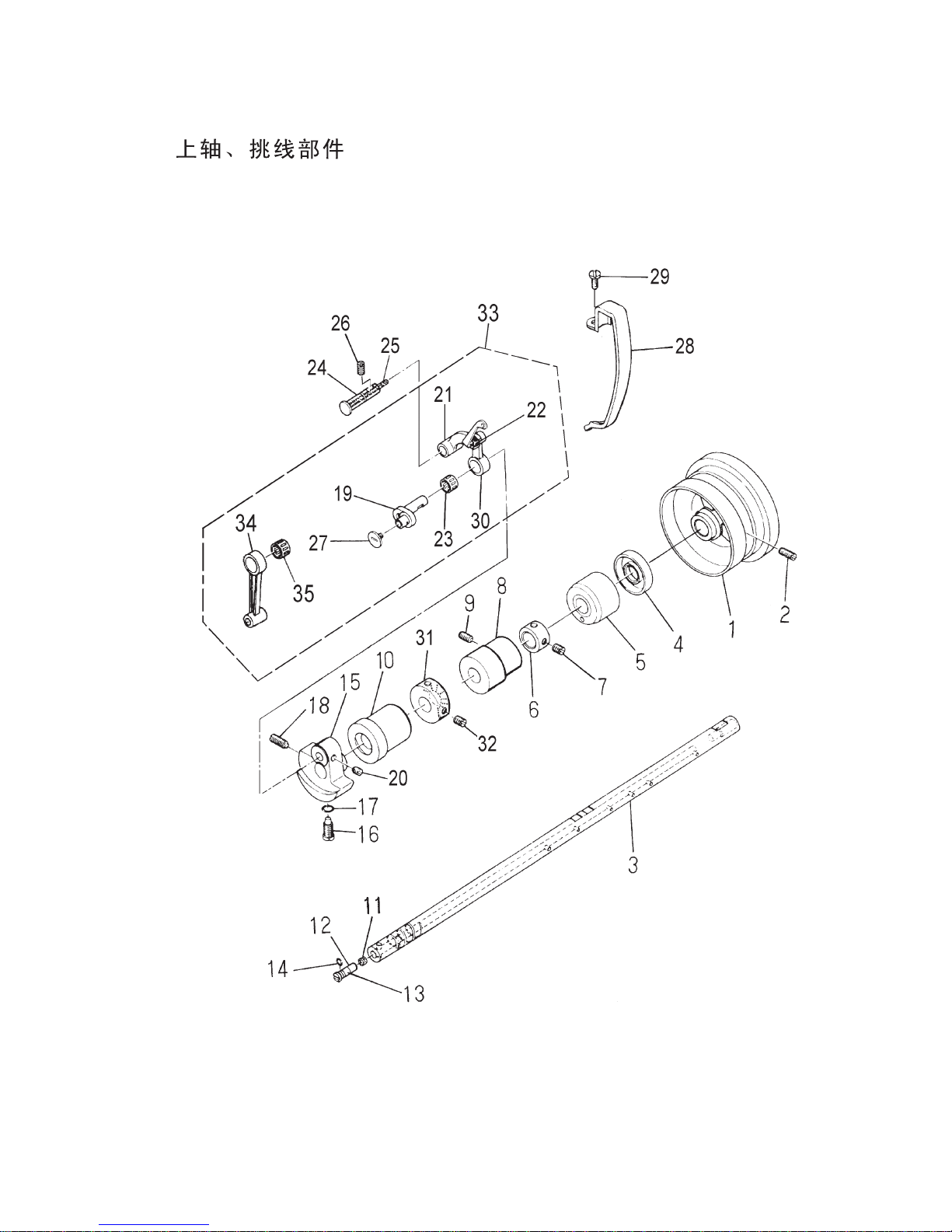

2.Main shaft & thread take-up components

2.Main shaft & thread take-up components 2.

Ϟ䕈 ᣥ㒓䚼ӊ

ᑣো ӊো Description ৡ⿄ Qty

1 0251 GP1030 Hand wheel Ϟ䕂 1

2 0251 GS03 Screw 15/64-28 L=15 Ϟ䕂㶎䩝15/64-28 L=15 2

3 0251 GZ431 Main shaft Ϟ䕈 1

4 0251 GR6005 Oil seal Ϟ䕈⊍ᇕ 1

5 0251 GO1137 Main shaft bushing, rear Ϟ䕈ৢ䕈༫ 1

6 0251 GR1469 Thrust collar asm. Ϟ䕈ᣵ೜ 1

7 0251 GS39 Screw 1/4-40 L=6 Ϟ䕈ᣵ೜㶎䩝1/4-40 L=6 2

8 0251 GO1138 Bushing , intermediats Ϟ䕈Ё䕈༫ 1

9 0251 GS0549 Screw 15/64 L=9 Ϟ䕈Ё䕈༫㶎䩝 15/64 L=9 1

10 0251 GO1139 Main shaft bushing, fornt Ϟ䕈ࠡ䕈༫ 1

11 0251 GR1470 Oil seal ᳆ᶘ⊍䞣䰤ࠊ↵ 1

12 0251 GX334 Oil amount adjusting pin asm. ᳆ᶘ⊍䞣䇗㡖䫔 1

13 0251 GO269 Rubber pushing ᳆ᶘ⊍䞣䇗㡖䫔༫ 1

14 0251 GR1471 Rubber ring ᳆ᶘ⊍䞣䇗㡖䫔Oᔶ೜ 1

15 0251 GH1123 Counterweight 䩜ᴚ᳆ᶘ 1

16 0251 GS06 Screw 9/32-28 L=16 䩜ᴚ᳆ᶘᅮԡ㶎䩝9/32-28 L=16 1

17 0251 GR1472 Rubber ring ᅮԡ㶎䩝Oᔶ೜ 1

18 0251 GS0550 Screw 9/32-28 L=16 䩜ᴚ᳆ᶘ㋻೎㶎䩝9/32-28 L=16 1

19 0251 GH563 Needle bar crank asm. ᣥ㒓᳆ᶘ䚼ӊ (1)

20 0251 GS39 Screw 1/4-40 L=6 ᣥ㒓᳆ᶘᅮԡ㶎䩝 1/4-40 L=6 2

21 0251 GH566 Thread take-up crank ᣥ㒓䖲ᴚ (1)

22 0251 GR3349 Rubber ᣥ㒓ᴚ䰆⊍༫ (1)

23 0251 GO270 Needle bearing ᣥ㒓ᴚ⒮䩜䕈ᡓ (1)

24 0251 GX1129 Thread take-up crank shaft ᣥ㒓䖲ᴚ䫔 1

25 0251 GR3350 Oil wick ᣥ㒓䖲ᴚ䫔⊍㒓 1

26 0251 GS04 Screw 15/64-28 L=10.5 ᣥ㒓䖲ᴚ䫔㶎䩝15/64-28 L=10.5 1

27 0251 GS09 Screw (left twist) 9/64-40 L=4.8 ᣥ㒓᳆ᶘᎺᮟ㶎䩝9/64-40 L=4.8 (1)

28 0251 GK1050 Thread take-up lever cover ᣥ㒓ᴚᡸ㔽 1

29 0251 GS5186 Screw 3/16-28 L=6 ᣥ㒓ᴚᡸ㔽㶎䩝3/16-28 L=6 1

30 0251 GH564V4 Thread take-up lever asm. ᣥ㒓ᴚߚ䚼ӊ (1)

31 0251 GP1024 Bobbin winder driving wheel 㒩㒓偅ࡼ䕂 1

32 0251 GS0155 Screw 15/64-28 L=9 㒩㒓偅ࡼ䕂㶎䩝15/64-28 L=9 2

33 0251 GH1131V8 Thread take-up asm. ᣥ㒓ᴚ䚼ӊ 1

34 0251 GH334 Needle bar crank rod 䩜ᴚ䖲ᴚ (1)

35 0251 GO270 Needle bearing 䩜ᴚ䖲ᴚ⒮䩜䕈ᡓ (1)

ˉ4ˉ

ো

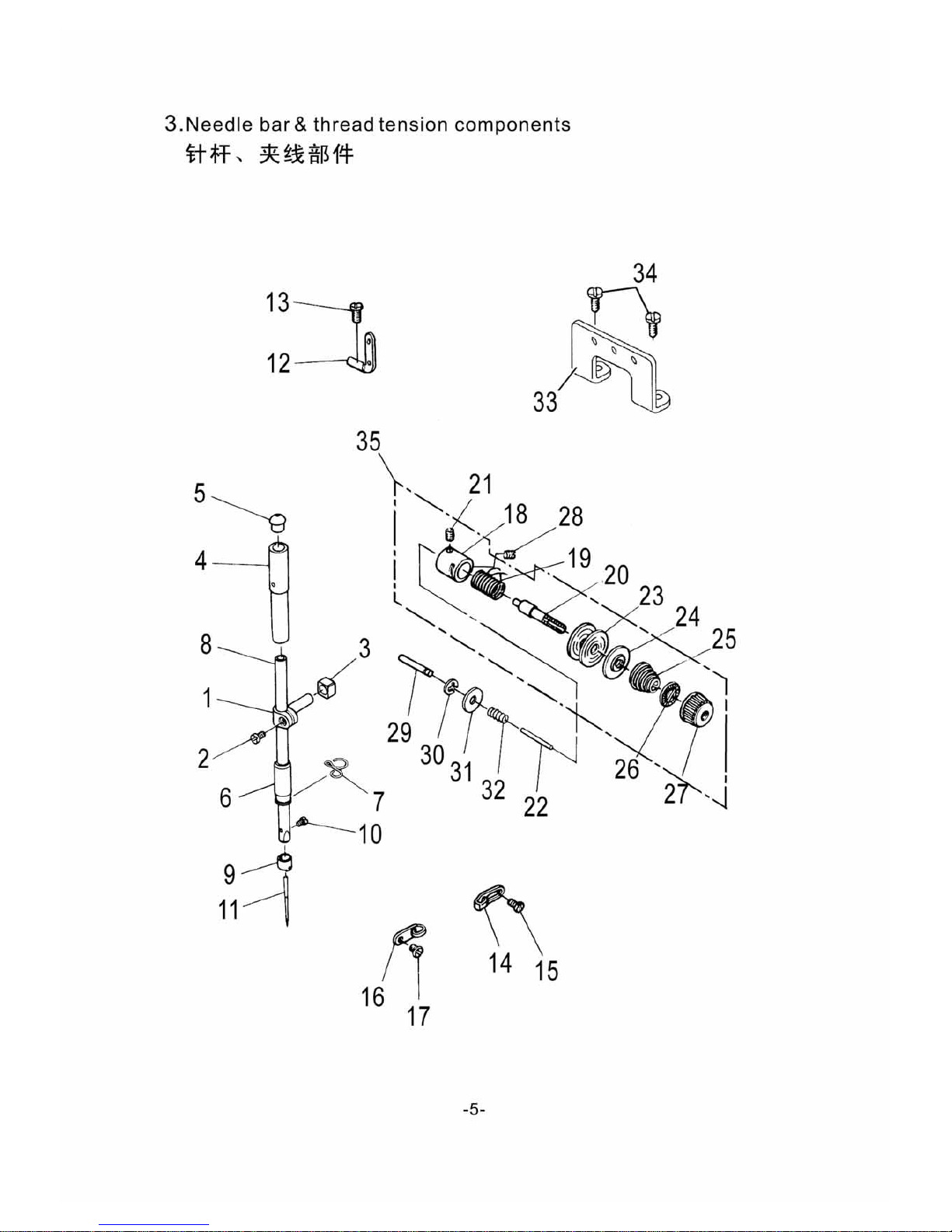

3.Needle bar & thread tension components 3.

䩜ᴚǃ།㒓䚼ӊ

ᑣӊো Description ৡ⿄ Qty

1 0251 GR1478 Needle bar connection asm 䩜ᴚ䖲᥹󰵦 1

2 0251 GS042 Screw 9/64-40 L=7.5 䩜ᴚ䖲᥹󰵦㶎䩝 9/64-40 L=7.5 1

3 0251 GU168 Slide block 䩜ᴚ䖲᥹󰵦⒥ഫ 1

4 0251 GO1092 Needle bar bushing,upper 䩜ᴚϞ䕈༫ 1

5 0251 GR6174 Cap 䩜ᴚϞ䕈༫ᄨา 1

6 0251 GO1093 Needle bar bushing,lower 䩜ᴚϟ䕈༫ 1

7 0251 GR3351 Needle bar thread guide 䩜ᴚϟ䕈༫㒓䩽 1

8* 0251 GZ1150 Needle bar(DBX1) 䩜ᴚ(DBX1) 1

8** 0251 GZ1174 Needle bar(134 ) 䩜ᴚ(134 ) 1

9 0251 GR3352 Needle bar thread guide 䩜ᴚ㒓䩽 1

10 0251 GS071 Screw 1/8-44 L=4.5 ᬃ䩜㶎䩝1/8-44 L=4.5 1

11* 0251 GV15 Needle (DBX1# 14) ᴎ䩜 (DBX1# 14) 1

11*

0251 GV1006 Needle(134 Nm90) ᴎ䩜(134 Nm90) 1

12 0251 GR6175 Two-hole thread eyelet Ѡⴐ㒓䩽 1

13 0251 GS5186 Screw 3/16-28 L=6 Ѡⴐ㒓䩽㶎䩝3/16-28 L=6 1

14 0251 GR3354 Frame thread guide , right ে㒓䩽 1

15 0251 GS0552 Screw 11/64-40 L=6 ে㒓䩽㶎䩝 11/64-40 L=6 1

16 0251 GR3355 Frame thread guide,left Ꮊ㒓䩽 1

17 0251 GS0552 Screw 11/64-40 L=6 Ꮊ㒓䩽㶎䩝 11/64-40 L=6 1

18 0251 GR1635 Tension post socket ᣥ㒓ㇻ䇗㡖ᑻ (1)

19 0251 GW1109 Take-up spring ᣥ㒓ㇻ (1)

20 0251 GS015 Screw །㒓㶎䩝 (1)

21 0251 GS016 Set screw 9/64-40 L=5.5 །㒓㶎䩝㋻೎㶎䩝9/64-40 L=5.5 (1)

22 0251 GX567 Thread release pin ᵒ㒓䩝 1

23 0251 GR1488 Tension disc །㒓ᵓ (2)

24 0251 GR1489 Tension disc holder ᵒ㒓ᵓ (1)

25 0251 GW1110 Tension spring །㒓ㇻ (1)

26 0251 GR1490 Tension disc stopper །㒓ࠊࡼᵓ (1)

27 0251 GL1037 Tension nut །㒓㶎↡ (1)

28 0251 GS48 Screw 15/64-28 L=7 །㒓఼㶎䩝15/64-28 L=7 1

29 0251 GX568 Tension release supporting pin ᵒ㒓䕙䩝 1

30 0251 GR1717 Snap ring ᵒ㒓䕙䩝ᣵ೜ 1

31 0251 GR3357 Washer plate ᵒ㒓䕙䩝ൿ⠛ 1

32 0251 GW432 Tension release supporting spring ᵒ㒓䕙䩝ᔍㇻ 1

33 0251 GR6179 Needle thread guide ᇐ㒓ᵓ 1

34 0251 GS5186 Tension disc 3/16-28 L=6 ᇐ㒓ᵓ㶎䩝 3/16-28 L=6 2

35 0251 GR6298V10 Thread tension asm. །㒓఼䚼ӊ 1

* FOR ASIA 䫔ᕔѮ⌆

** FOR EUROPE 䫔ᕔ󱂜⌆

ˉ6ˉ

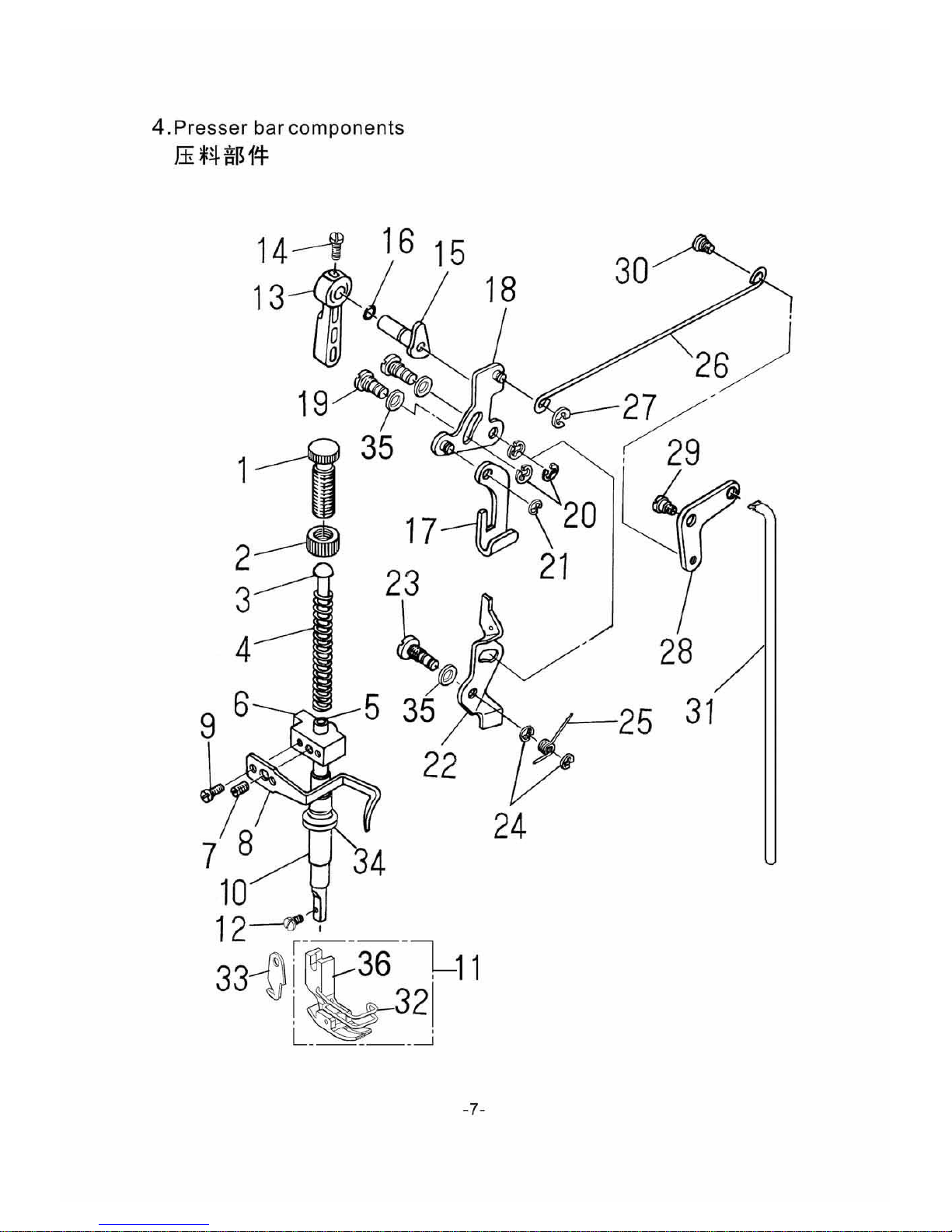

4.Presser bar components 4.

᭭䚼ӊ

ᑣো ӊ ো Description ৡ⿄ Qty

1 0251 GS0553 Presser spring regulator 䇗㶎䩝 1

2 0251 GL0114 Nut 1/2-28 䇗㶎↡ 1/2-28 1

3 0251 GR1494 Presser guide bar 䇗ᇐᴚ 1

4 0251 GW253 Presser spring 䇗ㇻ 1

5 0251 GZ275 Presser bar ᴚ 1

6 0251 GR3358 Needle bar guide bracket ᴚᇐᶊ 1

7 0251 GS033 Screw 1/4-40 L=8 ᴚᇐᶊ㶎䩝1/4-40 L=8 1

8 0251 GR3359 Presser bar thread guide 㓧㒓䇗㡖࣒ 1

9 0251 GS0100 Screw 9/64-40 L=8.5 㓧㒓䇗㡖࣒㶎䩝9/64-40 L=8.5 2

10 0251 GO1135 Presser bar bushing , lower ᴚ㹀༫ 1

11 0251 GM1077V5 Presser foot asm. ⌏㛮䚼ӊ 1

12 0251 GS020 Screw 9/64-40 L=10.5 ⌏㛮㶎䩝 9/64-40 L=10.5 1

13 0251 GR3360 Hand lifter 㛮ᡇ᠟ 1

14 0251 GS0554 Screw 9/64-40 L=8.7 㛮ᡇ᠟㶎䩝 9/64-40 L=8.7 1

15 0251 GR3361V2 Hand lifter cam asm. 㛮ᡇ᠟ߌ䕂䚼ӊ 1

16 0251 GR1503 Rubber ring 㛮ᡇ᠟䕈Oᔶ೜ 1

17 0251 GR3363 Lifting lever 㛮䰡ᵓ 1

18 0251 GR3364V3 Hand lifter link asm. ᢀ㛮ࠡᴴᴚ䚼ӊ 1

19 0251 GS0161 Link shaft ࠡᴴᴚ㶎㒍䫔 2

20 0251 GR1510 Snap ring 㶎㒍䫔ᓔষᣵ೜ 3

21 0251 GR3366 Lifting lever ring 䰡ᵓ䖲᥹⡍ࠊᓔষᣵ೜ 1

22 0251 GR3367 Tension release plate ᵒ㒓乊ᵓ 1

23 0251 GS0162 Tension release shaft ᵒ㒓乊ᵓ㶎㒍䫔 1

24 0251 GR1510 Snap ring 㶎㒍䫔ᓔষᣵ೜ 2

25 0251 GW433 Tension release return spring ᵒ㒓乊ᵓ໡ԡㇻ 1

26 0251 GR3368 Lifting lever connecting rod ᢀ㛮ᢝᴚ 1

27 0251 GR1510 Snap ring ᢝᴚᓔষᣵ೜ 1

28 0251 GR3369 Lifting lever link ᢀ㛮ৢᴴᴚ 1

29 0251 GS0557 Hinge screw ৢᴴᴚ䕈ԡ㶎䩝 1

30 0251 GS0558 Hinge screw ᢀ㛮ᢝᴚ㶎䩝 1

31 0251 GR3370 Connecting rod vertical ᢀ㛮乊ᴚ 1

32 0251 GR6242 Finger guard ֱ䩜ᶊ (1)

33 0251 GR6180 Thread trimmer ߛ㒓ߔ 1

34 0251 GK1051 Oil protecting bushing ᴚ䰆⊍༫ 1

35 0251 GR2035 Gasket 㶎㒍䫔ൿ೜ 1

36 0251 GM1084V4 Presser foot branch asm. ⌏㛮ߚ䚼ӊ (1)

ˉ8ˉ
