LCD Data Video Projector

Concise User’s Manual

MODEL 8104HW

403-8104HW- Concise-00

*#5-A'0)KPFF

ENGLISH

Projector

8104HW

User's Manual (concise)

Thank you for purchasing this projector.

Please read through this manual before using this product, in order to use safely

and utilize well the product.

WARNING ►Before using this product, be sure to read all manuals for this

product. See the “Using the CD manual” (20)to read the manuals in the CD.

After reading them, store them in a safe place for future reference.

►Heed all the warnings and cautions in the manuals or on the product.

►Follow all the instructions in the manuals or on the product.



First of all............................................ 2

Entries and graphical symbols explanation ......2

Important safety instruction ..............................2

Regulatory notices.............................. 3

About Electro-Magnetic Interference ................3

About Waste Electrical and Electronic Equipment

...4

Contents of package........................... 4

Arrangement....................................... 5

Connecting with your devices............. 6

Connecting power supply ................... 8

Using the cable cover......................... 9

Preparing for the remote control....... 10



Turning on the power........................ 11

Adjusting the projector's elevator ..... 12

Operation.......................................... 12

Turning off the power........................ 14

Replacing the lamp........................... 15

Cleaning and replacing the air lter.. 17

Replacing the internal clock battery.. 18

Caring for the mirror and lens........... 19

Using the CD manual ....................... 20

Specications ................................... 21

Troubleshooting

- Warranty and after-service ........... 22

Contents

NOTE • In this manual, unless any comments are accompanied, “the

manuals” means all the documents provided with this product, and “the product”

means this projector and all the accessories came with the projector.

First of all

Entries and graphical symbols explanation

The following entries and graphical symbols are used for the manuals and the

product as follows, for safety purpose. Please know their meanings beforehand,

and heed them.

Important safety instruction

The followings are important instructions for safely using the product. Be sure to

follow them always when handling the product. The manufacturer assumes no

responsibility for any damage caused by mishandling that is beyond normal usage

dened in these manuals of this projector.

WARNING

This entry warns of a risk of serious personal injury or even death.

CAUTION This entry warns of a risk of personal injury or physical damage.

NOTICE This entry notices of fear of causing trouble.

WARNING ►Never use the product in or after an abnormality (ex. giving

off smoke, smelling strange, took a liquid or an object inside, broken, etc.) If an

abnormality should occur, unplug the projector urgently.

►Situate the product away from children and pets.

►Do not use the product when there is fear of a thunderbolt.

►Unplug the projector from the power outlet if the projector is not used for the

time being.

►Do not open or remove any portion of the product, unless the manuals direct

it. For internal maintenance, leave it to your dealer or their service personnel.

►Use only the accessories specied or recommended by the manufacturer.

►Do not modify the projector or accessories.

►Do not let any things or any liquids enter to the inside of the product.

►Do not wet the product.

►

Do not place the projector where any oils, such as cooking or machine oil, are used.

Oil may harm the product, resulting in malfunction, or falling from the mounted

position.

►Do not apply a shock or pressure to this product.

- Do not place the product on an unstable place such as the uneven surface or

the leaned table.

- Do not place the product unstably. Place the projector so that it does not

protrude from the surface where the projector is placed on.

- Remove all the attachments including the power cord and cables, from the

projector when carrying the projector.

►

Never look into the projection lens or mirror while the projection lamp lights,

since the projection lamp ray may cause a trouble on your eyes.

►Do not approach the lamp cover and the exhaust vents, while the projection

lamp is on. Also after the lamp goes out, do not approach them for a while, since

too hot.

ENGLISH

Regulatory notices

About Electro-Magnetic Interference

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

This product may cause interference if used in residential areas. Such use must

be avoided unless the user takes special measures to reduce electromagnetic

emissions to prevent interference to the reception of radio and television

broadcasts.

In Canada

This Class A digital apparatus complies with Canadian ICES-003.

In the US and places where the FCC regulations are applicable

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a

residential area is likely to case harmful interference in which case the user will be

required to correct the interference at his own expense.

INSTRUCTIONS TO USERS: Some cables have to be used with the core set.

Use the accessory cable or a designated type cable for the connection. For cables

that have a core only at one end, connect the core to the projector.

CAUTION: Changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

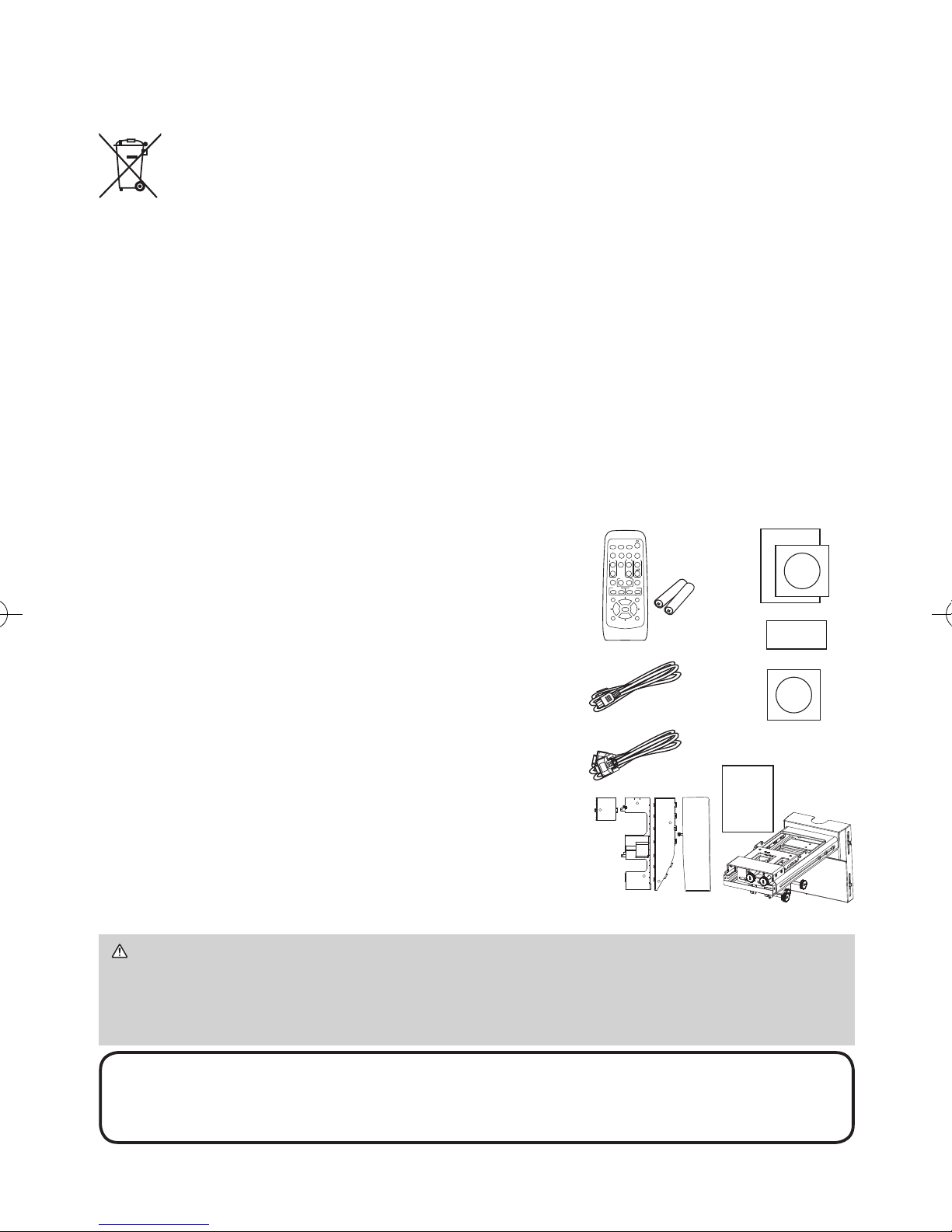

Contents of package

Your projector should come with the items

shown below. Check that all the items are

included. Require of your dealer immediately if

any items are missing.

(1) Remote control with the two AA batteries

(2) Power cord

(3) Computer cable

(4) Parts of cable cover

(5) User’s manuals (Book x1, CD x1)

(6) Security label

(7) Application CD

(8) Wall mount unit and User's manual *

* 8104HW does not include the mount.

NOTE • Keep the original packing materials for future reshipment. Be sure

to use the original packing materials when moving the projector. Use special

caution for the lens.

(5)

(6)

(2)

(3)

(1) VIDEO

DOC.CAMERA

KEYSTONE

ASPECT SEARCH BLANK

MUTE

MY BUTTON

POSITION

1 2

ESC

ENTER

RESET

COMPUTER MY SOURCE/

AUTO

MAGNIFY

VOLUME

ー

OFF

＋

FREEZE

FOCUS D-ZOOM

- + - +

PAGE

DOWN

About Waste Electrical and Electronic Equipment

The mark is in compliance with the Waste Electrical and Electronic

Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment

including any spent or discarded batteries or accumulators as unsorted

municipal waste, but use the return and collection systems available.

If the batteries or accumulators included with this equipment, display

the chemical symbol Hg, Cd, or Pb, then it means that the battery has a

heavy metal content of more than 0.0005% Mercury or more than, 0.002%

Cadmium, or more than 0.004% Lead.

Regulatory notices (continued)

(4)

(7)

(8) *

WARNING ►Do not attempt to install the projector yourself. Have your

dealer or service center handle all installation work. Note that manufacturer will

accept no liability whatsoever for accidents or injuries resulting from an incorrect

installation or improper use.

ENGLISH

WARNING ►Install the projector in a stable horizontal position.

►

Place the projector in a cool place, and ensure that there is sufcient ventilation. Do not

place the projector where the air from an air conditioner or similar unit will blow on it directly.

►Do not place the projector anyplace where it may get wet.

►

Use only the mounting accessories the manufacturer specied, and leave installing

and removing the projector with the mounting accessories to the service personnel.

► Read and keep the user's manual of the mounting accessories used.

CAUTION ►Avoid placing the projector in smoky, humid or dusty place.

►

Position the projector to prevent light from directly hitting the projector’s remote sensor.

•

The projector may make a rattling sound when tilted, moved or shaken,

since a ap to control the air ow inside of the projector has moved. Be aware that

this is not a failure or malfunction.

NOTE

Arrangement

Refer to the illustrations and tables below to determine screen size and projection distance.

The values shown in the table are calculated for a full size screen: 1280 x 800

aScreen size (diagonal)

bProjection distance (±8%)

c1 , c2 Screen height (±8%)

•

The screen position may shift after installation if the projector is mounted on locations such

as the wall or ceiling, due to the exibility of the plastic projector body. If readjustment is

necessary, consult with your dealer or service personnel.

•

The projected image position and/or focus may change during warm-up (approx. 30

minutes after the lamp is turned on) or when the ambient conditions change. Readjust

the image position and/or focus as necessary.

• Since the projector features an ultra short throw, be aware that it is required to select a

screen carefully to have better performance.

- A soft screen such as a pull-down screen may cause serious distortion of a projected image.

A hard screen such as a board screen is recommended for use with this projector.

- A high-gain screen such as a bead screen that has narrow viewing angle is not suitable

for this projector. A low-gain screen (around 1.0) such as a matte screen that has wide

viewing angle is recommended for use with this projector.

A screen with a weave pattern may cause moiré on the projected image, which is not a failure

of the projector. A screen that has less moiré effects is recommended for use with this projector.

Screen size

(diagonal)

Projection distance

Screen height

type(inch) m m inch m inch m inch

60 1.5 0.120 4.7 0.295 11.6 1.102 43.4

70 1.8 0.188 7.4 0.332 13.1 1.274 50.2

80 2.0 0.256 10.1 0.369 14.5 1.446 56.9

90 2.3 0.324 12.8 0.407 16.0 1.618 63.7

100 2.5 0.392 15.4 0.444 17.5 1.791 70.5

•On a horizontal surface

•Mounted on the wall or ceiling

•

Keep a space of 30 cm or more between the sides of the

projector and other objects such as walls. Do not place or

attach anything that would block the lens or vent holes.

•

For the case of installation in special conditions such as

on the wall or ceiling, the specied mounting accessories

(21) and service may be required. Before installing the

projector, consult your dealer about your installation.

Access

point

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

COMPONENT

Cb/Pb

Cr/Pr

AUDIO

OUT

HDMI

VIDEO

S-VIDEO

AUDIO

OUT

AUDIO

OUT

AUDIO

OUT

USB

(A) DISPLAY RS-232C

LAN

VCR/DVD/Blu-ray

Disc player

Computer

Connecting with your devices

Be sure to read the manuals for devices before connecting them to the projector.

Make sure that all the devices are suitable to be connected with this product, and

prepare the cables required to connect. Please refer to the following illustrations

to connect them.

For details, please see “User's Manual” - “Operating Guide” and “Network Guide”.

(20, 22)

• When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port

in COMPUTER IN of the INPUT menu, that port will accept component video

signals.

• To use network functions of the projector, connect the LAN port with the

computer's LAN port, or with an access point that is connected to the computer

with wireless LAN, using a LAN cable.

(continued on next page)

•

If you insert a USB storage device, such as a USB memory, into the USB TYPE A

port and select the port as the input source, you can view images stored in the

device.

• You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug.

In that case, the built-in speaker outputs the sound from the microphone, even

while the sound from the projector is output.

ENGLISH

USB storage

device

Connecting with your devices (continued)

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

RGB IN

Microphone

system

Speakers

(with an amplier)

Monitor

NOTE • If a loud feedback noise is produced from the speaker, move the

microphone away from the speaker.

• This projector doesn't support plug-in power for the microphone.

•

The COMPUTER IN1/2 port can support a component signal also. The specic

adapter or the specic cable is required for a component video input to the projector.

WARNING ►Use only the appropriate accessories. Otherwise it could

cause a re or damage to the device and the projector.

- Use only the accessories specied or recommended by the projector’s

manufacturer. Consult your dealer when the required accessory did not come

with the product or the accessory is damaged. It may be regulated under

some standard.

- For a cable with a core at only one end, connect the end with the core to the

projector. That may be required by EMI regulations.

- Neither disassemble nor modify the projector and the accessories.

- Do not use the damaged accessory. Be careful not to damage the

accessories. Route a cable so that it is neither stepped on nor pinched out.

CAUTION ►Do not turn on or off the projector while connected to a device

in operation, unless that is directed in the manual of the device.

►Be careful not to mistakenly connect a connector to a wrong port.

►Before connecting the projector to a network, be sure to obtain the consent of

the administrator of the network.

►Do not connect the LAN port to any network that might have the excessive

voltage.

►

Before removing the USB storage device from the port of the projector, be sure

to use the REMOVE USB function on the thumbnail screen to secure your data.

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the input

ports of the projector are recessed.

Connecting power supply

1. Put the connector of the power cord into the

AC IN (AC inlet) of the projector.

2. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power

supply connection, the POWER indicator will

light up in steady orange.

Please remember that when the DIRECT POWER ON

function activated, the connection of the power supply make the projector turn on.

WARNING ►Please use extra caution when connecting the power cord, as

incorrect or faulty connections may result in re and/or electrical shock.

• Only use the power cord that came with the projector. If it is damaged, consult

your dealer to get a new one.

• Only plug the power cord into an outlet whose voltage is matched to the power

cord. The power outlet should be close to the projector and easily accessible.

Remove the power cord for complete separation.

• Never modify the power cord.

NOTICE ►This product is also designed for IT power systems with a phase-

to-phase voltage of 220 to 240 V.

AC IN Power cord

Andere Handbücher für 8104HW

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane ImagePro 8761A Bedienungsanleitung

Dukane

Dukane ImagePro 8044 Bedienungsanleitung

Dukane

Dukane ImagePro 8039B Bedienungsanleitung

Dukane

Dukane ImagePro 8909 Bedienungsanleitung

Dukane

Dukane 8934 Bedienungsanleitung

Dukane

Dukane ImagePro FastFax 28A8909 Bedienungsanleitung

Dukane

Dukane ImagePro 8768 Bedienungsanleitung

Dukane

Dukane ImagePro 8755D Bedienungsanleitung

Dukane

Dukane ImagePro 8066 Kurzanleitung

Dukane

Dukane ImagePro 8950P Bedienungsanleitung

Dukane

Dukane 9005 Bedienungsanleitung

Dukane

Dukane ImagePro 8761A Bedienungsanleitung

Dukane

Dukane 8232 Bedienungsanleitung

Dukane

Dukane 28A8040 Bedienungsanleitung

Dukane

Dukane ImagePro 8751 Bedienungsanleitung

Dukane

Dukane ImagePro 8776-W Bedienungsanleitung

Dukane

Dukane 8755J Bedienungsanleitung

Dukane

Dukane ImagePro 6662UL Bedienungsanleitung

Dukane

Dukane ImagePro 8918 Bedienungsanleitung

Dukane

Dukane ImagePro 8063 Bedienungsanleitung

Dukane

Dukane 8107HWI Bedienungsanleitung

Dukane

Dukane ImagePro 8761 Bedienungsanleitung

Dukane

Dukane 28A7250 ImagePro Bedienungsanleitung

Dukane

Dukane 8933B Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
