Liquid Crystal Projector

Model

28A8040

OPERATING GUIDE

English 1

Usage Notice

Precautions .......................................................................................... 2

Introduction

About the Product................................................................................. 3

Package Overview ............................................................................... 4

Installation

Product Overview ................................................................................. 5

Connecting the Projection Display ....................................................... 8

Powering On/Off the Projection Display ............................................... 9

Adjusting the Image Size ...................................................................... 10

User Controls

User Controls ....................................................................................... 12

OSD Menus ......................................................................................... 14

Appendices

Troubleshooting .................................................................................... 18

Maintenance......................................................................................... 20

Specifications ....................................................................................... 23

Compatibility Modes............................................................................. 24

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down and follow

all changing instruction.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life timer from

OSD menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

Usage Notice

English 3

About the Product

This product, designed with a high-powered UHP lamp, is an SVGA data/video

portable projection display. The outstanding feature of it are listed as follows:

q8.9 lbs. (4.0 kgs) lightweight compact design

qTrue SVGA, 800 x 600 addressable pixels

qWith XGA compression and VGA resizing

qMac / NEC PC-98 / FM Towns compatible

qNTSC / PAL / SECAM compatible

qDual Data Input

qReal plug and play with auto-image function

qUser-friendly multilingual on-screen display menu adjustment

qAdvanced electronic keystone correction function

qLuxurious carrying case with detachable wheels & handle

Introduction

English

Package Overview

This projection display comes with all the items shown below. Check to make

sure your unit is complete. Contact your dealer immediately if anything is

missing.

LCD Projection Display

Hard Carrying Case

With Detachable Wheels &

Handle

S-Video Cable RCA Audio/ Video Cable Audio-in Cable for

Computer

Remote Control

User’s Manual Warranty Card

Power Cord VGA Cable

X 2

Batteries X 2

English 5

Product Overview

wMainUnit

Installation

* There are two elevator releasing buttons and elevator feet on both sides.

* There are also two remote control receivers on the front and the rear side.

RemoteControlReceiver

CarryingHandle Projection Lens

ElevatorFoot

Elevator

Releasing Button

Speakers

Panel Controls

Zoom Ring

Focus Ring

Air Filter Connector Ports

RemoteControl

Receiver

English

wPanelControls

Computer 1

Input Connector

Power Connector

Computer 2

Input Connector

Monitor Loop-Through

Connector

Audio Output Connector

Audio Input Connector

Audio Input

for Computer

Composite Video

Connector

S-Video

Connector

wConnectionPorts

Four Directional

Select Keys

Enter

English 7

wRemoteControl

Freeze/CLR

Zoom In / Zoom Out

Mute

Keystone

Power/Standby

Source

Volume

Four Directional Select Keys

Menu Enter

Reset

Resync

Tracking

English

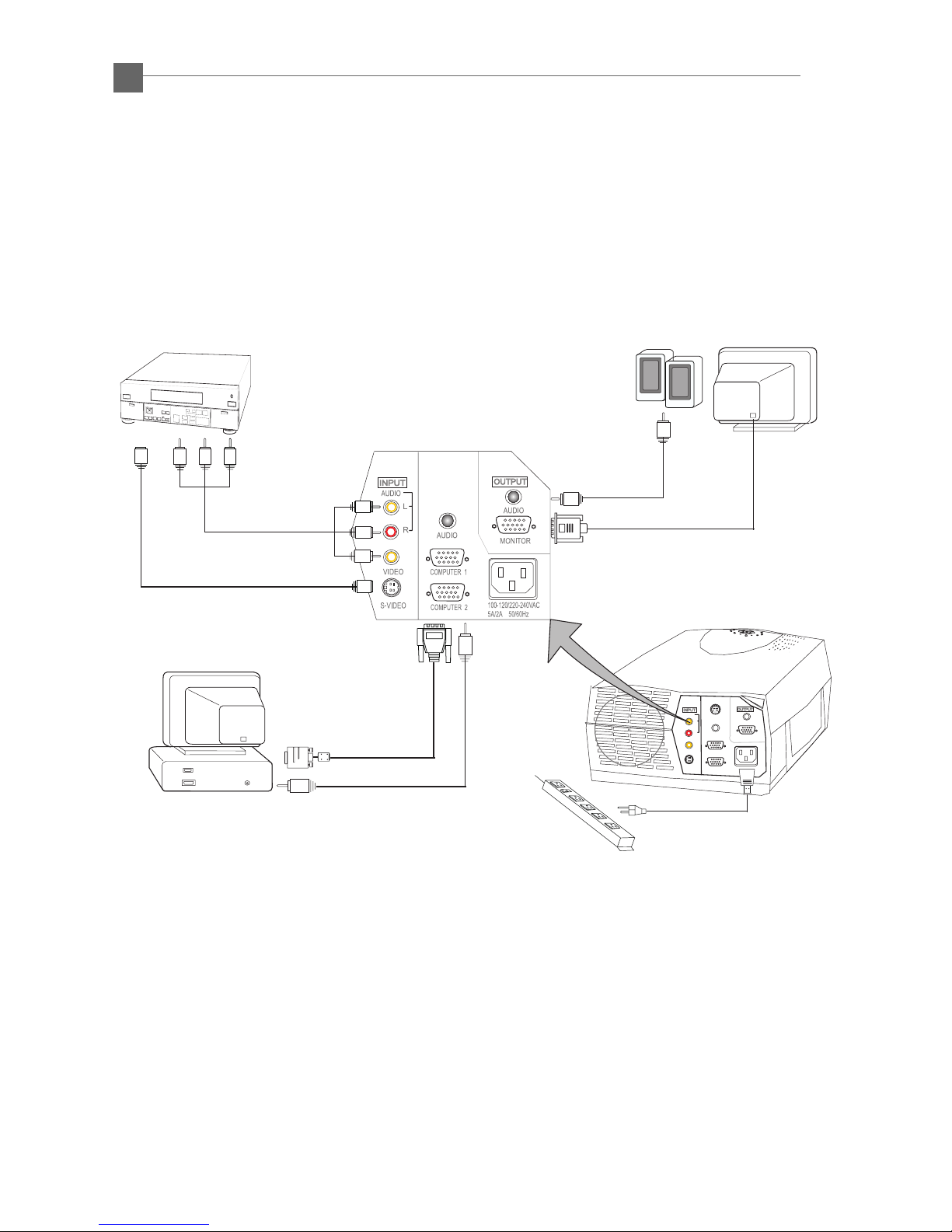

Connecting the Projection Display

Power Cord

Audio Cable

S-Video Cable

VGA Cable

Audio Cable

Monitor Cable

RCA Audio

Video Cable
