Page 1 of 6 LUD-181206 ADELE 5FT & 6FT BED

1. We suggest you spend a short time reading

through this leaflet and then follow the simple

step by step instructions.

2. If you follow the instructions carefully, the end

result should be worth the effort.

3. Do not discard any of the packaging until you

have checked that you have all the parts and

the pack of fittings.

4. Assemble this product on a carpet.

5. To ensure an easier assembly, we strongly

advise that all fittings are only finger-tightened

during initial assembly phase. Only upon

completion of the assembly should all fixing

points be fully tightened.

6. We recommend a periodic check on all fixing

points to make sure they remain fully tightened.

7. Keep any fittings out of children's reach.

BEFORE YOU

START, HERE

IS SOME

HELPFUL

ADVICE :

ASSEMBLY INSTRUCTIONS

Minimum No.

Of People

Recommended

To Assemble

This Product :

MINUTES

Approximate

Assembly

Time :

Page 2 of 6 ADELE 5FT & 6FT BED

PARTS AND HARDWARE LISTS

x1pc

Headboard

x1pc

Footboard

x2pcs

Siderail

x2pcs

x1pc

Central Rail

x4pcs

Wooden Leg

x28pcs

Sprung Slat

x1pc

Across Bar

M8x25mm

x1pc

x16pcs

x2pcs

x4pcs

x2pcs

x14pcs

x28pcs

x2pcs

M8x40mm

M6x20mm

M6x60mm

smaller

x1pc

Page 3 of 6 ADELE 5FT & 6FT BED

Fix the Wooden Legs (6) to the bottom of the Headboard (1) and Footboard (2)

STEP 1

STEP 2

Attach 2 of the Support Legs (4) to the Central Rail (5) with Screw (C) and tighten with

the Allen Key (A).

STEP 3

Attach the Screw (B) and slightly tighten with Allen Key (A). Mount both Siderails (3) to

Headboard (1) and Footboard (2) by pushing the Bracket (D) down to fit. Do not fully

tighten the screws at this moment.

Page 4 of 6 ADELE 5FT & 6FT BED

STEP 5

Attach the Central Rail (5) to the Headboard (1) and Footboard (2) with Screw (E) and

Bracket (F)

STEP 4

Attach Across Bar (8) to the bottom of the Sideral shelf (3) using Screw (I), Washer (J)

and Hex Nut (K) with the smaller Allen Key (M).

Insert the Sprung Slats (7) to both ends of slat Middle Holder (G) before attaching slat

End Holder (H) to the other end of Sprung Slats. Having done this, press down the

Middle Holder (G) and the End Holder (H) to the siderail shelf and Central Rail. Repeat

the above for balance rows.

Page 5 of 6 ADELE 5FT & 6FT BED

see our range on website:

www.limelightbeds.co.uk

LE9 8GZ

Please have the following information ready for our staff

- Product Name

- Part Number

Limelight Beds Ltd

Orbital House

Arthur Street

Barwell

Leicestershire

and

9.00am to 4.00pm FRIDAY

Tel : 01455 850 150

Fax: 01455 848 169

Email: info@limelightbeds.co.uk

9.00am to 5.00pm MONDAY to THURSDAY

PROBLEMS?

SHOULD YOU ENCOUNTER ANY DIFFICULTY WITH THE

ASSEMBLY OF YOUR BED, PLEASE DO NOT TROUBLE

YOUR RETAILER BUT

CALL, FAX, E-MAIL or WRITE to our

CUSTOMER SERVICES DEPARTMENT

BETWEEN THE HOURS OF

Page 6 of 6 ADELE 5FT & 6FT BED

PLEASE NOTE: GOODS THAT NEED TO BE RETURNED SHOULD

BE SENT BACK IN ITS ORIGINAL PACKAGING.

nWhen assembling your bed, please ensure that you have checked

the contents for all relevant parts.

nWhen tightening bolts, do make sure that they are fully tightened but

not forced.

nWhen moving your fully assembled bed, you must first remove the

mattress and lift the frame into position; taking care when lifting and

always have two people handling the bed. PLEASE DO NOT DRAG

THE BED as this will cause damage to the central support legs and

rail. Central legs MUST be in a vertical position at all times.

nDue to the nature of laminate flooring, we recommend that you place

non-slip material under the central support legs. This will stop the legs

from sliding on laminate/wooden floors and will prevent the bed from

collapsing.

nDue to the inherent nature of this fabric it can easily mark or rub in the

wrong direction, you can easily fix this by using a fabric brush to slowly

brush marks out.

nIt is advisable to use approved cleaning products when cleaning the

furniture and bed frame as certain chemical-based cleaners could

have an adverse effect on the bed's finish.

nAll Limelight beds are produced to the highest standards and are

packed to avoid damage in transit. Should you find that your new bed

does not meet your satisfaction, please contact Limelight's Customer

Services Department at 01455 850 150.

PRODUCT

CARING FOR YOUR NEW LIMELIGHT

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dunelm Inneneinrichtung Handbücher

Dunelm

Dunelm Fulton Wide TV Unit Bedienungsanleitung

Dunelm

Dunelm Toulouse Bedside Chest Bedienungsanleitung

Dunelm

Dunelm Wilson Coffee Table Bedienungsanleitung

Dunelm

Dunelm Wilson Bedienungsanleitung

Dunelm

Dunelm Winslow Bedienungsanleitung

Dunelm

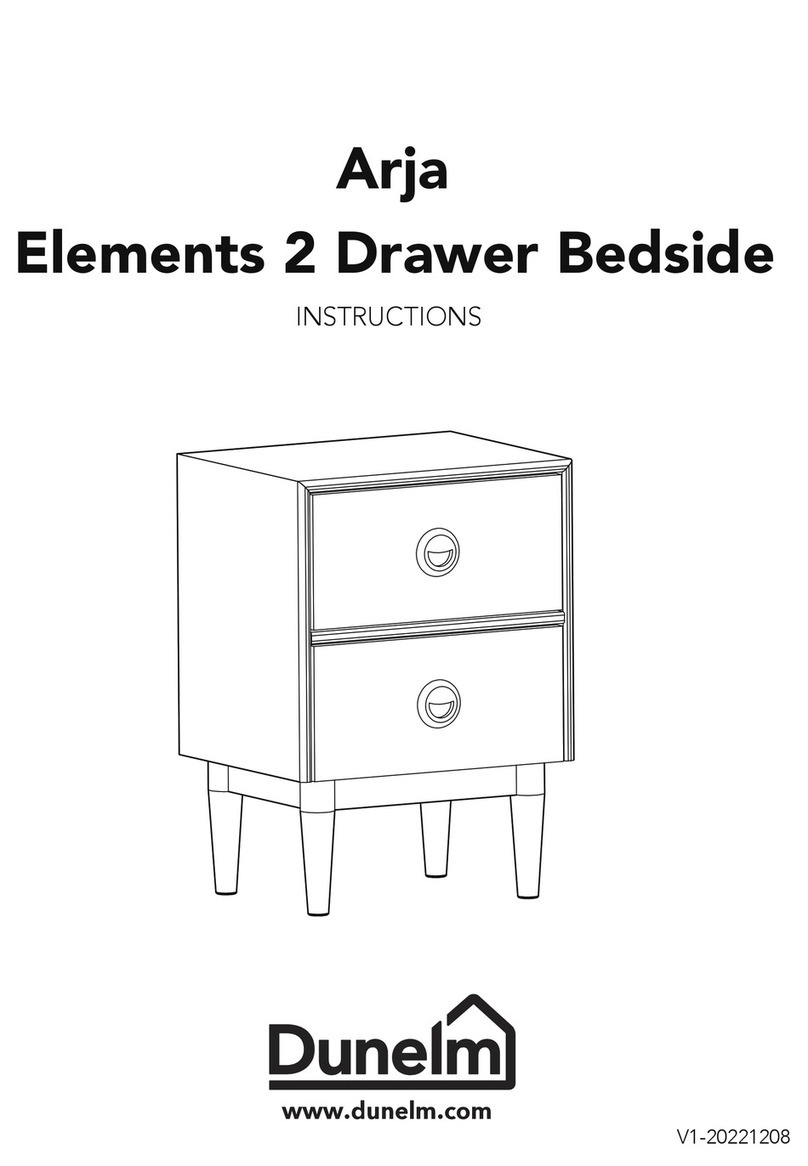

Dunelm Elements Bedienungsanleitung
