DUROMAX XP15000EH Bedienungsanleitung

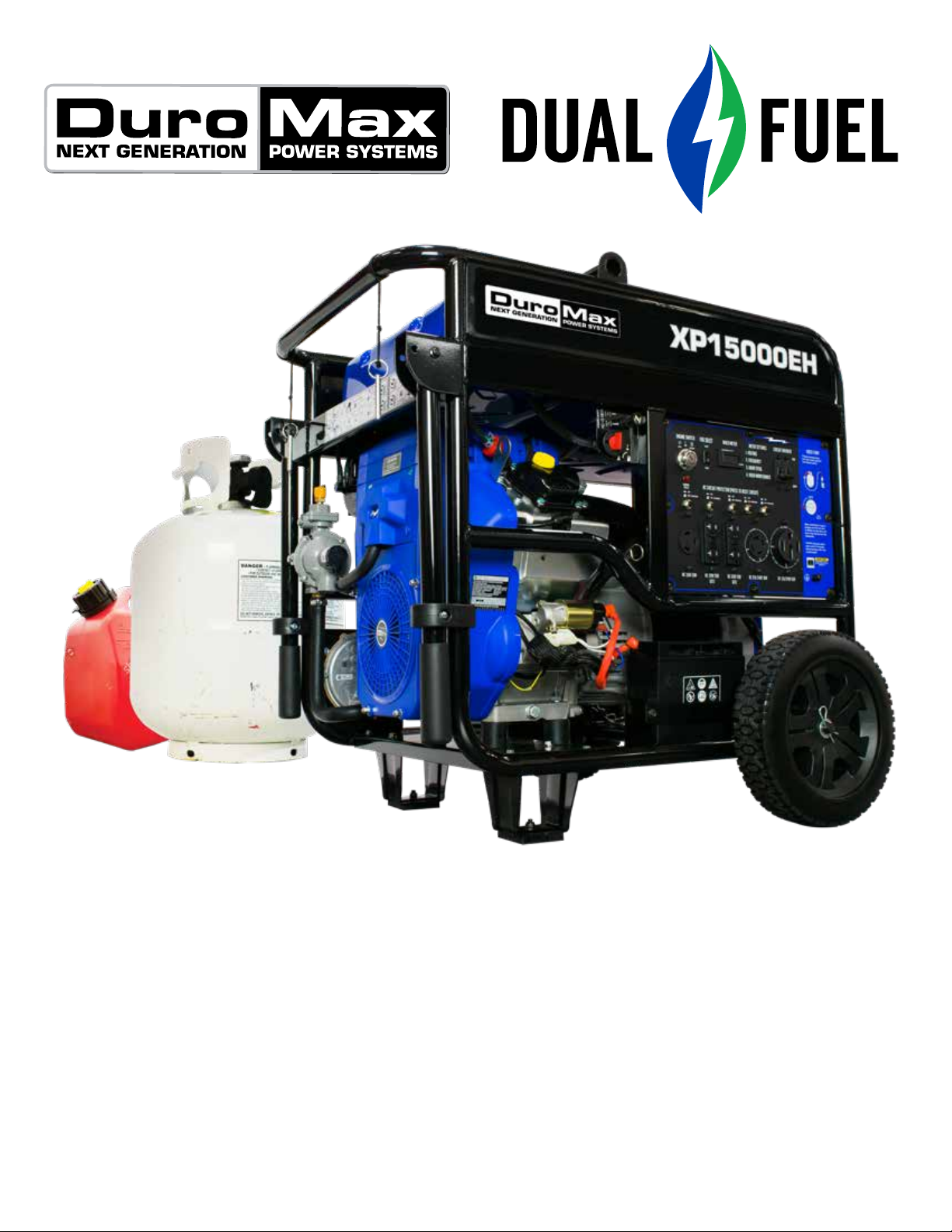

XP15000EH GENERATOR
This manual provides information regarding the operation
and maintenance of these products. We have made every
effort to ensure the accuracy of the information in this
manual. We reserve the right to change this product at
any time without prior notice.
5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
www.duromaxpower.com
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
844-DUROMAX
User Manual
*Gasoline & Propane Tank Not Included
REV: XP15000EH-05032021
CONTENTS
1.
Introduction .................................................................................................................... 6
General Safety Procedures ........................................................................................... 7
Quick Start Guide (Gasoline) ....................................................................................... 10
Quick Start Guide (Propane)........................................................................................ 12
Generator Components............................................................................................... 14
Package Contents ......................................................................................................... 16
Introduction
3.
Checking the Oil ........................................................................................................... 26
Check the Gas Level ..................................................................................................... 27
Starting the Generator Using Gasoline ...................................................................... 28
Starting the Generator Using Propane....................................................................... 30
Starting the Generator
2.
Unpack the Generator ................................................................................................. 18
Wheel Kit/ Hoist Bar Installation ................................................................................. 19
Connect the Battery...................................................................................................... 20
Adding Oil ...................................................................................................................... 21
Adding Gasoline ............................................................................................................ 22
Grounding the Generator ............................................................................................ 23
High Altitude Operation ............................................................................................... 23
Generator Setup
4.
AC Usage ........................................................................................................................ 34
Connecting a Load to the Generator.......................................................................... 36
Choosing the Right Power Cord .................................................................................. 37
Using the Generator
3
CONTENTS
5.
6.
7.
Maintenance Schedule.................................................................................................. 40
Maintenance Log ........................................................................................................... 41
Checking the Oil ............................................................................................................ 42
Changing the Oil............................................................................................................. 43
Cleaning the Air Filter .................................................................................................... 44
Spark Plug Maintenance ............................................................................................... 46
Storage and Transportation ......................................................................................... 48
Specications.................................................................................................................. 49
.......................................................................................................................... 60
Basic Troubleshooting .................................................................................................. 52
Changing / Inspecting the Carbon Brushes ............................................................... 53
Changing / Inspecting the AVR .................................................................................... 55
Wiring Diagram .............................................................................................................. 57
Maintenance and Care
Warranty
Troubleshooting
4
8. .................................................................................................. 64
Contact Information
INTRODUCTION
Notice Regarding Emissions
DuroMax has cemented its reputation as one of the markets leading power equipment companies
who are headquartered in the US. All of our products are manufactured to the strictest guidelines
and go through countless testing in all phases of production.
Evolving our strong engine line, DuroMax has complemented its oerings to include Pressure
Washers, Water Pumps, Engines and now oering V-Twin engines. Reliability is the highest
standard we hold ourselves to, whether its powering a heater during a winter storm that knocks
out power, dewatering a ooded property, or washing away a deck for the summer season
Engines that are certied to comply with U.S. EPA emission regulations for SORE (Small o Road
Equipment), are certied to operate on regular unleaded gasoline, and may include the following
emission control systems: (EM) Engine Modications and (TWC) Three-Way Catalyst (if so equipped).
6
STOP
Please do not return
to store.
Duromax representatives are ready to help you
with any questions, concerns, or issues about your
new product. We can guide you through assembly,
start up, and how to operate your new generator.
We want you to be able to put your new generator
to use right away!
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
1-844-DUROMAX
TOLL FREE
SAFETY ALERT SYMBOL
DANGER: This generator produces poisonous carbon monoxide gas when running. This
gas is both odorless and colorless. Even if you do not see or smell gas, carbon monoxide
may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness,
and eventually death.
●Use outdoors ONLY in non-conned areas.
●Keep several feet of clearance on all sides to allow proper ventilation of the generator.
WARNING: The exhaust from this product contains chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator produces heat when running. Temperatures near exhaust can
exceed 150°F (65°C).
●Do not touch hot surfaces. Pay attention to warning labels on the generator denoting
hot parts of the machine.
●Allow generator to cool several minutes after use before touching engine or areas
which heat during use.
The safety alert symbol is used with one of the safety words (DANGER,
CAUTION, or WARNING) to alert you of hazards. Please pay attention to
these hazard notices both in this manual and on the generator.
GENERAL SAFETY PROCEDURES
7
Please familiarize yourself with the following safety symbols and words:
●DANGER: Indicates a hazard that will result in serious injury or death if instructions are not
followed.
●WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not
followed.
●CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not
followed.
WARNING: This generator may emit highly ammable and explosive gasoline vapors,
which can cause severe burns or even death. A nearby open ame can lead to an
explosion even if not directly in contact with gas.
●Do not operate near an open ame.
●Do not smoke near generator.
●Always operate on a rm, level surface.
●Always turn generator o before refueling.
●Allow generator to cool for at least 2 minutes before removing fuel cap. Loosen cap
slowly to relieve pressure in tank.
●Do not overll gas tank. Gas may expand during operation. Do not ll to the top of
the tank.
●Always check for spilled gas before operating.
●Empty the gasoline tank before storing or transporting the generator.
●Before transporting, turn fuel valve to the o position and disconnect the spark plug.
WARNING: This generator produces a powerful voltage, which can result in electrocution.
●ALWAYS ground the generator before using it (see the “Grounding the Generator”
portion of the “PREPARlNG THE GENERATOR FOR USE section).
●Generator should only be plugged into electrical devices, either directly or with an
extension cord. NEVER connect to a building electrical system without a qualied
electrician. Such connections must comply with local electrical laws and codes. Failure
to comply can create a backow of power, which may result in serious injury or death
to utility workers.
●Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal
decking or steel work. GFCls are available in-line with some extension cords.
●Do not use uncovered in rainy or wet conditions.
●Do not touch bare wires or receptacles (outlets).
●Do not allow children or non-qualied persons to operate.
GENERAL SAFETY PROCEDURES
8

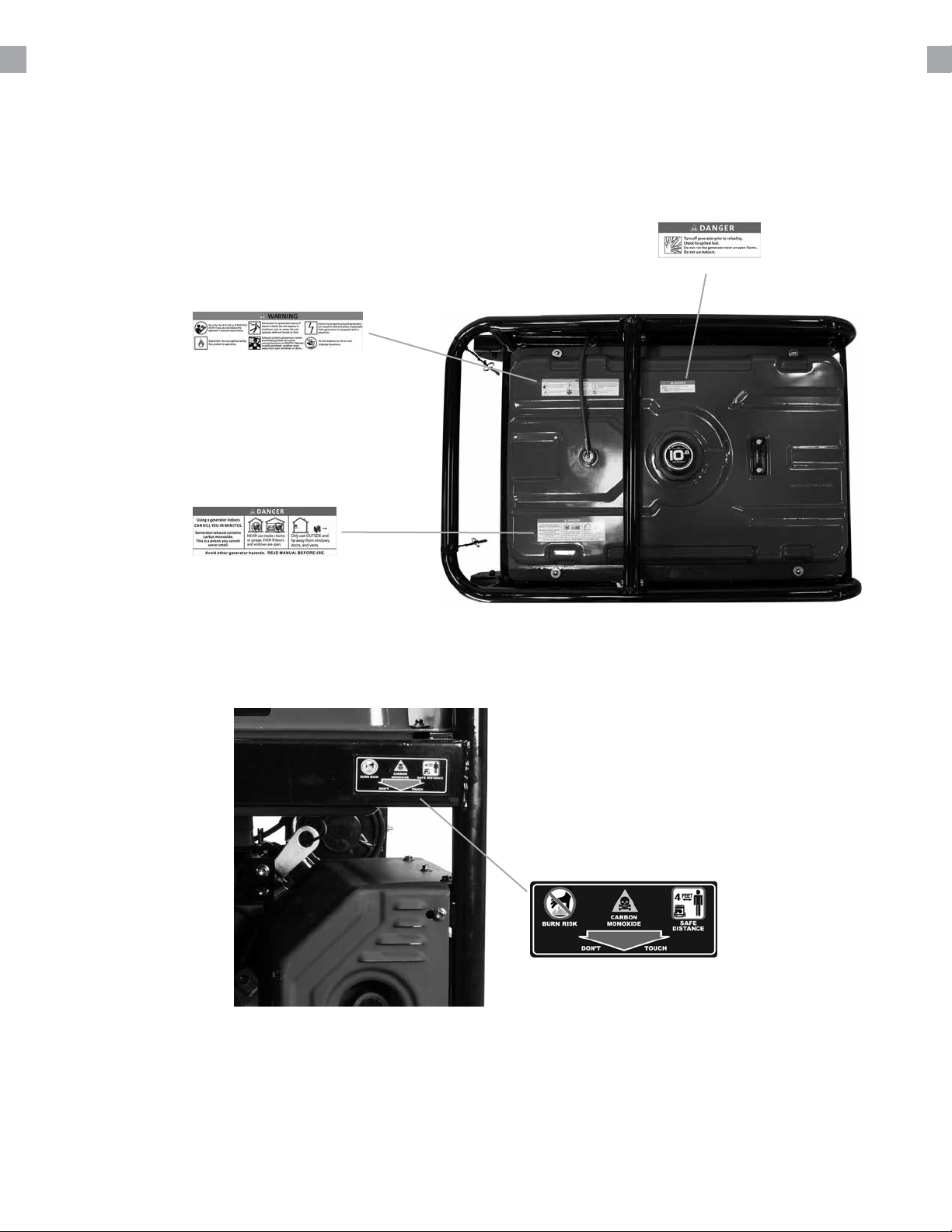

In addition to the above safety notices, please familiarize yourself with the safety and
hazard markings on the generator.
GENERAL SAFETY PROCEDURES
9

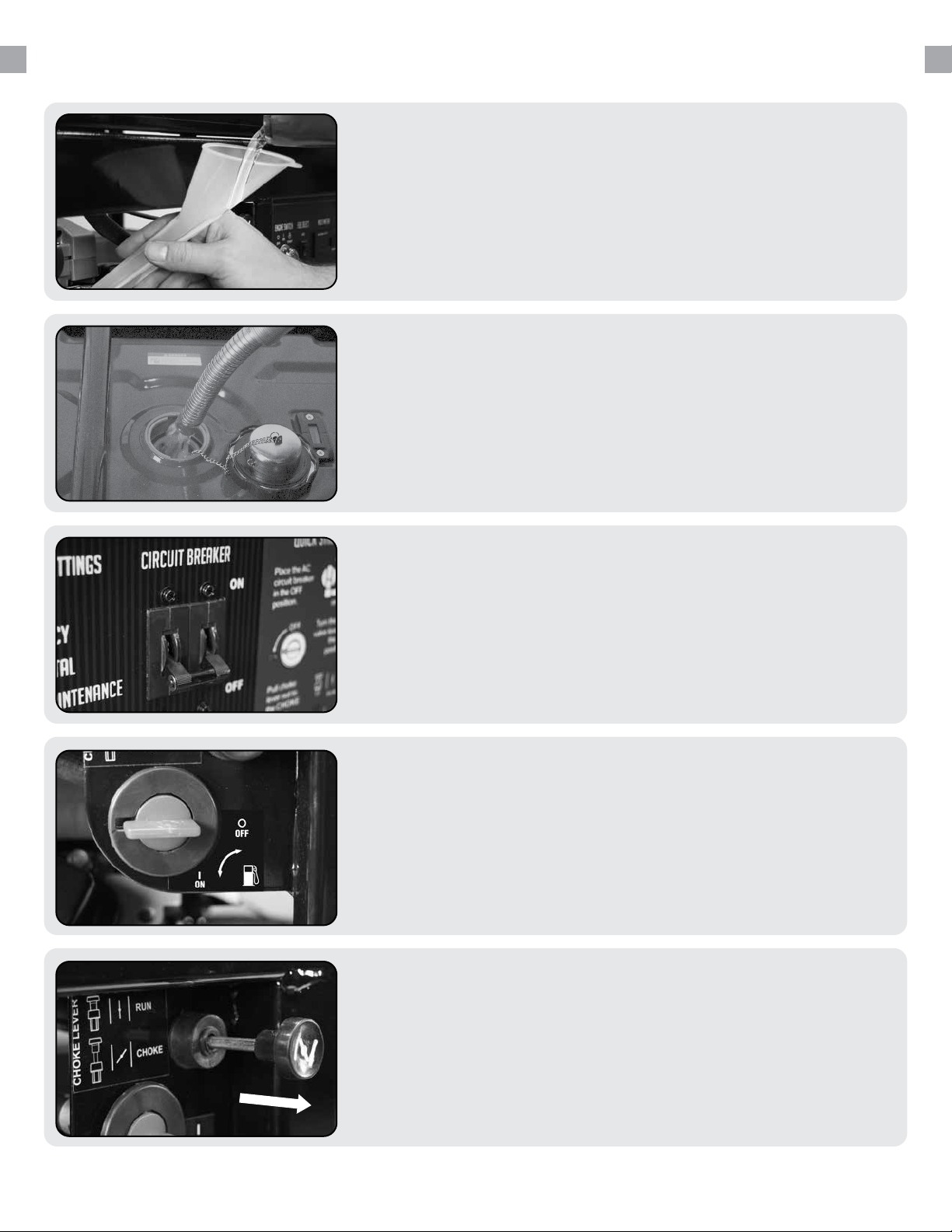

Close choke
The choke lever is located to the left of the panel. Pull out
to cut the air supply and allow more gas into the engine to
start.
5.
QUICK START GUIDE (GASOLINE)
10
Add oil
1.
The oil ll cap is located on the left engine head cover.
Remove the oil ll cap and ll with 54oz of 10w30 oil.
Add gasoline
The fuel cap is located on top of the fuel tank. Fill the tank
with fresh unleaded gasoline 87 octane or higher. The tank
is full when you see fuel in the bottom of the fuel lter cup.
DO NOT overll the tank.
2.
Turn gas valve on
The gas valve is located to the left of the front panel. Rotate
the valve counter clockwise to the vertical position to turn
on the gas supply.
4.
Turn breaker o
The breaker is located on the right side of the front power
panel. Flip the breaker down to prevent accidental load
when starting the generator.
3.
