DV8 OFFROAD FDBR-01 Bedienungsanleitung

6400 SYCAMORE CANYON BLVD.

RIVERSIDE, CALIFORNIA 92507

855-680-9595

WWW.DV8OFFROAD.COM

PRODUCT

INSTALLATION MANUAL

BRONCO TUBE FENDERS

2021+ FORD BRONCO

FDBR-01

TOOLS REQUIRED SKILL LEVEL TIME REQUIRED

-#4 Allen Bit

-7mm, 10mm Wrench/Socket

-Phillips Head Screw Driver

-Razor

Before you install this kit — Read and understand all

instructions, warnings, cautions, and notes contained in

this installation instruction guide. Consult your vehicle

owner’s manual for proper disconnection of electrical and

lifting of vehicle if required for installation of this product.

This install may require some technical skills and

knowledge of basic mechanical work. If you do not feel that

you are capable of performing this install please take this

product to a trained professional.

After reading this guide please contact us with any

questions or concerns before installing product.

Customer Service: 855-680-9595

DV8 Offroad is not responsible for any bodily injury or harm to you

or your vehicle as a result of an improper install.

Proper installation of this kit required knowledge of the factory

recommended procedures for removal and installation of original

equipment components. We recommend that the factory shop manual

and any special tools needed to service your vehicle be on hand during

the installation. Installation of this kit without proper knowledge of the

factory recommended procedures may affect the performance of these

components and the safety of the vehicle

• Always wear eye protection when operating power tools

Inspect all contents of this package to make sure product is not damaged

and all installation hardware has been included. If parts are missing from

kit, please be prepared to provide the following information

1. Name of purchase location

2. Bar Code on side of box

3. Date above bar code

4. Date inside box cover

- Novice/Intermediate

- 1 (you) to 2 persons

Little skill level required, you can

easily install it by yourself however,

additional help will be useful

- 2 Hours

Time to install this should only

take about two hours

WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION

855-680-9595

NEED HELP?

INSTALLATION MANUAL

NEED HELP? 855-680-9595

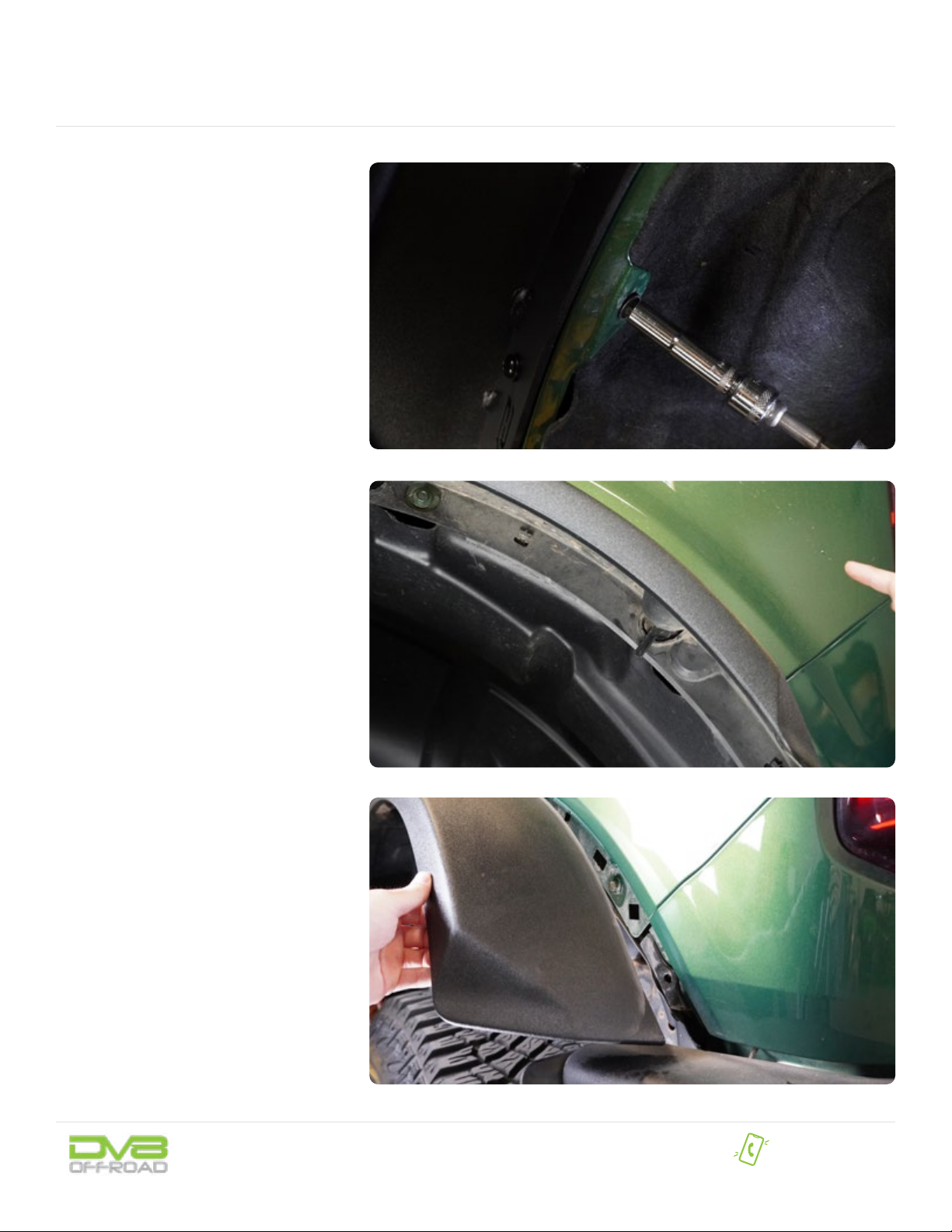

STEP 1 | Starting with the front,

begin by removing the factory fender.

These are easily removed by twisting the

small latches until latch becomes loose.

Once all are loose, pull fender away from

Bronco until hidden clips release.

Note: These should pull away from the Bronco

easily. If they are hard, adjust latches.

Begin by unpacking all items and

inspecting for missing pieces or damage. If

you have any concerns, please contact the

company the product was purchased from.

-(18) M6x30mm Bolts

-(18) M6 Flat Washers

-(18) M6 Nuts

-(4) Fender “P” Seals

HARDWARE INCLUDED

INSTALLATION MANUAL

NEED HELP? 855-680-9595

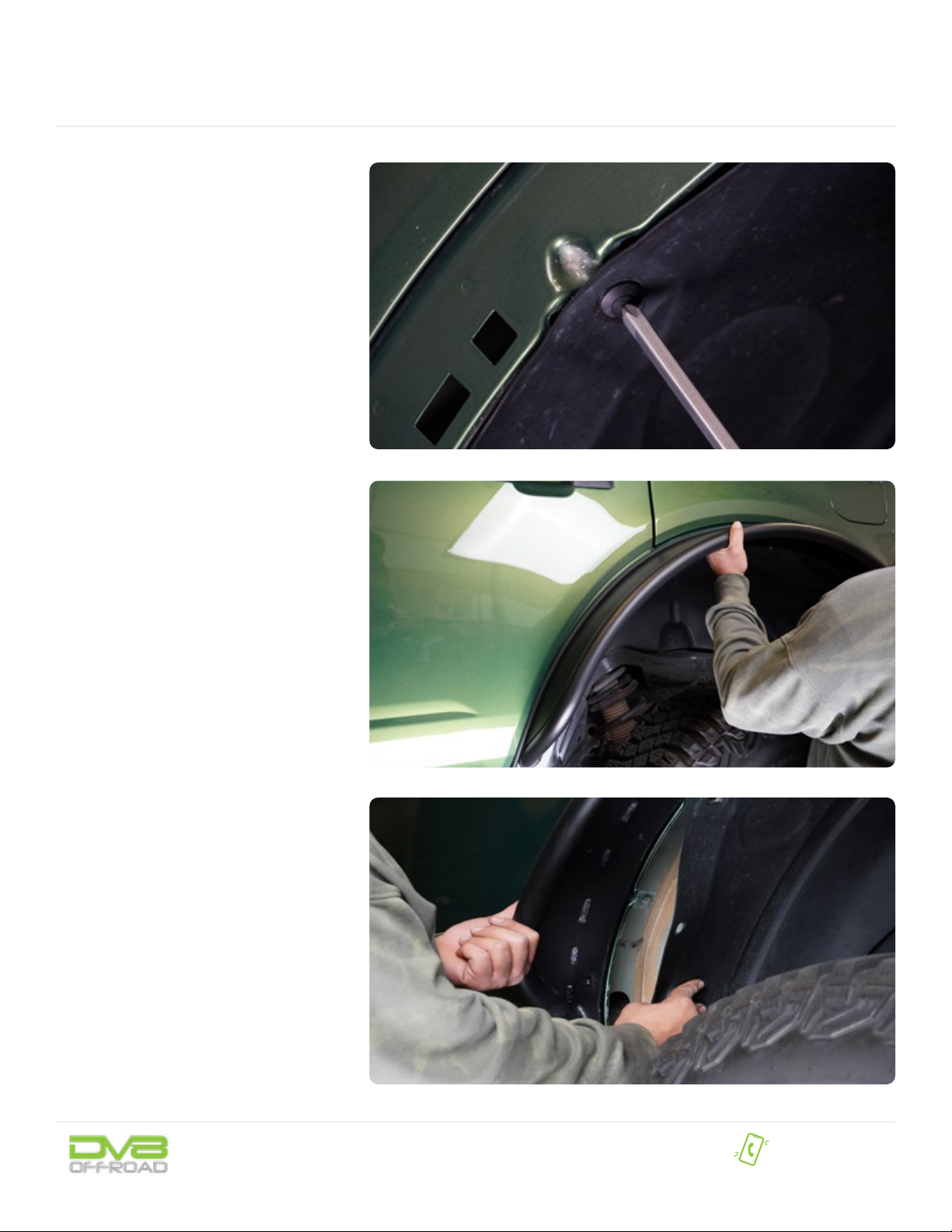

STEP 2 | Once fender is removed, use

a Phillips screwdriver and 7mm socket

and remove the plastic push pins along

the front and back outer edge of the inner

fender.

Note: You do not need to remove the inner

fender, you only need to gain access to the

fender mounting holes.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

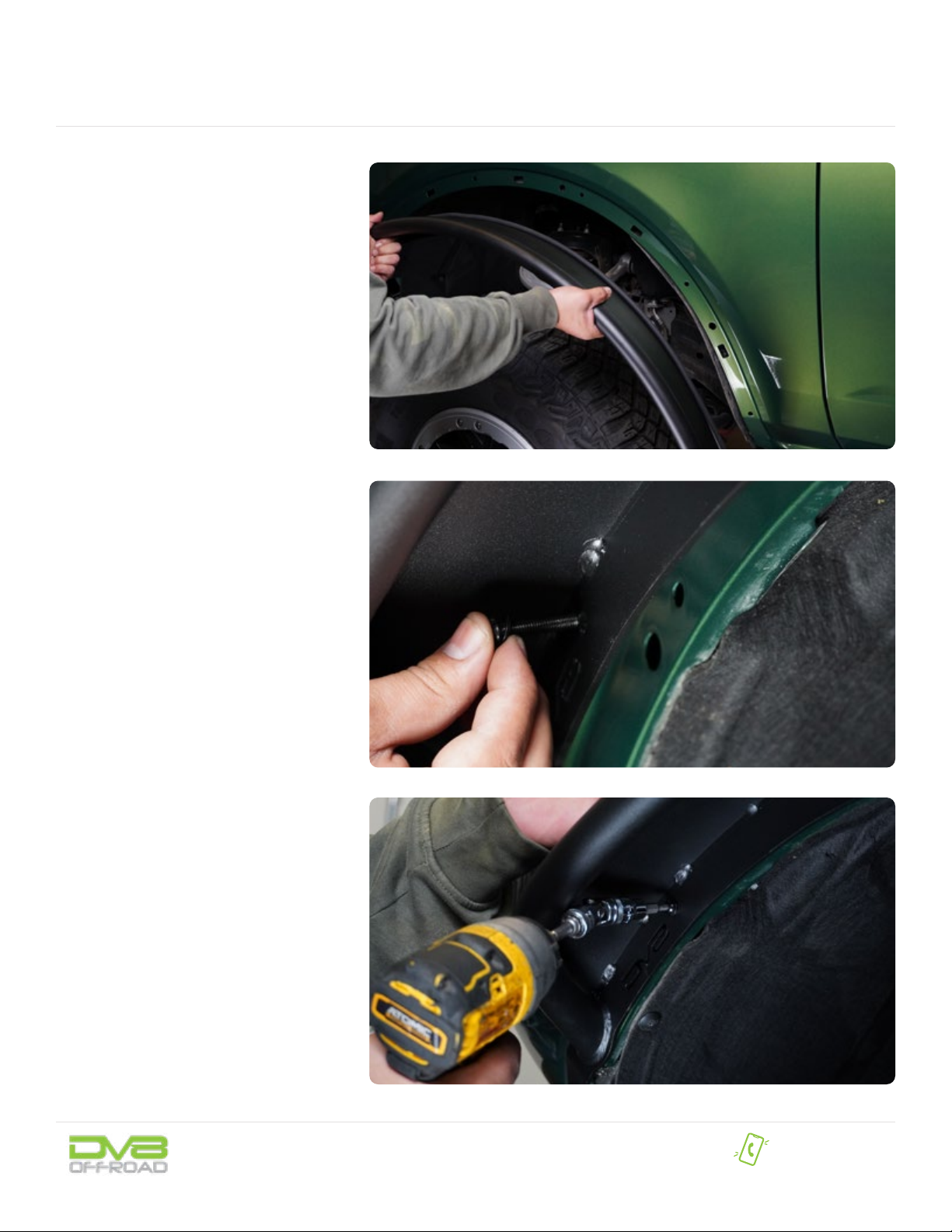

STEP 3 | Moving to the fender,

remove the rubber cover off the stud.

Locate the seal that matches the fender.

This can be done by laying the seal on the

fender and aligning the holes in the seal

with the holes in the fender.

Peel back the tape and apply rmly to the

fender. The round part of the seal should

be resting on top of the plate of the

fender.

Note: The seals may be longer than the

fender, but these will be trimmed later on.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 4 | Using the M6 hardware, a #4

allen and 10mm wrench/socket, loosely

install fender to vehicle.

Note: Our nuts are serrated, so once nger

tight, you can tighten from the allen head

without having to hold the nut with a wrench.

STEP 5 | Once all fender hardware is

installed, align the fender of the vehicle

and secure hardware.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 6 | Reinstall your inner liner

hardware using the 7mm socket/wrench

and Phillips head screw driver.

Repeat steps for opposite side.

STEP 7 | The rear will be similar to

the fronts by removing the factory fender.

These are easily removed by twisting the

small latches until latch becomes loose.

Once all are loose, pull fender away from

Bronco until hidden clips release.

Note: These should pull away from the Bronco

easily. If they are hard, adjust latches.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

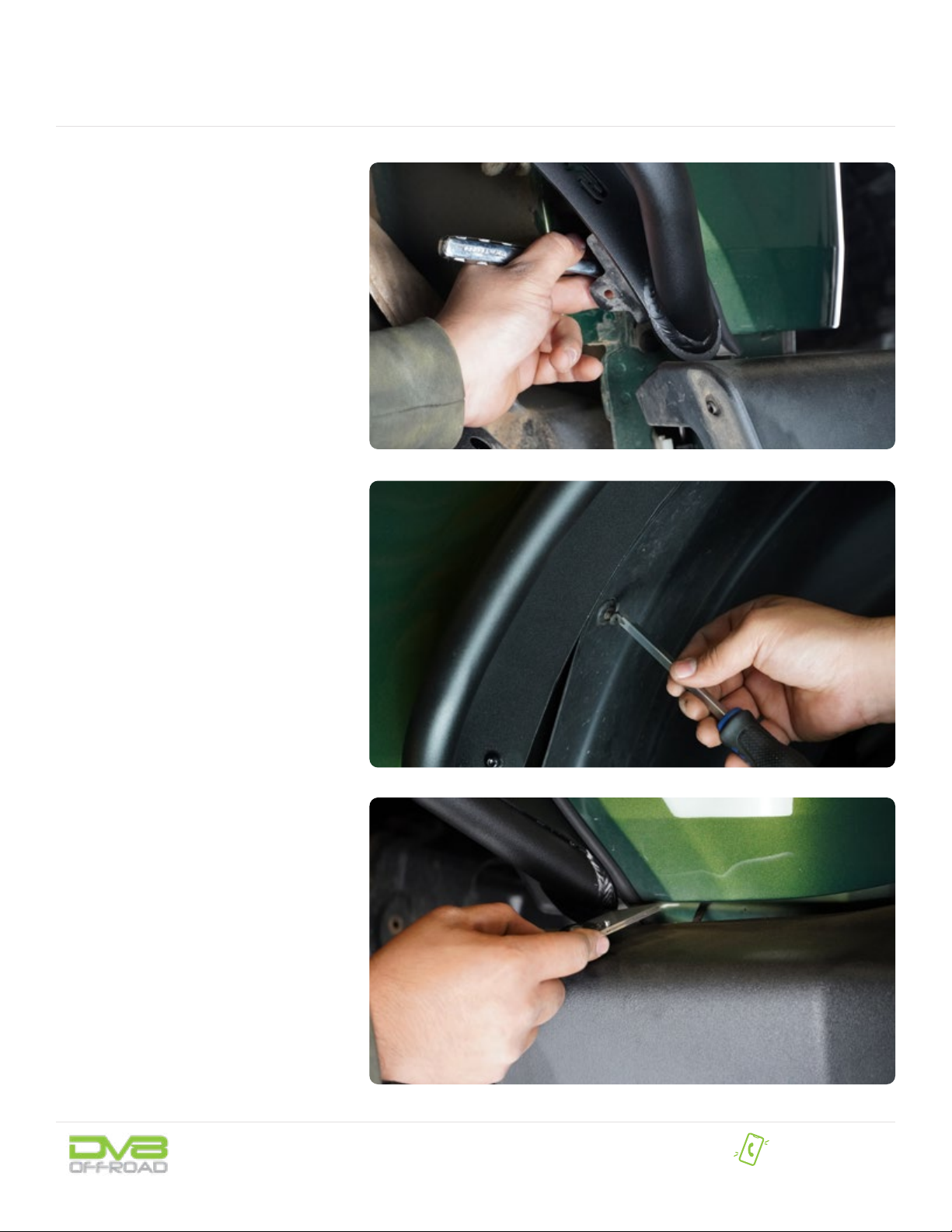

STEP 8 | Once fender is removed, use

a Phillips screwdriver and 7mm socket

and remove the plastic push pins along

the front and back outer edge of the inner

fender.

Note: You do not need to remove the inner

fender, you only need to gain access to the

fender mounting holes.

STEP 9 | After installing the seal

onto the rear fender in the same fashion,

mount onto vehicle using #4 allen, 10mm

wrench/socket with M6 hardware.

You can pull back the inner fender to

access the backside of the hardware.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 10 | For the stud on the rear

fender, we recommend using a short

10mm socket for best access.

Align fender to vehicle and secure all

hardware.

STEP 11 | Reinstall all hardware for

inner liners using 7mm wrench/socket

and Phillips head screw driver.

Repeat for other side.

STEP 12 | After all fenders are

installed, using a sharp razor, trim any

excess seal to preference making sure to

cut towards the fender, not the body to

avoid damage to the vehicle.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 13 | Congratulations, you are

now nished with your install of the DV8

Tube Fenders!
