ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

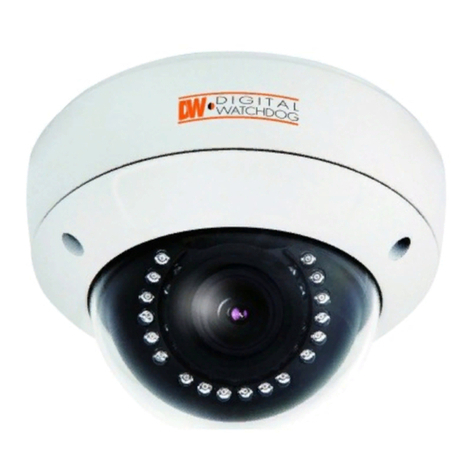

960H Indoor Dome Camera

DWC-D562D

DWC-D562DIR

User Manual

11192012

Value

PRECAUTIONS

FCC COMPLIANCE

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface: The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

Table of Contents

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Easy Installation

Base Installation

Connecting to Monitors

Adjusting the Camera

13-24

26-27

28-29

Adjusting the 3-Axis Gimbal 12

FEATURES*

DWC-D562D / DWC-D562DIR

1/3” 960H High Resolution CCD

700 TV Lines

2.8 ~ 11mm Varifocal Auto Iris Lens

Electronic Day and Night

HME (Highlight Masking Exposure)

AGC / SMART BLC / AWB

Night-Up

Mirror Image Control

Programmable Privacy Zones (8) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

Video Test Output Included

85ft Range IR with Intelligent Camera Sync (DWC-D562DIR only)

PARTS & DESCRIPTIONS*

1Lens

4Upper Case

5Dome Cover

2Power Input Connector

12VDC/24VAC Dual Voltage

3Video Output Connector - BNC

6Control Board

Power Board

Mounting Screws

Camera Base

No IR

IR Joystick

DIMENSIONS IN MILLIMETERS (INCHES)*

10.1

(0.4”)

39.4

(1.6”)

82.3

(3.24”)

Ø118.0

(Ø4.65”)

Ø118.0

(Ø4.65”)

Ø89.0

(Ø3.5”)

Ø20.0

(Ø0.79”)

Ø14.5

(Ø0.57”)

3- Ø4.5

(3-Ø0.18”)

INSTALLATION*

Included with Value Line Indoor Dome Camera

1. User Manual

2. Mounting Template

1 2

3 4

Ø15.0

Ø20.0

Ø118.0

Ø5.0

Mounting template

PD79

3. Second Video Jack

4. Mounting Screws (3)

EASY INSTALLATION*

Remove the Dome Cover

Before you can mount or adjust your Value

Line Indoor Dome Camera, you must remove

the dome cover. Insert a coin or screwdriver

in the slot on the dome cover, then twist to

pry the dome cover from the camera base.

Install the Enclosure Cover

Dome Cover

Camera Base

To install the dome cover, align the dome cover

with the camera base and push until

it securely snaps into place.

BASE INSTALLATION*

1. Pull wires through and make connections.

Refer to page 10. Use mounting template to

mount camera with dry wall mounts and wood

screws.

2. Adjust the camera’s 3-Axis Gimbal,

focus, and zoom. See pages 11-12 for

3. Press the joystick button to open the OSD menu.

Push the joystick left, right, up, or down to navigate

the OSD menu. See pages 13~24 for details.

4. Snap the dome cover onto the camera base.

details.

CONNECTING TO MONITORS*

No IR

2nd Video Output

CCTV Monitor

Monitor 11.8in

12VDC/24VAC

Right

Left

Down

Power connection - 12VDC/24 VAC Dual Voltage. (Auto polarity detection and protection.)

All cameras are equipped with a second video output on the camera’s Control Board for easy

on-site configuration.

510
