ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

HD-SDI Box Camera

DWC-HC421D

06152012

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference. when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Installation Instructions

Controlling the Camera’s OSD Menu Remotely 12

Lens Connections

8-9

10-11

13-25

27-28

29-30

FEATURES*

Sony 1/2.8” CMOS Sensor

Highest Resolution 2.1 Megapixels

720P / 1080P Mode Selectable

Double Shutter WDR (Wide Dynamic Range) at 15fps

Electronic Day and Night

AGC / BLC / AWB

3D DNR (3D Digital Noise Reduction)

D-Zoom (0~112 level)

HME/ HLMSK (Highlight Masking Exposure)

Mirror & Flip Image

Programmable Privacy Zone (30) & Motion Detection

Dead Pixel Cancellation

12VDC Support Only

Secondary Video-BNC Output

TDN V Mega (CCTV)

CS Ring (Lens Conector)

Box Camera

Mounting Attachment

Iris Jack

OSD Control Arrows and Enter

Buttons

Alarm +/-

RS485 Connector

Video Out

BNC Jack (HD-SDI)

DC Power Input

Rear Name Plate

PARTS & DESCRIPTION*

62.0

(2.44”)

55.0

(2.17”)

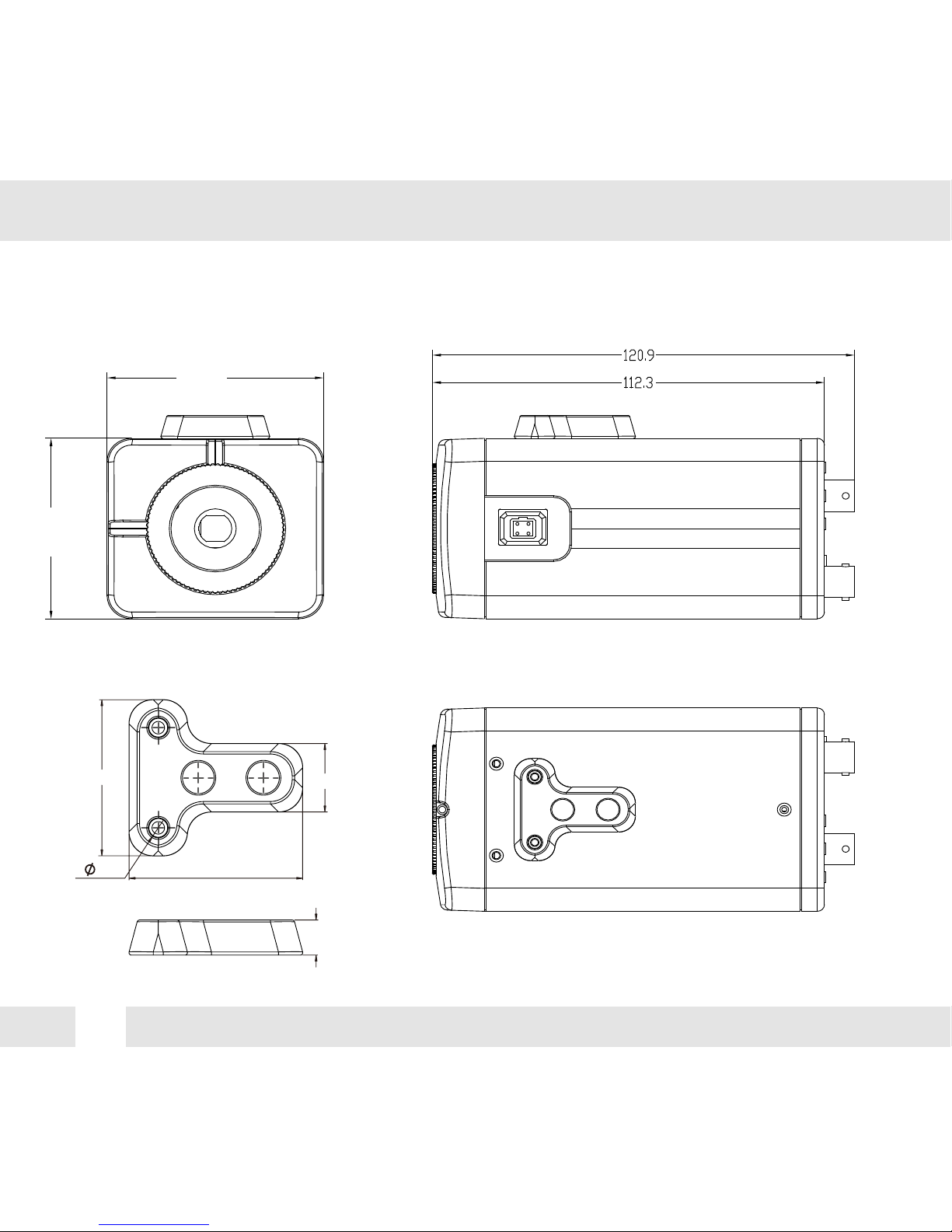

DIMENSIONS IN MILLIMETERS (IN)*

7.0

4.0 34.7

13.7

31.2

INSIDE THE BOX*

Included with Box Camera

Color Box

User Manual

Mini-DIN Connector (For Video or

DC Auto Iris Lens)

Adapter Ring for “C” Type Lenses

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Box Camera

DWC-HC421D

06152012

Two-Port Terminal Block

Cable Extension for Alarm and RS485

L-Wrench

INSTALLATION*

Using an appropriate mounting bracket, mark and drill the

necessary holes to mount the bracket to a wall or ceiling.

Attach the mounting bracket to the surface using machine screws.

Attach the box camera to the mounting bracket.

Adjust the camera’s position. Consult the manual of the

mounting bracket for additional information.

INSTALLATION*

Connect an appropriate lens to the camera lens connector by twisting the lens clockwise.

The camera is compatible with any C or CS mount lens. For “C” lenses, please use the provided

Adapter Ring. See page 10 for details. *Lens is not included.

Connect the lens’ cable to the box’s A-Iris Socket.

Adjust the lens’ zoom and focus accordingly. Consult the manual of the lens for additional

information.

CONNECTIONS*

*BNC / TERMINAL If you are using an automatic iris lens with the camera, the lens has

to be connected to the A-Iris socket of the camera. If you are using

a lens with manual or fixed iris, this socket is not used.

Operation of the camera will be confirmed by the power LED at the

rear side of the camera.

*A-Iris Socket

DC Driven (DC)

1.control -

2.control +

3.drive +

4.GND

A-IRIS
