DW PIXIM DWC-MC355T Bedienungsanleitung
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
PIXIM Micro Dome Camera
DWC-MC355T
07132012
PRECAUTIONS
Do not open or modify.
Do not open the case except during maintenence and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning:
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface:
The material of the mounting surface must be strong enough to support the camera.
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference, when the equipment is operated in a residential environment. This
equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in
accordance with the instruction manual, it may cause harmful interference to radio communications.
WARNING: Changes or modifications are not expressly approved by the manufacturer.
2
TABLE OF CONTENTS
Introduction
Installation
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Inside the Box
Mount Installation Instructions
Connecting to Monitors
Adjusting the Camera’s Position
4
5
6
7
8-9
10
11
12
13-14
15
3
FEATURES*
4
1/3” PIXIM Seawolf CMOS Sensor
480TV Lines [Color], 520TV Lines [B/W]
3.6mm Fixed Iris Lens
Low Power Consumption (Max 0.7W)
TDN (True Day/Nigh with IR Cut Filter)
Enhanced Sensitivity 0.4 Lux F1.2
3D Gimbal for Easy Control
Ultra Low Light Sensitivity
Wide Operating Voltage (8VDC~18VDC)
IP66 Certified
5 Year Warranty
PARTS & DESCRIPTION*
1Lens
Power Input Connector
12VDC Voltage
Primary Video BNC Output Connector
Mounting Screws
Camera Module
Bubble Dome
Upper Case
Security Screw
2
3
4
5
6
8
8
7
1
2
3
4
5
6
7
5
6
DIMENSIONS IN MILLIMETERS (IN)*
INSIDE THE BOX*
Included with Micor Indoor Dome Camera
User Manual
Mounting Template
4 Machine Screw and 4 Dry Wall Anchors
Miniature L-Key for Security Screw
L-Key
1
2
3
4
5
7
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Micro Dome Camera
DWC-MC352
DWC-MC352-29
DWC-MC352DIR
07132012

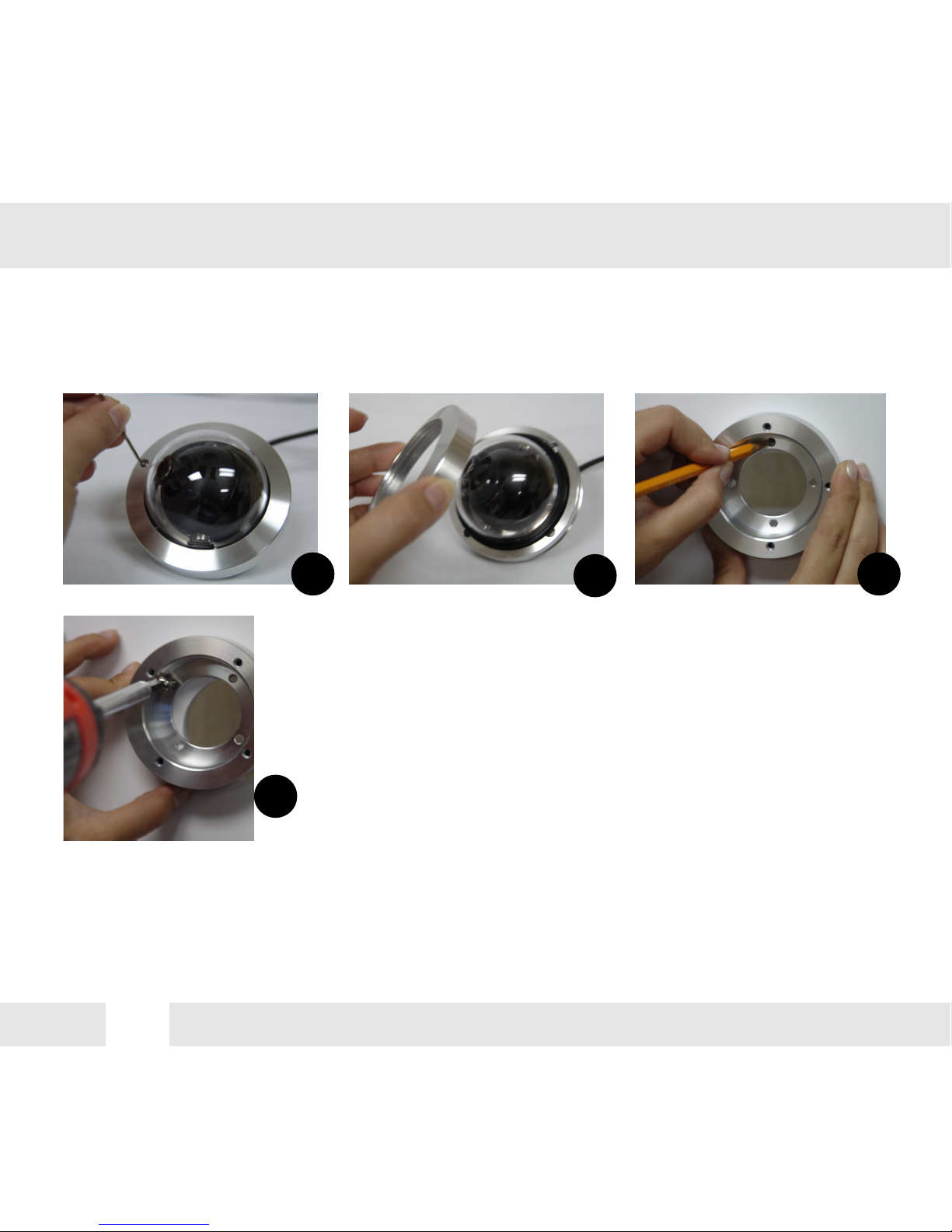

INSTALLATION*
1. Remove the Security Screw from the Upper
Case using the small L-Key.
2. Unscrew the upper case from the camera
module by rotating it counter clock-wise.
3. Use the camera’s mounting template or your
camera to mark the holes as required. Drill into
the drywall and insert the drywall mounts into
the holes.
4. Pull wires through and make connections.
(See page 10 for more information).
Mount the camera to the wall using the
included machine screws.
8
123
4
INSTALLATION*
5. Adjust the camera’s view (See page 11-
CAMERA SETTINGS).
6. place the bubble dome on the camera.
Screw the cover dome back by rotating it
clock-wise.
7. Tighten the Security screw back in place to
firmly secure the cover dome to the camera
module.
9
5
6
7
10
CONNECTIONS*
12VDC VIDEO OUT
CAUTION :
Check for polarity when using a DC 12V.
Use the diagram below to connect the camera to a Monitor or
CRT Monitor properly.
