Dynam SR Trainer Bedienungsanleitung

2

RTF INCLUDING

3

RTF including:

fuselage

wing

elevator

landing gear

Landing pole

plastic parts set

push rod

glue

decal

balance charger

LI-Po battery (11.1V 2200mAh 20C)

transmitter

Adaptor

Propeller

ESC

4

As shown, coated adhesive foam

rubber in the horizontal tail Office.

As shown, horizontal tail position in the

corresponding bonding fuselage.

As shown, the rudder rod penetration

quick connector, tighten with a

screwdriver.

As shown, the elevator rod penetration

quick connector, tighten with a

screwdriver.

this time steering the Huizhong state.

Indicate: this time steering the Huizhong state.

Indicate:

Z-end of the rod will turn into plastic

pieces shown in the figure.

Fixed front wheel steering with PA2.5X6.

5

The front wheel steering rod into quick

connector fastened with a screwdriver.

this time steering the Huizhong state.

Indicate:

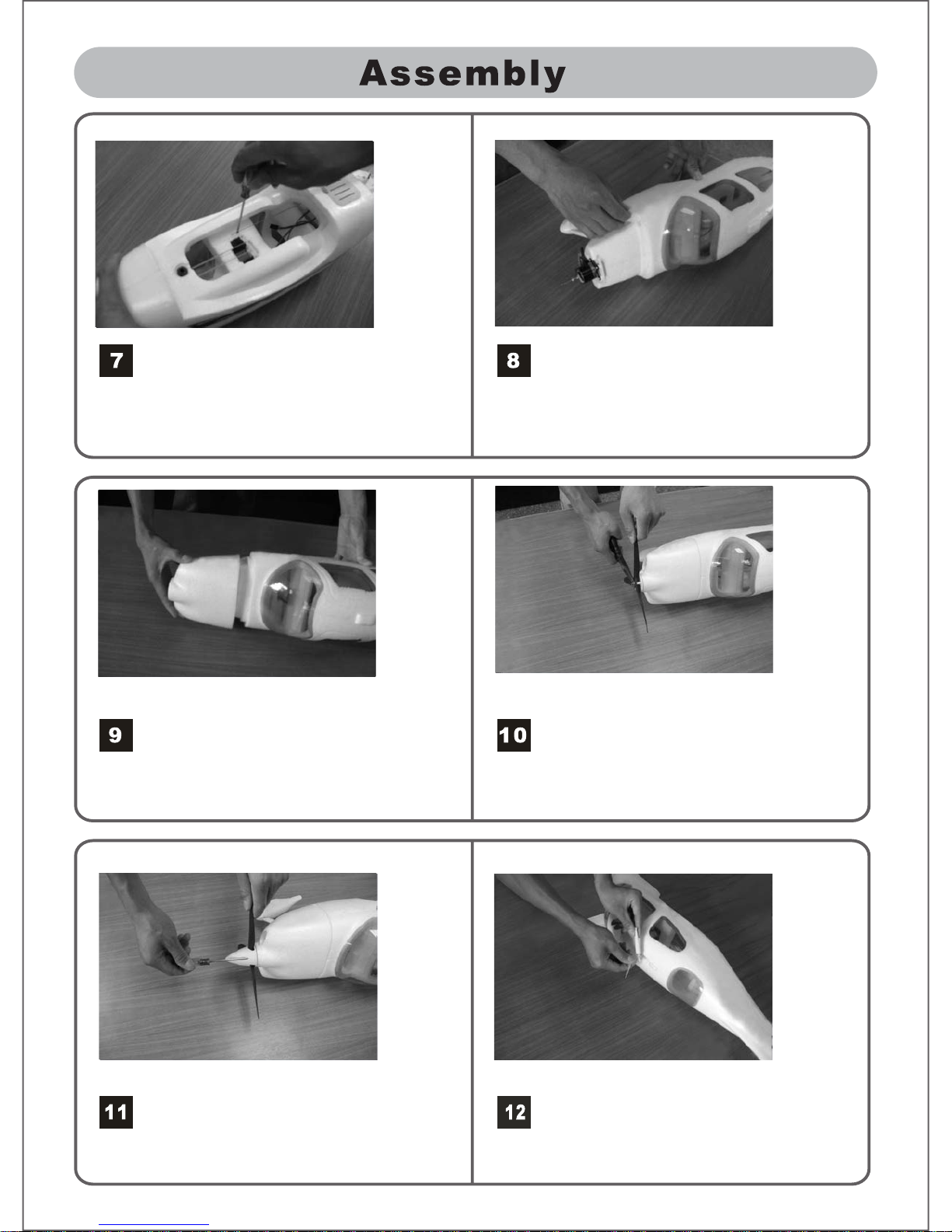

As shown,Tear up the surface layer

of the double-sided adhesive.

As shown,Install hood in the fuselage. As shown in the installation of 9060

Clover paddle

Phillips screwdriver fastening fairing.

.

As shown,Body antenna installation.

6

18

As shown, Left and right wing bonding.

As shown,Installation of plastic parts

in the position of the wing mark.

As shown,Landing gear screws around

with PA2.5X6.

As shown,The aileron cable with

Y-cable

As shown,Installation of wing and

fuselage, tighten with a screwdriver.

.

Bubble gum on the left and right

wing James.

THROTTLE

RUDDER

ELEVATOR

AILERONS

airplane action

airplane action

airplane action

airplane action

control plane

movement

control plane

movement

Aileron

movement

7

STICK OPERATION

MODE 1 MODE 2 MOVEMENT

9

3

78

13

1

5

6

4

11

2

10

10

Wire lead shorts can cause fire! If you accidentally short the wires, the battery must be

placed in a safe area for observation for approximately 15 minutes.

After flight, the battery cool down to ambient temperature before charging.

observation
