DYN-5830 / DYN-5860

3 & 6 Person FAR Infrared Saunas

Owner’s Manual

CARBON MODEL SAUNAS

SAUNAS ARE FOR INDOOR USE ONLY

120VAC 20AMP Single Dedicated Circuit Required (3 Person Model)

120VAC 20AMP Dual Dedicated Circuits Required (6 Person Model)

Carefully and thoroughly read this Owner’s Manual before using/operating the

sauna. We recommend keeping this Owner’s Manual for regular review and

future reference.

What Are Infrared Rays?

Infrared is the band of light we perceive as heat. We cannot see this band of light with the

naked eye, but we can feel this type of light in the form of heat. Our sun produces most of

its energy output in the infrared segment of the spectrum. Infrared rays heat your body

without having to heat the air in-between. This process is called conversion.

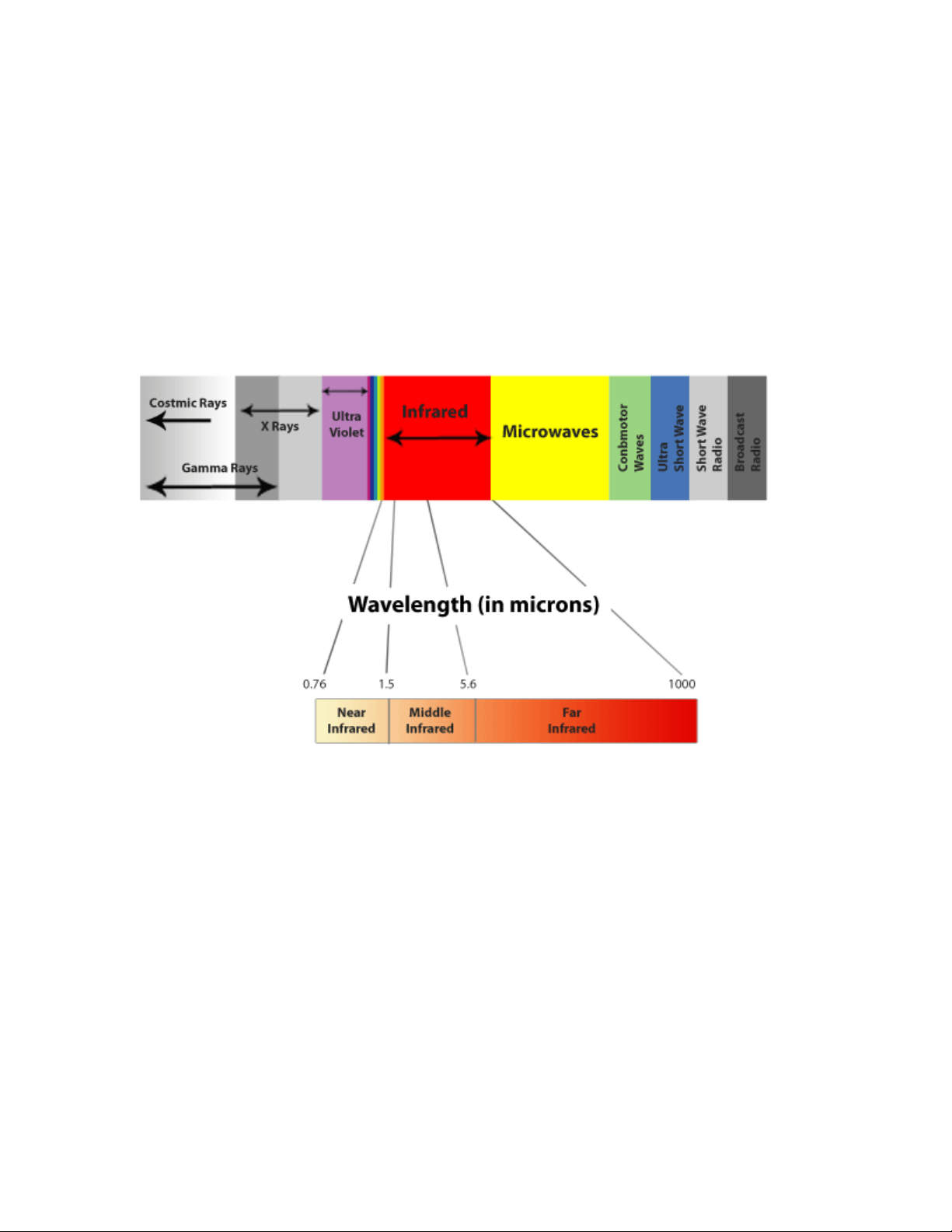

The infrared is divided into 3 segments by wavelengths measured in microns: Near

Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000

microns. Among these segments, Far Infrared penetrates organic substances such as the

human body two to three inches so that the warming effect is very uniform.

Health Benefits

Because infrared rays penetrate the body through conversion, there is a deep heating

effect in both the muscle tissues and internal organs without putting too much burden on

the heart.

Our body reacts to the increased heating through the natural cooling process of perspiring.

Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,

nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the

cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and

discharge waste products shedding any old skin cells leaving the skin glowing and clean,

with improved tone, elasticity, texture, and color.

Page 1

Health Benefits Include, But Are Not Limited To:

*Pain relief from Rheumatoid Arthritis

*Relaxes muscle spasms

*Increases blood circulation

*Cardiovascular conditioning

*Clears rashes, acne

*Reduces cellulite

*Removes toxins and mineral waste

*Reduces stress and fatigue

*Enhances skin tone

DISCLAIMER

The infrared rays emitted by your sauna are reported to offer a wide range of possible

therapeutic benefits based on research completed over the last 40 years from all around

the world. These benefits are presented for reference purposes only and no implication of

infrared saunas creating a cure for or treating any disease is implied nor should it be

inferred. If you have a medical/health condition, are taking prescription drugs, or have

acute joint injuries, please consult with your medical physician before using the sauna.

Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of

surgical implants) typically do not experience any adverse effects, but should also consult

their medical physician or surgeon before using the sauna room.

What are electric and magnetic fields?

Electric and magnetic fields are a basic force of nature (like gravity), generated by

electricity. They are found almost everywhere. Electric and magnetic fields are found in

nature, where they are created by such things as lightning and static electricity. Manmade

fields are found wherever people use electricity, such as near powerlines and electrical

appliances. Like sound, electric and magnetic fields are made of a mixture of components

and so can be described in many different ways. Both have wave-like properties

such as strength and “frequency” (how often they cycle back and forth). Sound can be

loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or

constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture

of components. They can be strong or weak, have a high or low frequency, have sudden

increases in strength (“transients”) or a constant strength, and consist of one pure

frequency or several (called “harmonics”). For example, the strength of a field can be weak

and constant, as in most nighttime home environments, or it can be strong and vary from

high to low every few seconds, as from an electric blanket set on high. Powerlines and

wiring in buildings and appliances generate 50 and 60 Hertz fields, sometimes referred to

Page 2

as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the

number of wave cycles each second. The lower the frequency of a field, the lower its

energy. Power frequency fields are low frequency fields and have low energy levels.

Microwave and x-ray fields are high frequency fields and have high energy levels. Below

are some EMF measurements.

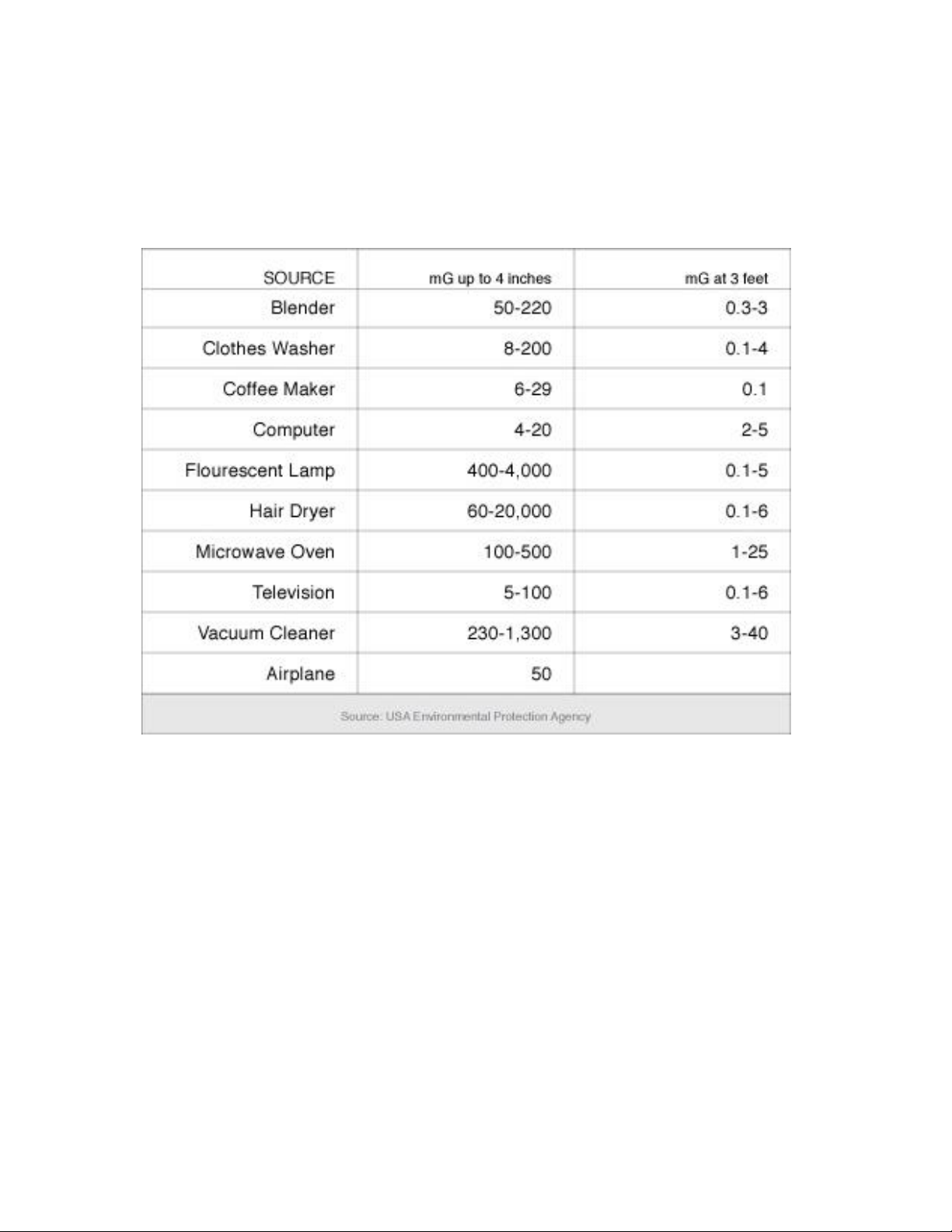

EMF Levels from Common Homes Sources

After many years and numerous studies on EMF exposure, no government body including

the Occupational Safety and Health Administration (OSHA) have established permissible

exposure limits (PEL). Currently, there is no consensus on the potential health hazard from

any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-

frequency, electromagnetic radiation associated with household currents like that of the

infrared sauna does not constitute a short or long term health hazard.

Sauna Maintenance

Since infrared saunas do not require hot rocks, water, or steam to operate, they require

very little maintenance. You can simply wipe it down with water –use a damp, soft, and

clean cloth. Do not use any chemical based cleaning agents as they can be absorbed

into the wood and be released into your sauna during use.

Page 3

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

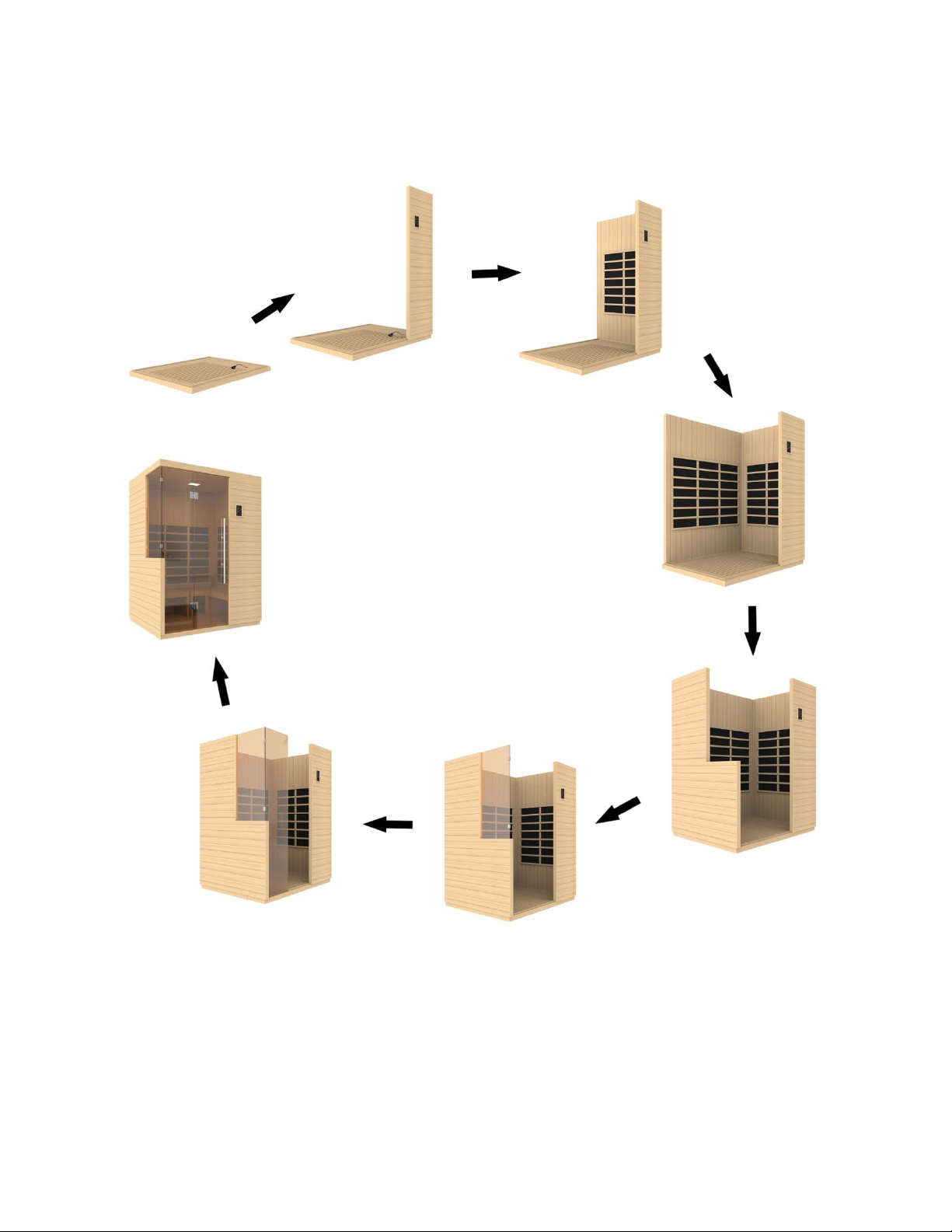

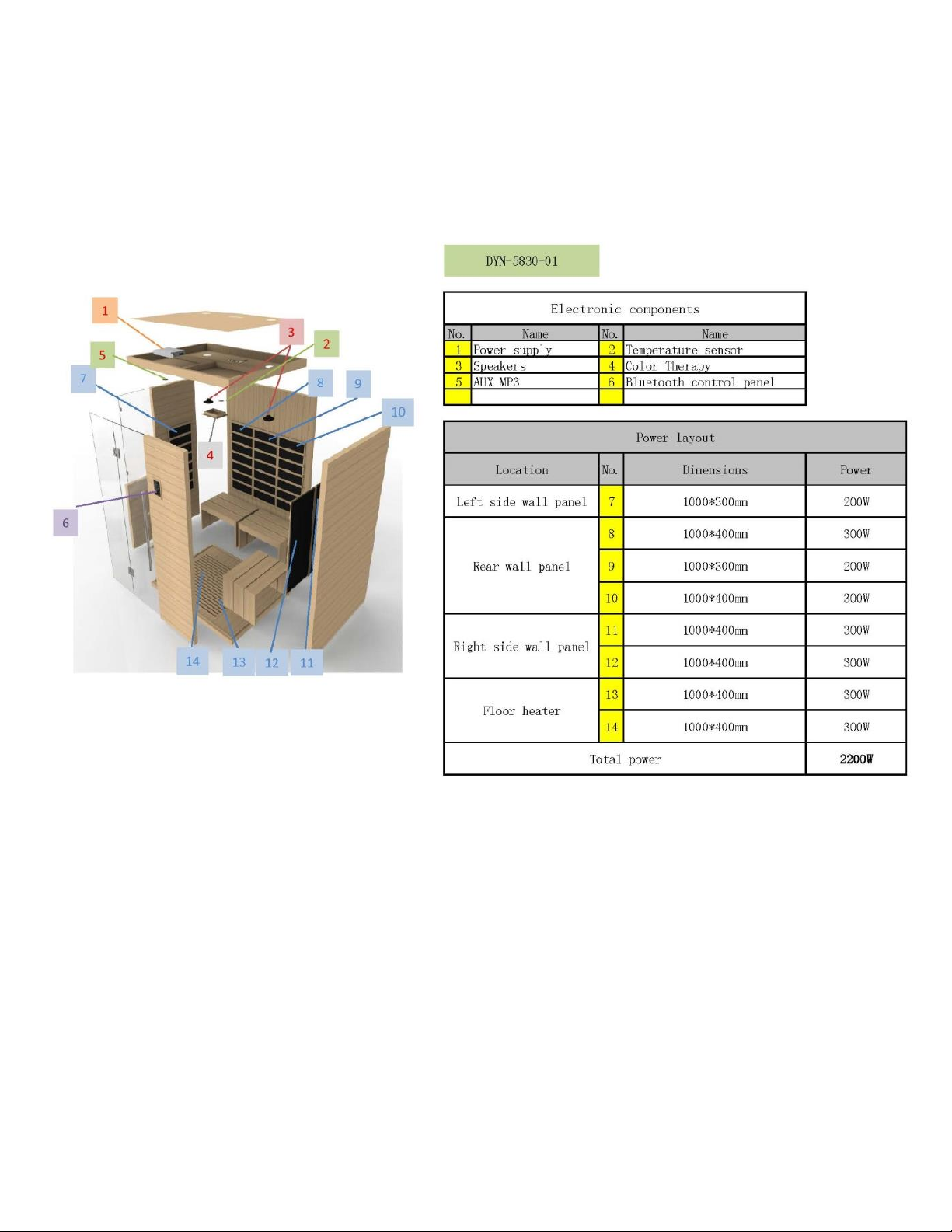

DYN-5830-01

*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE

VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.

PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO

CHANGE.

Page 4

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

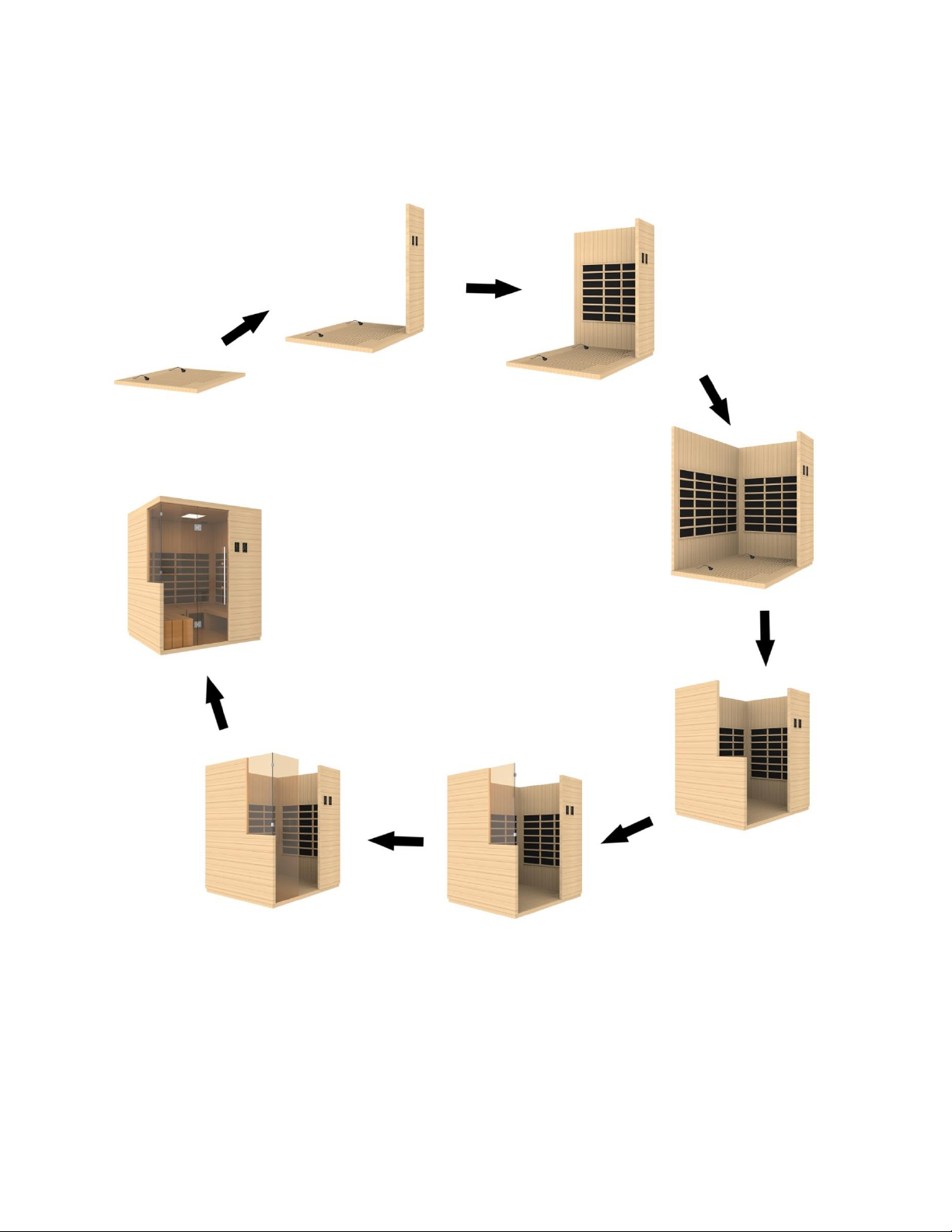

DYN-5860-01

*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE

VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.

PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO

CHANGE.

Page 5

TABLEOFCONTENTS

ProductIntroduction 6

PartsDescription 7

AssemblyInstructions 13

OperatingtheSauna 20

TipsforUsingyourSauna 23

SafetyInstructions 23

SafeguardsforyourSauna 25

TroubleshootingGuide 26

Warranty 32

WarrantyCard 34

WARNING: Visually inspect all heaters before assembly to make sure they are

not damaged. Any excessive vibrations during transport could cause damage to

the heating elements. DO NOT START the sauna if damage is detected! Contact

your dealer or manufacturer for troubleshooting and replacement parts.

1. Product Introduction

The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a

control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT

SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR

PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna

comes with control panels, a drink shelf (optional), a reading lamp/color light, and

infrared heat emitters.

NOTE: Your model sauna has been completely assembled and tested prior to

packaging. The rear wall panel is intentional warped as part of the overall design.

Two adults will be needed to assemble the sauna room.

CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or

Any Discomfort.

Page 6

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

PARTS DESCRIPTION

*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE

VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.

PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO

CHANGE.

Page 7

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

PARTS DESCRIPTION

*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE

VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.

PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO

CHANGE.

Page 8

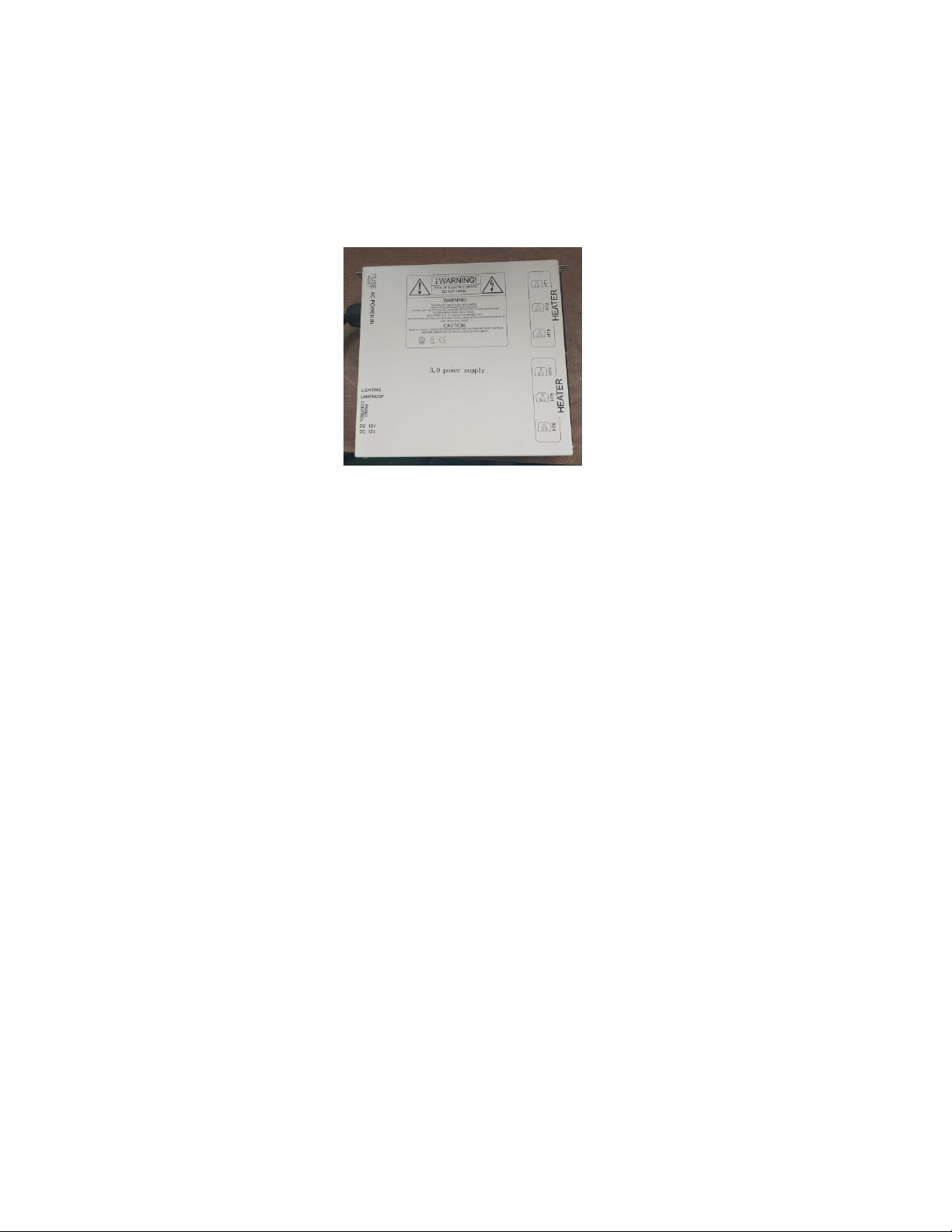

I. Power Supply (Control Box)

The POWER SUPPLY is the control center of the sauna room. It is installed on the

topside of the ROOF PANEL and has inputs/outputs connected to it. See Figure 1.

Model DYN-5860-01 will have two power supplies of which you will need two

separate dedicated 120V 20AMP outlets.

Figure 1

POWER IN - main power of the sauna room

HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords

LAMPROOF –roof lamp power (optional)

LIGHTING –chromotherapy lights

PANEL CONTROL –control panel

FUSE RESET –protects against power

II. Component Labeling

Power Cord –Main power cord connects the POWER SUPPLY to the

dedicated wall outlet

HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to

the POWER SUPPLY at these ports (HT5 & HT6 are not used on most

models)

Lighting –Connects the interior lighting to the POWER SUPPLY at this port

LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this

port

Panel Control –Connects the Control Panel through the CTRL harness to

the Power Supply at this port

L/R Speakers –Connects the speakers through these wires to the Control

Panel

Temp Sensor –Connects the Temperature Sensor through this wire to the

Control Panel Page 9
