Dynamic Saunas DYN3356 Bedienungsanleitung

DYN3356

3 Person Corner Sauna

OWNER’S MANUAL

FOR CERAMIC AND CARBON MODEL SAUNAS

FOR INDOOR USE ONLY

120VAC 20 AMP DEDICATED CIRCUIT

Sauna: Now you can enjoy the European secret for youthful vitality.

Carefully and thoroughly read this manual before using the sauna. We

recommend keeping this manual for regular review and future reference.

*PLEASE READ INSTRUCTIONS BEFORE

ASSEMBLY*

GDI-6235

*The above assembly

diagram

is a quick reference

visual guide only

All sauna

models

are not shown

Sauna models, parts, and accessories may

vary.

WHAT ARE INFRARED RAYS?

Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we

can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared

segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process

is called conversion.

The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5

microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only

far infrared penetrates organic substances such as the human body two to three inches so that the

warming effect is very uniform.

Cosmic

Infrared

Gamma

Wavelength

(in

microns

)

0.76 1.5 5.6 1000

Near

iddle

Far Infrared

ARE INFRARED RAYS SAFE?

Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a

cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint

problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep

newborn babies warm.

HOW IT WORKS

Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into

the body's tissue to produce perspiration.

Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to

perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees

Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same

effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.

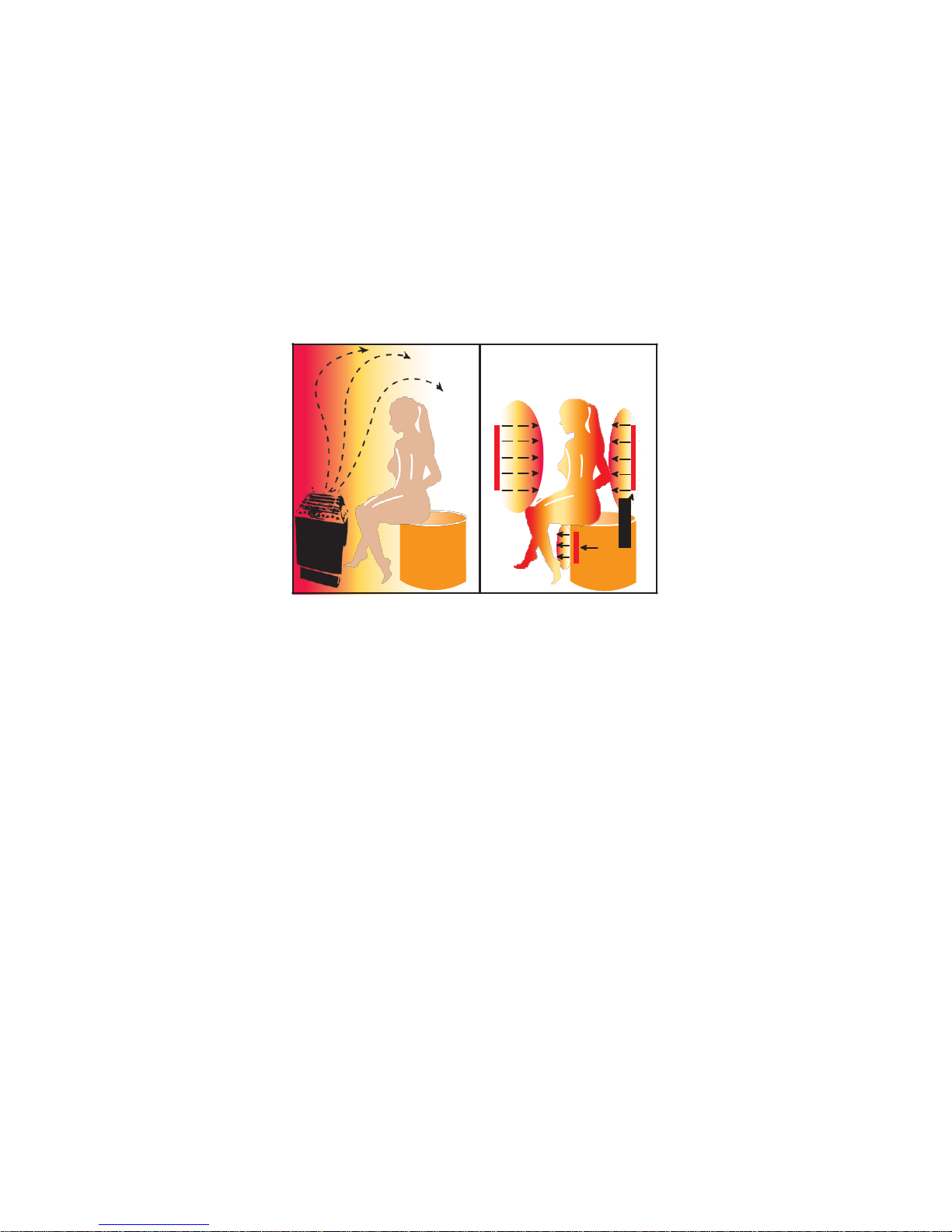

Traditional Infrared

BENEFITS

Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle

tissues and internal organs without putting too much burden on the heart.

Our body reacts to the increased heating through the natural cooling process of perspiring. Through the

perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the

potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,

etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin

glowing and clean, with improved tone, elasticity, texture, and color.

Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research

on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"

composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings

support the health benefits of infrared therapy as a method of healing.

Benefits include, but are not limited to:

- Pain relief from Rheumatoid Arthritis

- Relaxing muscle spasms

- Increases blood circulation

- Cardiovascular conditioning

- Clears rashes, acne

- Reduces cellulite

- Removes toxins and mineral waste

- Reduces stress and fatigue

- Enhances skin tone

SAUNA MAINTENANCE

Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little

maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning

chemicals as they can be absorbed into the wood and be released into your sauna during use.

DISCLAIMER

The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits

based on research completed over the last 25 years from all around the world. These benefits are presented

for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is

implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute

joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants

(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience

any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.

CAUTION: Exit sauna immediately if you feel dizzy,

sleepy, or any discomfort.

TABLE OF CONTENTS

Product Introduction 4

Parts Description 5

Assembly Instructions 9

Operating the Sauna 15

Tips for Using Your Sauna 18

Safety Instructions 18

Safeguards for Your Sauna 19

Troubleshooting Guide 20

Warranty 22

Warranty Card 23

WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any

excessive vibrations during transport could cause damage to the heating elements. DO NOT START

the sauna if damage is detected! Contact your dealer or manufacturer for troubleshooting and

replacement parts.

1. Product Introduction

The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The

wood cabin includes a FRONT PANEL, LEFT REAR PANEL, RIGHT REAR PANEL, LEFT SIDE PANEL,

RIGHT SIDE PANEL, BENCH PANEL, BENCH EMITTER PANEL, FLOOR PANEL, ROOF PANEL, and

ROOF COVER. The infrared sauna comes with control panels on the FRONT PANEL, a back protection

grid on the LEFT and RIGHT REAR PANELS, a drink shelf, a reading lamp, and infrared heat emitters.

NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.

Actual model may vary.

PARTS DESCRIPTION

I. Power Supply

The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and

has input/outputs connected to it as seen below. (see Figure 1)

Figure 1

MAIN POWER

main power of the sauna room

HT1, HT2, HT3, HT4

emitter power output cords

LIGHT reading lamp power output cord

ROOF LAMP roof lamp power output cord (optional)

CTRL control panel connection

CD/SIG signal cable group

II. CD/Radio (optional)

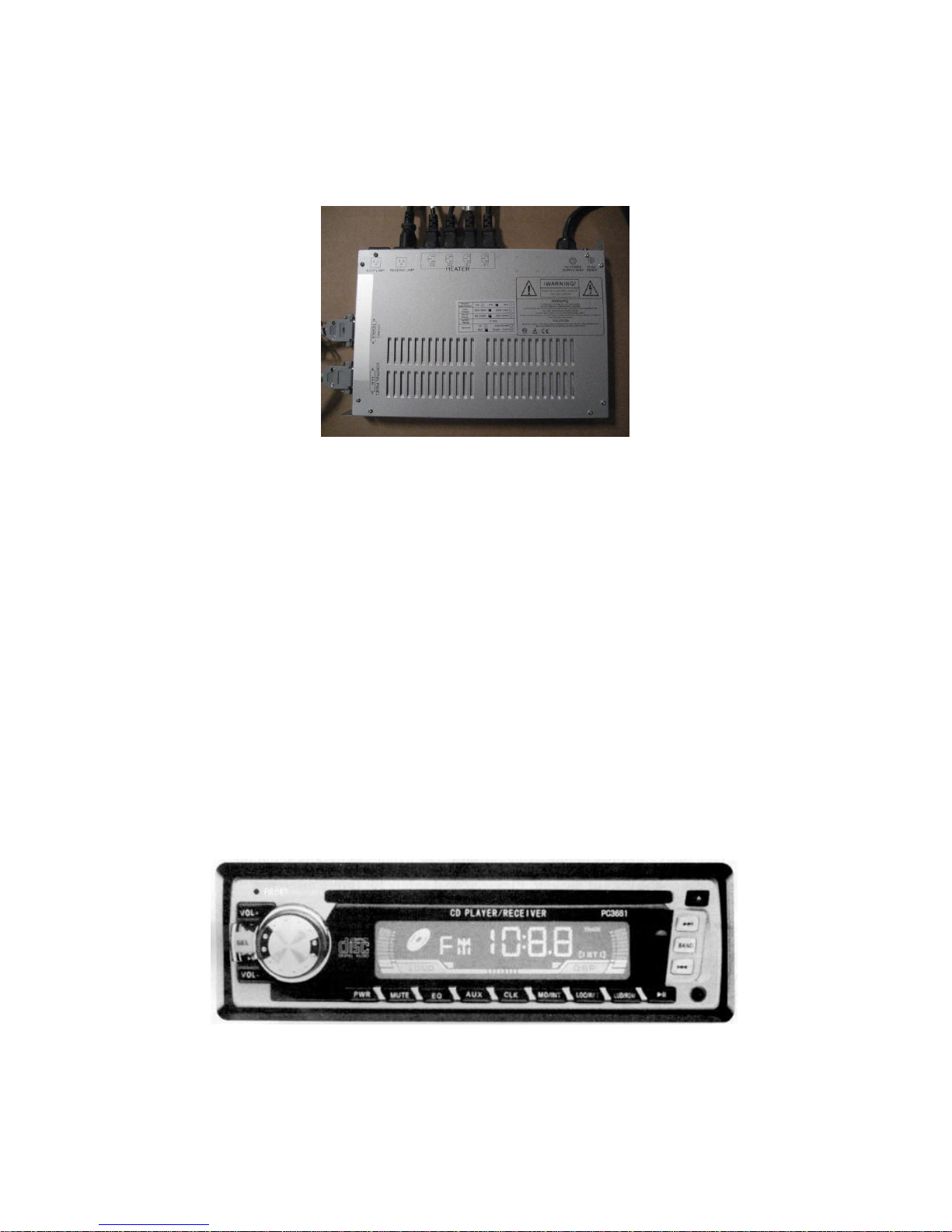

The multifunction stereo features an AM/FM receiver, CD player, colorful and wide LCD screen, volume /tone/

and balance controls, and an AUX input. (see Figure 2)

Figure 2 (Model Radio May Vary)

III. Component Labeling

POWER Power Cord

HT1, HT2, HT3, HT4 Emitter (heater) power cords

LIGHT Reading lamp connector

ROOF LAMP Roof lamp connector (optional)

COLOR LAMP Color lamp connector (optional)

CTRL Control panel connector

CD/SIG For CD/temperature sensor/buzzer/etc. connectors

CD-POWER CD/radio power connector FAN-

POWER CD/radio fan power connector

ANALOG AUDIO

Audio frequency signal connector

L/SPEAKER Left speaker connector

R/SPEAKER Right speaker connector

BUZZER Buzzer connector

TEMP SENSOR Temperature sensor

IV. Buckles

A. External Buckles

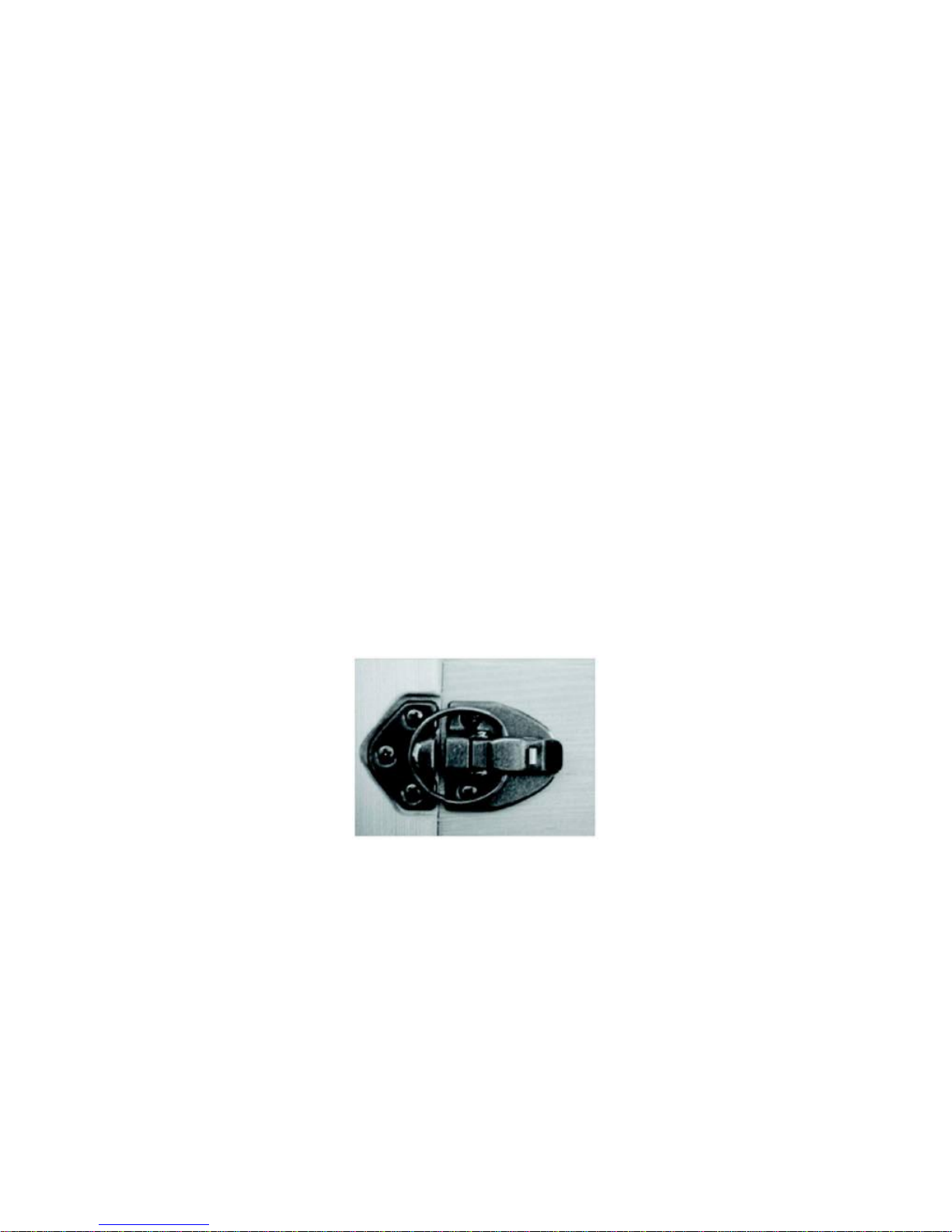

The external buckles are used to connect the REAR PANELS to each other. Also, they are used

to connect the RIGHT REAR PANEL to the RIGHT SIDE PANEL and the LEFT REAR PANEL to

the LEFT SIDE PANEL. (see Figure 3)

Figure 3

B. Guide and Guide Inserts

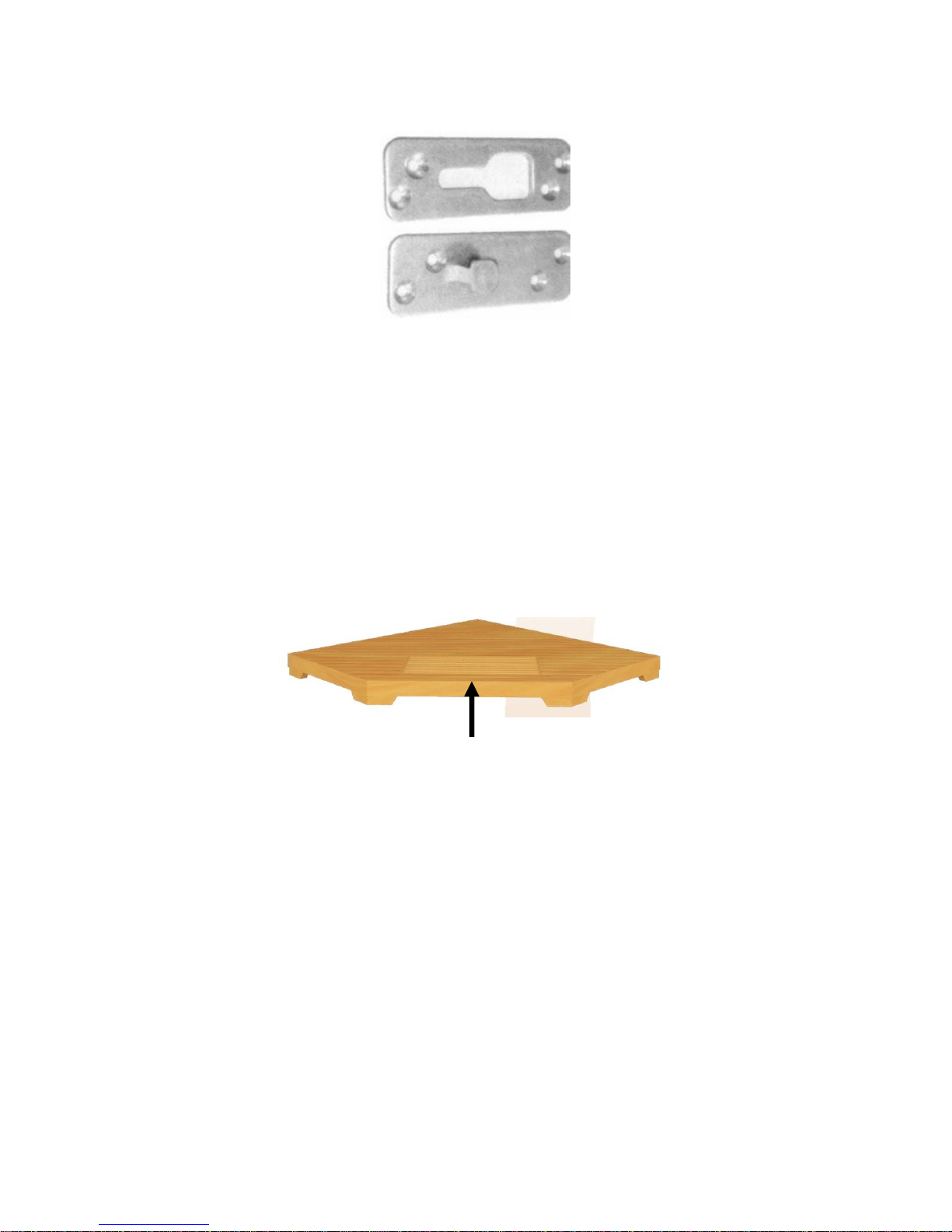

The guide and guide inserts are used to connect the LEFT SIDE PANEL and the RIGHT SIDE

PANEL to the FRONT PANEL. (see Figure 4)

Figure 4

V. Panel Descriptions

For easier installation, please understand and distinguish the differences between each panel.

A. Floor Panel

When the floor panel faces upward, you will find (5) raised moldings with (3) notches. Three of the

sides will have buckles. The front side will have no buckles. (see Figure 5)

Figure 5 (Floor Heater is towards the front)

B. Understanding The Difference Between The Top And Bottom Of The Wall Panels

The (2) rear panels are in the upright position when the vertical slot on the right rear panel (for the

heating emitter panel below the bench) align with the notch on the floor panel and when the

horizontal bench guide on the left rear panel is closer to the bottom of the panel than the top.

Also, the heater cords will come out of the wall panels at the top. (see Figure 6) The left side

and right side panels (panels with glass inserts) have directional stickers indicating the top. As for

the front panel, the control panel is located at the top of the panel. Please note the location of the

heater cords.
