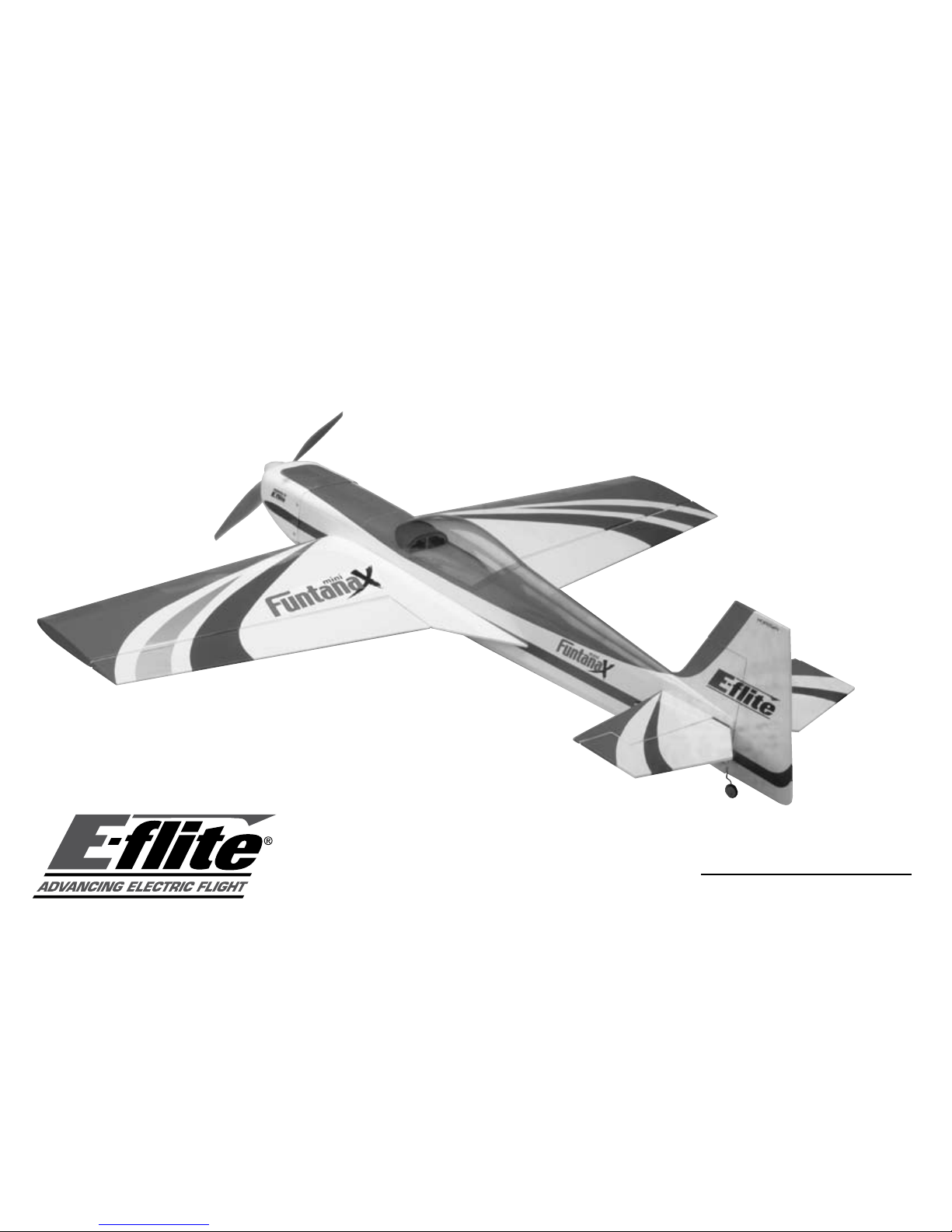

E-FLITE Mini FuntanaX Bedienungsanleitung

Mini FuntanaX

Assembly Manual

Introduction................................................................3

Specifications.............................................................3

Using the Manual .......................................................3

Contents of Kit/Parts Layout .........................................4

Required Radio Equipment...........................................5

Important Information About Motor Selection .................6

High Power Outrunner Setup........................................6

Optional Accessories ..................................................6

Required Tools and Adhesives ......................................6

Note on Lithium Polymer Batteries.................................7

Warning....................................................................7

Date of Purchase Warranty Period ................................7

Limited Warranty ........................................................8

Damage Limits............................................................9

Safety Precautions.......................................................9

Questions, Assistance, and Repairs...............................9

Inspection or Repairs.................................................10

Warranty Inspection and Repairs................................10

Non-Warranty Repairs...............................................11

Table of Contents

Safety, Precautions, and Warnings..............................12

Landing Gear Installation...........................................13

Outrunner Motor Installation.......................................15

Cowling Installation ..................................................16

Aileron Hinging........................................................20

Aileron Servos and Linkages ......................................23

Wing Installation ......................................................27

Stabilizer and Elevator ..............................................30

Rudder and Fin.........................................................34

Rudder and Elevator Servos .......................................36

Final Assembly .........................................................40

Control Throws .........................................................44

Center of Gravity......................................................45

Range Test Your Radio...............................................46

Preflight ...................................................................47

Flying Your Mini FuntanaX .........................................48

Building and Flying Notes..........................................49

2006 Official AMA

National Model Aircraft Safety Code..........................50

Introduction

Thank you for purchasing the Mini FuntanaX. To create

the Mini Funtana X, E-flite started with the proven 3D

benefits of the original Mini Funtana design then increased

the wing area by 26%, added filets, added a tapered

thickness airfoil and optional side force generators. The

result is a plane that excels in high-alpha maneuverability,

especially when outfitted with E-flite’s phenomenal Park

480 Brushless Outrunner motor.

Specifications

Wingspan: 43 in (1092mm)

Length: 40.5 in (1028mm)

Wing Area: 447 sq in (28.8 sq dm)

Weight w/o Battery: 23–24 oz (652–680 g)

Weight w/ Battery: 27–29 oz (765–822 g)

Using the Manual

This manual is divided into sections to help make assembly

easier to understand, and to provide breaks between each

major section. In addition, check boxes have been placed

next to each step to keep track of each step completed.

Steps with a single circle () are performed once, while

steps with two circles () indicate that the step will

require repeating, such as for a right or left wing panel,

two servos, etc.

Remember to take your time and follow the directions.

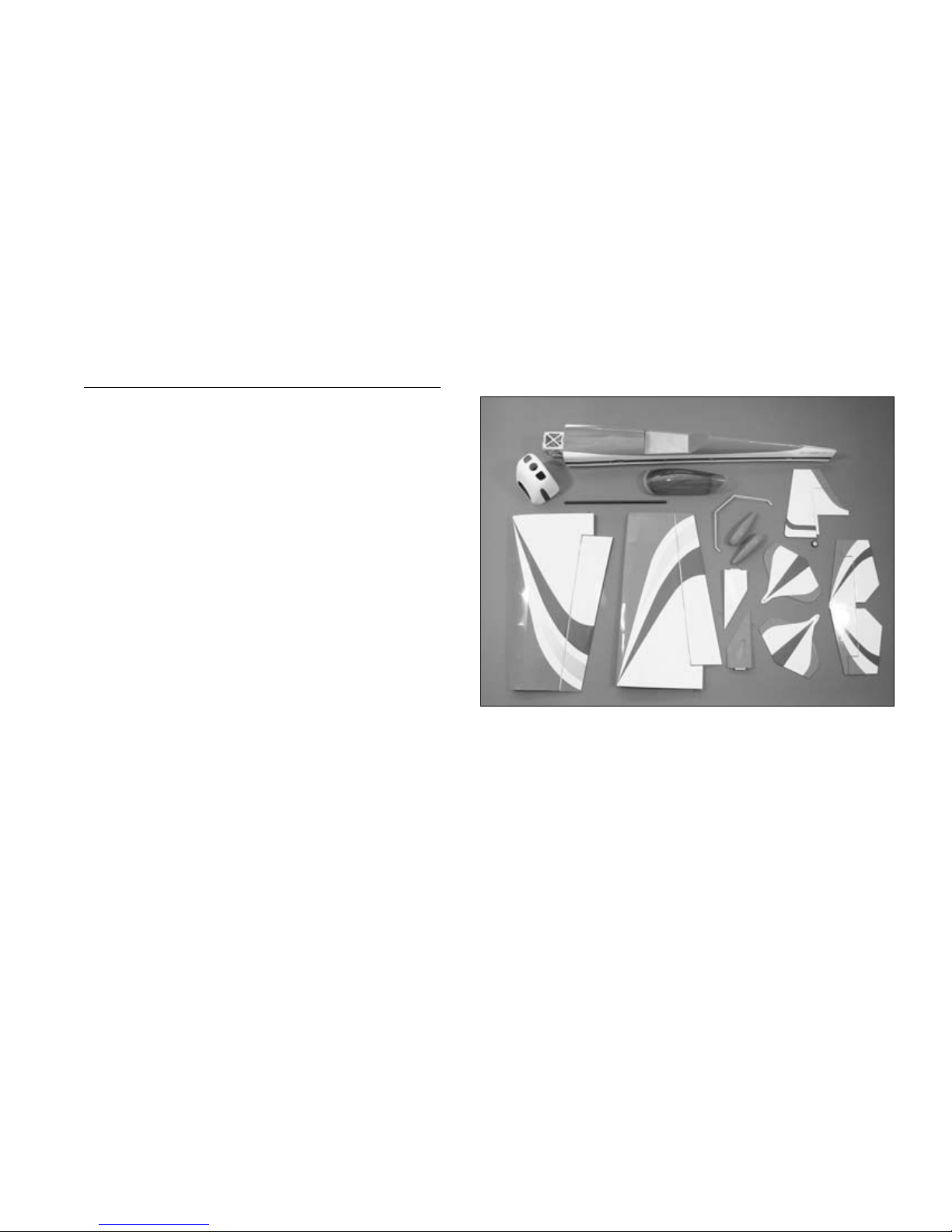

Contents of Kit/Parts Layout

Large Replacement Parts:

EFL2426 Wing w/Ailerons

EFL2427 Fuselage w/Hatch

EFL2428 Tail Set

EFL2429 Pushrod Set

EFL2430 Main Landing Gear

EFL2431 Fuselage Hatch

EFL2432 Canopy

EFL2433 Cowling

EFL2434 Wheel Pants

EFL2435 Wing Tube

EFL2436 Side Force Generators

Small Replacement Parts:

EFLA200 Micro Control Horns

EFLA203 Micro Control Connectors

EFLA219 Steerable Tailwheel Assembly

EFLA222 Foam Park Wheels, 13/4"

EFLA213 E-flite/JR/Horizon Decals

You will need a minimum 6-channel transmitter, crystals,

micro receiver, and four sub-micro servos. You can choose

to purchase a complete radio system that includes all of

these items or, if you are using an existing transmitter, just

purchase the other required equipment separately.

Complete Radio System

SPM2460 DX6 DSM 6CH Park Flyer w/4-S75

Servos

Note: We recommend the crystal-free,

interference-free Spektrum®DX6 2.4GHz DSM®

6-Channel System, which includes a micro

receiver and 4 sub-micro servos.

Or Purchase Separately

SPM6000 AR6000 DSM DuaLink™ 6-Channel

Park Flyer Rx

JSP30610 6-Channel UltraLite Rx w/o Crystal,

Positive Shift JR/AIR (72MHz)

JSP30615 6-Channel UltraLite Rx w/o Crystal,

Negative Shift FUT/HRC (72MHz)

JRPXFR** FM Receiver Crystal

JSP98110 6" Servo Extension (2)

JSP98120 18" Servo Extension (2)

JSP98020 Y-Harness, Standard 6"

EFLRS75 7.5-Gram Sub-Micro Servo (4)

Required Radio Equipment

Important Information About Motor

Selection

We recommend the E-flite®Park 480 Brushless Outrunner,

1020Kv (EFLM1505) to provide you with excellent sport

and aerobatic power and a worry-free outrunner motor.

The Mini FuntanaX does not include a propeller.

High Power Outrunner Setup

EFLM1505 Park 480 Brushless Outrunner

Motor, 1020Kv

EFLA312B 40-Amp Brushless ESC

THP21003SPL 2100mAh 3-Cell 11.1V Li-Po,

16GA

APC12060E 12 x 6 Electric Prop

EFLAEC302 EC3 Battery Connector, Female (2)

EFLC3005 Celectra 1- to 3-cell Li-Po Charger

This is a high power performance setup for

strong 3D flights.

Optional Accessories

EFLA110 Power Meter

Required Tools and Adhesives

Tools & Equipment

EFLA250 Park Flyer Tool Assortment, 5-piece

Or Purchase Separately

EFLA257 Screwdriver, #0 Phillips (or included

with EFLA250)

EFLA251 Hex Wrench: 3/32" (or included

with EFLA250)

Nut driver: 1/4"

Drill

Drill bit: 1/16" (1.5mm), 5/64" (2mm)

Masking tape

Card stock

Felt-tipped pen

Needle-nose pliers

Canopy glue

Medium grit sandpaper

T-pins

Thin CA

Paper towels

Hobby knife

6-minute epoxy

Ruler

Square

Note on Lithium Polymer Batteries

Lithium Polymer batteries are significantly

more volatile than alkaline or Ni-Cd/Ni-MH

batteries used in RC applications. All

manufacturer’s instructions and warnings

must be followed closely. Mishandling of

Li-Po batteries can result in fire. Always follow

the manufacturer’s instructions when disposing

of Lithium Polymer batteries.

Warning

An RC aircraft is not a toy! If misused, it can cause

serious bodily harm and damage to property. Fly

only in open areas, preferably at AMA (Academy of

Model Aeronautics) approved flying sites, following all

instructions included with your radio.

Keep loose items that can get entangled in the propeller

away from the prop, including loose clothing, or other

objects such as pencils and screwdrivers. Especially keep

your hands away from the propeller.

Date of Purchase Warranty Period

Horizon Hobby, Inc., (Horizon) warranties that the

Products purchased (the "Product") will be free from

defects in materials and workmanship at the date of

purchase by the Purchaser.

Limited Warranty

shall be that Horizon will, at its option, (i) repair or

(ii) replace, any Product determined by Horizon to be

defective. In the event of a defect, these are the Purchaser's

exclusive remedies. Horizon reserves the right to inspect

any and all equipment involved in a warranty claim.

Repair or replacement decisions are at the sole discretion

of Horizon. This warranty does not cover cosmetic damage

or damage due to acts of God, accident, misuse, abuse,

negligence, commercial use, or modification of or to any

part of the Product. This warranty does not cover damage

due to improper installation, operation, maintenance, or

attempted repair by anyone other than Horizon. Return of

any goods by Purchaser must be approved in writing by

Horizon before shipment.

(a) This warranty is limited to the original Purchaser

("Purchaser") and is not transferable. REPAIR OR

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY

IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This

warranty covers only those Products purchased from an

authorized Horizon dealer. Third party transactions are

not covered by this warranty. Proof of purchase is required

for warranty claims. Further, Horizon reserves the right

to change or modify this warranty without notice and

disclaims all other warranties, express or implied.

(b) Limitations- HORIZON MAKES NO WARRANTY

OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT

NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE

PURCHASER ACKNOWLEDGES THAT THEY ALONE

HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY

MEET THE REQUIREMENTS OF THE PURCHASER’S

INTENDED USE.

Damage Limits

HORIZON SHALL NOT BE LIABLE FOR SPECIAL,

INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF

PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN

ANY WAY CONNECTED WITH THE PRODUCT, WHETHER

SUCH CLAIM IS BASED IN CONTRACT, WARRANTY,

NEGLIGENCE, OR STRICT LIABILITY. Further, in no event

shall the liability of Horizon exceed the individual price of

the Product on which liability is asserted. As Horizon has

no control over use, setup, final assembly, modification

or misuse, no liability shall be assumed nor accepted for

any resulting damage or injury. By the act of use, setup or

assembly, the user accepts all resulting liability.

If you as the Purchaser or user are not prepared to accept

the liability associated with the use of this Product, you

are advised to return this Product immediately in new and

unused condition to the place of purchase.

Law: These Terms are governed by Illinois law (without

regard to conflict of law principals).

Safety Precautions

This is a sophisticated hobby Product and not a toy. It

must be operated with caution and common sense and

requires some basic mechanical ability. Failure to operate

this Product in a safe and responsible manner could result

in injury or damage to the Product or other property. This

Product is not intended for use by children without direct

adult supervision. The Product manual contains instructions

for safety, operation and maintenance. It is essential

to read and follow all the instructions and warnings in

the manual, prior to assembly, setup or use, in order to

operate correctly and avoid damage or injury.

Questions,Assistance, and Repairs

Your local hobby store and/or place of purchase

cannot provide warranty support or repair. Once

assembly, setup or use of the Product has been started,

you must contact Horizon directly. This will enable

Horizon to better answer your questions and service

you in the event that you may need any assistance. For

questions or assistance, please direct your email t

o productsupport@horizonhobby.com, or call

877.504.0233 toll free to speak to a service technician.

Inspection or Repairs

If this Product needs to be inspected or repaired, please

call for a Return Merchandise Authorization (RMA). Pack

the Product securely using a shipping carton. Please note

that original boxes may be included, but are not designed

to withstand the rigors of shipping without additional

protection. Ship via a carrier that provides tracking and

insurance for lost or damaged parcels, as Horizon is

not responsible for merchandise until it arrives and

is accepted at our facility. A Service Repair Request is

available at www.horizonhobby.com on the “Support” tab.

If you do not have internet access, please include a letter

with your complete name, street address, email address

and phone number where you can be reached during

business days, your RMA number, a list of the included

items, method of payment for any non-warranty expenses

and a brief summary of the problem. Your original sales

receipt must also be included for warranty consideration.

Be sure your name, address, and RMA number are clearly

written on the outside of the shipping carton.

Warranty Inspection and Repairs

To receive warranty service, you must include your

original sales receipt verifying the proof-of-purchase

date. Provided warranty conditions have been met,

your Product will be repaired or replaced free of charge.

Repair or replacement decisions are at the sole discretion

of Horizon Hobby.

Inhaltsverzeichnis

Andere E-FLITE Spielzeug Handbücher

E-FLITE

E-FLITE F-16 ARF Bedienungsanleitung

E-FLITE

E-FLITE YAK-54F Bedienungsanleitung

E-FLITE

E-FLITE J-3 Cub 450 Bedienungsanleitung

E-FLITE

E-FLITE Cap 232 BP 3D Bedienungsanleitung

E-FLITE

E-FLITE Ultra Micro FPV Vapor Bedienungsanleitung

E-FLITE

E-FLITE The Beast Bedienungsanleitung

E-FLITE

E-FLITE P-51D Mustang Bedienungsanleitung

E-FLITE

E-FLITE BLADE CX2 Bedienungsanleitung

E-FLITE

E-FLITE Apprentice S 15e Bedienungsanleitung

E-FLITE

E-FLITE Carbon-Z P2 Prometheus Bedienungsanleitung

E-FLITE

E-FLITE EFLA370H Bedienungsanleitung

E-FLITE

E-FLITE Tensor 4D Bedienungsanleitung

E-FLITE

E-FLITE CESSNA 182 370 Bedienungsanleitung

E-FLITE

E-FLITE Beechcraft Bonanza 15e ARF Bedienungsanleitung

E-FLITE

E-FLITE Funtana 300 AR Bedienungsanleitung

E-FLITE

E-FLITE UMX Spacewalker Bedienungsanleitung

E-FLITE

E-FLITE Leader 480 ARF Bedienungsanleitung

E-FLITE

E-FLITE F-16 Falcon 80mm EDF Bedienungsanleitung

E-FLITE

E-FLITE UMX MiG 15 DF Bedienungsanleitung

E-FLITE

E-FLITE Blade mSR BNF Bedienungsanleitung

E-FLITE

E-FLITE Alpha Sport 450 Bedienungsanleitung

E-FLITE

E-FLITE Shoestring 15e ARF Bedienungsanleitung

E-FLITE

E-FLITE Stearman PT-17 15e ARF Bedienungsanleitung

E-FLITE

E-FLITE UMX AS3Xtra Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
