Product Reference Guide
Parts of the Model M210/M260 2D
Bar Code and Magnetic Stripe
Reader
This page will provide an illustrated breakdown of the
Model M210/M260.

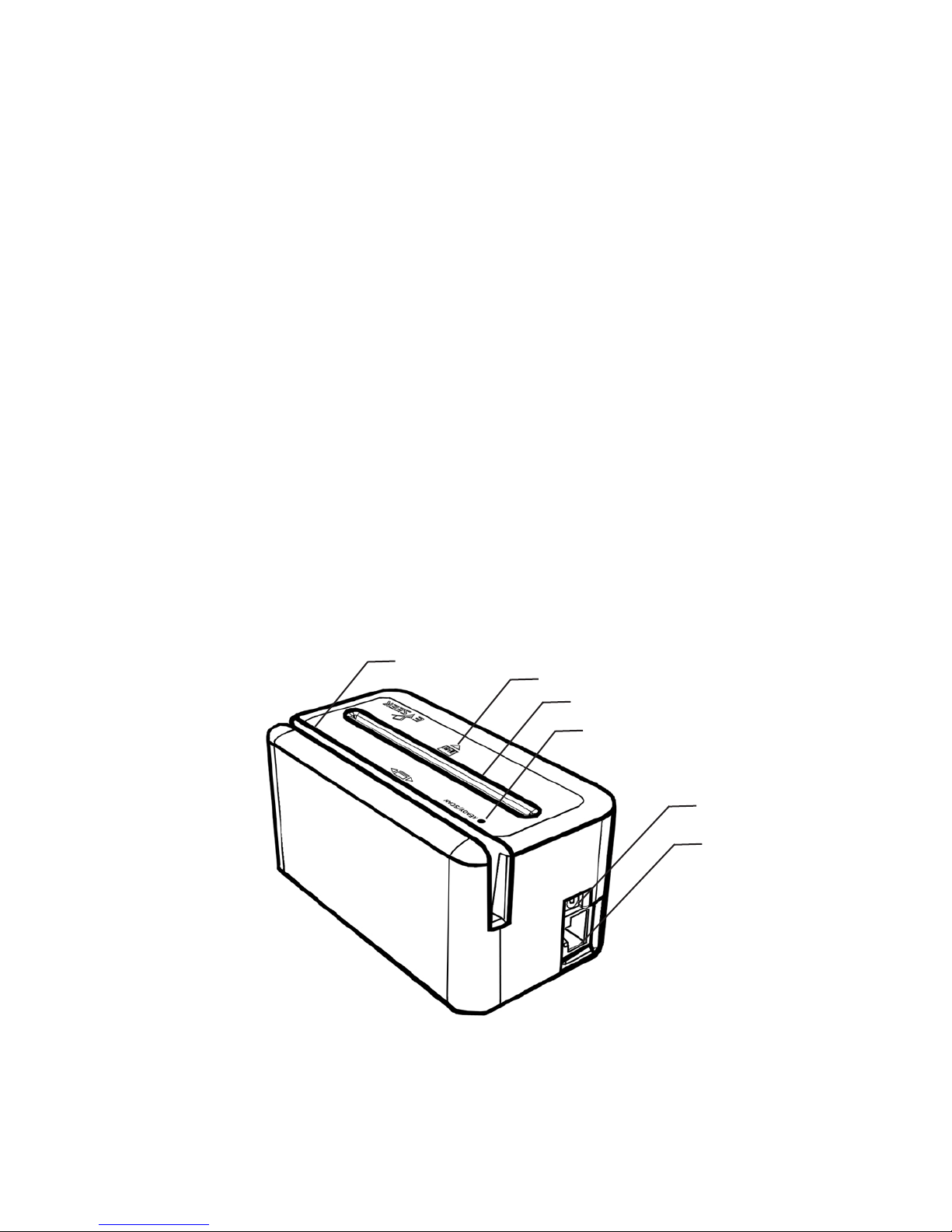

1. Cable Interface Connector
2. Power Supply Connector
3. Power On - Good Read LED
4. 2D Bar Code
5. Card Insertion Guide
6. Magnetic Stripe (M260 ONLY)
2
1
2
3
4
5
6
Product Reference Guide3
Model M210/M260 Product
The Model M210 and Model M260 are 2D Bar Code Scanners
designed for reading and decoding 2D Bar Code on ID Cards and
Driver’s Licenses. The Model M210/M260 presents decoded
Bar Code information through RS 232 interface or USB,
utilizing an RJ 45 connector and Kiosk connection.
The Model M260 additionally provides a three track
Magnetic Stripe Reader incorporated into one integrated housing.
Multiple cable options are available to interface to various
systems and plug requirements.

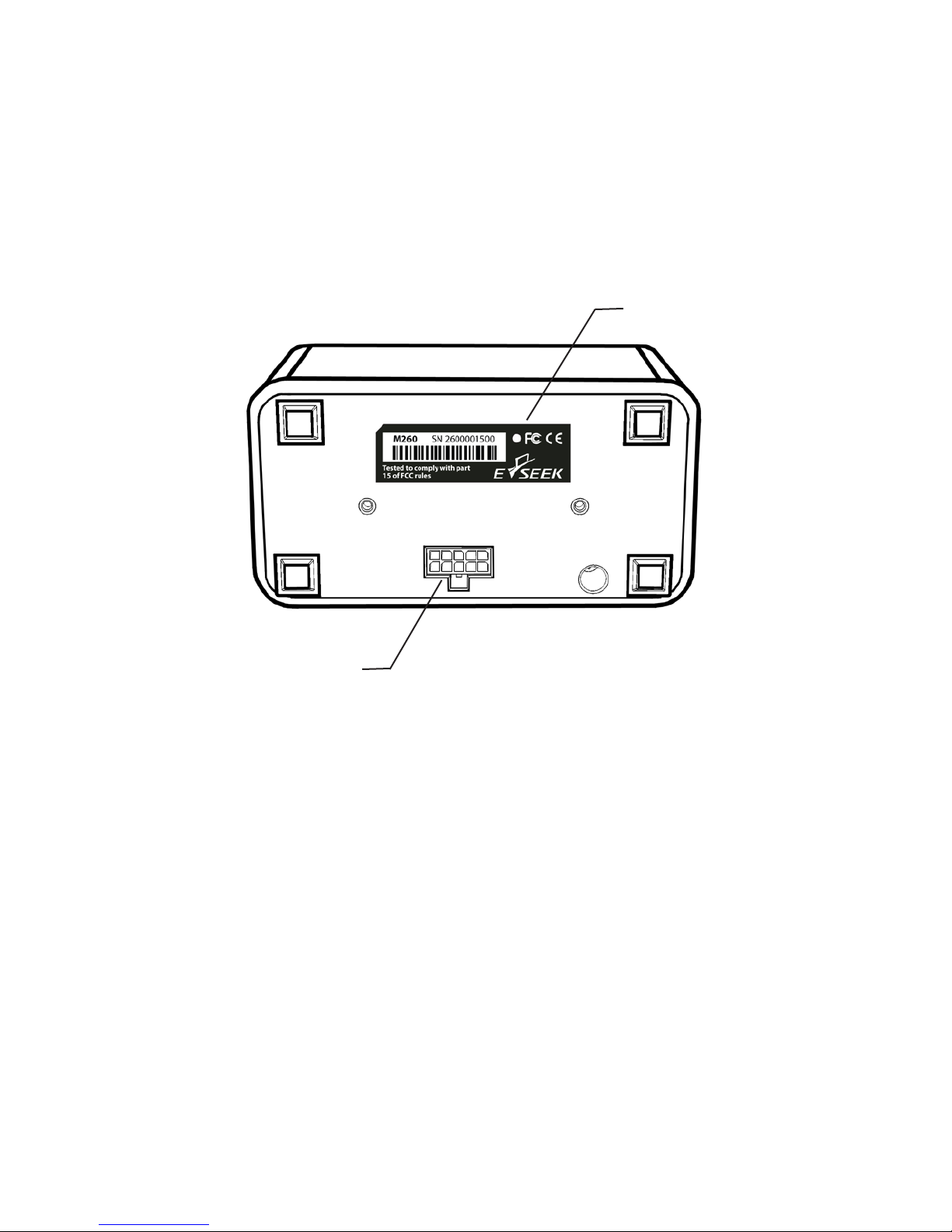

7. Product ID Label
8. Kiosk Connector
7
8
Bottom View
Product Reference Guide 4
Cable Options
1. USB Cable
2. Serial Cable
3. Kiosk Cable

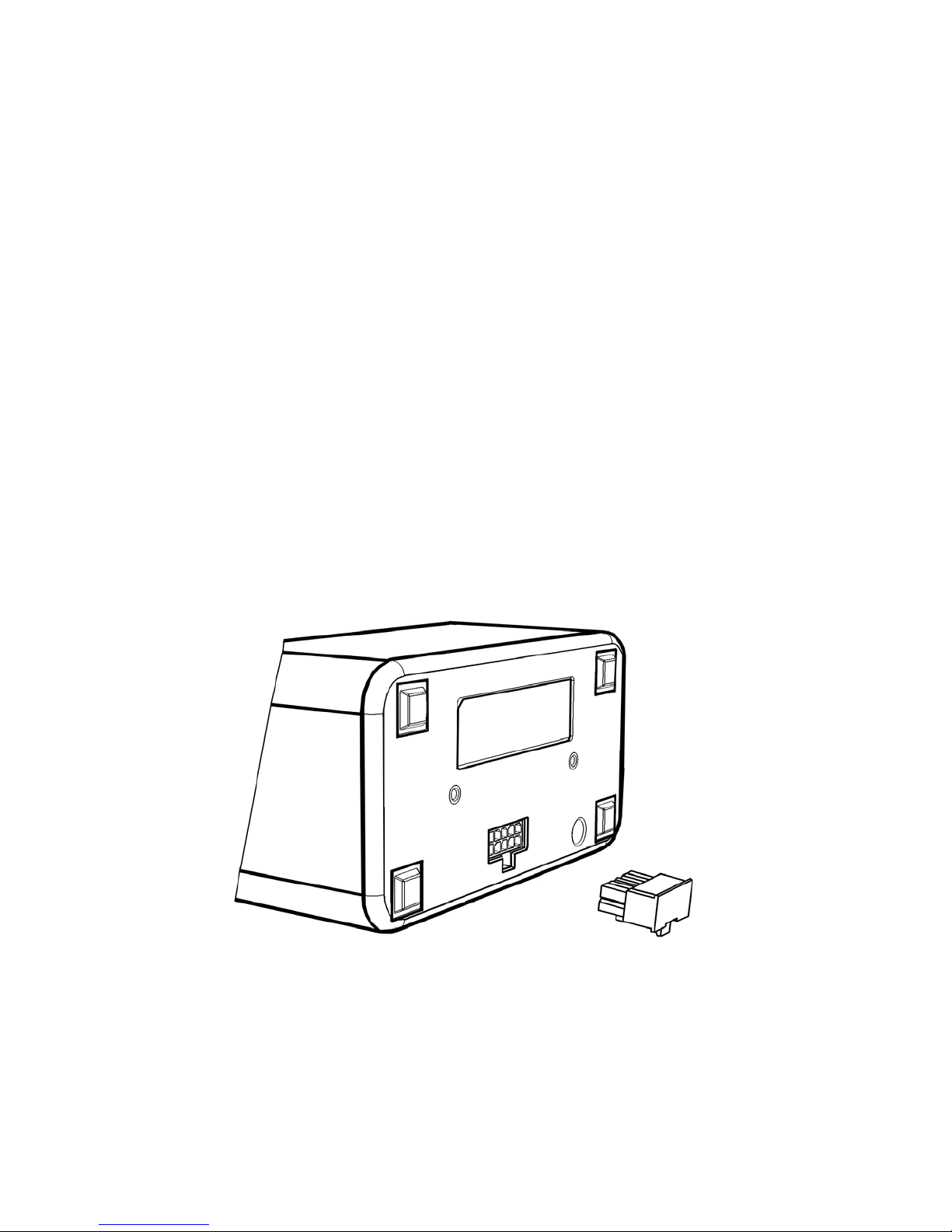

Installing the Kiosk Cable
Simply connect the kiosk male connector on the interface
cable to kiosk female connector built into the
Models M210/M260 as per the illustration below.
Product Reference Guide5

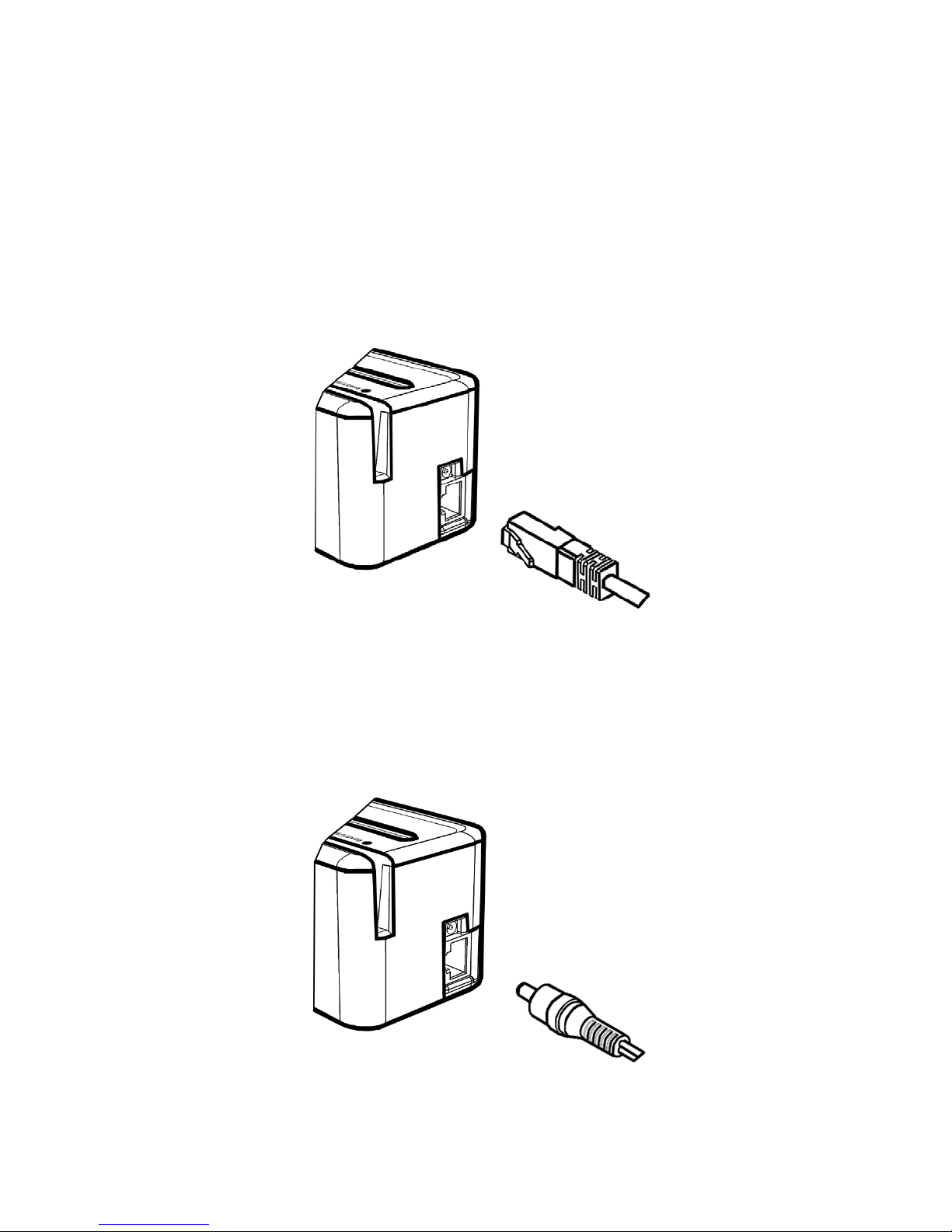

Installing the Interface USB or
Serial Cable
Simply connect the RJ 45 male connector on the interface
cable to RJ 45 female connector built into the Models M210/
M260 as per the illustration below.
Installing the Power Supply
Simply connect the Power Supply Module to a convenient
AC outlet and the cable to the Model M210/M260 as shown
below. No power connection is required for Verifone
terminals.
Product Reference Guide

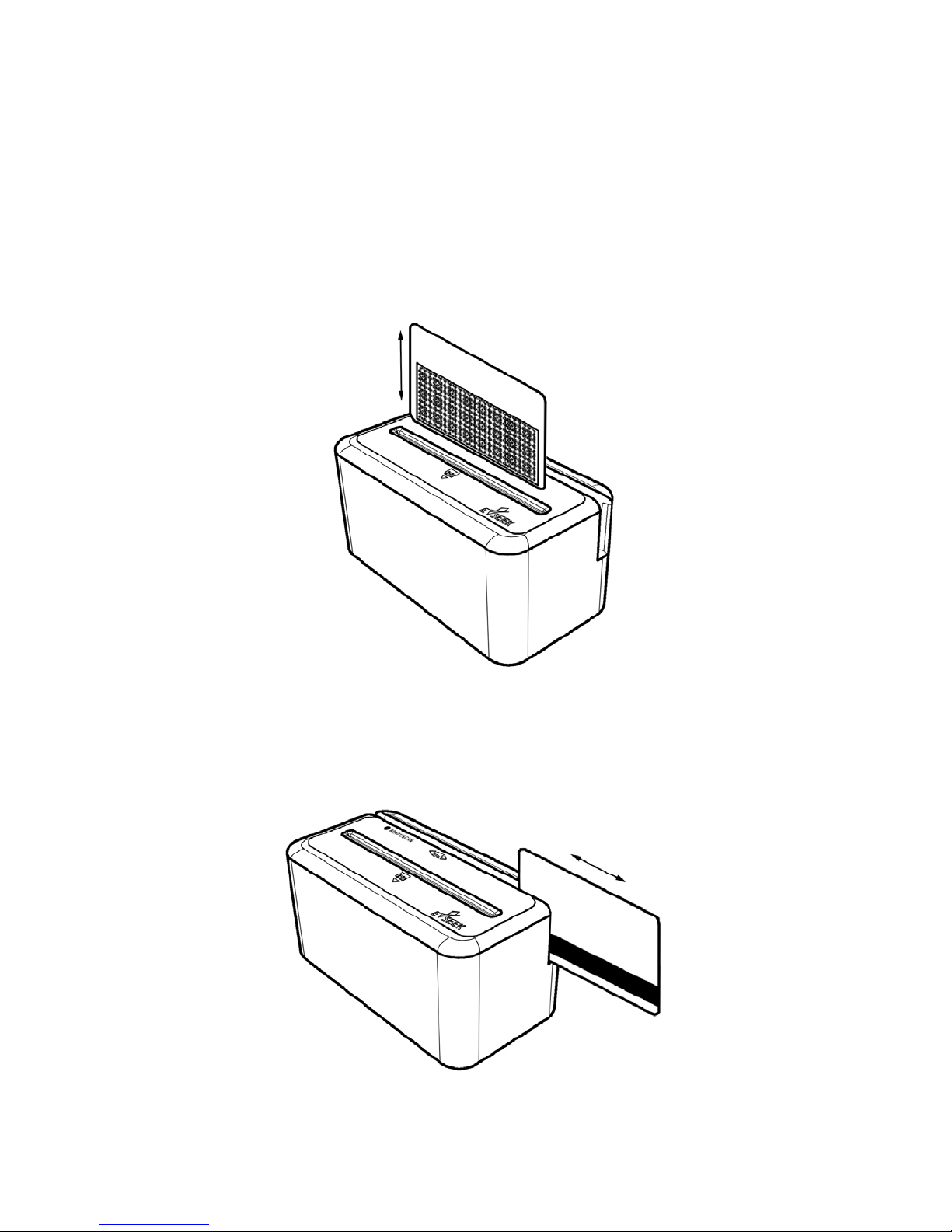

Scanning a 2D Bar Code
Simply insert and remove the card to be read in a smooth
and continuous motion. The reader will emit a double beep
tone and the green LED will ash on a good read. Orient
the bar Code to be read in accordance with the illustration
below.
Reading a Magnetic Stripe
M260 ONLY: Orient the card to be read as illustrated below,
and simply swipe the card through the reader in one smooth
and continuous motion in either direction.
6
Product Reference Guide7
What does the Beep Mean?
When power is applied to the unit, it is automatically
powered on, runs a self-diagnostic test and issues
three beep tones to signify that it is operational.
When the unit is programmed (see Programming
Manual) it will emit a Melody tone to signify that it
has successfully been programmed.
When a Bar Code has successfully decoded the unit
will emit a beep tone.
1.
2.
3.
Technical
For downloading the program guide or to contact us,
please visit our website at www.e-seek.com.
Product Reference Guide
Regulatory Information
Radio Frequency Interference
Requirements
The Model M210/M260 have been tested and found to comply
with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules and Regulations. These limits are
designed to provide reasonable protection against harmful
interference when the equipment operated in a commercial
environment. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause
harmful interference to radio communications.
These devices comply with FCC Part 15. Operation is
subject to the following two conditions:
These devices may not cause harmful interference.
These devices must accept any interference received,
including interference that may cause undesired
operation.
1.
2.
