Eaton EBT 01 Bedienungsanleitung

EBT 01

Extension Bluetooth

Instruction manual

Version 1.1

ID-no.: ................................

Version valid from: 14.06.2012

Index

Page

1. GENERAL 3

1.1. Intended applications 3

1.2. General informations 3

2. INSTALLATION 3

2.1. Installation of the EBT 01 in the In-line-display unit 3

2.2. Establish a connection to the external computer 5

3. APPENDIX 6

3.1. Technical data 6

3.2. Trouble shooting 6

1. General

1.1. Intended applications

The EBT 01 allows the wireless data transfer (maximum range approximate 50 m) from

Internormen In-line units to external computers. It is intended for the transmission of stored

and actual measurement results from MPM 01, CCM 01 or WSTM 01 to an external

computer.

This manual contains informations and safety advices, which ensure risk free operations

and which help to keep the device in an ideal condition.

Therefore it is necessary that all people involved in operating the EBT 01 do note this

manual unconditionally.

1.2. General informations

Bluetooth is an industry standard according to IEEE 802.15.1 for the wireless short distance

data transfer ( up to 50 m outdoor –depending on the used Bluetooth adapter on the

computer ).

The EBT 01 - module is a complete Bluetooth-solution, which consists of the Bluetooth

controller LMX9830, an antenna and complete integrated software protocol stack (Bluetooth

2.0).

The EBT 01 in combination with a commercial Bluetooth adapter is intended for wirelless

transmission of the stored results as well of the actual measurement results from an

Internormen In-line-display unit (MPM 01, CCM 01, WSTM 01) to an external computer.

2. Installation

2.1. Installation of the EBT 01 in the In-line-display unit

Disconnect the In-line-display unit from the power supply.

Connecting of the EBT 01 with the display unit:

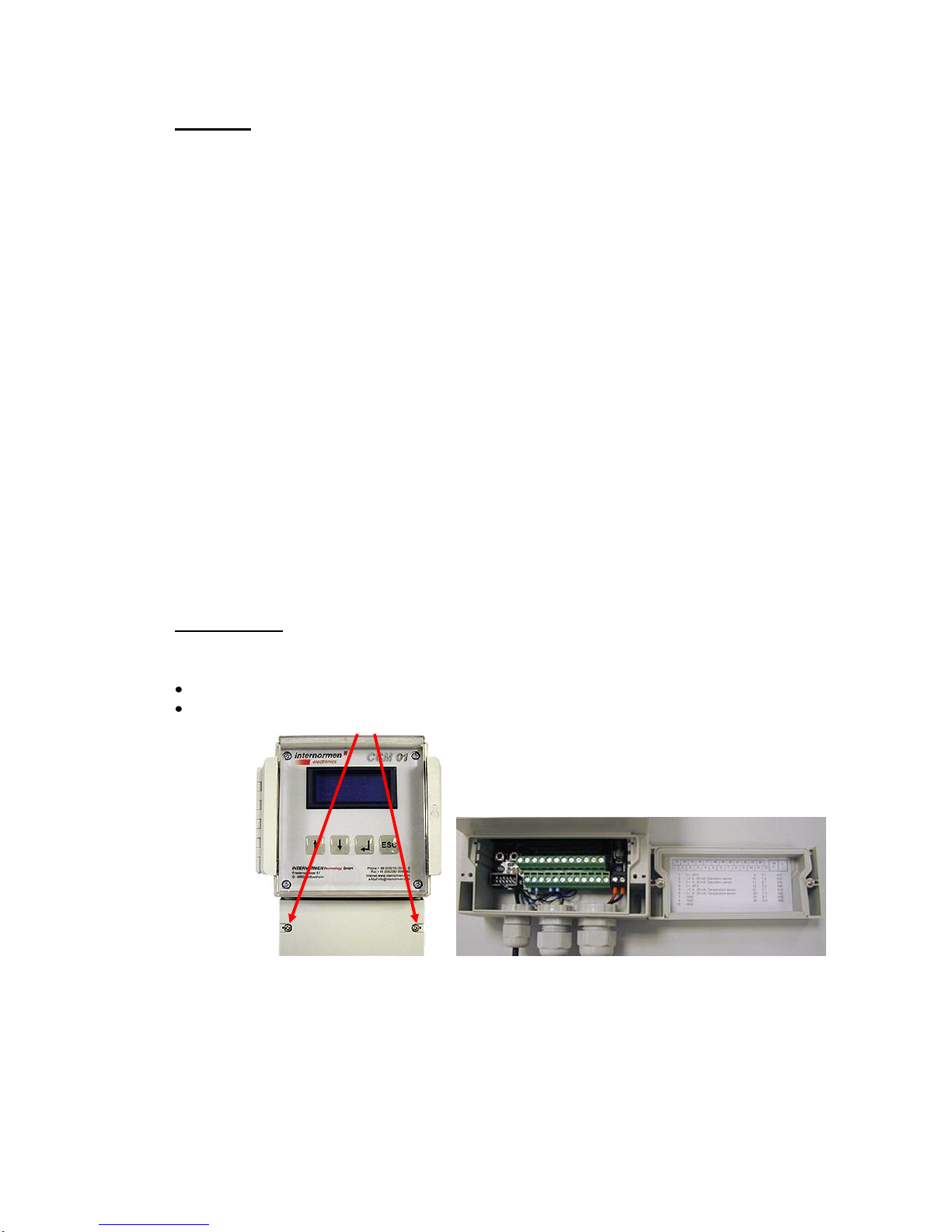

oloosen the screws of the cover from the display unit and remove the cover.

oConnect the EBT 01 –modul with the connection SV 1 on the In-line-display unit

by using the dorsal black plug.

CAN –Interface

RESET

RS 232

Fastening again of the cover from the display unit and reconnecting of the power supply

for the display unit.

The EBT 01 is now ready for use. An additional power supply for the EBT 01 is not

necessary.

SV 1

SV 2

2.2. Establish a connection to the external computer

If not yet available on the computer, you have to install the Bluetooth adapter (for

example: with USB –interface) according to the instruction manual of the manufacturer.

Establish a connection with the EBT 01 by using the software of the Bluetooth-adapter

accomplish a hardware search. (passwort EBT 01: 2094)

oThe EBT 01 will be recognized by the computer by means of the SPP (Serial

Port Protocol).

The EBT 01 is now ready for operation and a data transfer from the Inline-display unit to the

computer can be arranged now.

3. Appendix

3.1. Technical data

Bluetooth class: Class 2

Frequency range: 2,4 2,483 GHz

Ambient temperature: 0…70 °C / 32…158 °F

Chip set: LMX9830

Antenna: integrated Chip-antenna

Dimensions: 25 x 69 mm

Weight: ca. 11 g

Operating distance: max. 50 m outdoor

3.2. Trouble shooting

No settings of the EBT 01 are done by the operator.

In case of the malfunctions, please contact INTERNORMEN Technology GmbH.

A brief description of the problem would expedite the trouble shooting and the repair

process. To chexk your warranty and to answer questions by phone we need the ID-

number and the date of purchase of the instrument.

North America —HQ

70 Wood Ave., South, 2nd Floor

Iselin, NJ 08830

Toll Free: (800) 656-3344

(North America Only)

Voice: (732) 767-4200

China

No. 3, Lane 280, Linhong Road

Changning District, 200335

Shanghai, P.R. China

Voice: +86-21-5200-0099

Singapore

4 Loyang Lane #04-01/02

Singapore 508914

Voice: +65-6825-1668

Europe/Africa/Middle East

Friedensstraße 41

D-68804 Altlussheim, Germany

Voice: +49-6205-2094-0

Auf der Heide 2

53947 Nettersheim, Germany

Voice: +49-2486-809-0

An den Nahewiesen 24

55450 Langenlonsheim, Germany

Voice: +49 6704 204-0

Brazil

Av. Julia Gaioli, 474 –

Bonsucesso

07251-500 –Guarulhos, Brazil

Voice: +55 (11) 2465-8822

For more information, please e-mail us at

[email protected]om

Visit us online eaton.com/filtration for a complete

list of Eaton´s filtration products.

All trademarks and registered trademarks are the property of their respective

owners. Litho USA.

All information and recommendations appearing in this brochure concerning the

use of products described herein are based on tests believed to be reliable.

However, it is the user’s responsibility to determine the suitability for his own use

of such products. Since the actual use by others is beyond our control, no

guarantee, expressed or implied, is made by Eaton as to the effects of such use or

the results to be obtained. Eaton assumes no liability arising out of the use by

others of such products. Nor is the information herein to be construed as

absolutely complete, since additional information may be necessary or desirable

when particular or exceptional conditions or circumstances exist or because of

applicable laws or government regulations.
