Quick Start Instructions

ConnectUPS-E Models

Package Contents

SPowerware ConnectUPStWeb/SNMP Adapter

SMale DB-9 to RJ-45 Serial Cable with Detachable DC Power Cable

SFemale DB-9 to RJ-45 Serial Cable (labeled “PC”)

SExternal Power Supply with Detachable Power Cord

SSoftware Suite CD with User Guide PDF

SQuick Start Instructions

SEthernet Cable

Checklist

1. Verify that all of the following items are available:

JConnectUPS Web/SNMP Adapter package contents (see

front cover)

JPhillips screwdriver

JMicrosoftRWindowsRoperating system (for other operating

systems, see the help file on the Software Suite CD)

JAvailable serial port (RS-232)

JHyperTerminalR(ships with Windows) or equivalent

terminal emulation application

JInternet Explorer Web browser

2. Contact your local network administrator for the following

mandatory network settings:

JIP Address (static address*)

JGateway IP Address

JNetwork Mask IP Address

*If you are setting up the ConnectUPS Adapter in a DHCP

environment, the network administrator must set up the DHCP

server to provide a static address each time the adapter makes

a DHCP request. Provide the network administrator with the

adapter’s MAC address (on the bottom of the adapter):

JMAC address

3. If you need e-mail functionality, obtain the following network

settings (either SMTP only or DNS and Host Name):

JSMTP (mail server) IP Address

JDNS (name server) IP Address

JHost Name

Refer to the ConnectUPS Web/SNMP Card User’s Guide

PDF on the Software Suite CD for detailed setup information.

4. List the applicable UPS load segment (receptacle group)

connections (refer to the UPS user’s guide to see if load

segments are available for your UPS):

JLoad Segment 1 is connected to

JLoad Segment 2 is connected to

JLoad Segment 3 is connected to

Examples of load segment equipment connections are

“CPU MX1,” “Monitor MX1,” and “Router San Diego 1.”

Figure 1. Verify DIP Switches

Figure 2. Open or Remove the UPS Front Cover

20–80 kVA 7.5–15 kVA

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A 3

Section 1

Install the Adapter—Powerware 9305 UPS

The hot-swappable ConnectUPS-E can be installed without

turning off the UPS or disconnecting the load.

To install the ConnectUPS-E with a Powerware 9305 UPS:

1. Verify that both DIP switches on the adapter are set to the 0

(off) position (see Figure 1).

NOTE If you are setting up the ConnectUPS Adapter in a

DHCP environment, set DIP switch 2 to the 1(on) position.

2. Open or remove the UPS front cover and locate the female,

9-pin, RS-232 port (labeled X100). See Figure 2.

3. If the X100 port is available, use the supplied, unlabeled

serial cable to connect the UPS port on the ConnectUPS-E to

the female, 9-pin, RS-232 port on the UPS (see Figure 3).

Insert the DC power cable into the power inlet on the

ConnectUPS-E (labeled “12 VDC”).

Plug the other end of the DC power cable into the UPS serial

cable. Continue to Step 5.

DC power cable to

ConnectUPS-E power inlet

and serial connector

(7.5–15 kVA)

(20–80 kVA)

X100

X101

X100 X101

Unlabeled cable to

UPS communication port

and ConnectUPS-E UPS port

To LAN port

Powerware 9305 UPS

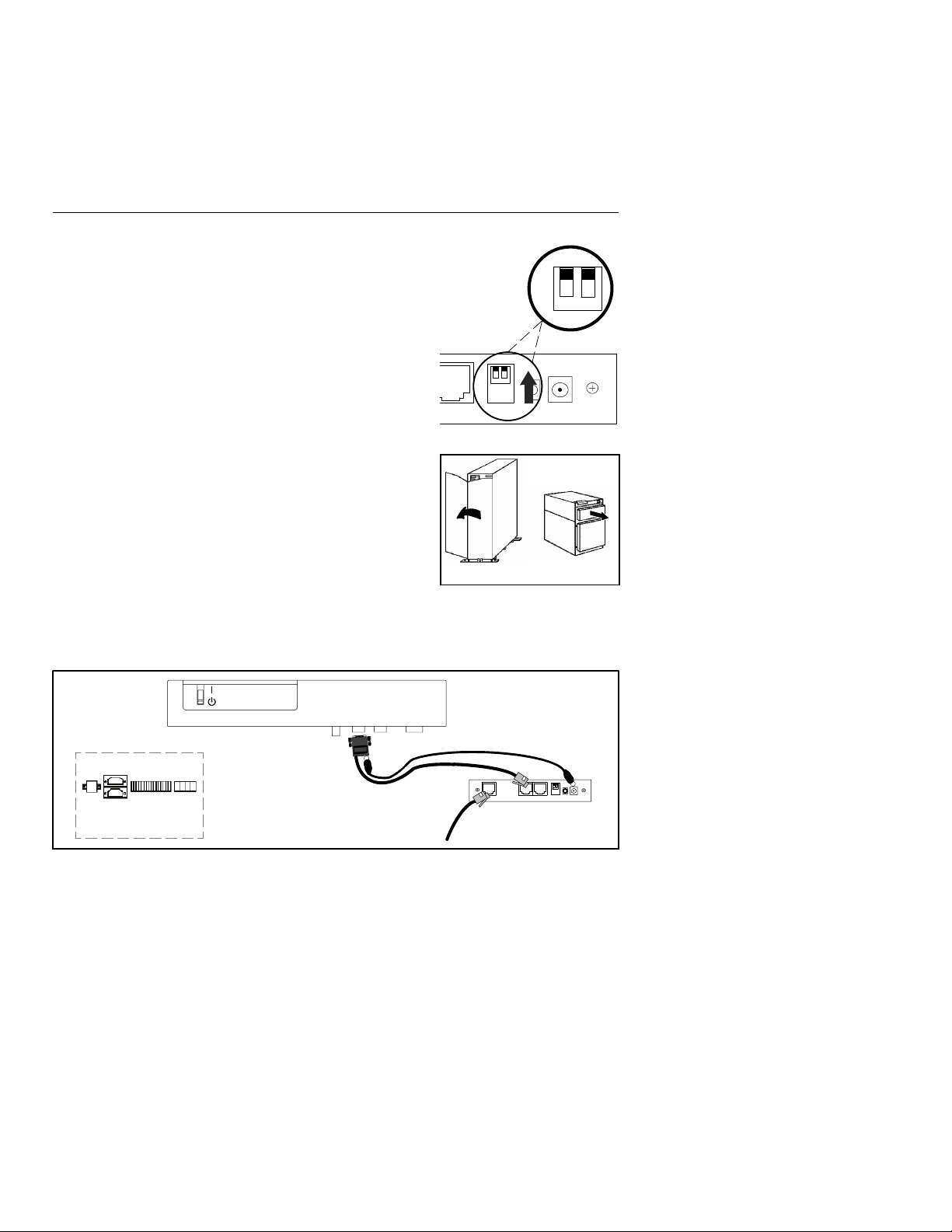

Figure 3. Installing the ConnectUPS-E with a Powerware 9305 UPS

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A4

4. If the X100 port is not available, use the supplied serial cable

(labeled “PC”) to connect the UPS port on the ConnectUPS-E

to the male, 9-pin, RS-232 port (labeled X101) on the UPS

(see Figure 4).

Insert the external power supply cord into the power inlet on

the ConnectUPS-E (labeled “12 VDC”).

Plug one end of the detachable power cord into the external

power supply.

Plug the other end of the power cord into a UPS-protected

receptacle.

5. Replace the UPS front cover.

6. Connect an active Ethernet cable (supplied) to the network

connector on the ConnectUPS-E.

7. To configure the adapter locally using the supplied serial

cable, continue to “Connect the Adapter” on page 7.

To configure the adapter remotely through a network using a

Web browser or Telnet (or similar) utility, refer to the

ConnectUPS Web/SNMP Card User’s Guide PDFonthe

Software Suite CD.

(7.5–15 kVA)

(20–80 kVA)

X100

X101

X100 X101

To LAN port

Cable labeled “PC” to

UPS communication port

and ConnectUPS-E UPS port

External power supply to

ConnectUPS-E power inlet

and UPS-protected receptacle

Powerware 9305 UPS

Figure 4. Alternate Installation with a Powerware 9305 UPS

Figure 5. Verify DIP Switches

Figure 6. Remove the UPS Front Cover

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A 5

Section 2

Install the Adapter—Powerware 9150 UPS

The hot-swappable ConnectUPS-E can be installed without

turning off the UPS or disconnecting the load.

To install the ConnectUPS-E with a Powerware 9150 UPS:

1. Verify that both DIP switches on the adapter are set to the 0

(off) position (see Figure 5).

NOTE If you are setting up the ConnectUPS Adapter in a

DHCP environment, set DIP switch 2 to the 1(on) position.

2. Remove the UPS front cover and locate the female, 9-pin,

RS-232 port (see Figure 6).

3. If the female port is available, use the supplied, unlabeled

serial cable to connect the UPS port on the ConnectUPS-E to

the female, 9-pin, RS-232 port on the UPS (see Figure 7).

Continue to Step 5.

4. If the female port is not available, use the supplied serial

cable (labeled “PC”) to connect the UPS port on the

ConnectUPS-E to the male, 9-pin, RS-232 port on the UPS

(see Figure 8).

Female Male

Unlabeled cable to

UPS communication port

and ConnectUPS-E UPS port

To LAN port

External power supply to

ConnectUPS-E power inlet and

UPS-protected receptacle

Powerware 9150 UPS

Figure 7. Installing the ConnectUPS-E with a Powerware 9150 UPS

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A6

NOTE The supplied external power supply MUST be used with

the Powerware 9150 UPS. DO NOT plug the DC power cable

into the serial cable.

5. Insert the external power supply cord into the power inlet on

the ConnectUPS-E (labeled “12 VDC”).

6. Plug one end of the detachable power cord into the external

power supply.

7. Plug the other end of the power cord into a UPS-protected

receptacle.

8. Replace the UPS front cover.

9. Connect an active Ethernet cable (supplied) to the network

connector on the ConnectUPS-E.

10. To configure the adapter locally using the supplied serial cable,

continue to the following section, “Connect the Adapter.”

To configure the adapter remotely through a network using a

Web browser or Telnet (or similar) utility, refer to the

ConnectUPS Web/SNMP Card User’s Guide PDFonthe

Software Suite CD.

Female Male

To LAN port

External power supply to

ConnectUPS-E power inlet

and UPS-protected receptacle

Cable labeled “PC” to

UPS communication port

and ConnectUPS-E UPS port

Powerware 9150 UPS

Figure 8. Alternate Installation with a Powerware 9150 UPS

Figure 9. Select Connection

Figure 10. Configure Port Settings

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A 7

Section 3

Connect the Adapter

NOTE If you used the serial cable labeled “PC” in the

ConnectUPS-E installation, temporarily remove the cable from

the UPS and adapter. When configuration is complete, plug the

serial cable back into the UPS (X101/male port) and the

ConnectUPS-E UPS port.

To connect the adapter to the computer and start the

configuration:

1. Plug the RJ-45 end of the supplied serial cable (labeled “PC”)

into the PC port on the adapter.

Verify that you have used the port labeled “PC.” The other

port on the adapter will not work for configuration.

2. Plug the other end of the serial cable into the serial COM port

on the computer.

3. Open your terminal emulation program (such as HyperTerminal).

4. Select the appropriate serial connection (such as COM1). See

Figure 9.

5. Set the serial line to 9600 baud, No parity, 8 data bits, 1 stop

bit, and no flow control (see Figure 10).

6. Verify that the UPS is turned on.

Figure 11. Enter Configuration Password

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A8

7. After a few seconds, press Enter. The Password prompt

appears (see Figure 11).

If the Password prompt does not appear, press Enter again.

If it still does not appear, check the following conditions:

SVerify the serial line is set to 9600 baud, No parity, 8 data

bits, 1 stop bit, and no flow control.

SIf the serial line settings are correct, check the cabling to

verify all connections are secure.

SVerify that your terminal program is on the correct

communication port for the serial connection.

SVerify that the adapter has power (one or more LEDs on

the adapter are illuminated). The UPS should be turned

on.

8. Type your password (the default is admin) and press Enter.

The Main Menu screen appears.

Figure 12. Configure Adapter Settings

Figure 13. Set ConnectUPS Adapter IP Address

Figure 14. Save and Exit

Figure 15. ConnectUPS Adapter Summary Page

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A 9

Section 4

Configure the Adapter

To configure the adapter after you have connected it:

1. Type 1on the Main Menu to display the Web/SNMP Adapter

Settings screen (see Figure 12).

2. Type 1to display the Set the IP Address, Gateway Address

and MIB System Group screen (see Figure 13).

3. To set the IP Address, type 1and press Enter.TypetheIP

Address and press Enter (see the Checklist).

4. Type 0to return to the previous menu.

5. Repeat Steps 3 and 4 to set the Gateway Address and

Network Mask.

6. Change any other options as needed for your particular

configuration by typing the corresponding number shown in

the menu.

Each Configuration Menu setting is described in detail in the

Appendix of the ConnectUPS Web/SNMP Card User’s Guide.

You can change the other options later if you prefer.

7. Type 0until you return to the Main Menu (see Figure 14).

8. Type 0to save all settings and exit the adapter configuration.

9. Verify network communication by using a Web browser (see

Figure 15). Type the IP Address of your adapter and select

Go. The ConnectUPS Adapter summary page opens.

NOTE Once the adapter is reachable on the network, you

can use a Web browser, Telnet, or similar utility to adjust any

of the configuration settings. The menus are identical to

those seen during serial configuration and are

password-protected for Superuser access only.

Figure 16. Install NetWatch Software

Figure 17. Launch NetWatch Software

Figure 18. Enter ConnectUPS Adapter IP Address

Figure 19. Select UPS Load Segment

EATON Powerware®ConnectUPStWeb/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A10

Section 5

Install Shutdown Software

NOTE The following procedure applies to NetWatch shutdown

software for Microsoft Windows operating systems. For other

operating systems, refer to the NetWatch help file on the CD.

NOTE For other software, such as Powerware LanSafe®Power

Management Software or PowerVision®Software, refer to those

user guides for instructions.

Use the following procedure to install NetWatch software after

you have installed and configured the adapter:

1. Insert the Software Suite CD into the computer’s CD-ROM

drive. The CD menu displays after a few seconds.

2. Select Software Wizard from the Main Menu.

3. Select Install NetWatch (see Figure 16).

4. Select the operating system.

5. Select Launch the Installer (see Figure 17).

6. Select Open in the File Download dialog box and follow the

installation instructions until the Select Powerware Shutdown

Server window displays (see Figure 18).

7. Select Manually Enter IP Address for the Shutdown Server.

8. Type the IP Address of the adapter and select OK.

9. Select the correct UPS load segment that your computer’s

power cord is plugged into and select OK (see Figure 19).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eaton Adapter Handbücher

Eaton

Eaton xComfort CEMP Series Bedienungsanleitung

Eaton

Eaton TRIPP LITE U209-30N-IND Bedienungsanleitung

Eaton

Eaton SWD4-FFR-PF1-1 Handbuch

Eaton

Eaton PXGMS Power Xpert Gateway Minislot UPS Programmierhandbuch

Eaton

Eaton SKF-HA Handbuch

Eaton

Eaton TRIPP LITE U209-30N-IND Bedienungsanleitung

Eaton

Eaton AQB-L400 Bedienungsanleitung

Eaton

Eaton TRIPP LITE Series Bedienungsanleitung

Eaton

Eaton TRIPP LITE U444-06N-DP4K6B Bedienungsanleitung

Eaton

Eaton ConnectUPS Web/SNMP Card Programmierhandbuch

Eaton

Eaton PowerXL DX-NET-ETHERCAT-2 Bedienungsanleitung

Eaton

Eaton xComfort CDAP-01 Series Bedienungsanleitung

Eaton

Eaton TRIPP LITE U444-06N-HU-C Bedienungsanleitung

Eaton

Eaton TRIPP LITE U209-005-DB25 Bedienungsanleitung

Eaton

Eaton Cutler-Hammer RSS 36-SD-ST Bedienungsanleitung

Eaton

Eaton TRIPP LITE Series Bedienungsanleitung

Eaton

Eaton TRIPP LITE U209-005-DB25 Bedienungsanleitung

Eaton

Eaton 800A Bedienungsanleitung

Eaton

Eaton HALOHOME HWAD1BLE40AWH Bedienungsanleitung

Eaton

Eaton Series NRX Bedienungsanleitung

Eaton

Eaton Cutler-Hammer APFP15A Bedienungsanleitung

Eaton

Eaton XT-RJ45-ETH-RS232 Handbuch

Eaton

Eaton xComfort CHVZ-01/04 Handbuch

Eaton

Eaton Series NRX Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
