Eaton 5000 VA Bedienungsanleitung

Uninterruptible

Power

Supply

ON LINE MULTISTANDARD

5000 VA - 6000 VA

Manuale d’uso - User’s Manual - Bedienungsanleitung

Manuel d’utilisateur - Manual de Usuario

GB SAFETY GB

This part of the manual contains precautions that must be adhered to strictly since they

regard SAFETY.

a) THE UPS MUST NOT OPERATE WITHOUT AN EARTH CONNECTION. The first connection to

be carried out is the earth conductor, which has to be connected to the terminal marked .

b) Avoid connecting the output neutral to the input neutral or to earth as this could cause malfunctions.

c) DANGEROUS electrical voltages are generated inside the UPS. All installation and maintenance

operations must be carried out EXCLUSIVELY by authorized personnel.

d) The UPS contains an internal power source: the batteries. The terminals and the output sockets may be

powered even when the UPS is not connected to the mains.

e) The total battery voltage can generate an electric shock. Replaced batteries should be considered as

TOXIC WASTE and treated as such. Do not throw the battery packs into fire: they may explode. Do

not try to open the battery packs: they do not require any maintenance. Furthermore the electrolyte is

dangerous if it comes into contact with the skin or the eyes and may be toxic.

f) Do not switch the UPS on if there is any leak of liquid, or if a residual white powder is noted.

g) Do not allow water, liquids in general and/or other foreign bodies to get into the UPS.

h) In the event of dangerous conditions switch the UPS off with the switch located on the front panel and

open the magneto-thermal protection installed upstream of the UPS. Isolate the battery by removing the

lower part of the front panel and disconnecting the two battery pack connectors.

i) The UPS generates a leakage current of less than 2 mA.

Warning: the leakage current of the load is added to that of the UPS on the earth protection conductor.

j) For battery expansion use exclusively connectors supplied by or authorized by the manufacturers.

k) The UPSs of this series have been designed for professional use and are therefore not suitable for use in

a domestic environment.

GB USER’S MANUAL GB

INTRODUCTION

Thanks you for choosing our product.

Our manifacturer are renowned specialists in the development and production of uninterruptible power supplies

(UPS). The UPS in this range are high quality products, designed and built with care in order to give you the

best performance.

This equipment can be installed by anyone, subject to CAREFULLY AND THOROUGHLY READING

THIS MANUAL.

The manual contains detailed instructions on how to use and install the UPS.

For information on using and getting the best performance from your UPS, this manual should be kept

safely in the vicinity of the UPS and CONSULTED BEFORE TAKING ANY ACTION ON THE UPS.

For the purpose of improving it, the manufacturer reserves the right to modify the product described herein at any time and without

notice.

CONTENTS

PRESENTATION 46

UPS VIEWS 47

DISPLAY MASK VIEW 48

INSTALLATION 49

OPENING THE PACKING AND CHECKING CONTENTS 49

TOWER VERSION 50

RACK VERSION 51

USE 52

CONNECTIONS 52

FIRST START-UP 54

START-UP FROM MAINS 54

START-UP FROM BATTERY 54

UPS SHUTDOWN 54

DISPLAY PANEL INDICATIONS 55

UPS status indicators 55

Measurements display area 56

Configuration area 57

MODES OF OPERATION 58

R.E.P.O. 58

PROGRAMMABLE AUXILIARY SOCKET (POWER SHARE) 58

UPS CONFIGURATION 59

COMMUNICATION PORTS 61

RS232 and USB connectors 61

Communication Slot 61

SOFTWARE 62

Monitoring and control software 62

Configuration software 62

BATTERY PACK 63

REPLACING THE BATTERY PACKS 63

PROBLEM SOLVING 64

ALARM CODES 66

TECHNICAL DATA TABLE 68

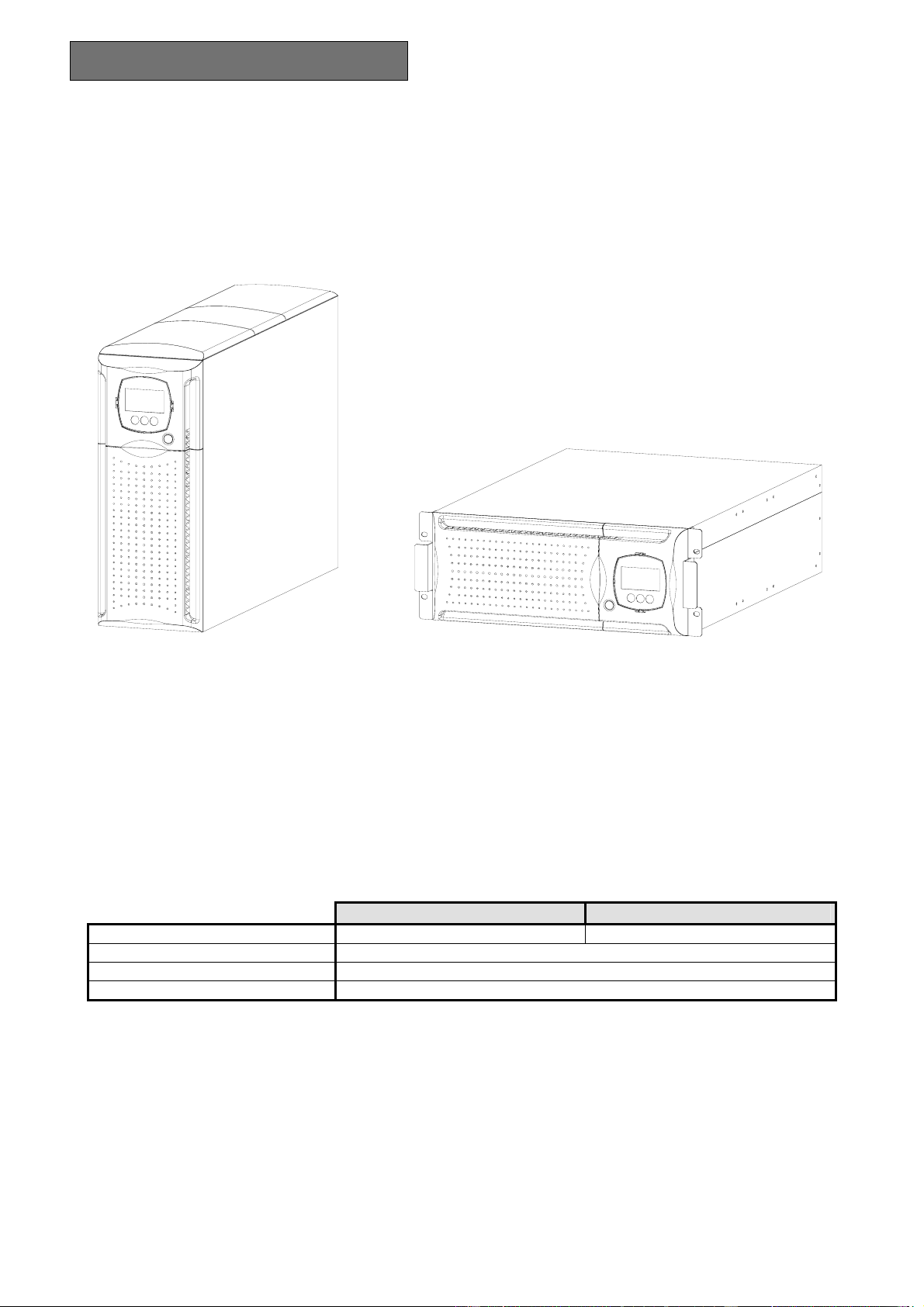

PRESENTATION

This new family of UPSs has been designed with versatility in mind. These UPSs can in fact be installed either

in a tower version or in a rack version, according to requirements. The 2 different versions of the product are

shown below:

The UPS is also provided with two dedicated battery packs that allow the easy hot swap replacement of the

batteries in full safety thanks to the protected connection system.

5000 6000

Nominal power [VA] 5000 6000

Nominal voltage [Vac] 220 / 230 / 240

Dimensions H x L x D [mm] 455 x 175 x 660 (1)

Weight [Kg] 64

(1) The H dimension is different in the rack version with handles mounted: 483mm x 175mm x 660mm (H x L x D)

Note: 175mm = 4U

483mm = 19”

Tower Rack

PRESENTATION

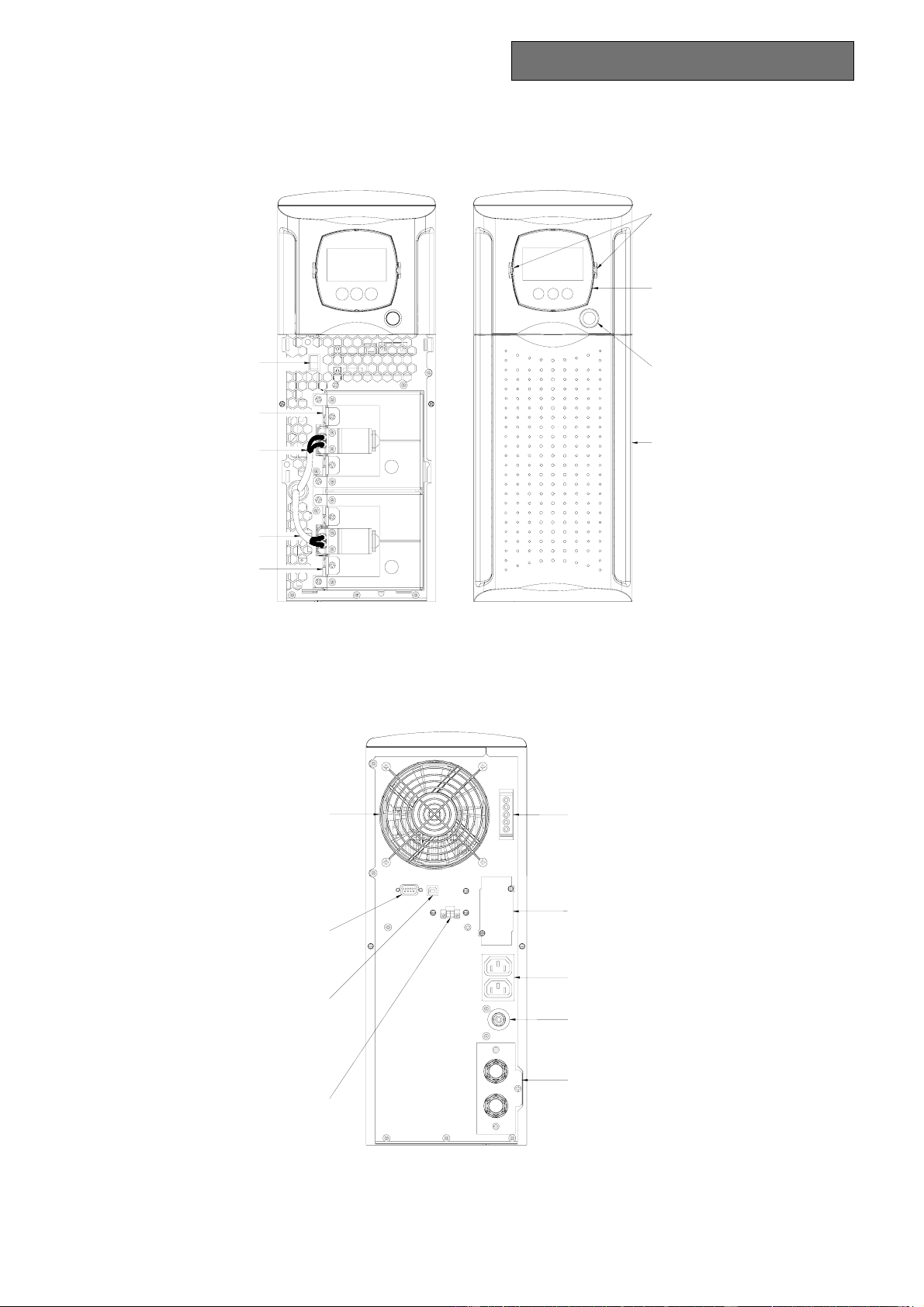

UPS VIEWS

USB communication port

Fan

Remote Emergency Power Off.

(R.E.P.O.)

RS232 communication port

COMMUNICATION SLOT

(expansion)

Power share sockets heat protection

Battery expansion connector

IEC 10A Power share sockets

IN / OUT connections box

Rear view

Cable with terminal

Battery pack

Manual by-pass

switch

Release slots

Rotatable display

mask

Main switch

Removable front

panel

Front view

(front panel off) (front panel on)

Battery pack

Cable with terminal

PRESENTATION

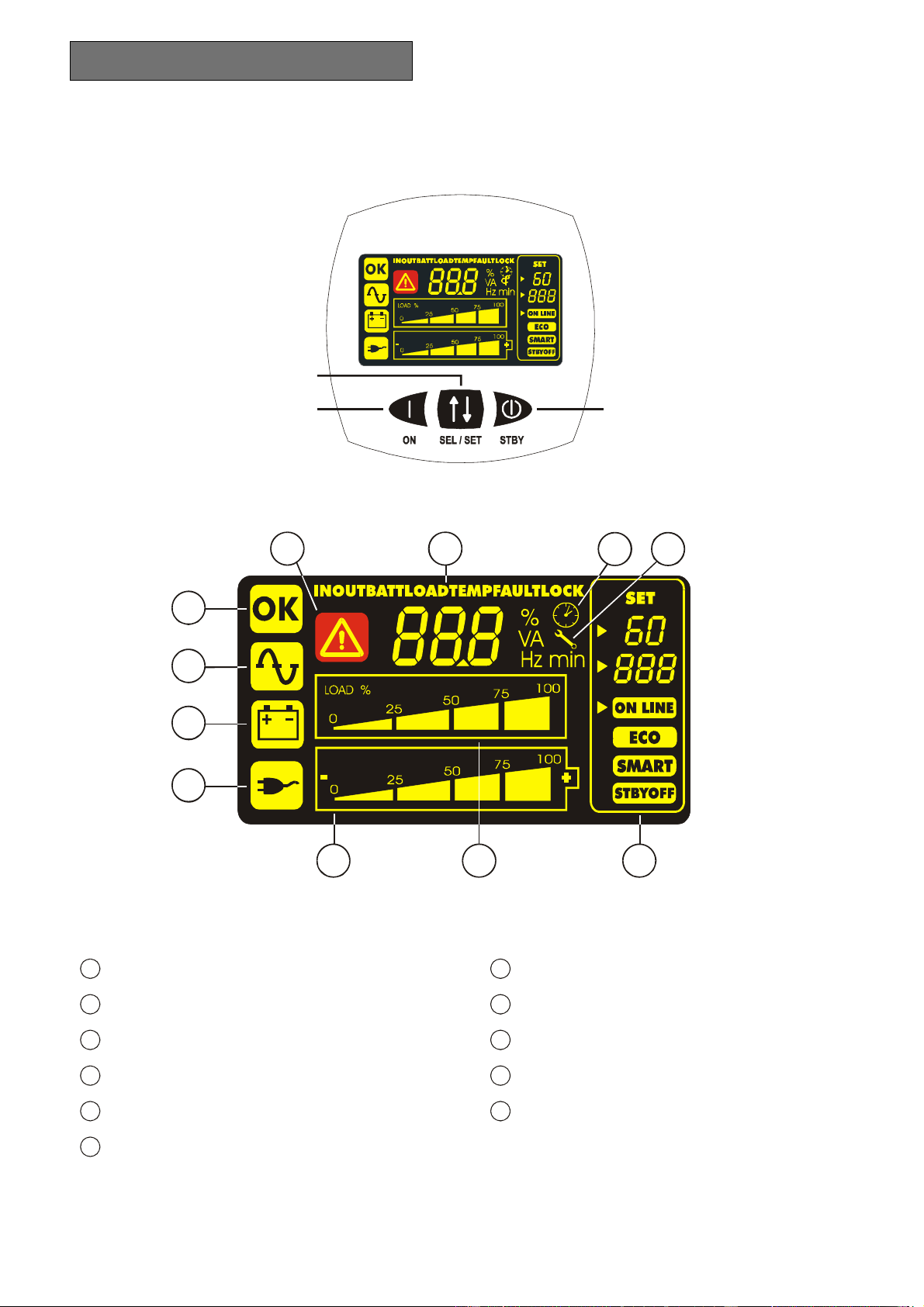

DISPLAY MASK VIEW

Operating normally

Operating on mains power

Operating on battery power

Load powered from bypass

Battery back-up indicator

Load level indicator

Configuration area

Maintenance action required

Timer

Measurements display area

Stand-by/alarm

“ON” button

“SEL / SET” button

“STBY” button

5 6 7

1011

LCD

Display

INSTALLATION

OPENING THE PACKING AND CHECKING CONTENTS

After opening the pack, the first thing to do is make a check of the contents.

The pack should contain:

UPS

2 cable guides

Probes for cables – terminal

board connection

Handles kit

3 plastic covers

(top panels)

2 plastic keys

to release display

RS232 serial cable

User manual + CD-ROM with software

User's

manual
