Ebyte E18-TBH-27 Bedienungsanleitung

Chengdu Ebyte Electronic Technology Co., Ltd.

For more product information, please log in： www.ebyte.com

E18-TBH-27 user manual v1.0

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

第1页，共 4 页

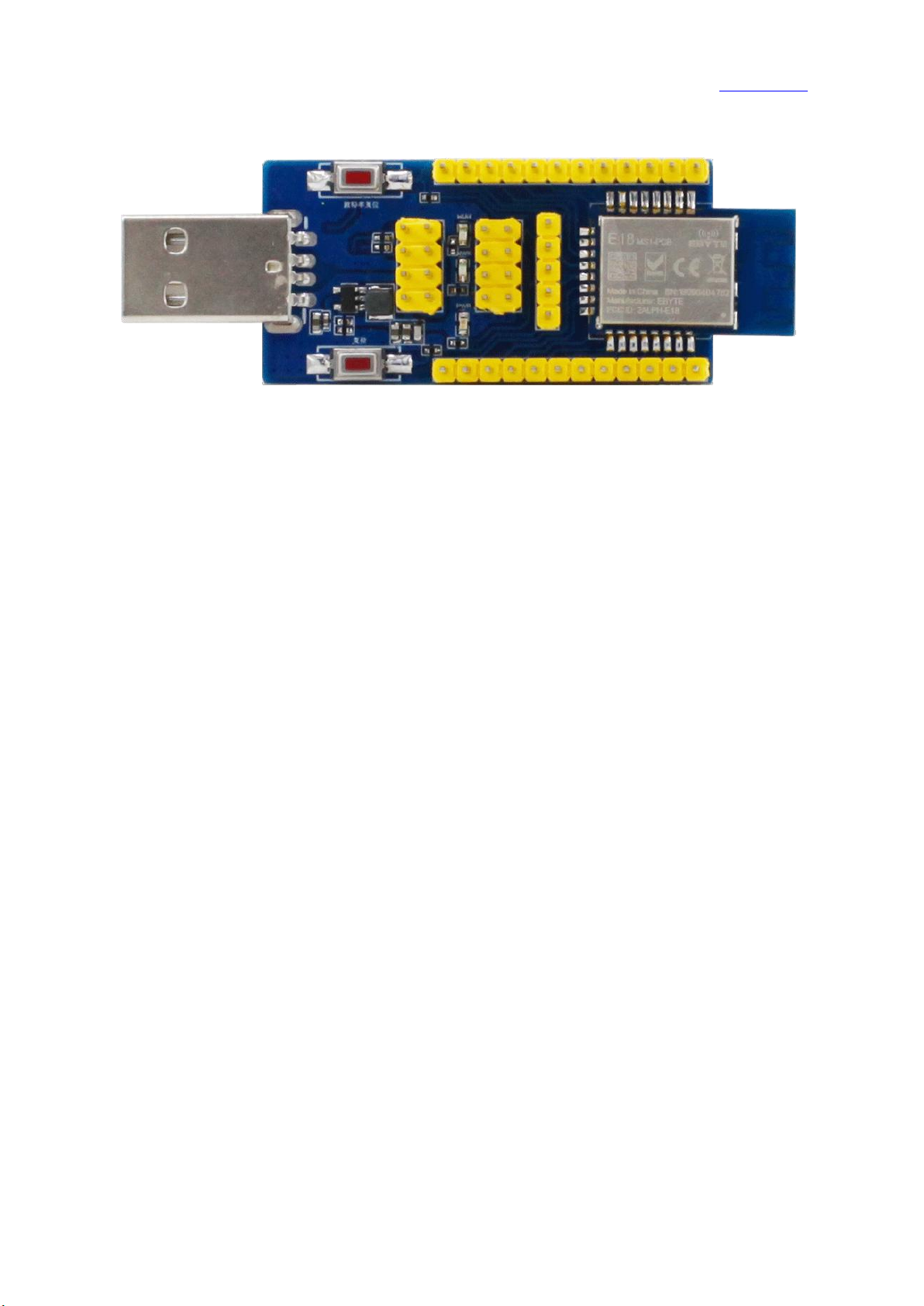

E18-TBH-27 User manual 1.0

Chengdu Ebyte Electronic Technology Co., Ltd.

For more product information, please log in： www.ebyte.com

E18-TBH-27 user manual v1.0

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

第2页，共 4 页

1、Brief Introduction

1. This product is used for testing and development of Chengdu Ebyte E18 series wireless modules (E18-

2G4Z27SI, E18-MS1-PCB, E18-MS1-IPX, E18-MS1PA1-PCB, E18-MS1PA1-IPX), The E18-TBH-27 has

been pre-welded with E18-2G4Z27SI .

For more detailed use, refer to the module manual.

2. All IO of the E18 series wireless module have been extracted.

3. With CH340G serial port chip, you can develop serial communication.

4. With USB interface, you can plug directly into the computer.

5. Users can access the external power supply and serial port for secondary development.

6. This product is stable and easy to develop.

Chengdu Ebyte Electronic Technology Co., Ltd.

For more product information, please log in： www.ebyte.com

E18-TBH-27 user manual v1.0

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

第3页，共 4 页

2、Instructions for use

Serial number description：

①

Serial TXD selection port (P1.4)

②

Serial port RXD selection port (P1.5)

③

External 5V power supply port

④

External 3.3V power supply port

⑤

Module running indicator

⑥

Networking indicator

⑦

Power Indicator

⑧

RLED selection port (P1.3)

⑨

NLED selection port (P1.2)

⑩

Mode selection port (P1.6)

⑪

SOC selection port (chip VCC)

⑫

Baud rate reset button

⑬

reset button

Function Description：

1. Reset button: system reset

2. Baud rate reset button: Double click reset baud rate (default 115200) (P1.7)

3.TXD, RXD selection port: can be connected to external serial port

4. Mode selection port: Used to switch between AT command mode and HEX command mode. Plug in the

jumper cap, indicated as HEX command mode (low level), no jumper cap is indicated as AT command

mode (high level) (P1.6)

5. Ports ①,②、③、④、⑧、⑨、⑩ and ⑪are used together to test the module current: ①、②、③、

④、⑧、⑨、⑩,⑪ports are not plugged in wire jumper Cap. The ammeter meter pen contacts 11 ports

(above: left and right negative), can test the chip current.

Chengdu Ebyte Electronic Technology Co., Ltd.

For more product information, please log in： www.ebyte.com

E18-TBH-27 user manual v1.0

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

第4页，共 4 页

3、Drive installation

Use CH340G chip as serial port, please download and use the driver software provided by our

company; after installation, the serial port number can be identified in the device manager.

4、Program download

E18 module built-in 8051 single-chip microcomputer, the program download uses our CC series

dedicated downloader CC-DeBugger, can not use serial port or any other JTAG, ISP, ICP tools.

Users can download the compiled HEX file directly.

Chengdu Ebyte Electronic Technology Co., Ltd.

For more product information, please log in： www.ebyte.com

E18-TBH-27 user manual v1.0

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

第5页，共 4 页

5、Technical Support

If you have any questions during the development process, please contact our technical support. We

only support our modules, and do not include the basic usage of the microcontroller.

6、Communication test
