Eccotemp L10 Bedienungsanleitung

FOR YOUR RECORDS

Write the model and serial numbers here:

#_______________________________

You can nd them on a label on the appliance

and/or packaging.

Staple sales slip or canceled check here.

Proof of the original purchase date is needed to

obtain service under the warranty.

READ THIS MANUAL

Inside you will nd many helpful hints on how

to use and maintain your water heater properly.

A little preventive care on your part can save

you time and money over the life of your water

heater. You’ll nd many answers to common

problems in the Troubleshooting Guide. If you

review the chart of Troubleshooting Tips rst

you may not need to call for service.

READ THE SAFETY INFORMATION

Your safety and the safety of others are very

important. There are many important safety

messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol. Recognize

this symbol as an indication of Important Safety

Information! This symbol alerts you

to potential hazards that can kill or hurt

you and others.

All safety messages will follow the safety alert

symbol and the words: “DANGER”, “WARNING”,

“CAUTION” or “NOTICE”.

These words mean:

DANGER - An imminently hazardous situation

that will result in death or serious injury.

WARNING - A potentially hazardous situation

that could result in death or serious injury

and/or damage to property.

CAUTION - A potentially hazardous situation

that may result in minor or moderate injury.

NOTICE: Attention is called to observe

a specied procedure or maintain a

specic condition.

General Safety ....................3-6

Introduction ............................5

Features and Benets .........7-9

DOs and DON’Ts ................9-10

Installation Guide...................10

Electrical Installation..............11

Limited Warranty...................12

Warranty Claims Procedure .12

Troubleshooting Guide............12

Product Specications .....13-14

Wiring Diagrams ....................15

Service & Warranty Information.16

Congratulations!

You’ve just purchased a new

Eccotemp L10 portable tankless

water heater. This will open a world

of enjoyment to going tankless.

We highly suggest you take the

time to read through all of the

safety and installation procedures

in this manual, before attempting

to install your new water heater.

Should you have any questions,

please feel free to visit our

helpdesk located at www.

eccotemp.com for further

information.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

IMPORTANT SAFETY INFORMATION READ ALL

INSTRUCTIONS BEFORE USING

Be sure to read and understand the entire Use and Care Manual before attempting to install or

operate this water heater. It may save you time and money. Pay particular attention to the Safety

Instructions. Failure to follow these warnings could result in serious bodily injury or death. Should

you have problems understanding the instructions in this manual, or have any questions, STOP,

and get help from a qualied service technician, or the local gas utility.

DANGER!

PROPERLY INSTALL WATER HEATER

Failure to properly install the water heater outdoors as outlined in the Installation

Instructions in this manual can result in unsafe operation of the water heater. To

avoid the risk of re, explosion, or asphyxiation from carbon monoxide, never

operate this water heater unless it is installed properly and has an adequate

air supply for proper operation. Be sure to inspect the ue terminal for proper

installation at initial start-up; and at least annually thereafter. Refer to the Care

and Cleaning section of this manual for more information regarding ue terminal

inspection.

WARNING!

Gasoline, as well as other ammable materials and liquids (adhesives, solvents,

paint thinners etc.), and the vapors they produce are extremely dangerous. DO

NOT handle, use or store gasoline or other ammable or combustible materials

any where near or in the vicinity of a water heater or any other appliance. Be sure

to read and follow the labels on the water heater, as well as the warnings printed

in this manual. Failure to do so can result in property damage, bodily injury or death.

Installation:

Do not Install water heater where ammable products will be stored or used

unless the main burner ame Is at least 18” above the oor. This will reduce, but

not eliminate, the risk of vapors being ignited by the main burner ame.

Read and follow water heater warnings and Instructions. If owners manual is

missing, contact the retailer or manufacturer.

Vapors from ammable

liquids will explode and catch re

causing death or severe burns.

Do not use or store ammable products

such as gasoline, solvents or adhesives

In the same room or area near the

water heater.

Keep ammable products :

1. Far away from heater

2. In approved containers

3. Tightly closed

4. Out of children‘s reach

Water heater has a main burner ame.

The main burner ame

1. Can come on at any time and

2. Will ignite ammable vapors.

Vapors:

1. Cannot be seen

2. Are heavier than air

3. Go a long way on the oor

4. Can be carried from other rooms to

the main burner ame by air currents.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

DANGER!

NATURAL GAS AND LIQUEFIED PETROLEUM MODELS

Both LP and natural gas have an odorant added to aid in detecting a gas leak.

Some people may not physically be able to smell or recognize this odorant. If you

are unsure or unfamiliar with the smell of LP or natural gas, ask the gas supplier.

Other conditions, such as “odorant fade,” which causes the odorant to diminish in

intensity, can also hide or camouage a gas leak. Always check with commercial

leak detector or soapy water.

• Gas detectors are recommended in LP and natural gas applications and

their installation should be in accordance with the detector manufacturer’s

recommendations and/or local laws, rules, regulations or customs.

• Water heaters utilizing LP gas are different from natural gas models. A natural

gas water heater will not function safely on LP gas and vice versa.

• No attempt should ever be made to convert the water heater from natural gas

to LP gas. To avoid possible equipment damage, personal injury or re, do not

connect the water heater to a fuel type not in accordance with the portable

tankless water heater data plate; propane for propane portable tankless water

heaters and natural gas for natural gas portable tankless water heaters. These

portable tankless water heaters are not certied for any other fuel type.

• LP appliances should not be installed below grade (for example, in a

basement) if such installation is prohibited by federal, state and/or local laws,

rules, regulations or customs.

• Propane or LP gas must be used with great caution. It is heavier than air and

will collect rst in lower areas making it hard to detect at nose level.

• Before attempting to light the water heater, make sure to look and smell for

gas leaks. Use a soapy solution to check all gas ttings and connections.

Bubbling at a connection indicates a leak that must be corrected. When smelling

to detect a gas leak, be sure to sniff near the oor also.

• It is recommended that more than one method, such as soapy solution, gas

detectors, etc., be used to detect leaks in gas applications.

Notice: If a gas leak is present or suspected:

• DO NOT attempt to nd the cause yourself.

• DO NOT try to light any appliance.

• DO NOT touch any electrical switch.

• DO NOT use any phone in your building.

• Leave the house immediately and make sure your family and pets leave

also.

• Leave the doors open for ventilation and contact the gas supplier, a

qualied service agency or the re department.

• Stay away from the house (or building) until the service call has been

made, the leak is corrected and a qualied agency has determined the

area to be safe.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

ADDITIONAL WARNINGS

1. Do not leave unattended.

2. The exhaust gas and top of the portable tankless

water heater is HOT! Do not place hands or any

foreign object near the top of the heater.

3. Do not use in high wind conditions.

4. If the smell of gas is detected, turn off the gas

valve at the tank immediately! Do not use ame for

leak detection.

5. Use only Liquid Propane.

6. Use only outdoors.

7. Do not over tighten the gas regulator connection

to the portable tankless water heater with a wrench.

This may cause a crack in the gas regulator.

The EccoTemp L-10 is a liquid propane red water heater capable of delivering 2 to 2.65 gallons

of hot water almost anywhere. The portable tankless water heater has standard 1/2”NPT pipe

ttings and an adapter for using a standard garden hose for inlet water supply.

The L10 is not a toy. People around the world use similar portable tankless water heaters to heat

the water around their homes, safely, and reliably.

Gas is supplied from a standard 20 pound propane cylinder (not included) such as used with

outdoor grills. A regulator with hose is furnished with the heater.

You may also plumb it in to existing water lines and using a low pressure LP gas regulator. Check

local codes for proper installation.

The portable tankless water heater includes a stainless steel rain cap that helps protects it for

outdoor usage.

Ignition is automatic and powered by 2 “D” cell batteries (not included). Burners come on when

water ows, and off when the water is shut off. No pilot light.

The Purpose and Benets the L10

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

Functions and Features

• Water controlled automatic ignition: Water pressure between 20-80 PSI and 0.75-1.0 GPM opens the ignition

circuit for easy and convenient operation.

• Auto-cut-off protection: The auto-cut-off protection will shut the gas supply off immediately in the event of

ameout to reduce the risk of gas leakage.

• Energy savings: 85%.

• Removable drain valve to avoid water pipe and regulator damage caused by freezing water*.

• Anti-dry combustion protection: The portable tankless water heater will shut off the gas supply in the event

water stops owing through the portable tankless water heater.

*Read the maintenance section on draining the portable tankless water heater entirely to avoid freeze issues.

Fuel Type

Model

Activation Flow Rate

BTU/h

Related gas pressure

Ignition

Protections

Dimensions

Pipe ttings

LPG (Liquid propane gas)

L10

25 PSI

75,000

0.4 PSI

Electric Pulse, D cell Battery Powered

(No electrical connection required)

Auto-cut off water control, automatic ignition, anti-dry

combustion

protection, over-pressure overheating and ameout

protection

15” x 6.5” x 35”

1/2 “ NPT, incoming/outgoing water & 3/8 compression tting gas

TECHNICAL SPECIFICATIONS - PORTABLE

Gas Setting

Highest

Lowest

TEMPERATURE INCREASE PER GPM

MODEL

L10

Portable

1.5 GPM

96 °

34 °

2.0 GPM

48 °

17 °

2.5 GPM

32 °

11 °

3.0 GPM

25 °

9 °

*Temperature increases listed are based on use of the water heater under optimal conditions.

Variable factors such as incorrect or imperfect installations and varying incoming water

temperatures may yield different results.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

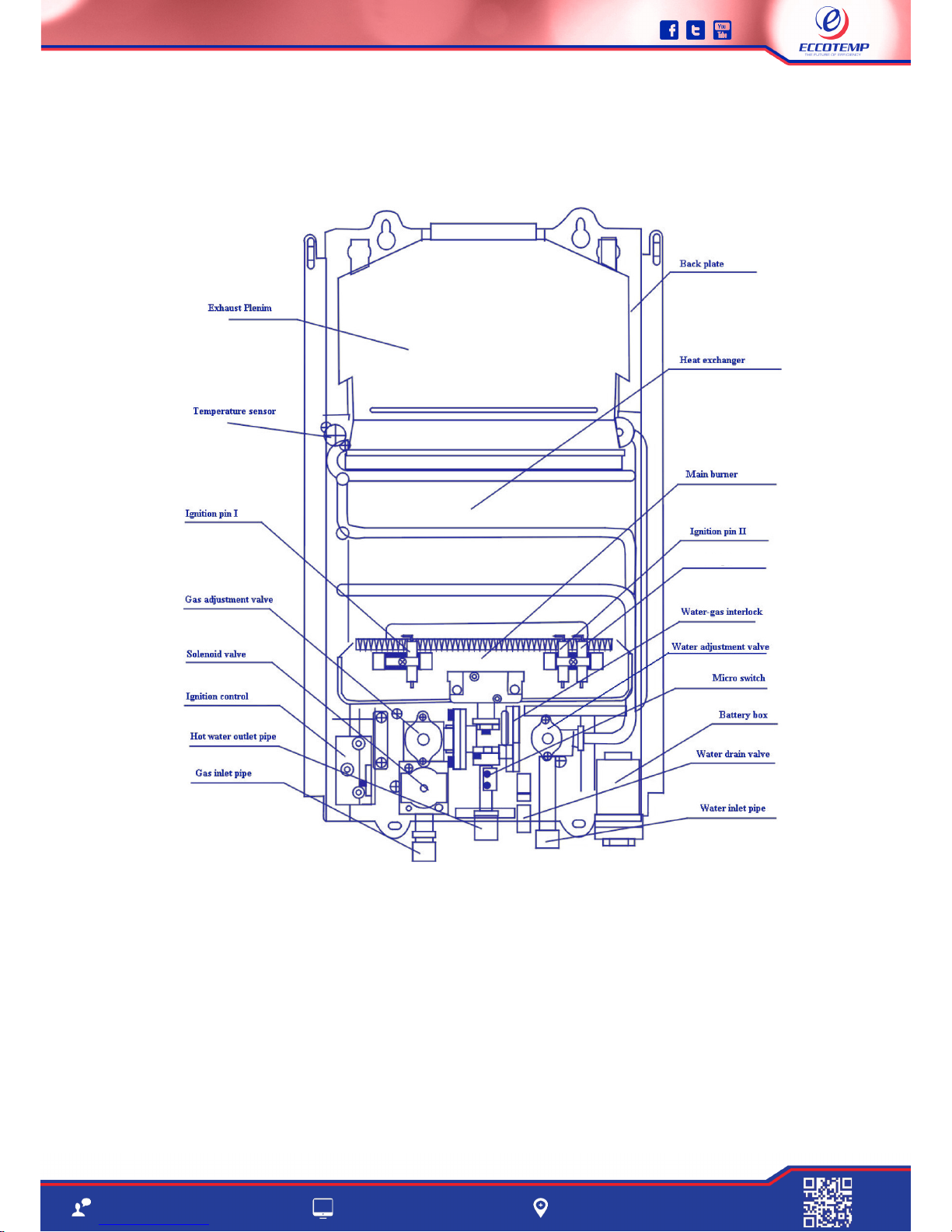

Construction and parts for the L10

Flame sensor pin

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

Getting Started

1. Check box for damage. Damages caused in shipment must be reported immediately.

2. Make sure you have all the parts.

Please note: Included parts and accessories may vary depending on county and regulations.

a. Water heater

b. Hardware pack

c. Rain cap

d. 1/2” NPT to garden hose adapter

e. Gas hose and regulator

3. Install the rain cap to the top of the ue vent. The rain cap should t securely. It is recommended

that a beaded layer of high temperature sealant is used around the perimeter of the seal between

the rain cap and the ue vent.

4. If using a standard garden hose, attach the 3/4” NPT to garden hose adapter to the tting marked

‘Water Input”. Use Sealant tape or other approved sealing method on the threads for a secure, water

tight t. Check to make sure the screen inside the water inlet is in place and clean. Then attach your

water input/garden hose.

5. Install gas supply line and regulator to the portable tankless water heater. DO NOT OVER

TIGHTEN. OVER TIGHTING MAY CRACK THE GAS REGULATOR CAUSING A GAS LEAK! Check for any

gas smell before ignition! Make sure it is screwed all the way on.

6. Attach the water output to the tting marked ‘Water Outlet.’ Do not over tighten.

7. Install two “D” cell batteries in the compartment on the bottom left of the heater. Check that

batteries are facing the correct direction.

8. Use the top tab on the portable tankless water heater to suspend from a mounted screw

capable of holding 30 pounds. Place at a comfortable height without putting stress on the gas hose.

9. Attach gas regulator with hose to the LP tank. Use hand pressure only on the plastic connector.

LEAVE GAS TANK VALVE IN THE “OFF” POSITION.

WARNING!

GAS HOSE ADAPTER

THE L5,L7,& L10 PORTABLE TANKLESS WATER HEATERS HAVE A 1/2’’ TO 3/8” ADAPTER

IN THE HARDWARE PACK FOR ATTACHMENT OF THE LP HOSE TO THE HEATER.

THIS ADAPTER MUST BE INSTALLED WITH THREAD SEALANT, A SPOOL OF SEALANT

TAPE IS INCLUDED WITH THE HEATER.

MULTIPLE WRAPS OF SEALANT TAPE MAY BE

NECESSARY TO ASSURE COMPLETE SEAL.

AL WAYS CHECK FOR GAS LEAKS BEFORE USING HEATER.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

Warning: This model is intended for recreational & portable use only. This model

CANNOT be permanently mounted or plumbed in any way.

1. Turn on incoming water supply. Ensure that you have adequate water pressure

of between 40-5O PSI.

2. Turn your water output device to its “off” position.

3. Turn the gas valve on the cylinder all the way open.

4. IF THE SMELL OF GAS IS DETECTED, TURN OFF THE GAS VALVE IMMEDIATELY!!

5. Set the water regulator knob on the face of the portable tankless water heater

to its highest setting.

6. Set the gas regulator knob on the face of the portable tankless water heater

to its minimum setting.

7. Turn on your water output device to the “on” position and adjust to the desired

water ow.

8. There will be a series of audible clicks and the burner will ignite. Should the

burner not ignite after 5 seconds, shut off and go to the “Trouble Shooting”

section.

9. Upon completion of use or storage, open the drain valve (ribbed cylindrical

stem next to the water input valve) to ensure draining of water.

10. Turn off your gas supply.

11. WARNING: If the outside temperature is around or below freezing (32 degrees

F, 0 degrees C), ensure that the drain valve is opened and water drained from the

portable tankless water heater after each use to avoid internal damage to the

water regulator. You will also need to unhook the outgoing water line to ensure

that any water in the heat exchanger is drained. Failure to properly drain your

portable tankless water heater will cause water damage which may or may not

be reparable. Please check the warranty information found on our website at

www.eccotemp.com/freeze for more information on freezing issues.

Use and Starting

Before going to the USE section:

Check around area for ammables, especially gasoline or other vapors which may ignite. The

exhaust and top of the portable tankless water heater will get HOT! Make sure there are no foreign

objects around the portable tankless water heater or have fallen into the top.

Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator

Eccotemp Systems LLC | Email: Support@eccotemp.com | Address: 315 - A Industrial RD Summerville, SC 29483

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED NOR HAS IT BEEN TESTED FOR ANY PERMANENT INSTALLATIONS. THIS MODEL IS PART OF OUR

PORTABLE SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE.

THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

The temperature of the outgoing water is dependent on the temperature of the incoming water

balanced with the amount of heat applied. Use extreme caution in setting the outlet water

temperature.

Adjustment

WARNING: THE PORTABLE TANKLESS WATER

HEATER IS CAPABLE OF PRODUCING SCALDING

WATER TEMPERATURES!

1. With the water regulator set to high, and the gas regulator set to low, feel

the outgoing water. This is the lowest setting available.

2. To initially raise the outgoing temperature, slowly turn the gas valve

towards maximum. Adjust slowly and check the temperature often. There

will be a slight delay between increasing the gas supply and the increase in

water temperature.

3. Should the outlet water temperature need to be higher, slowly reduce the

water ow regulator until desired temperature is reached.

(Warning: Do not alter or change this water heater’s original temperature sensor)

Andere Handbücher für L10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Eccotemp Boiler Handbücher

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Eccotemp

Eccotemp EZ-Flush i12 Bedienungsanleitung

Eccotemp

Eccotemp CEI-12 Bedienungsanleitung

Eccotemp

Eccotemp 40-HI Bedienungsanleitung

Eccotemp

Eccotemp L5 Bedienungsanleitung

Eccotemp

Eccotemp EM-2.5 Gebrauchsanweisung

Eccotemp

Eccotemp CEL10 Bedienungsanleitung

Eccotemp

Eccotemp L10nr Installationsanleitung

Eccotemp

Eccotemp SMARTHOME ESH-2.5 Gebrauchsanweisung

Eccotemp

Eccotemp SMARTHOME Gebrauchsanweisung

Eccotemp

Eccotemp EZ-Flush 45-H Bedienungsanleitung

Eccotemp

Eccotemp 6GB BUILDER Series Installationsanleitung

Eccotemp

Eccotemp 20 Series Bedienungsanleitung

Eccotemp

Eccotemp EL22 Series Bedienungsanleitung

Eccotemp

Eccotemp FVI12 Series Bedienungsanleitung

Eccotemp

Eccotemp Schneiders INSTA-HOT pro Bedienungsanleitung

Eccotemp

Eccotemp ET-32 Bedienungsanleitung

Eccotemp

Eccotemp L10 Bedienungsanleitung

Eccotemp

Eccotemp L5 Bedienungsanleitung

Eccotemp

Eccotemp EL10 Bedienungsanleitung

Eccotemp

Eccotemp EZ-Flush fvi12 Bedienungsanleitung

Eccotemp

Eccotemp FVI12 Series Bedienungsanleitung

Eccotemp

Eccotemp iE-11 Bedienungsanleitung

Eccotemp

Eccotemp 40-HI Bedienungsanleitung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

Noritz

Noritz N-132M Gebrauchsanweisung

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung

PVI

PVI MAXIM Bedienungsanleitung
