EDIFIER W830BT Bedienungsanleitung

Walker

W830BT

Bluetooth stereo headphones

Operating instructions

■Product introduction

Before using this device, please read this manual carefully and keep it safe for future

reference.

Features

●40mm Nd-Fe-B unit with high quality sound in strong low frequency;

●Long battery life design to save worry. It works for about 15 hours and standby xx

hours;

●Folding portable over-ear, comfortable for wearing and easy for tidying;

●Soft opaline leather ear cover, sound-proof and reducing noise and enjoying

tranquility;

●Standard accessory of high-end storage bag, 3.5mm audio wire and USB charging

wire.

●Bluetooth V4.0, CSR chip. Support aptX and NFC. Wireless transmission is as far as

10 m;

■Specifications

Bluetooth version: Bluetooth V4.0

Bluetooth protocol: HFP、HSP、A2DP、AVRCP

Audio decoding: aptX

Effective distance: 10m

Operating time: 15h

Charging time: **h

Standby time: About ** h

Rated input: DC 5.0V == 1A

Frequency response range: 20Hz-20KHz

Sensitivity (SPL): 96dB

Nominal impedance: 24 Ω

■ Package list

Headphones*1 pcs

Storage bag*1 PCS

Manual*Warranty card 1

PCS each

USB charging cable*1 pcs

3.5mm audio wire*1 PCS

■ Operation instructions

1. Illustration

1.1 Press volume up/Press and hold last song

1.2. Multi-function key

1.3 Press volume down/Press and hold next song

1.4 Micro USB charging port

1.5 3.5mm audio port

2. Charging

The headphones use the built-in rechargeable batteries. The batteries must be fully

charged before use the headphones. In use, one beep sound every minute and the red

light quickly flashing three times indicate that the battery life is low and you need to

charge the headphones.

2.1 Plug USB charging wire into USB jacket of standard power.

2.2 Connect the charging wire to Micro USB charging port of the headphones.

2.3 In charging, the headphones’ Bluetooth works normally.

2.4 Charging time: The time for the batteries being fully charged is about *hours.

Red light on = Charging Red light off/Blue light on = Charging completed

Fully charged Low battery life

Warning: The rechargeable batteries that provide power for this product

must be disposed properly for recycling.

Do not put batteries into fire to preventing explosion.

■ How to use headphones

1. Power on/Off

Function

Operation

Indicator

Power on

Press and hold multi-pad

3 seconds

The blue light flashes quickly

Power off

Press and hold multi-pad

3 seconds

Indicator off

2. Connection

2.1. Bluetooth connection

Please complete the connection with your mobile before use. The steps are as below:

2.1.1. The distance between your mobile and the headphones should be kept within 1

m. The closer the better.

2.1.2. The headphones are powered on. Pressing multi-pad 3 seconds makes the

headphones into pairing status.

2.1.3. Enable your mobile’s Bluetooth and search Bluetooth devices. Select ‘EDIFIER

W830BT’ to pair up and connect. After being connected successfully, the prompt

beep sounds and the headphones’ blue light is flashing quickly.

Note:

1. In pairing status, the connection that cannot succeed in 3 minutes shall automatically

exit the pairing mode;

2. If your mobile prompts inputting the pairing password, please enter ‘0000’;

3. After completing pairing, the headphones and your mobile shall remember each

other. When used next time, the headphones shall automatically connect the device

that was connected last time.

2.2. NFC connection

If your Bluetooth mobile supports Near Field Communication (NFC), please enable

NFC of your mobile at first and switch on the headphones, then touch the NFC area

of W830BT with the NFC area of your mobile. W830BT shall pair up with your

mobile.

Note:

● When your mobile hibernates or is screen-locked, your mobile cannot be paired up by

using NFC.

● When pairing up at the first time, it is required that your mobile is in touch

with W830BT for a longer time and can only be taken away until

W830BT is in pairing mode.

● When no device is connected, connection can be done by using NFC; if

a device is already connected, the connection can be terminated by using NFC.

2.3. One operating 2 units connection

The headphones can be connected simultaneously with two Bluetooth devices. The

steps are as below:

2.3.1. Firstly the headphones connecte the device one.

2.3.2. Switch off the headphones and then press and hold multi-pad 3 seconds to

restart the headphones and enter the pairing status to connect the device two.

2.3.3. Now operate on the device one. Click the headphones among the Bluetooth

connection settings to complete the headphones in connection with two devices;

Note: When two connected mobiles have different operating system (E.g. One has

Android and one iOS). Some cross-system operations may have delay (E.g. Pause

songs in A mobile and meanwhile play songs in B mobile). Please be aware that this

is normal phenomenon.

3. Calling

3.1. Basic call operation

Function

Headphone status

Operation

Receiving

incoming call

Incoming call ringing

Press the multi-function key

Refuse incoming

Incoming call ringing

Press and hold multi-pad about

call

2 seconds

Cancel call

Talking

Press the multi-function key

Increase volume

Talking

Press the volume + key

Decrease volume

Talking

Press the volume - key

Talking transferred

to mobile

Talking

Press and hold multi-pad about

2 seconds

Talking transferred

to headphones

Talking

Press and hold multi-pad about

2 seconds

Microphone muted

Talking

Press and hold the volume -

key about 2 seconds

Cancel mute

Talking(Microphone muted)

Press and hold the volume +

key about 2 seconds

Redial last call

Connected device

Press and hold multi-pad about

2 seconds

3.2. Make three way call

Function

Headphone status

Operation

Hang out the current call

to receive new incoming

call

There is the second

incoming call

Press the multi-function

key one time

Receive new incoming call

There is the second

incoming call

Press the multi-function

key twice

Call switch

Talking(remain)

Double click multi-function

key

End current call

Talking(remain)

Press the multi-function

key one time

3.3. Connect call between two mobiles

Function

Headphone status

Operation

Hang up the first mobile’s

call, connect the second

mobile’s incoming call

The first mobile is talking,

another mobile is having

incoming call

Press the multi-function

key one time

Remain the first mobile’s

call, connect the second

The first mobile is talking,

another mobile is having

Press the multi-function

key twice

mobile’s incoming call

incoming call

Switch calls

Talking, a call is remained

Double click multi-function

key

Hang out the current call,

Get back to the remained

mobile

Talking, a call is remained

Press the multi-function

key one time

4. Play music

4.1. Bluetooth audio mode

When the headphones support aptX’s mobile connection, you can enjoy WIFI music via

the headphones:

Function

Headphone status

Operation

Increase volume

Play music

Press + key

Decrease volume

Play music

Press - key

Last song

Play music

Press and hold - key

Next song

Play music

Press and hold + key

Pause play

Play music

Press the multi-function

key one time

Restore play

Pause play

Press the multi-function

key one time

Note:

● When the headphone’s volume is at its maximum, you will hear the prompt sound

provided by the headphones.

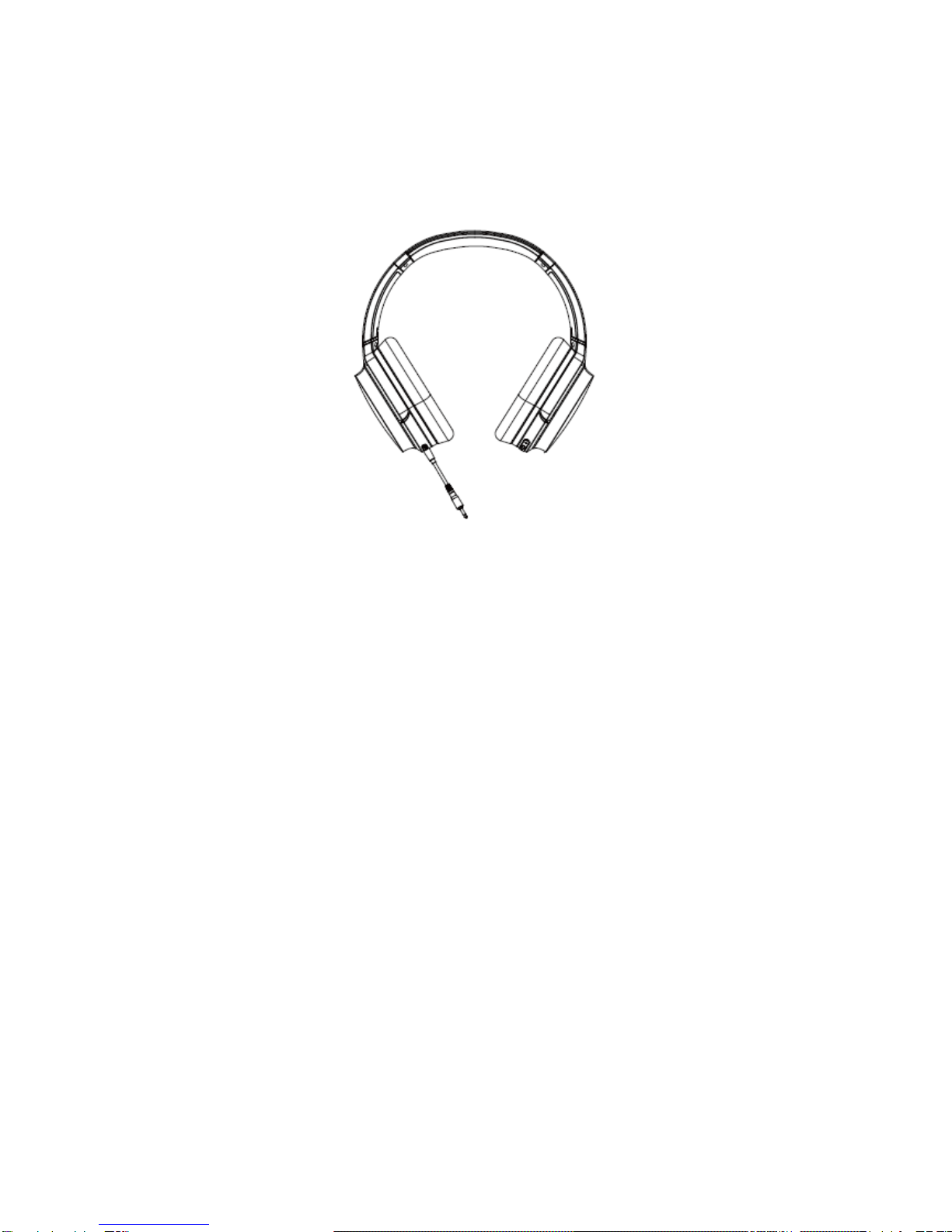

4.2. AUX in audio mode

The headphones supportAUX in audio input. Using 3.5 to 3.5 audio wire to connect the

headphones and music player, you can listen to music via wire.

Note:

● When plugging in 3.5 audio wire, the headphones shall power off and the Bluetooth

connection automatically disconnected. AUX in audio input is validated.

● If using Bluetooth, please unplug 3.5 audio wire and restart and power on to pair up

the connection.

5. Restore factory settings

Ensure the headphone is power off and meanwhile press and hold Volume + key and

multi-pad about 3 seconds. Then the blue light shall flash quickly 6 times. Now the

factory settings are restored.

Note:

● After the factory settings are restored, the pair-up list of the headphones shall be

cleared. When the headphones is power on again, it will enter the pairing mode

automatically and not automatically connect. If it needs to connect a device, it is

required to pair up again.

■ Maintenance

● Do not place the product at the damp places so as not to affect the product’s internal

circuit.

● Do not place the product at the places exposed to sun or in high temperature. High

temperature would shorten the service life of electronic components, damage

battery and make some plastic components deformed.

● Do not place the product at very cold places to prevent damaging the internal circuit

board.

● Do not try to dismantle the product. If non-professional personnel operates, they may

damage the product.

● Do not fall, vibrate strongly, strike the product with hard object to prevent damaging

the internal circuit.

● Please do not use drastic chemical products and cleaner to clean the headphones.

● Do not use sharp objects to scratch on the product surface to prevent damaging the

outer case and affecting looking.

If the product cannot work properly, please send it to your qualified repair units, the

personnel shall help you solve your problem with their whole heart.

■ FAQs

1. The red light flashes instead of the blue light.

Answer: It means that the headphones battery is low. You need to recharge your

headphones again.

2. The red light is off during charging.

Answer: a. Please ensure the charging device is properly connected with the

headphones.
