Edimax HP-5001 Bedienungsanleitung

may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written

permission from Edimax Technology Co., Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties, either expressed

or implied, with respect to the contents hereof and specifically disclaims any warranties,

merchantability, or fitness for any particular purpose. Any software described in this

manual is sold or licensed as is. Should the programs prove defective following their

purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire

cost of all necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right to

revise this publication and to make changes from time to time in the contents hereof

without the obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different

from those shown in this QIG. For more information about this product, please refer to the

user manual on the CD-ROM. The software and specifications are subject to change without

notice. Please visit our website www.edimax.com for updates. All brand and product names

mentioned in this manual are trademarks and/or registered trademarks of their respective

holders.

Contents

Chapter 1: Introduction .....................................................................................................................................3

1.1 Product Features..................................................................................................................................3

1.2 Application ...........................................................................................................................................3

1.3 Compatibility........................................................................................................................................3

1.4 System Requirements ..........................................................................................................................4

Chapter 2: Adapter ............................................................................................................................................5

2.1 Ethernet Port........................................................................................................................................5

2.2 Buttons.................................................................................................................................................5

2.3 LEDs......................................................................................................................................................6

Chapter 3: Utility Software Installation .............................................................................................................7

Chapter 4: Using the Utility Software ..............................................................................................................14

4.1 Main Tab ............................................................................................................................................14

4.2 Privacy Tab .........................................................................................................................................15

4.3 Diagnostics Tab ..................................................................................................................................16

4.4 About Tab...........................................................................................................................................17

Chapter 5: Security (Group) Button.................................................................................................................18

5.1 Forming a HomePlug AV Logical Network .........................................................................................18

5.2 Joining a Network ..............................................................................................................................18

5.3 Leaving a Network .............................................................................................................................19

Chapter 1: Introduction

1.1 Product Features

Data rates up to 500Mbps

Transmits network data via existing electrical wires (no external cabling required)

Easy plug-and-play setup

Works with routers, computers, and other network devices

Consumes less than 1W of power in power saving mode

1.2 Application

High-definition (HD) and standard-definition (SD) video distribution

Broadband Internet sharing

Internet Protocol Television (IPTV) and Voice over Internet Protocol (VoIP)

applications

1.3 Compatibility

200Mbps and 500Mbps powerline devices (HomePlug AV standard) are incompatible

and cannot be used with 14Mbps and 85Mbps powerline devices (HomePlug 1.0 and 1.1

standards).

1.4 System Requirements

Operating System

Utility can support Windows 2000/XP/Vista/7

CPU

Intel Pentium III 2.0GHz (or higher)

RAM

128MB (at least)

Free Disk Space

20MB (at least)

Network Interface

Fast Ethernet (100Mbps) network interface and an

Ethernet cable

Chapter 2: Adapter

2.1 Ethernet Port

You can connect the HP-5001 to a router, a computer, or any network device via this

Ethernet port.

2.2 Buttons

Reset

Press and hold the reset button for 3 seconds to restore the

powerline adapter to factory defaults.

Security (Group)

Press and hold the “Security (Group)”button for more than

10 seconds to randomize the adapter’s NMK value; or press

and hold the “Security (Group)”button for 3 seconds to

add the powerline adapter to the existing AV logical

network (AVLN).

2.3 LEDs

Ethernet

Port

Green

Ethernet connection established

Flashing

Network activity

Off

No Ethernet connection

Power

Green

Powered on

Flashing

In power saving mode

Device resetting

Synchronizing password

Off

Powered off

PLC

Green/

Orange/

Red

Green: PHY RATE > 80Mbps

Orange: 40Mbps < PHY RATE < 80Mbps

Red: PHY RATE < 40Mbps

Off

Not in a powerline network

Chapter 3: Utility Software Installation

Step 1 Before installing the utility software, make sure that no other powerline utility is

installed on your computer. If any other utility software is installed, uninstall it and

reboot the computer.

Step 2 Insert the CD into your CD-ROM drive. When the following image appears, click

“500Mbps Device”.

Step 3 Then click “Setup Utility”.

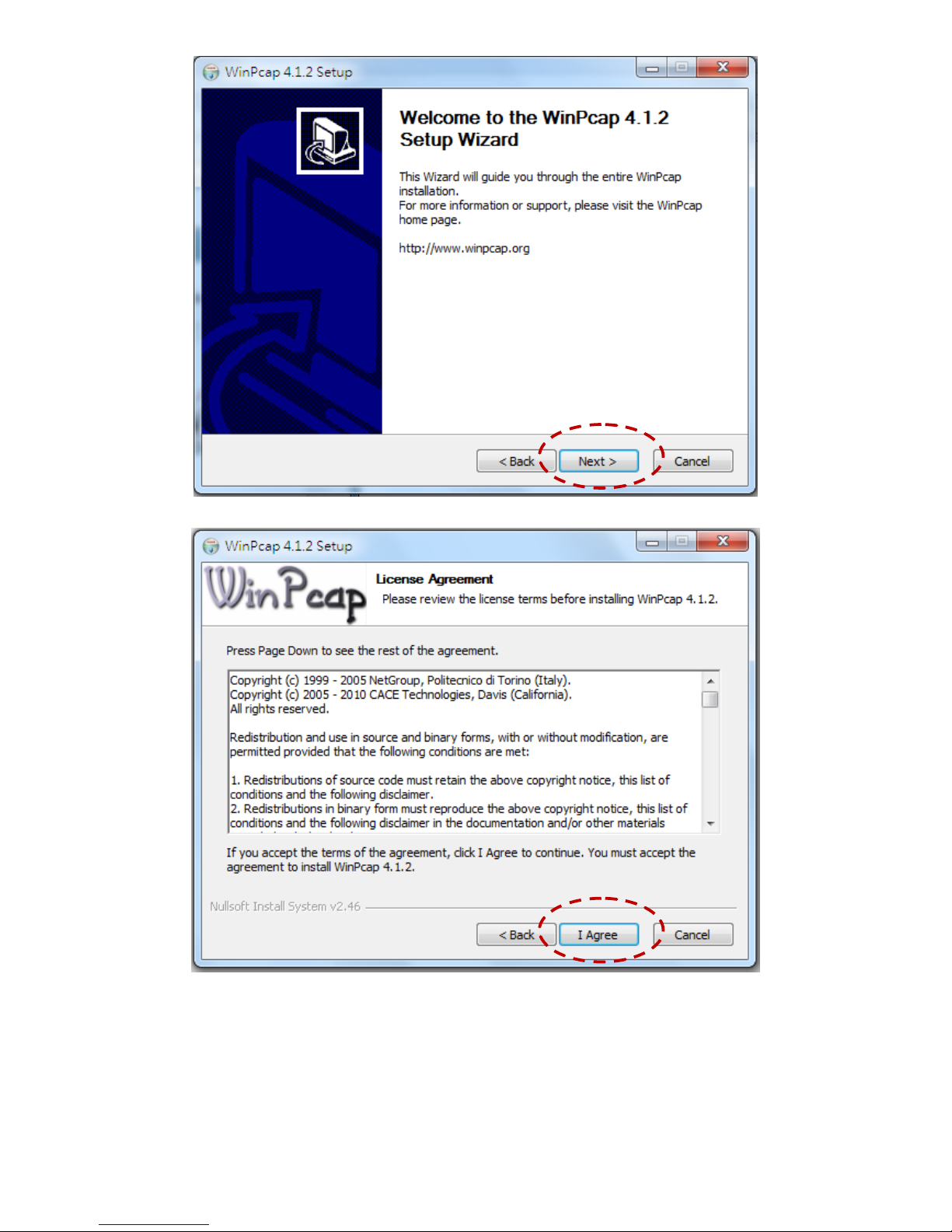

Note : You will get the following image, if your computer did not install WinPcap4.1.2

before. Please click “Apply”to install WinPcap4.1.2.
