Edimax EW-7303HPn V2 Bedienungsanleitung

EW-7303HPn V2

Quick Installation Guide

09-2011 / v2.0

Introduction

EW-7303HPn v2 is a cost-effective IEEE 802.11b/g /n specifications of Outdoor WiFi construction

solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable

WLAN*. This document describes the steps required for the initial IP address assign and other

configuration of the outdoor router. The description includes the implementation of the above steps.

Package content

The package of the WLAN Broadband Router includes the following items,

Outdoor Router

DC 12V Power Adapter

Documentation CD

POE Injector

Tie

Product features

Compatible with IEEE 802.11n Specifications provides wireless speed up to 150Mbps data rate.

Compatible with IEEE 802.11g standard to provide wireless speeds of 54Mbps data rate.

Compatible with IEEE 802.11b standard to provide wireless speeds of 11Mbps data rate.

Maximizes the performance and ideal for media-centric applications like streaming video, gaming

and Voice over IP technology.

Support various operation (Bridge/Gateway/Ethernet Converter) modes between wireless and wired

Ethernet interfaces.

Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption to protect the wireless data

transmission.

Support TKIP/AES/TKIPAES of WPA algorithms.

Support IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.

Support DHCP server to provide clients auto IP addresses assignment.

Support DHCP client, static IP, PPPoE, L2TP and PPTP of WAN Interface.

Supports firewall security with port filtering, IP filtering, MAC filtering, port forwarding, DMZ

hosting and URL filtering functions.

Support WEB based management and configuration.

Support System Log.

Support Dynamic DNS

Support NTP

*Maximum performance, actual data rates and coverage may vary depending on network conditions and

environmental factors. Stated ranges are based on independent test results and are not guaranteed. Long

range coverage requires an additional high power access point to receive the wireless signal from the

EW-7303HPn V2 –coverage range from an EW-7303HPn directly to a computer/wireless device is

significantly less.

Front panel description

LED Indicator

State

Description

1. PWR LED

The WLAN Broadband Router is powered ON.

Off

The WLAN Broadband Router is powered Off.

2. WLAN LED

Wireless Radio ON.

Off

Wireless Radio Off.

Flashing

Data is transmitting or receiving on the wireless.

3. WAN LED ACT

Port linked.

Off

No link.

Flashing

Data is transmitting or receiving on the WAN interface.

4. LAN LED ACT

Port linked.

Off

No link.

Flashing

Data is transmitting or receiving on the LAN interface.

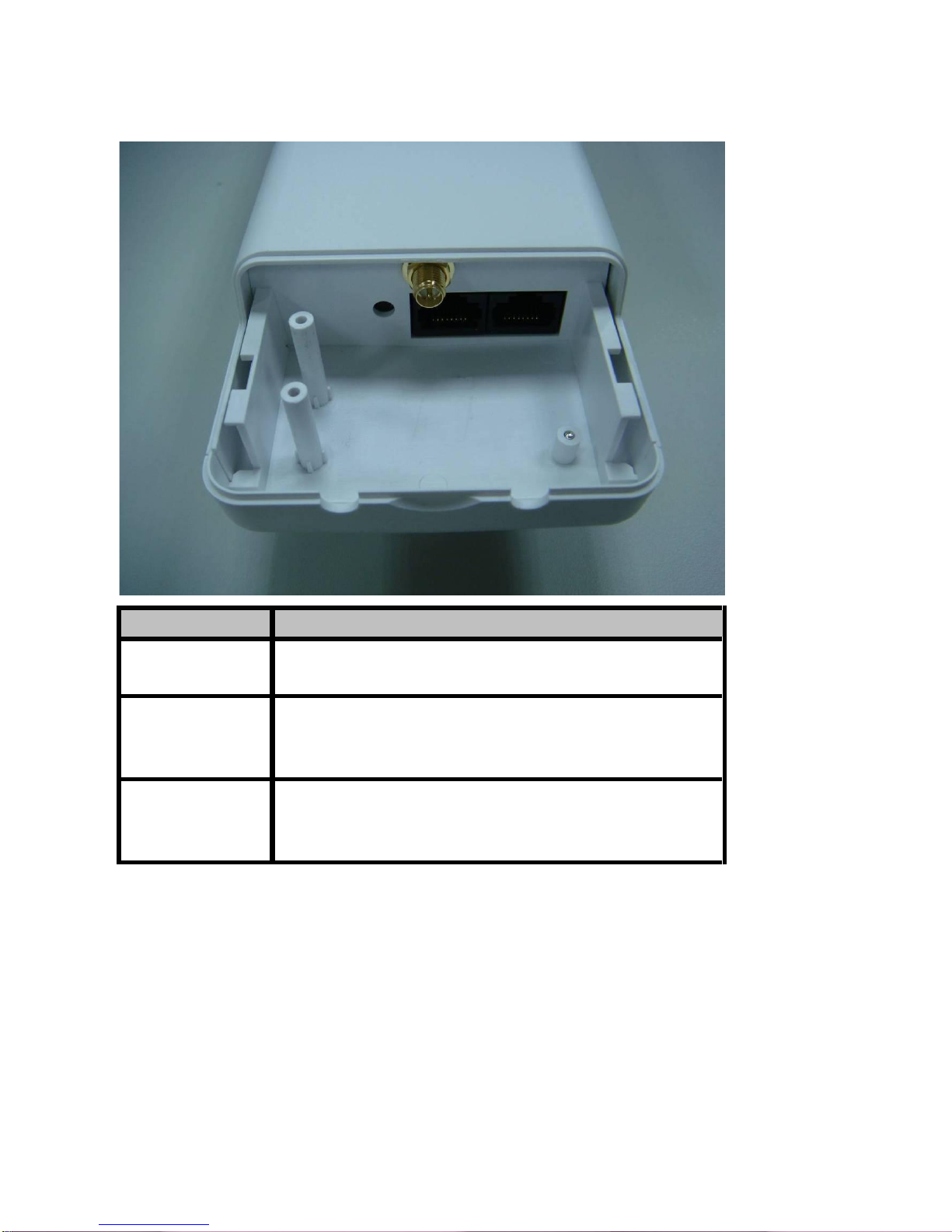

Rear panel description

Interfaces

Description

SMA connector

For external antenna. You can use the SMA connector to connect with

2.4GHz external antenna.

Secondary(Middle)

The RJ-45 sockets allow LAN connection through Category 5 cables.

Support auto-sensing on 10/100M speed and half/ full duplex; comply

with IEEE 802.3/ 802.3u respectively.

Main(Right)

The RJ-45 socket allows WAN connection through a Category 5 cable.

Support auto-sensing on 10/100M speed and half/ full duplex; comply

with IEEE 802.3/ 802.3u respectively.

Installation

Notes: The product shot is for reference only please refer to physical product.

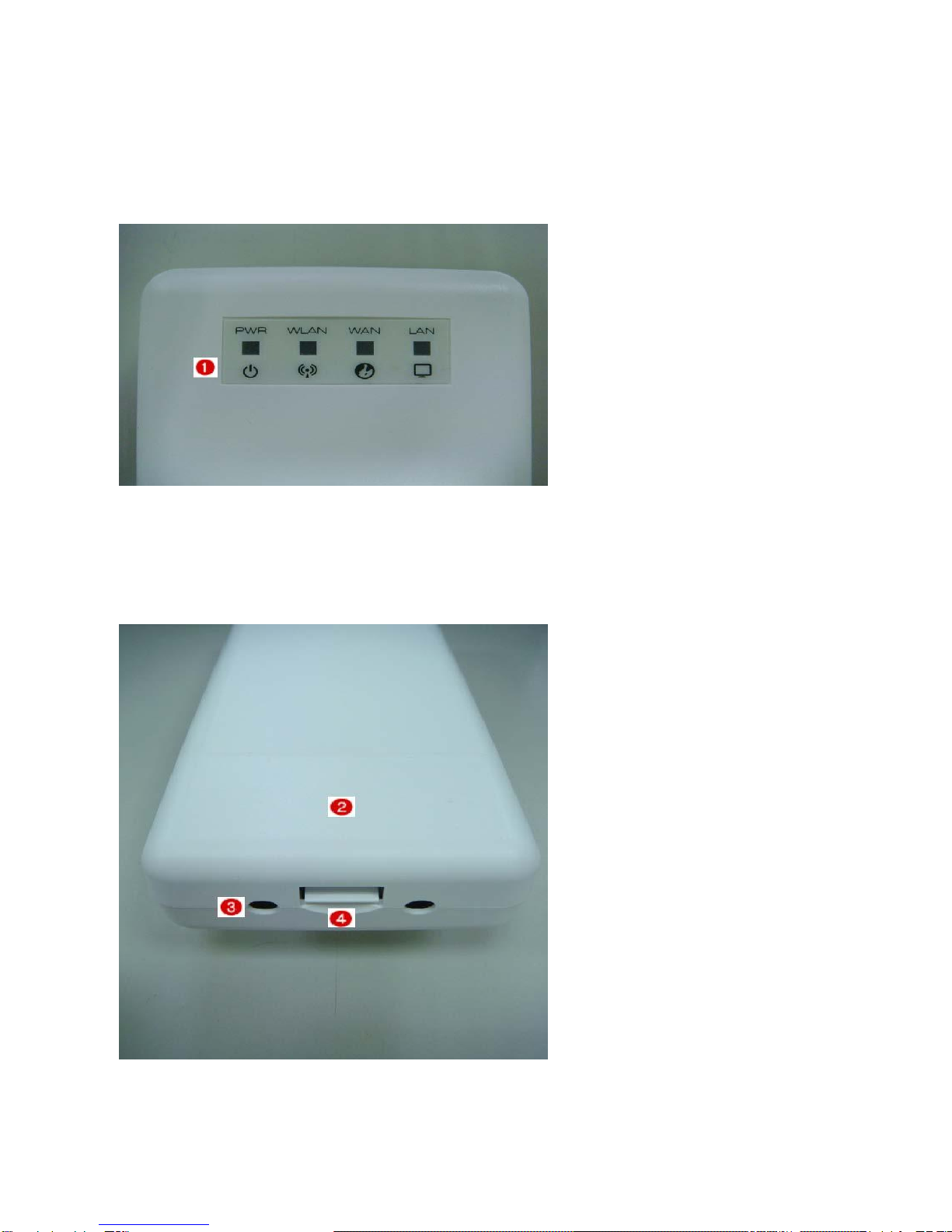

1.LED Panel

2. Waterproof Sliding Door

3. Pass trough Ethernet cable from this cable

4. Push this button to remove upper housing

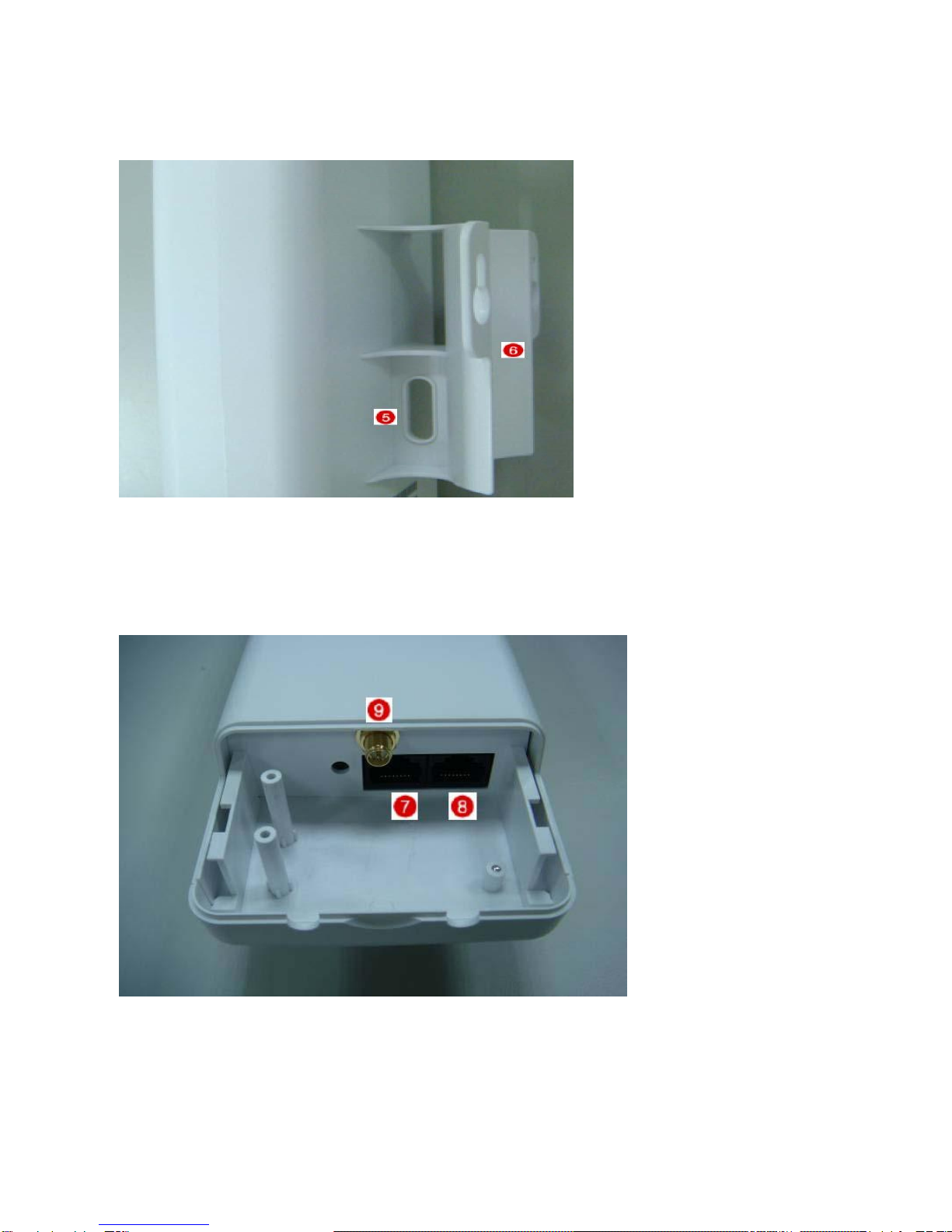

5. Wall Mount

6. Pole Mount

7. Secondary port with POE

8. Main port

9. SMA connector for external antenna

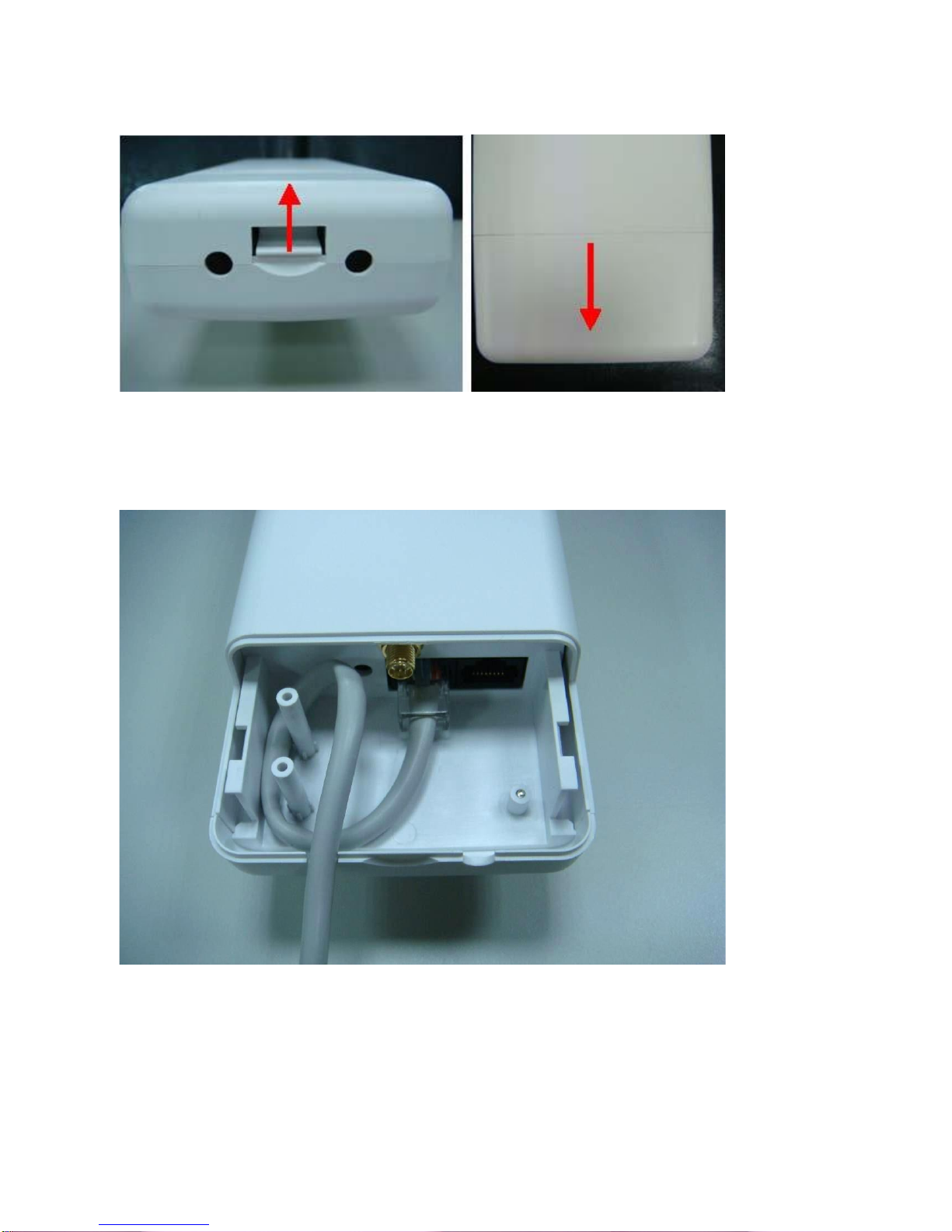

Hardware installation steps

Step2: Pass through Ethernet cable from the hole; insert the cable to Secondary port.

Note: RJ-45 8P8C Ethernet cable is required.

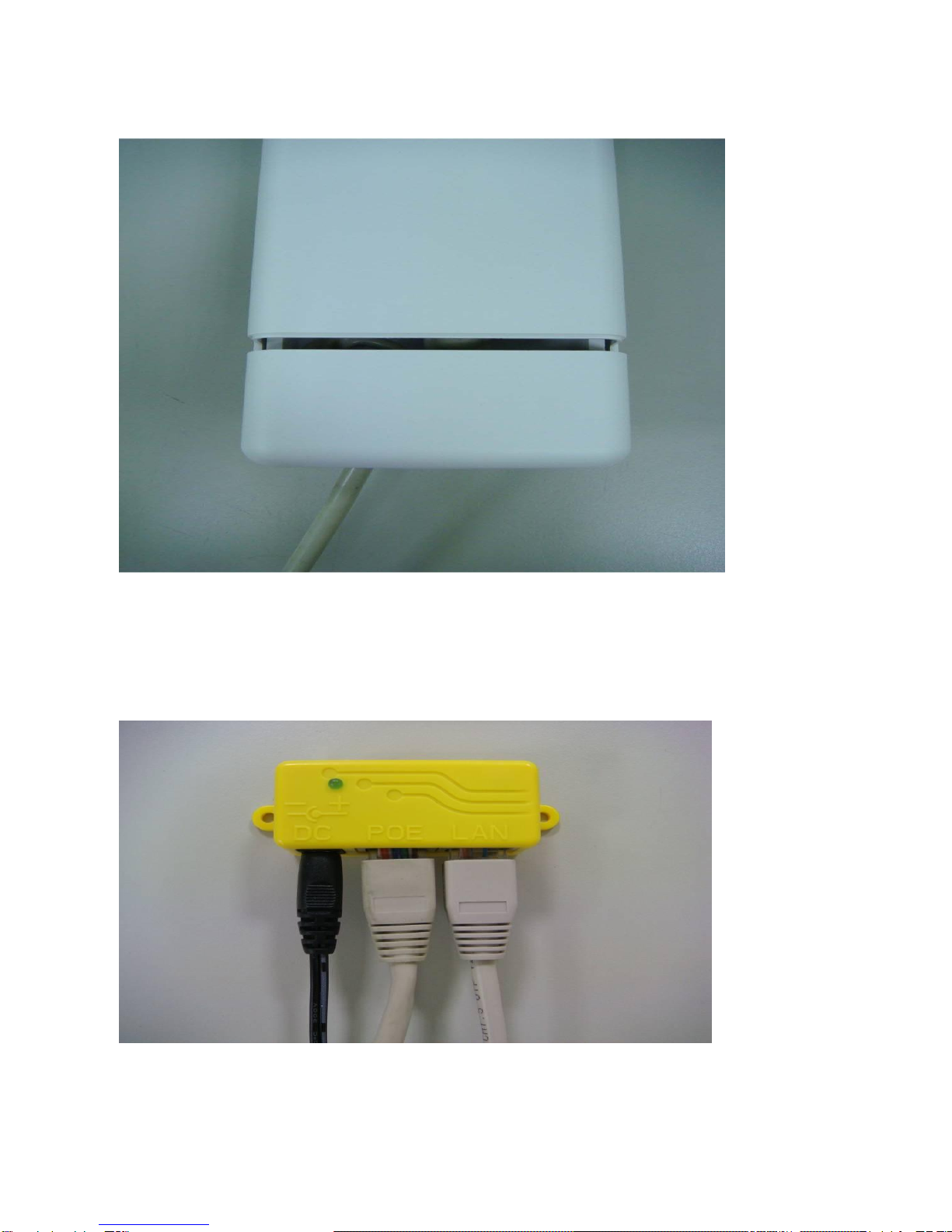

Step3: Install the upper housing and make sure the housing is well installed.

Software Installation

Step4:

Install POE Injector

DC: Insert adapter

POE: This hole is linked to Secondary port of the Outdoor Router with RJ-45.

LAN: This hole is linked to LAN side PC/Hub or Router/ADSL modem device with RJ-45

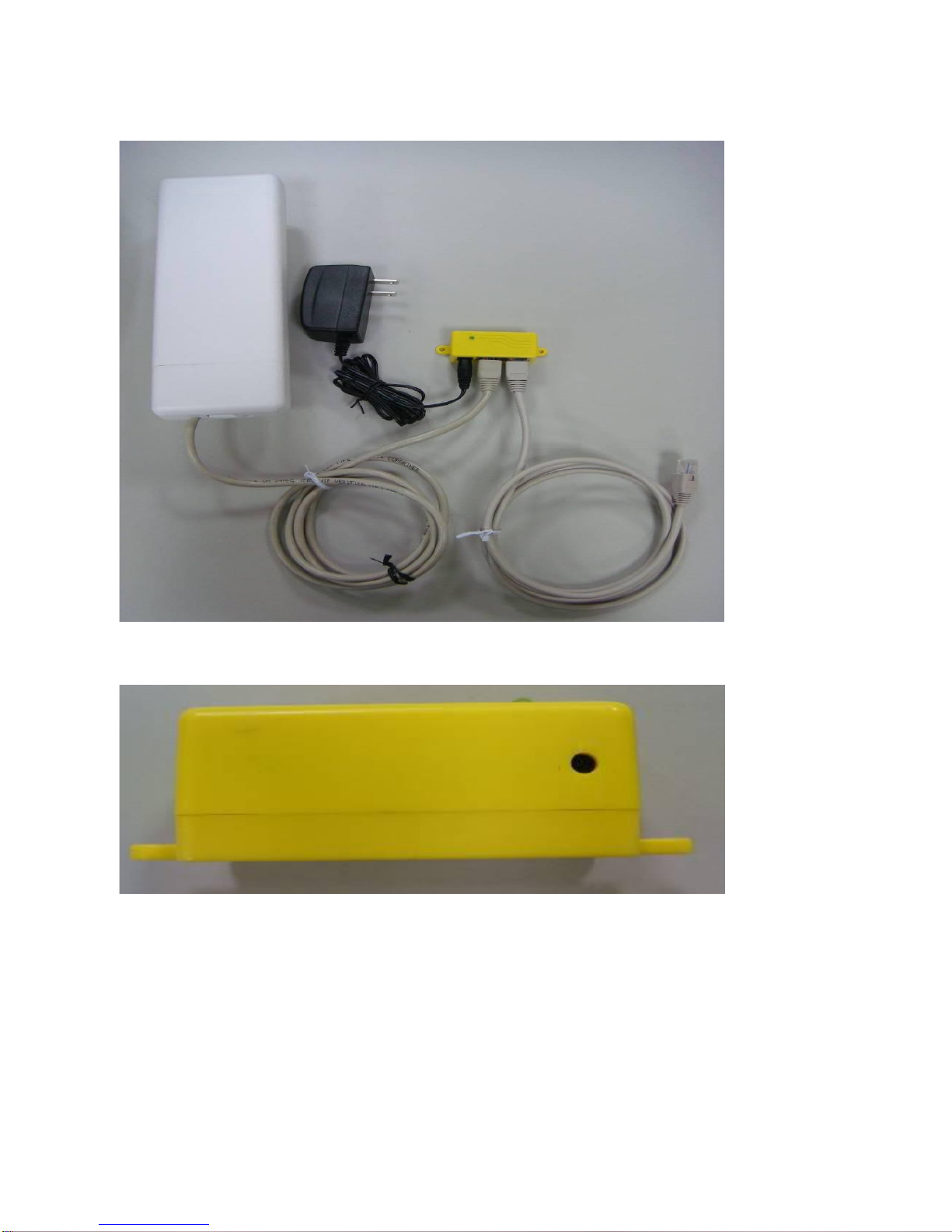

Step5: Complete the hardware installation as diagram at below

Notes: Use Reset button on POE injector. Push continually the reset button of POE injector about 5 ~

10 seconds to reset the configuration parameters to factory defaults.

There is no software driver or utility installation needed, but only the configuration

setting. Please refer to chapter 4 for software configuration.

Notice: It will take about 50 seconds to complete the boot up sequence after powered on the Outdoor

Router; Power LED will be active, and after that the WLAN Activity LED will be flashing to show the

WLAN interface is enabled and working now.

Software configuration

There are web based management and configuration functions allowing you to have the jobs done easily.

The Outdoor Router is delivered with the following factory default parameters on the Ethernet LAN

interfaces.

Default IP Address: 192.168.2.1

Default IP subnet mask: 255.255.255.0

WEB login User Name: admin

WEB login Password: 1234

Telnet login User Name: admin

Telnet login Password: 1234
