Edimax PS-3103P Bedienungsanleitung

Print Server

User’s Manual

1. INTRODUCTION.............................................................4

1.1 Product Introduction..........................................................4

1.2 Product Models.................................................................5

1.3 Product Package...............................................................6

1.4 Network Printing Architecture ...........................................7

1.5 Network Printing Environment ........................................11

1.6 Contents of the User’s Manual........................................14

1.7 Firmware & Printing Function..........................................15

2. HARDWARE INSTALLATION......................................17

3. WINDOWS PEER-TO-PEER NETWORK.....................18

3.1 System Architecture........................................................18

3.2 Administrator Installation and Setup ...............................20

3.3 Administrator Utilities ......................................................28

3.4 Client Installation and Setup...........................................30

3.5 Client Utilities..................................................................35

4. WINDOWS NT/2000 NETWORK..................................40

4.1 System Architecture........................................................40

4.2 Windows NT/2000 Server Installation and Setup............41

4.3 User Installation and Setup.............................................42

5. NETWARE NETWORK.................................................44

5.1 System Architecture........................................................44

5.2 NetWare 3.x Installation & Setup....................................47

5.3 NetWare 4.x/5.x Installation & Setup ..............................60

6. UNIX SYSTEM NETWORK...........................................70

6.1 Introduction.....................................................................70

6.2 Enable PrintSir’s TCP/IP Support...................................71

6.3 Setup PrintSir’s IP Address.............................................71

6.4 Verify PrintSir’s IP Address.............................................75

6.5 Configure Remote lpd Printing on the Host.....................75

6.6 Print a Test Page............................................................77

7. CONFIGURATION UTILITY..........................................79

7.1 Introduction.....................................................................79

7.2 General - General Information of PrintSir........................80

7.3 PrintSir Status - PrintSir Network Status.........................81

7.4 Printer Status - Attached Printer Status..........................81

7.5 IP Cfg - IP Address Configuration...................................82

7.6 NW PS Cfg - NetWare Print Server Configuration..........82

7.7 NW RP Cfg - NetWare Remote Printer Configuration.....84

7.8 NW Information - NetWare Printing Summary................84

7.9 PrintSir Cfg - PrintSir Network Ability Setting..................85

7.10 Restore Default - Restore to Default.............................86

7.11 Upgrade - Firmware Upgrade / Update.........................86

7.12 DHCP Cfg - DHCP Server Configure............................87

7.13 DHCP Information - DHCP Information.........................89

7.14 Mail Print Cfg - Email Printing Setting...........................90

7.15 SNMP Cfg - SNMP Parameter Setting..........................91

8. WEB MANAGEMENT...................................................93

8.1 Introduction.....................................................................93

8.2 WebDESK Utility.............................................................93

8.3 Web Management of PrintSir..........................................95

9. EMAIL PRINTING .......................................................106

9.1 Introduction...................................................................106

9.2 System Requirement ....................................................106

9.3 System Setup................................................................107

1. Introduction

1.1 Product Introduction

Thank you for purchasing and using Edimax's PrintSir

series print server. PrintSir allows your printer to become a

shared device on the network. It offers printing flexibility

and manageability on your Local Area Network at an

extremely low cost and with an absolute minimum setup

and maintenance required.

PrintSir provides a network port (10Mbps or

10/100Mbps Ethernet) and one or three printer's parallel

ports. Please refer to the information of various types of

PrintSir in the following sections for more detailed

explanation.

PrintSir supports IPX, TCP/IP, and NetBEUI

protocols. It is the best network printing solutions for

various common network operating systems, such as

Windows 95/98/Me Peer-to-Peer Printing, Windows

NT/2000, NetWare, Unix/Linux, etc.

With the help of Installation Wizard, you can easily

and instantly complete the settings for your printing

environment, and start enjoying the fantastic features

provided by PrintSir.

In the following chapters, we will introduce in

detail the printing features, installation methods, and

system configuration for different network environments.

If you would like to set up and install PrintSir

quickly, please refer to the Quick Installation Guide that

comes along with this PrintSir.

1.2 Product Models

Model PS-901 PS-1001 PS-1101 PS-1201 PS-3101 PS-3101P

Hardware

Size Pocket Pocket Palmtop Pocket Desktop Desktop

Direct Attached Yes Yes No Yes No No

Number of Printer Ports 1 1 1 1 3 3

Printer Connector Centronics Centronics DB25 Centronics DB25 DB25

Network Speed 10M 10M 10/100M 10/100M 10/100M 10/100M

Network Connector UTP UTP/BNC UTP UTP UTP UTP

Bi-Directional No No Yes Yes Yes Yes

Flash Memory Size 512K 512K 512K 512K 512K 512K

Network LED Yes Yes Yes Yes Yes Yes

Status LED Yes Yes Yes Yes Yes Yes

Firmware Upgrade Yes Yes Yes Yes Yes Yes

Power-On-Self-Test Yes Yes Yes Yes Yes Yes

Network Protocol Support

IPX/SPX Yes Yes Yes Yes Yes Yes

TCP/IP Yes Yes Yes Yes Yes Yes

NetBEUI Yes Yes Yes Yes Yes Yes

Network Environment

Windows Peer-to-Peer Printing Yes Yes Yes Yes Yes Yes

Windows Server-Based Printing Yes Yes Yes Yes Yes Yes

NetWare Bindary Mode Printing Yes Yes Yes Yes Yes Yes

NetWare NDS Mode Printing Yes Yes Yes Yes Yes Yes

NetWare Remote Printer Yes Yes Yes Yes No No

TCP/IP Remote Printing Yes Yes Yes Yes Yes Yes

Unix LPR Printing Yes Yes Yes Yes Yes Yes

Administration

Windows Configuration Utility Yes Yes Yes Yes Yes Yes

Web Management Server Yes Yes Yes Yes Yes Yes

Web Management Utility Web Web Web Web Web Web

SNMP Protocol Yes Yes Yes Yes Yes Yes

Printer Port Management Yes Yes Yes Yes Yes Yes

IP Assignment

ARP & Ping Yes Yes Yes Yes Yes Yes

DHCP Server Yes Yes Yes Yes Yes Yes

DHCP Client Yes Yes Yes Yes Yes Yes

BOOTP Yes Yes Yes Yes Yes Yes

RARP Yes Yes Yes Yes Yes Yes

DOS Utility Yes Yes Yes Yes Yes Yes

Others

Email Printing Yes Yes Yes Yes Yes Yes

Direct Print Yes Yes Yes Yes Yes Yes

Logical Printer Yes Yes Yes Yes Yes Yes

Language English

Chinese English

Chinese

CD-ROM Yes Yes Yes Yes Yes Yes

1.3 Product Package

This package contains the following components:

PrintSir Print Server x 1

Power Adapter x 1

CD x 1

Quick Installation Guide x 1

1.4 Network Printing Architecture

This section illustrates how PrintSir functions and

operates on the network. Before you install and use

PrintSir, it is strongly suggested that you read this section

completely, and select only the chapters you need

according to your network operating system by “Contents

of the User’s Manual” in next section.

This section will first introduce the role every component

plays in the network-printing environment.

zPrintSir Print Server

zClient User

zNetwork Server (optional)

Windows NT Server

NetWare Server

Windows 98Windows NT

Workstation Windows 2000

Unix PrintSir

Network Printing Environment

Print Server

Client User Network Server

Detailed examples will then be illustrated through actual

network environment.

1.4.1 Print Server Network Functions

Windows NT Server

NetWare Server

Windows 98

Windows NT

Workstation Windows 2000

Unix PrintSir

Print Server

Because PrintSir supports IPX, TCP/IP, and

NetBEUI network protocols, any networked computer

can directly print to the print server from any of its

installed protocol.

Windows NT Server

NetWare Server

Windows 98

Windows NT

Workstation Windows 2000

Unix

* TCP/IP

* IPX

* NetBEUI

TCP/IP

NetBEUI

IPX

TCP/IP

IPX

1.4.2 Network Printing Functions for Clients

Windows NT Server

NetWare Server

Windows 98

Windows NT

Workstation Windows 2000

Unix PrintSir

Client User

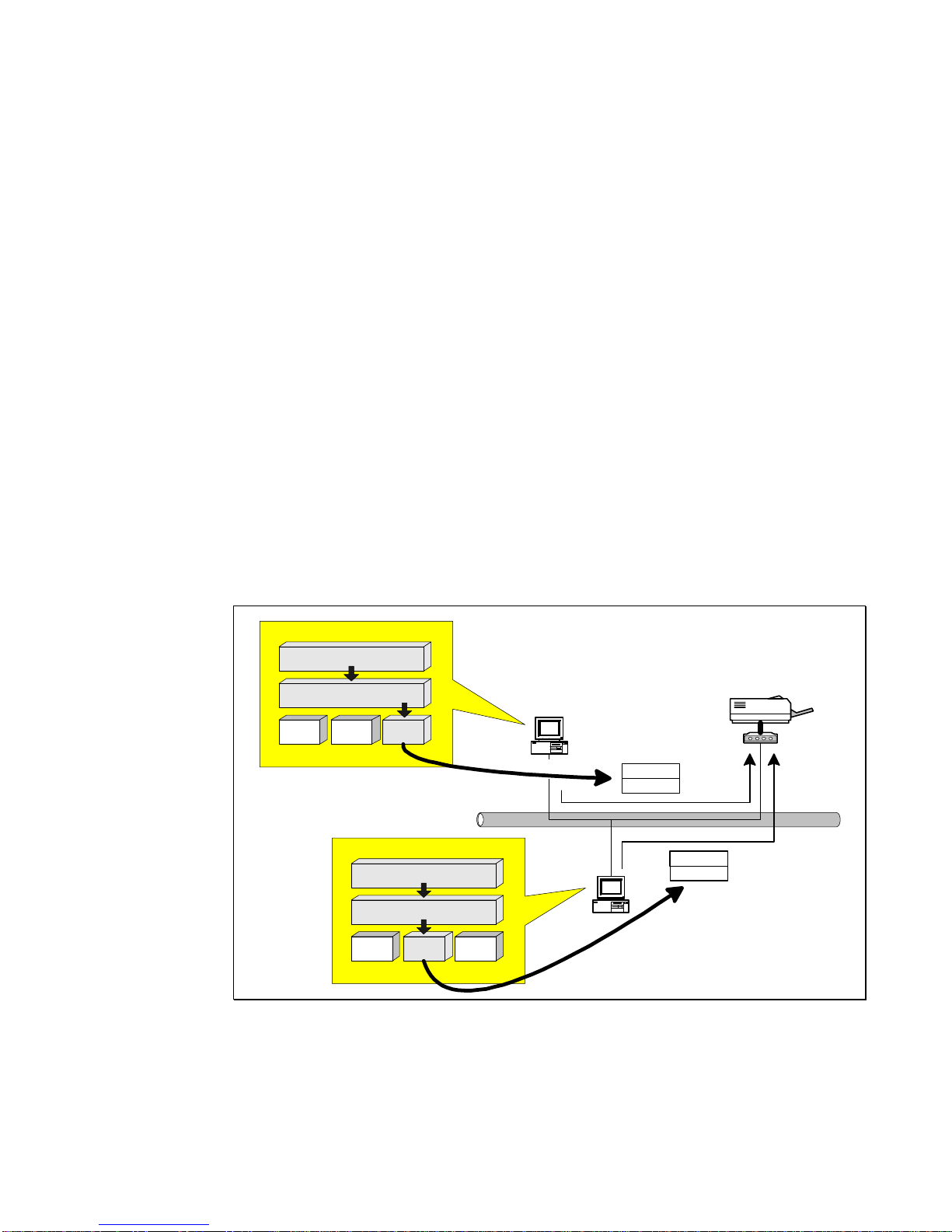

Common operating systems for clients are classified as

following:

zWindows 95/98/Me/NT/2000

Our print server system provides PTPP

(Peer-to-Peer Printing) driver and utilities

for Windows 95/98/NT/2000 users. PTPP

(Peer-to-Peer Printing) supports IPX,

TCP/IP, and NetBEUI protocols. While

printing after installation, PTPP will

automatically select the proper transport

protocol to connect to the print server

depending on the protocols installed in

each computer (client computer may only

have IPX or TCP/IP installed).

Windows 2000

Windows 98

* TCP/IP

* IPX

* NetBEUI

NetBEUI

PTPP

TCP/IP

PTPP

Application

PTPP

IPX TCP/IP NetBEUI

Application

PTPP

IPX TCP/IP NetBEUI

In the client installation procedure, after

PTPP (Peer-to-Peer Printing Driver) is

installed into Windows, the system will

automatically (manual configuration is

also allowed) search through all the

PrintSir print servers on the network, and

then add their printing ports into

Windows’ printing port. (See below)

Windows 98

PTPP

PrintSir

MIS-2

P1 P2

PrintSir

MIS-1

zUNIX / Linux

UNIX (include HP/UX, SCO Unix, SunOS,

Solaris, Unixware DECUnix, IBM AIX and

others) and Linux use the system-standard

LPR to print to PrintSir.

1.4.3 Network Printing Functions for Network Server

Windows NT Server

NetWare Server

Windows 98

Windows NT

Workstation

Windows 2000

Unix

PrintSir

Network Server

Common network servers are classified as following:

Andere Handbücher für PS-3103P

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Edimax Druckserver Handbücher

Edimax

Edimax PS-1210MFn Bedienungsanleitung

Edimax

Edimax PS-2207SUg Bedienungsanleitung

Edimax

Edimax PS-1210Un Bedienungsanleitung

Edimax

Edimax PS-3207U Bedienungsanleitung

Edimax

Edimax PS-1206MF Bedienungsanleitung

Edimax

Edimax PS-1206MF Bedienungsanleitung

Edimax

Edimax Past Ethernet Combo Print Server PS-1216U Bedienungsanleitung

Edimax

Edimax PS-1206PWg Bedienungsanleitung

Edimax

Edimax PS-1206PWg Bedienungsanleitung

Edimax

Edimax PS-1206MF Bedienungsanleitung

Edimax

Edimax PS-1206UWg Bedienungsanleitung

Edimax

Edimax PS-3207 Series Bedienungsanleitung

Edimax

Edimax PS-2207SUg Bedienungsanleitung

Edimax

Edimax PS-1206UWg Bedienungsanleitung

Edimax

Edimax PS-1206MF Bedienungsanleitung

Edimax

Edimax PS-3101 Bedienungsanleitung

Edimax

Edimax PS-3207U Bedienungsanleitung

Edimax

Edimax PS-3103P Bedienungsanleitung

Edimax

Edimax Past Ethernet Combo Print Server PS-1216U Bedienungsanleitung

Edimax

Edimax PS-1206MF Bedienungsanleitung

Edimax

Edimax PS-1206P Bedienungsanleitung

Edimax

Edimax Past Ethernet Combo Print Server PS-1216U Bedienungsanleitung

Edimax

Edimax PS-1100+ Bedienungsanleitung

Edimax

Edimax PS-2207SU Bedienungsanleitung

Beliebte Druckserver Handbücher anderer Marken

Digitus

Digitus DN-13003-1 Bedienungsanleitung

Intellinet

Intellinet 509077 Bedienungsanleitung

Atlantis Land

Atlantis Land NETSERVER A02-PSU_GX02 Bedienungsanleitung

Buffalo

Buffalo LPV4-U2-300S Bedienungsanleitung

Zonet

Zonet ZPS1000 Bedienungsanleitung

TRENDnet

TRENDnet TEW-P11G Bedienungsanleitung

Axis

Axis 140 BJC Bedienungsanleitung

HP Jetdirect 280m - 802.11b Wireless Print... Bedienungsanleitung

MicroNet

MicroNet SP766W Bedienungsanleitung

NETGEAR

NETGEAR PS104 - Hub - EN Bedienungsanleitung

Axis

Axis AXIS 1610 Bedienungsanleitung

Buffalo

Buffalo LPV4-U2-300S Bedienungsanleitung

Axis

Axis 5600+ Bedienungsanleitung

LevelOne

LevelOne WPS-9123 Bedienungsanleitung

NETGEAR

NETGEAR PS105 Bedienungsanleitung

Xerox

Xerox FreeFlow Print Server V9 SP3 Bedienungsanleitung

SEH

SEH primos Bedienungsanleitung

D-Link

D-Link DP-101P+ Bedienungsanleitung
