edishine HOWL07F Bedienungsanleitung
Please pay attention to the warning signs
Read the instructions with caution before operating
and keep it properly
SKU: HOWL07F
V30815
[Instruction Manual]
Outdoor Wall Light
Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to
ensure correct installation.Before installation, please turn off the main power
of the circuit breaker to prevent possible electric shock.
NOTE: PLEASE INSTALL THIS WALL LANTERN 1.2 METERS 3.94
FEET ABOVE THE GROUND
WARNING:
Packing List
Installation Instructions
01
Part Description
Wall light
Quantity
1pc
3pc
2pc
1pc
17.83"x6.3"x7.6"
Wire connectors P3
Mounting screw M4*25mm
Instruction manual A5 PAPER

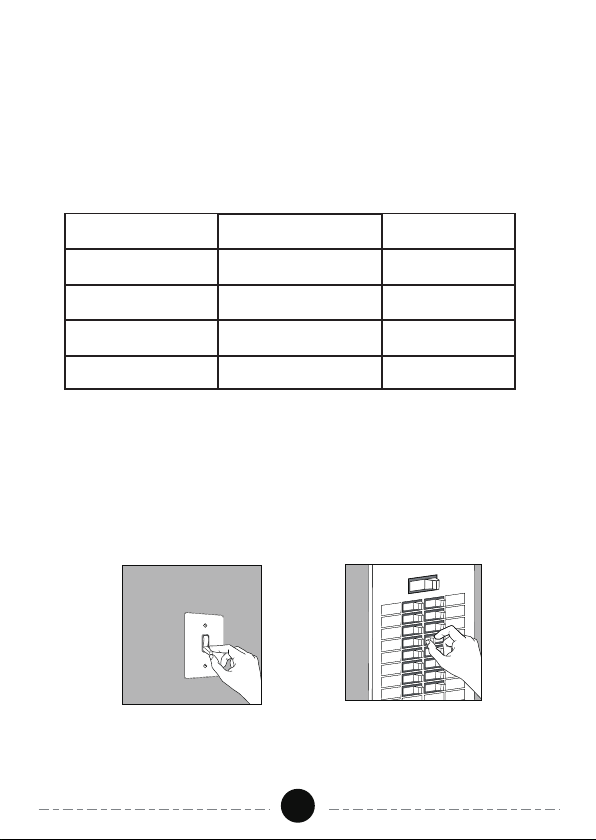

FIG.1 WALL SWITCH FIG.2 BREAKER PANEL
FIG.1. Turn the wall switch to the “OFF” position.
Depending on which type of fuse box in your home:
FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off
the power supply of the entire home, or turn off the individual switch that
supplies power to the fixture installation location.
OR
FIG.3. Either turn the main (Master) switch to the "OFF" position to cut off
the power supply of the entire home, or unscrew the fuse that supplies
or turn off the individual switch that supplies power to the fixture installation
location.
Cleaning: Cleaning the glass and sensor surface of the wall light
with a soft and damp cloth.Dust will affect the sensitivity of sensor and
brightness of the light.
STEP 01: POWER OFF
STEP 02: CLEAN THE LIGHT
Connect black live wire, white neutral wire and ground wire with wire
connectors,be sure that the wires are connected sturdily.
STEP 03: CONNECT THE WIRE
Fix the lamp on the wall with mounting screws,unload the light body by
taking off two screws,install A19 bulb(E26 base) in the wall light.
(Not included)
STEP 04: FIX THE LIGHT
02

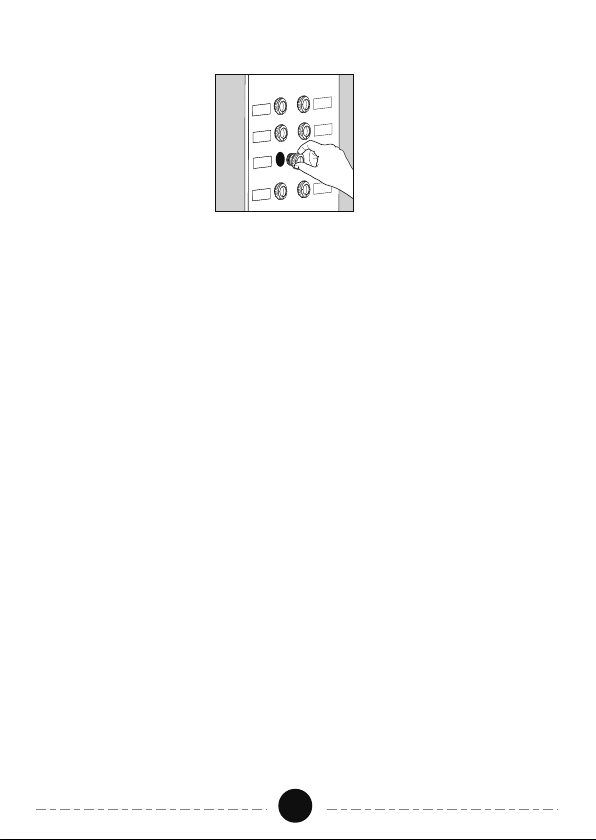

FIG.3 FUSE BOX
Turn on the main (Master) switch to get the power back, the light will turn
on automatically.

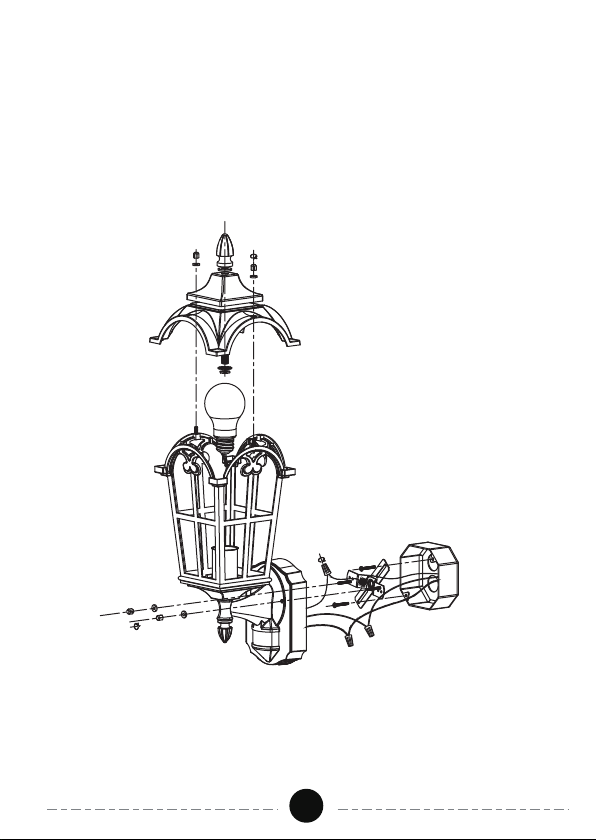

The lamp structure is described as following picture:
STEP 05: POWER ON
03
bulb not included

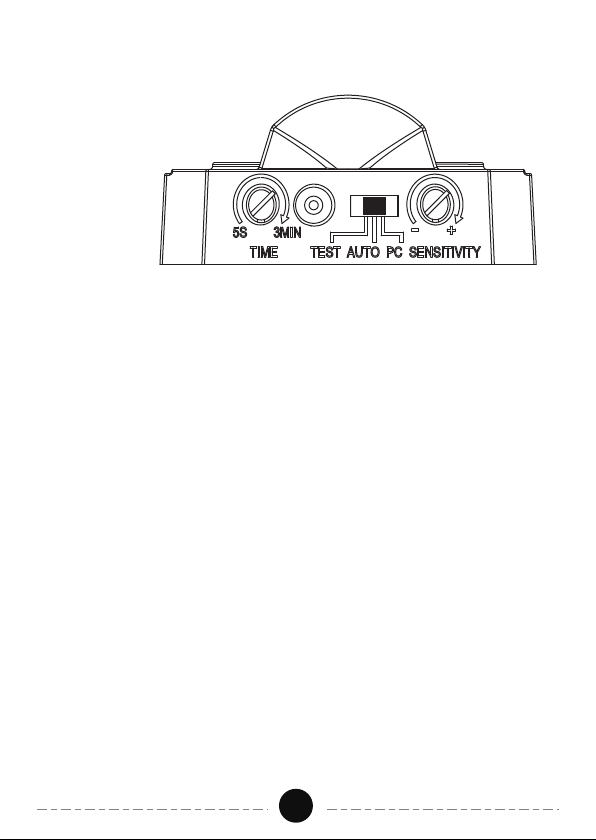

1.TEST mode
Allows you to adjust the sensitivity of motion detector to a desired level at day
or night. When motion stops,This light automatically turns off after approximately
5 seconds.
2.AUTO mode
Motion detector turns your light on automatically after sensing moving heat
sources in its coverage area at dusk, and stays on as long as motion is
detected .When motion stops, light will. Remain on for the predetermined time
you set (5sec. to 3 min.), and then turn off automatically.
3.PC mode
Light turn on at dusk and off at dawn automatically, regardless the presence
of motion.In this mode, time and inductive distance adjustments are not
available.
Remark:
A.(TIME):Rotate clockwise to increase, whereas counterclockwise rotation
decreases. Minimum time of 5 seconds. The maximum time period was 3 min.
B.(SENSITIVITY):Rotate clockwise to increase, whereas counterclockwise
rotation decreases. the preset maximum induction distance is 9 meters.
C.Factory default setting: TEST mode, minimum time (5 seconds), maximum
distance (9 meters).
Operation description
04
PARAMETER DESCRIPTIONS
- Input Voltage: 120VAC 60HZ
- Max load Power for Bulb : Incandescent Bulb 60W
- Socket Type: Standard medium E26 ( bulb not included)
- Material: Die-casting Aluminum and Glass
- Function : Motion sensor
- Dimensions: 17.83’’(H) x 6.3”(W) x 7.6”(D)
- Comply with: ETL
One Year Limited Warranty
Supported by our professional R&D team and QC team, we provide One
Year Warranty for materials and workmanship from the purchase date.
Please note that the warranty does not cover damage caused by personal
misuse or improper installation.
Please attach your Order ID and Name so that our dedicated customer
service team can help you better.
03
05
