USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² Strix/TUF RTX 3090 Ti ABP Set D-RGB

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water!

For best results, EK recommends the use of EK-CryoFuel

coolants! To reach optimal performance, make sure to

thoroughly bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

PREPARING THE GRAPHICS CARD 7

REMOVING THE STOCK LIQUID COOLER FROM STRIX RTX 3090 TI 7

REMOVING THE STOCK LIQUID COOLER FROM TUF RTX 3090 TI 8

CLEANING THE PCB 8

PREPARING THE WATER BLOCK FOR INSTALLATION 9

CUTTING AND PLACING THERMAL PADS 11

APPLYING THERMAL COMPOUND 12

ATTACHING THE WATER BLOCK 12

PREPARING THE BACKPLATE 15

FITTINGS AND TUBING 17

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 17

CONNECTING THE D-RGB LED STRIP 18

TESTING THE LOOP 18

WARRANTY 19

SUPPORT AND SERVICE 20

SOCIAL MEDIA 20

- 4 -

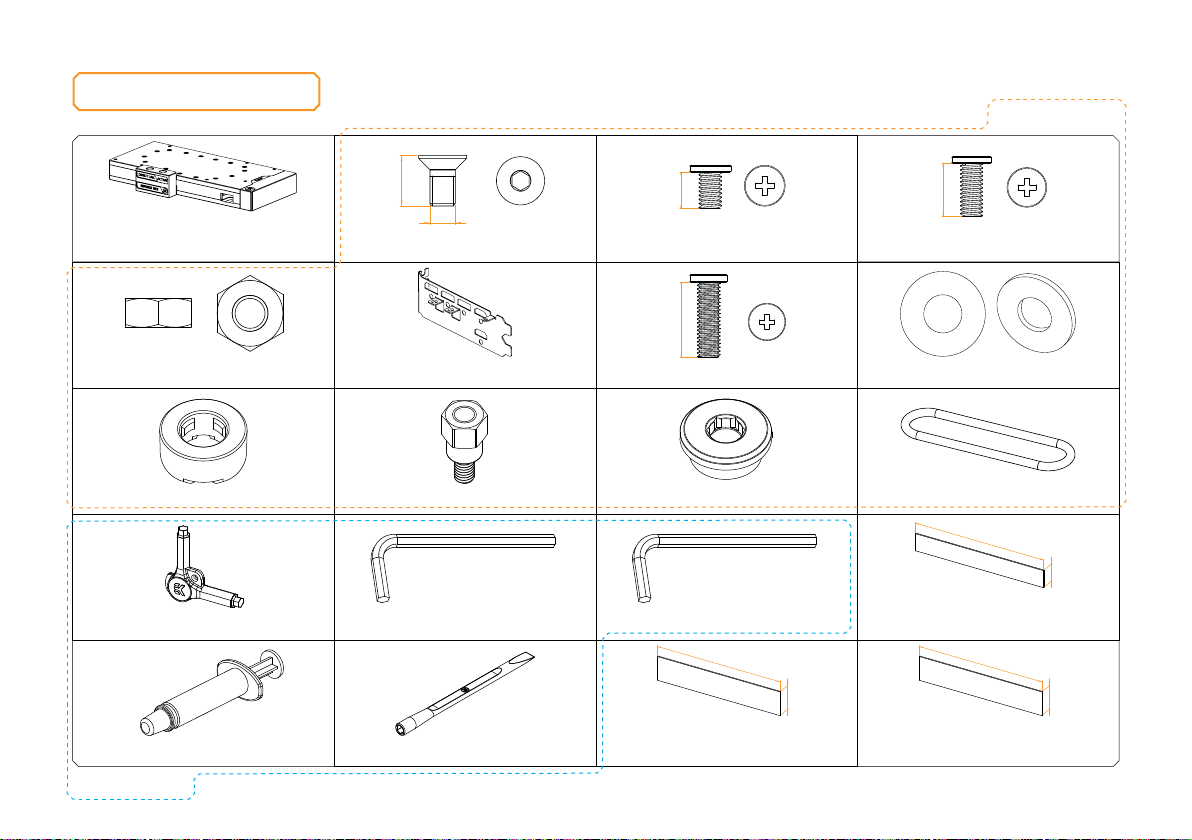

BOX CONTENTS

4 mm

6 mm

10 mm

EK-Loop Multi Allen Key (1 pc) Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc)

Thermal Pad F 1.0 mm (6 pcs)

(3830046996732)

Thermal Pad G 2.0 mm (4 pcs)

(3830046996794)

Thermal Pad G 1.5 mm (2 pcs)

(3830046996787)

Thermal Grease (1 pc)

M3x10 AX1 Screw (1 pc)

EK-Quantum Vector2Strix/TUF

RTX 3090 Ti ABP Set D-RGB M2.5x4 AX1 Screw (8 pcs)M3 x 6 DIN7991 Screw (2 pc)

Polyamid Washer M2.5 0.5mm (8 pcs)

Terminal OR - Vector

14x1 mm (2 pcs)

120 mm

24 mm

120 mm

24 mm

120 mm

16 mm

Standoff Ø4.5/2.5 (1 pc)

Strix/TUF Double Slot Bracket (1 pc)

Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Standoff M2.5-M3 x 6.6mm (1 pc)

Nut M2.5 (2 pcs)

EAN: 105526

EAN: 104549

6 mm

M2.5x6 AX1 Screw (1 pc)

- 5 -

WATER BLOCK DIMENSIONS

95.8 mm

123.8 mm

307.2 mm

142.5 mm

155 mm

41 mm

35.5 mm

- 6 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (L x H x W): 307.15 x 155 x 41mm

- D-RGB LED count: 30

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105518 Coldplate (Nickel) 1

2103962 Plexi insert 1

3105523 Top plate (Plexi) 1

4103986 Standoff M3.5-M2.5 x 11.3 4

5103988 Standoff M4-M2.5 x 3 4

6103987 Standoff M3.5-M2.5 x 3 5

7104106 Terminal OR 14 x 1 mm 4

8103942 Terminal badge 1

9100240 Main O-ring 165 x 2 mm 1

10 9013 Screw M4 x 8 DIN7984 32

11 8208 Screw M3 x 8 7991DIN 2

12 100663 EK - Badge 2

13 103964 Mylar sticker 2

14 104099 Stand out (Acetal) 1

15 104395 Terminal plate (Nickel) 1

16 104414 OR Terminal 52 x 2 mm 1

17 105163 Disc magnet 4

18 104086 ABP Terminal badge 1

19 8311 Screw M4 x 20 DIN7984 6

20 8201 Screw M3 x 10 7991DIN 2

21 104393 FC Terminal 1

22 105512

Side plate (Black e.)

23 104093 Standoff M2.5-M3 x 6.6 7

24 104105 Screw AX1 M3 x 10 7

25 105519 Coldplate ABP (Nickel) 1

26 105524 Top plate ABP (Plexi) 1

27 105510 LED Cover (Nat.elox) 2

28 105369 Main O-ring ABP 160 x 2 mm 1

29 105559 Strix/TUF 3090 Ti Double Slot Bracket (Black) 1

30 8472 Screw M3 x 6 7991DIN 2

31 100815 LED D-RGB strip 500/300 mm 2

32 105526 PCB cardboard 1

- 7 -

PREPARING THE GRAPHICS CARD

STEP 1

REMOVING THE STOCK LIQUID COOLER FROM STRIX

RTX 3090 Ti

Use the Phillips head screwdriver to remove the thirteen (13)

marked stock screws from the backside of the GPU. Two (2) screw

positions, marked red need to be detached from the front side

of the stock cooler. Carefully detach the Stock Cooler Backplate

from the PCB.

To uninstall the cooler you will have to remove the eigth (8) stock

screws from the bracket. Save the removed screws as they are

re-used in the following steps! Remove the stock I/O Bracket!

Always remove the stock cooler slowly - it might be

firmly glued to the PCB with thermal pads.

For this step, you will need:

Phillips Head Screwdriver

- 8 -

STEP 1

REMOVING THE STOCK LIQUID COOLER FROM TUF RTX

3090 Ti

Use the Phillips head screwdriver to remove the fifteen (15)

marked stock screws from the backside of the GPU.

To uninstall the cooler you will have to remove the eigth (8) stock

screws from the bracket. Save the removed screws as they are

re-used in the following steps! Remove the stock I/O Bracket!

STEP 2

CLEANING THE PCB

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

STEP 2

- 9 -

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

First, remove the terminal badge which is attached to the

terminal with two magnets. Under the badge, unscrew three (3)

screws M4 x 20 DIN7984. Additional seven (7) screws M3 x 10

AX1 need to be removed (as shown in the image).

DO NOT REMOVE THE UPPER TERMINAL BADGE!

STEP 1

For this step, you will need:

Phillips Head Screwdriver

UPPER

TERMINAL

BADGE

TERMINAL

BADGE

M4 x 20 DIN7984

SCREW

M3 x 10 AX1 SCREW

DO NOT

REMOVE

THE UPPER

TERMINAL

BADGE!

Allen Key 2.5mm

STEP 2

Carefully remove the complete active backplate with the terminal.

Additional two (2) O-rings 14 x 1 EPDM50 need to be removed.

STEP 2

TERMINAL

O-RING 14 x 1 mm

ACTIVE

BACK PL AT E

- 10 -

STEP 3

M3.5-M2.5 x 11.3

STANDOFF

PCB

CARDBOARD

M2.5-M3 x 6.6

STANDOFF

STEP 3

Unscrew seven (7) M2.5-M3 x 6.6 standoffs with the included

tool (EK-Plug out Spludger Tool). Make sure not to unscrew the

M3.5-M2.5 x 11.3 standoffs! In case the M3.5-M2.5 x 11.3 standoff

unscrews, carefully tighten it back with the 4 mm wrench.

After removing the standoffs, the PCB cardboard needs to be

removed.

For this step, you will need:

EK-Plug Out Spludger Tool

STEP 4

M3 x 6 DIN7991

SCREW

DOUBLE SLOT BRACKET

STEP 4

EK-Quantum Vector

Strix/TUF RTX 3090 Ti D-RGB - Nickel + Plexi

comes with it’s own custom Double Slot Bracket. Position the

bracket accordingly and use Allen Key to screw in two (2) M3 x 6

DIN7991 Screws. Make sure the holes are properly aligned.

Do not use excessive force!

For this step, you will need:

Allen Key 2.5mm
