EK-Quantum Vector2 Strix RTX 3080 D-RGB Bedienungsanleitung

USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² FE RTX 4090 D-RGB

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion-inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water!

For best results, EK recommends the use of EK-CryoFuel

coolants! To reach optimal performance, make sure to

thoroughly bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

NICKEL ACETAL 7

PREPARING THE GRAPHICS CARD 8

REMOVING THE STOCK COOLER 8

PREPARING THE WATER BLOCK FOR INSTALLATION 8

CUTTING AND PLACING THERMAL PADS 9

APPLYING THERMAL COMPOUND 10

ATTACHING THE WATER BLOCK 10

INSTALLING THE BACKPLATE 12

ATTACHING THE BACKPLATE 13

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 13

CONNECTING THE D-RGB LED STRIP 14

TESTING THE LOOP 14

WARRANTY 15

SUPPORT AND SERVICE 16

SOCIAL MEDIA 16

- 4 -

Thermal Grease (1 pc)

BOX CONTENTS

4 mm

8 mm

10 mm

EK-Loop Multi Allen Key (1 pc)

Allen Key 2 mm (1 pc)

Allen Key 2.5 mm (1 pc)

M2.5x8 AX1 Screw (1 pc)

M3x10 AX1 Screw (1 pc)

EK-Quantum Vector2FE RTX

4090 D-RGB

M2.5x4 AX1 Screw (7 pcs)

Polyamid Washer M2.5 0.5mm (7 pcs)

Standoff Ø4.5/2.5 (1 pc)

Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

I/O Bracket (1 pc)

Standoff M2.5-M3 x 6.6mm (1 pc)

Nut M2.5 (2 pcs)

EAN: 105871

EAN: 104549

Thermal Pad F 1.0 mm (6 pcs)

(3830046996732)

Thermal Pad F 1.5 mm (6 pcs)

(3830046996749)

Thermal Pad F 2.0 mm (1 pc)

(3830046996756)

120 mm

16 mm

120 mm

16 mm

120 mm

16 mm

- 5 -

WATER BLOCK DIMENSIONS

236.3 mm

95.9 mm

123.9 mm

135.5 mm

148 mm

27 mm

25.7 mm

- 6 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (L x H x W): 236.3 x 148 x 27 mm

- D-RGB LED count: 14

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105848 Coldplate (Nickel) 1

2103970 Stand out (Acetal) 1

3103964 Mylar sticker 2

4100663 EK - Badge 2

58208 Screw M3 x 8 7991DIN 2

6103947 FC Terminal (Acetal) 1

78311 Screw M4 x 20 DIN7984 3

8103942 Terminal Badge 1

9104216 Disc magnet 3 x 3 2

10 104106 Terminal OR - 14 x 1 mm 2

11 105850 Top plate (Plexi) 1

12 105858 LED Cover (N. Elox) 1

13 8533 Standoff M4/M2.5 x 2.5 mm 5

14 103986 Standoff M3.5-M2.5 x 11.3 mm 4

15 105876 Standoff M3.5-M2.5 x 12.9 mm 2

16 105854 Backplate (Black e.) 1

17 103975 Bridge Plate 1

18 103962 Plexi insert 1

19 105878 I/O Bracket 1

20 9024 Screw M4 x 10 DIN7984 12

21 104187 Screw M2.5 x 8 AX 8

22 104188 Standoff 4.5/2.5 mm 6

23 105869 OR - 130 x 2 mm 1

24 101556 LED D-RGB strip 500/300 mm 1

25 105872 PCB cardboard 1

20 9

- 7 -

NICKEL ACETAL

- Dimensions: (L x H x W): 236.3 x 148 x 27 mm

- D-RGB LED count: 28

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105849 Coldplate (Nickel) 1

2100663 EK - Badge 2

3103947 Terminal (Acetal) 1

48311 Screw M4 x 20 DIN7984 3

5103942 Terminal Badge 1

6104216 Disc magnet 3 x 3 2

7104106 Terminal OR - 14 x 1 mm 2

8105851 Top plate (Acetal) 1

98533 Standoff M4/M2.5 x 2.5 mm 5

10 103986 Standoff M3.5-M2.5 x 11.3 mm 4

11 105876 Standoff M3.5-M2.5 x 12.9 mm 2

12 105854 Backplate (B. Elox) 1

13 103975 Bridge Plate 1

14 103962 Plexi insert 1

15 105878 I/O Bracket (Black) 1

16 9024 Screw M4 x 10 DIN7984 12

17 104187 Screw M2.5 x 8 AX1 8

18 104188 Standoff 4.5/2.5 mm 6

19 105869 OR - 130 x 2 mm 1

20 103967 Light Guide 1

21 104296 LED D-RGB Strip Double - 500/130 mm 1

22 8202 Screw M3 x 12 DIN7991 2

23 104211 Mylar sticker 2

24 103973 Stand Out (Acetal) 1

25 105872 PCB cardboard 1

- 8 -

PREPARING THE GRAPHICS CARD

Phillips Head Screwdriver

STEP 1

REMOVING THE STOCK COOLER

Place your graphics card on the ﬂat surface and carefully remove the

stock cooler. Do not forget to unplug all the LED and fan connectors.

Pay attention to the following steps when installing the EK-Quantum

Vector2FE RTX 4090 water block onto your graphics card.

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

Unscrew six (6) Screws AX1 M2.5 x 8 mm. Remove the backplate

together with Screws and backplate standoffs. Standoffs must stay

on Screws AX1 M2.5 x 8 mm. Remove the PCB cardboard. Save the

removed parts for later steps.

Do not remove standoffs from screws! In case the

standoff detaches from the screw, replace it with a

spare one. When replacing the standoff make sure

that you screw it on the AX1 M2.5 x 8 screws. Do not

push the standoff onto the screw AX1 M2.5 x 8 mm.

STEP 1

For this step, you will need:

BACK PL AT E

M2.5 x 8 AX1

BACK PL AT E STA NDO FF

DO NOT REMOVE

STANDOFFS

FROM SCREWS!

PCB

CARDBOARD

- 9 -

STEP 2

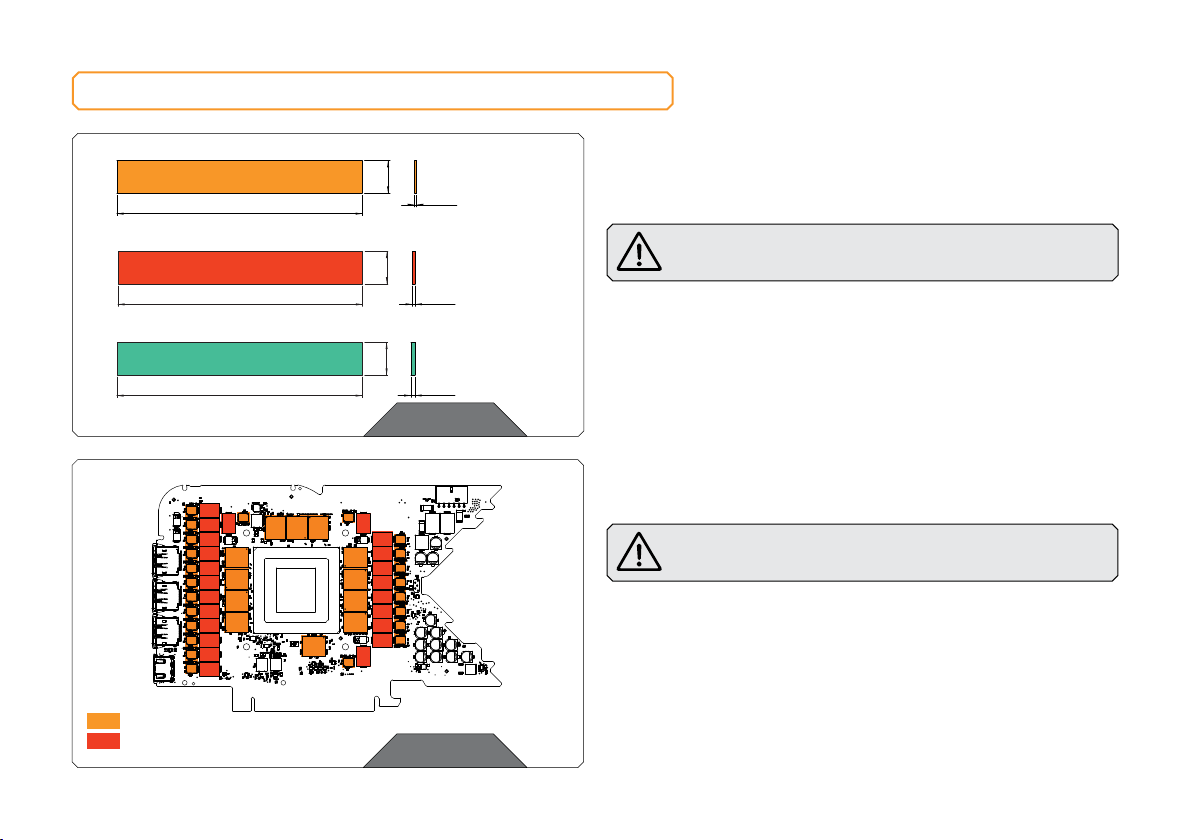

Once cut to the size, Thermal Pads should be placed on the PCB, as

shown in the picture:

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 2

STEP 1

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

Thermal Pad F – 2.0 mm (120 x 16 mm)

2 mm

120 mm

16 mm

STEP 1

The GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

Remove the protective foil from both sides of the thermal

pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad F 1.5 mm – (120 x 16 mm) EAN: 3830046996749

Thermal Pad F 2.0 mm – (120 x 16 mm) EAN: 3830046996756

Thermal Pad - 120 x 16 x 1.0 mm

Thermal Pad - 120 x 16 x 1.5 mm

F1.5

Thermal Pad F – 1.5 mm (120 x 16 mm)

1.5 mm

120 mm

16 mm

F1F1

F1 F1

F1.5

- 10 -

Thermal Grease

STEP 1

Apply the enclosed thermal grease (thermal compound) on the

GPU heat spreader – IHS – as shown in the image. The layer of the

thermal compound must be thin and even over the entire surface

of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

APPLYING THERMAL COMPOUND

For this step, you will need:

ATTACHING THE WATER BLOCK

STEP 1

Carefully position the water block with preinstalled standoffs on

the graphics card. During this process, make sure you have aligned

mounting holes of the PCB with holes of the water block.

Pay attention not to use too much force when pressing

the block down to the PCB since chip dies are prone

to cracking.

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 1
