Elation DESIGN SPOT 575E Bedienungsanleitung

Instruction Manual

from software version 1.0

(instruction version 1.0)

Elation Lighting www.elationlighting.com 2

This side is intentionally unlabelled.

Elation Lighting www.elationlighting.com 3

Table of contents

1Description of Device..........................................................................................................7

1.1 Safety Instructions.......................................................................................................8

2Preparation and Installation..............................................................................................9

2.1 Mounting........................................................................................................................9

2.1.1 Clamps ..............................................................................................................9

2.2 Secure the POWER WASH 575E

POWER WASH 575E ..................................................................... 10

2.3 Connections.............................................................................................................. 11

2.3.1 Power supply ................................................................................................. 11

2.3.2 DMX................................................................................................................. 11

2.4 Fuse............................................................................................................................ 11

3The Menu Field................................................................................................................... 12

3.1 Adjust the DMX- Address (D001).......................................................................... 13

3.2 The Test Program (TEST) .................................................................................... 14

3.3 The Audio Program (AUDI).................................................................................. 14

3.4 Lamp On/Off (LAMP)............................................................................................. 14

3.5 Reset (RESE) .......................................................................................................... 15

3.6 Running time of lamp and unit (TIME) .............................................................. 15

3.7 Continuous Color Wheel (FCOL)........................................................................ 15

3.8 Invert Pan Movement (RPAN)............................................................................... 15

3.9 Invert Tilt Movement (RTLT) ................................................................................. 15

3.10 Special Functions (SPEC)..................................................................................... 16

3.10.1Manual Drive (MANU) ............................................................................... 16

3.10.2Lamp On automatically (LAAU).............................................................. 16

3.10.3Lamp Off via DMX (DLOF) ........................................................................ 17

3.10.4DMX Input (DMXI)...................................................................................... 17

3.10.5Display (DISP) ............................................................................................. 18

3.10.6Fixture Temperature (TEMP).................................................................... 18

3.10.7Fan Control (FANS).................................................................................... 18

3.10.8Adjustments and Calibrations (ADJU).................................................... 19

3.10.9Default Settings (DFSE)............................................................................. 20

3.10.10 Position Feedback (FEED) ................................................................. 20

3.10.11 Correction of faults (EFLG).................................................................. 20

Elation Lighting www.elationlighting.com 4

3.11 Error and Information Messages...........................................................................20

4DMX Channel Selection (DMX Protocol).......................................................................22

5Change the Lamp...............................................................................................................24

5.1 Safety Regulations....................................................................................................24

5.2 Realize the Lamp Change ......................................................................................24

6Maintenance and Cleaning the POWER WASH 575E

POWER WASH 575E...........................................25

6.1 Safety Regulations....................................................................................................25

6.2 Circumference and Interval (rule-of-thumb).........................................................25

6.3 Cleaning the Optical System ..................................................................................26

7Technical Specification....................................................................................................26

8Index .....................................................................................................................................30

Elation Lighting www.elationlighting.com 5

INTRODUCTION: Congratulations, you have just purchased one of the most

innovative and reliable lighting fixtures on the market today! The Power Wash 575E™,

has been designed to perform reliably for years when the guidelines in this booklet are

followed. Please read and understand the instructions in this manual carefully and

thoroughly before attempting to operate this unit. These instructions contain

important information regarding safety during use and maintenance.

UNPACKING: Thank you for purchasing the Power Wash 575E™ by Elation

Professional®. Every Power Wash 575E™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for

damage that may have occurred during shipping. If the carton appears to be

damaged, carefully inspect your unit for damage and be sure all accessories

necessary to operate the unit have arrived intact. In the event damage has been found

or parts are missing, please contact our customer support team for further

instructions. Please do not return this unit to your dealer without first contacting

customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to

provide set up help and to answer any question should you encounter problems

during your set up or initial operation. You may also visit us on the web at

www.elationlighting.com for any comments or suggestions. For service related issue

please contact Elation Professional®. Service Hours are Monday through Friday 9:00

a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 582-3108

E-mail: [email protected]

Forum: www.ElationLighting.com/forum/

Warning!To prevent or reduce the risk of electrical shock or fire, do not expose this

unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any

repairs yourself, doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever

possible.

Elation Lighting www.elationlighting.com 6

WARRANTY REGISTRATION:The Power Wash 575E™ carries a two year (730

days) limited warranty. Please fill out the enclosed warranty card to validate your

purchase. All returned service items whether under warranty or not, must be freight

pre-paid and accompany a return authorization (R.A.) number. The R.A. number must

be clearly written on the outside of the return package. A brief description of the

problem as well as the R.A. number must also be written down on a piece of paper

and included in the shipping container. If the unit is under warranty, you must provide

a copy of your proof of purchase invoice. Items returned without a R.A. number clearly

marked on the outside of the package will be refused and returned at cutomers

exspence. You may obtain a R.A. number by contacting customer support at (323)

582-3322.

D IS CHAR GE LAMP WAR NING:This fixture is fitted with a

discharge lamp, which is highly susceptible to damage if

improperly handled. Never touch the lamp with your bare hands, as

the oil from your hands will shorten lamp life. Also, never move the

fixture until the lamps have had ample time to cool. Remember,

lamps are not covered under warranty conditions.

This fixture emits intense UV radiation, which is harmful to the eyes and skin. The

intense luminance of the lamp can cause severe damage to the retina. Never operate

this fixture with the protective covers removed, these covers have been specially

designed to shield against UV radiation.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into

the lamp at all times.

Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce

lamp life and intensity.

To achieve the intensity associated with discharge lamps, these lamps use a gas

sealed in a high-pressure environment to emit a brilliant output. Due to the high

pressure involved with the construction of the lamp, the lamp may explode during

prolonged extensive use. This risk is increased with age; added care is encouraged

when dealing with older lamps. Thus, lamp should always be replaced at the end of

their recommended duty cycle. Extreme caution should be used when operated this or

any fixture fitted with a gas discharge lamp.

Never open this fixture while in use!

During the initial operation of this fixture, a light smoke or smell may emit from the

interior of the fixture. This is a normal process and is caused by excess paint in the

interior of the casing burning off from the heat associated with the lamp.

Elation Lighting www.elationlighting.com 7

1 Description of Device

1. Moving Head

2. Carrying handles

3. LED- Display

4. Arm

5. Camlock system

MaxMin

DMX IN DMX OUT

Software Update

1.Ground

2.Data -

3.Data +

Mic Sensitivity

8 9

6. Software-Update

connector

7. Microphone- Intensity

8. DMX- Input

9. DMX- Output

10. Fan (air inlet/outlet)

11. Power On/Off

12. Mains supply

(Powercon)

13. Fuse lamp

14. Fuse electronics

15. Carrying handles

Lamp Fuse Electronic Fuse

Power input:90 - 260VAC,

50 / 60Hz POWER

13 14

Elation Lighting www.elationlighting.com 8

1.1 Safety Instructions

The POWER WASH 575E

POWER WASH 575E is a High-Tech Product. To

guarantee a smooth operation, it is necessary to keep

following rules.

The manufacturer of this device will not take responsibility of

damages through disregard of the information in this manual.

Warranty adjustments will be cancelled.

1. Make sure before putting into operation, that the fan and the air inlets are

clean and not blocked by anything.

2. Attention: Don’t touch the device during the operation. This can cause

injuries or damages.

3. Unplug the POWER

POWER WASH

WASH 575E

575E from the AC outlet before any

attempting any service.

4. It is necessary to wait at least 30 minutes after disconnecting the AC before

you open the POWER WASH

POWER WASH 575E

575E. Please do not touch the bulb of the

lamp if you are not absolutely sure it is cold. -- Danger of BURNING --

5. Never look directly into the beam of the lamp. You risk injury of your retina

and blindness.

6. Pay attention of the maximum lamp operation time. You have to change it if

the lamp shows any deformations or damages. The same is with all glass

components, color filters, lenses and mirrors.

7. To allow a secure operation, follow also the Installation guide described in

chapter 2. Operating the POWER WASH 575E

POWER WASH 575E without suited safety aids

like Safety cables or clamps/hooks can increase the risk of an accident.

8. Installation should be done by qualified staff only. You need to pay attention

to the common rules of technology that are not explicitly mentioned in this

manual.

9. Use only original spare parts. Any structural modification will cancel all

warranty adjustments.

Elation Lighting www.elationlighting.com 9

2 Preparation and Installation

2.1 Mounting

The POWER

POWER WASH

WASH 575E

575E is fully operational whether it hangs or is mounted

to the wall. It can also be operated while standing on the floor. Keep a safety

distance of 0.5 m towards any easy inflammable materials (decoration etc.).

Install a safety wire that can hold at least 10 times the weight of the fixture. Never

use the carrying handles for secondary attachment.

Pay attention to the regulations of: BGV C1 (former VBG 70) and

DIN VDE 0711-217 !

The installation should be done by qualified staff only.

2.1.1 Clamps

There are two major possibilities to mount the POWER

POWER WASH

WASH 575E

575E

together with clamps. Camlock system or direct mounting of clamps. In

both cases you have to regard a sufficient stability of the system. For

installation instructions please see also printing on the backside of the

case.

Elation Lighting www.elationlighting.com 10

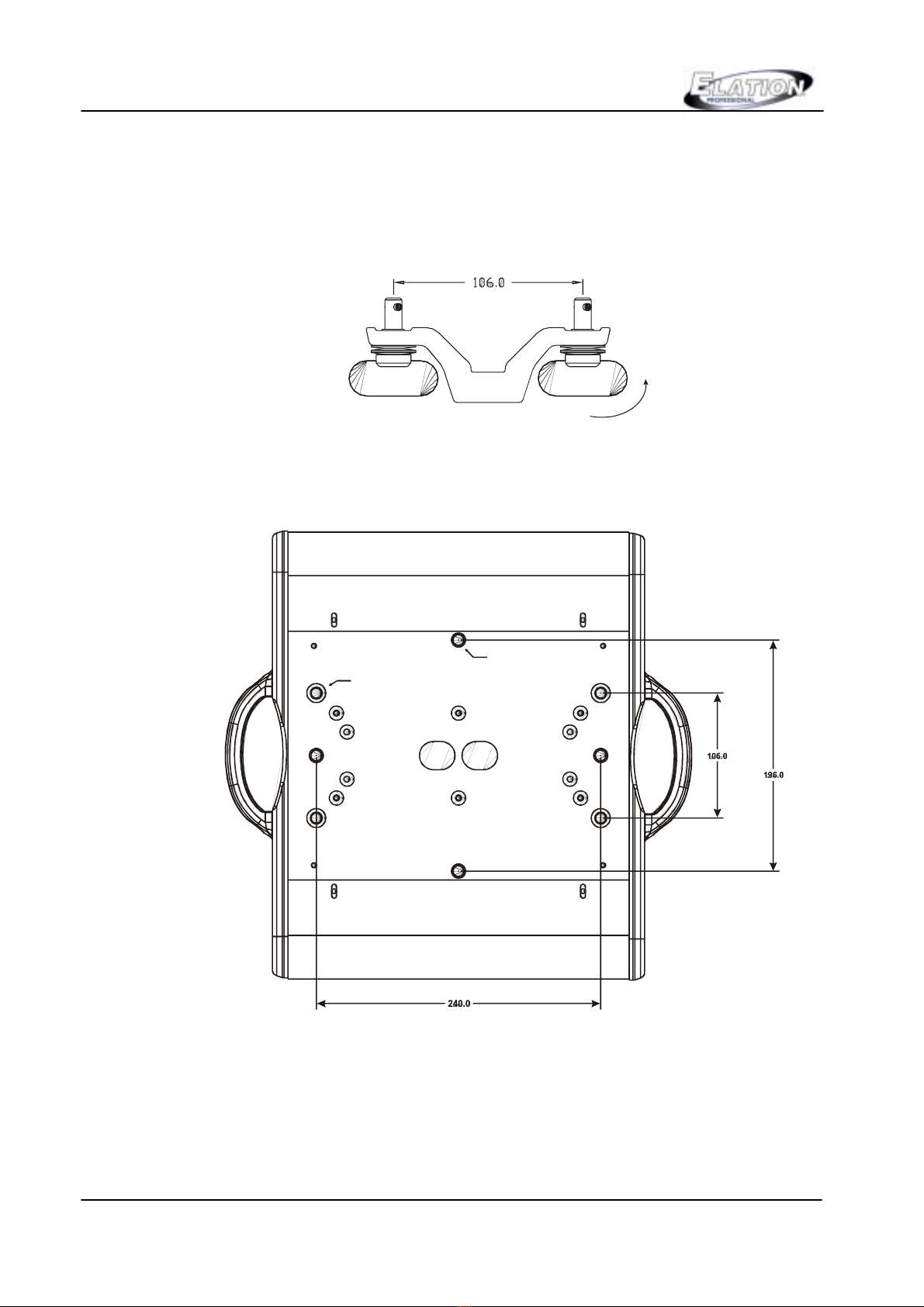

a) Camlock system: This system allows you a fast and efficient setup of

clamps. Attach the two camlocks to designated position on the

backside of the case and close the locks by turning them 90°. Verify

the secure fit of the camlock system. The clamps themselves are

directly attached permanently on the camlocks.

90°

b) Use two clamps direct on the backside of the POWER

POWER WASH

WASH 575E

575E

to mount the unit on a truss (each two opposite threads max. M10x20).

4x M10x20mm

4x Camlock

2.2 Secure the POWER WASH 575E

POWER WASH 575E

Regardless of the rigging of the POWER

POWER WASH

WASH 575E

575E you have to use a

stipulated safety wire. Therefore you have to thread to safety wire through to two

provided holes on the backside of the fixture and connect it with the truss-

support. Pay attention to a safe and proper fastening.

Andere Handbücher für DESIGN SPOT 575E

Inhaltsverzeichnis

Andere Elation Beleuchtungsausrüstung Handbücher

Elation

Elation CRISP Bedienungsanleitung

Elation

Elation CHORUS LINE 8 Bedienungsanleitung

Elation

Elation PLATINUM BEAM 5R XM485-V1.0-NR Bedienungsanleitung

Elation

Elation FUZE PENDANT COMPACT Bedienungsanleitung

Elation

Elation KLF060 Bedienungsanleitung

Elation

Elation Design LED 36 Brick Bedienungsanleitung

Elation

Elation Design LED 36UV Bedienungsanleitung

Elation

Elation Opti Quad Par Bedienungsanleitung

Elation

Elation ELAR EXQUADPAR HP Bedienungsanleitung

Elation

Elation OPTI RGBA Bedienungsanleitung

Elation

Elation EPAR QA Bedienungsanleitung

Elation

Elation SNIPER 2R Bedienungsanleitung

Elation

Elation SIXPAR 300IP Bedienungsanleitung

Elation

Elation VISION 575 Bedienungsanleitung

Elation

Elation LED White Light Fresnel ELED Fresnel Bedienungsanleitung

Elation

Elation Arena Par Bedienungsanleitung

Elation

Elation Design LED 36 Brick Bedienungsanleitung

Elation

Elation OPTI QA PAR Bedienungsanleitung

Elation

Elation SHOW DESIGNER 2CF Bedienungsanleitung

Elation

Elation Level Q7 IP Bedienungsanleitung

Elation

Elation EPAR TRI Bedienungsanleitung

Elation

Elation SIXBAR 500 Bedienungsanleitung

Elation

Elation Design LED 36WA Bedienungsanleitung

Elation

Elation UNI BAR Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
