Elation CRISP Bedienungsanleitung

Crisp

Service Manual

After Service Department

Version: V3.0

Date: 2023.08.19

Crisp

Service Manual Contents

• Exploding View 1

• Wiring diagram 10

• Circuitry of The PCB 11

After Service Department 1

Item No.

Struture

Name

Date Version

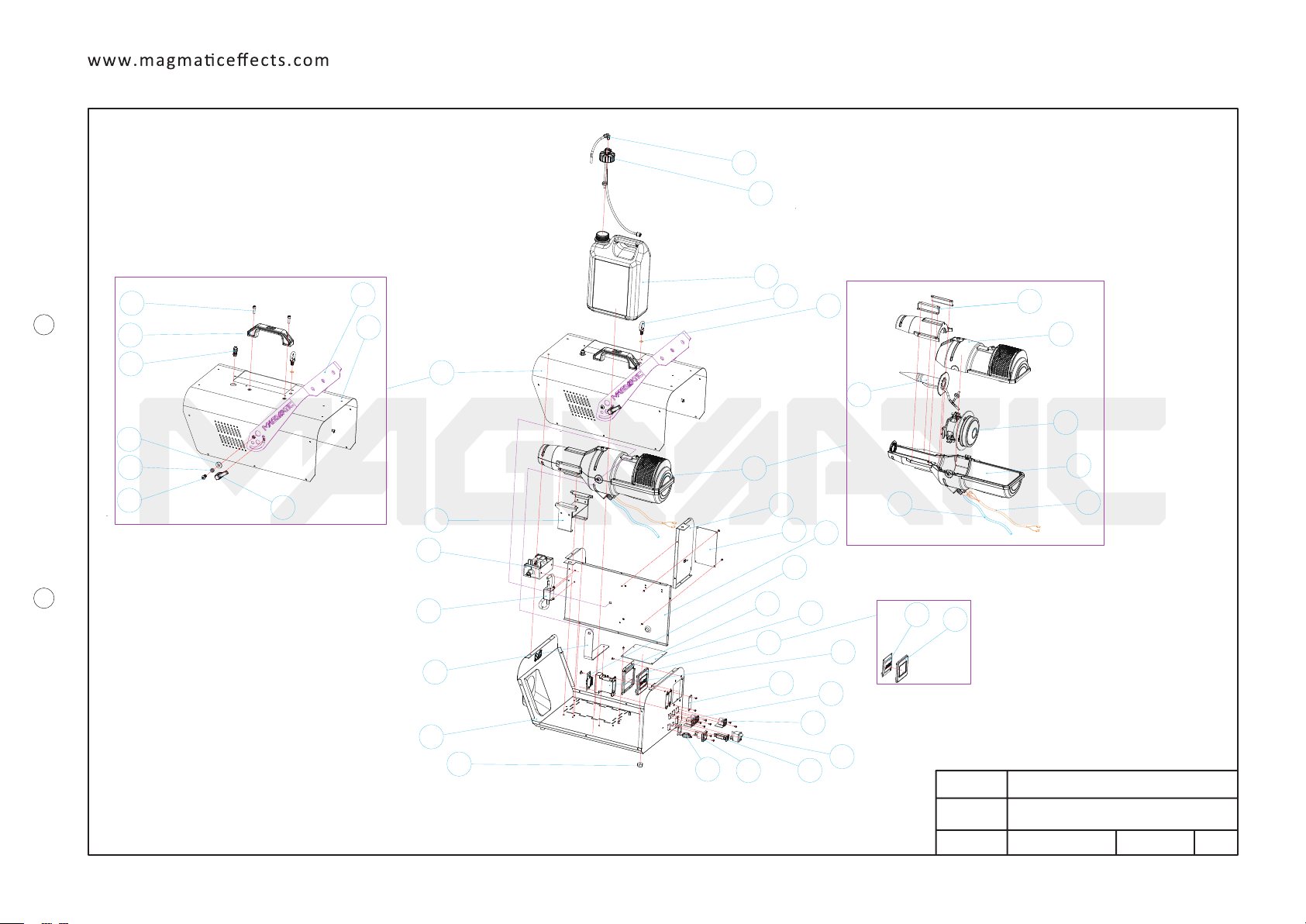

Exploding View # FN22-E005

2.0

2021.08.10

Crisp

13 14

23 24

27 28

16A

16B

16E

16D

16C

16G

16F

21C

21B 21D

21A

21E

21F

21G

21H

21I

After Service Department 2

ET item no. ET2 item no.

Exploded

drawing

number

photo Item no. Description

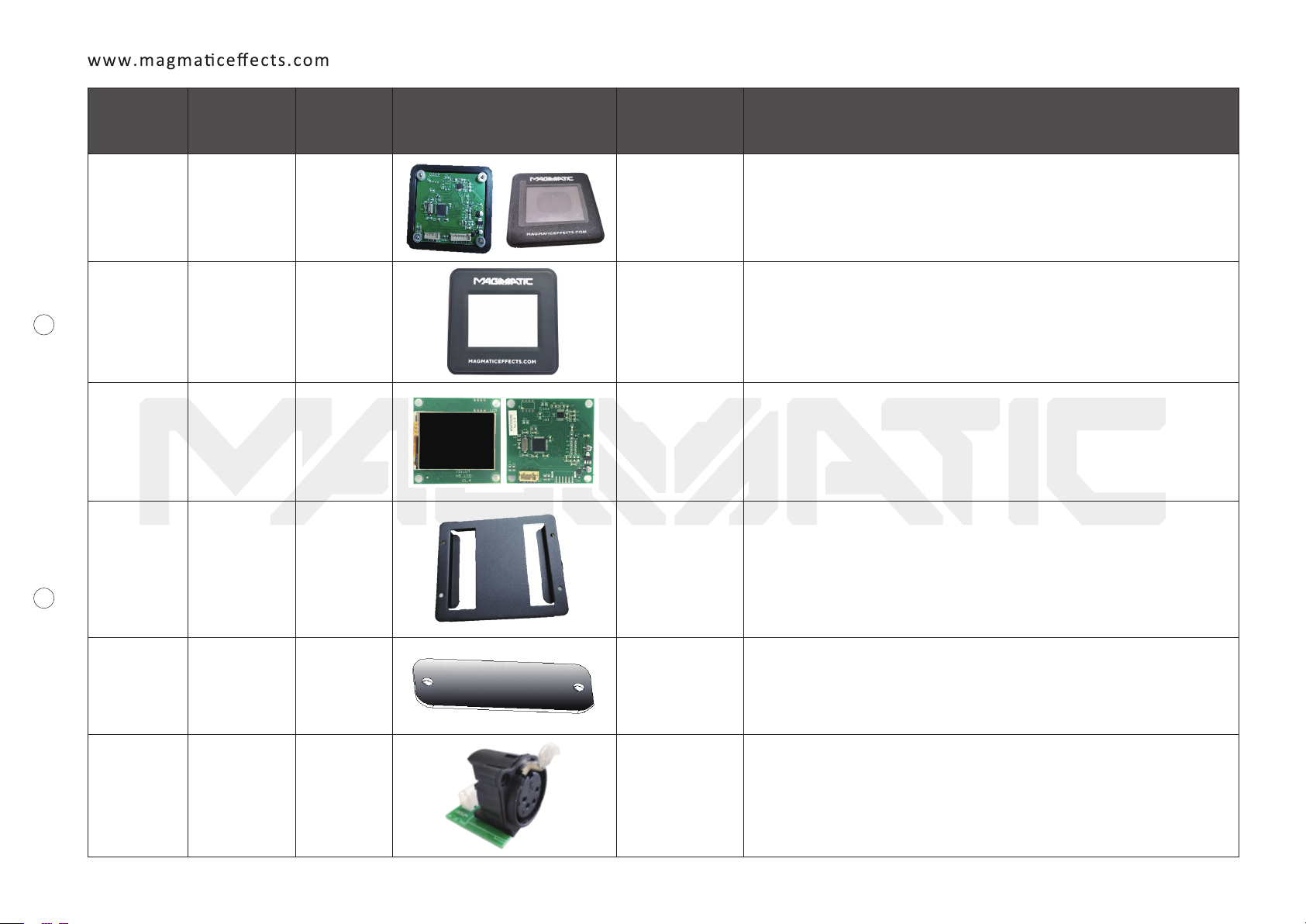

1 AAXFN22XZZZZ Display board assembly for Crisp

1A FBXFZ22XPXZZ Touch screen holder for Crisp

1B APXFN22XLCDZ Finished display board for Crisp

2 EXFN22XA013Z Screen mount for Crisp

3 EXFN22XA010Z Wireless slot cover panel for Crisp

4 APXFN22X110Z 4Pin Female XLR Connector PCB for Crisp

After Service Department 3

ET item no. ET2 item no.

Exploded

drawing

number

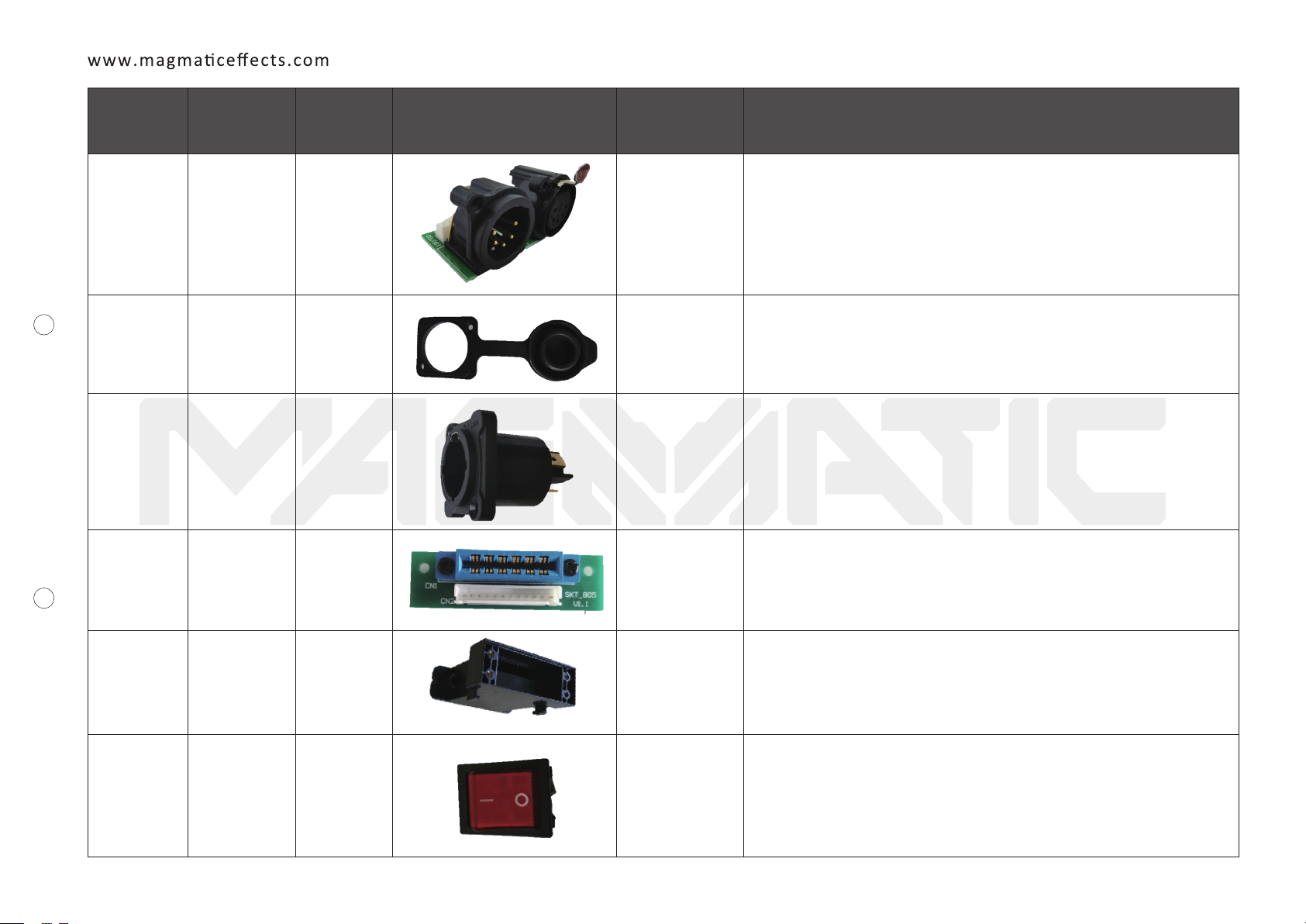

photo Item no. Description

5 APXFN22DMXBZ 5Pin Male/Female Connector PCB for Crisp

6 WHXFZ22XCNAC Waterproof pad for Crisp

7 EAXSAC3MPLYZ TRUPOWERCON female TRUE1 waterproof power plug socket for Crisp

8 APXSKT805XBZ Connector PCB(#SKT_805) for Crisp

9 EXFN22D007ZZ Wireless slot base for Crisp

10 SAX16AZZZZZZ Double pole red illuminated switch 16A for Crisp

After Service Department 4

ET item no. ET2 item no.

Exploded

drawing

number

photo Item no. Description

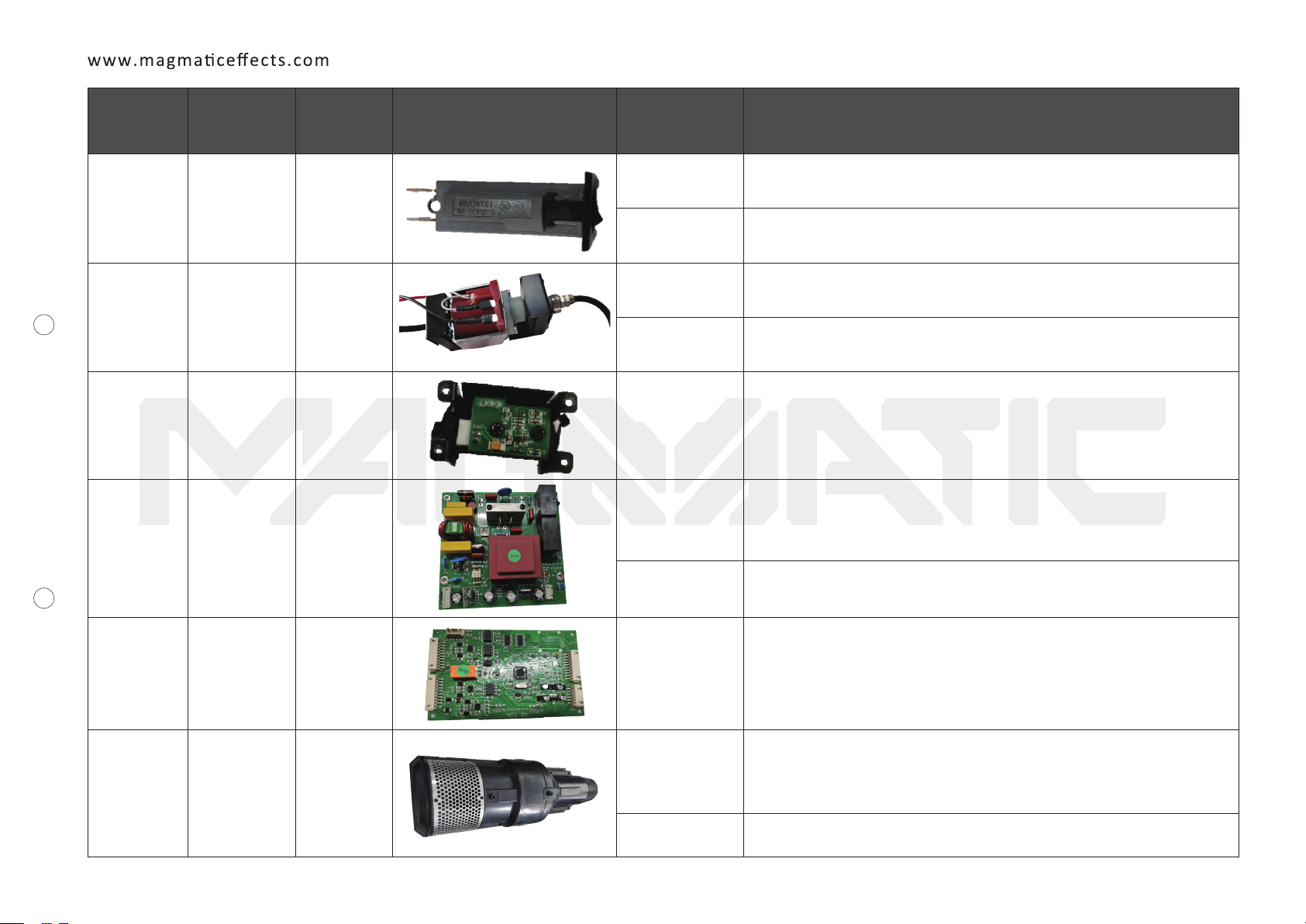

SKX15AX250VZ 120V-non-fuse fuse 15A for Crisp

SKX09AX250VZ 230V-non-fuse fuse 9A for Crisp

AAXFN22CCBMG 120V Pump assembly for Crisp

AAXFN22CCBOG 230V Pump assembly for Crisp

13 AAXFN22XYJQZ Oil inspection board assembly for Crisp

APXFN22120VZ Power supply board for Crisp (120V)

APXFN22230VZ Power supply board for Crisp (230V)

15 APXFN22XZZZZ Finished main control board for Crisp

AAXFN22XHPTZ Barrel assembly for Crisp (120V)

AAXFN22XHPZZ Barrel assembly for Crisp (230V)

After Service Department 5

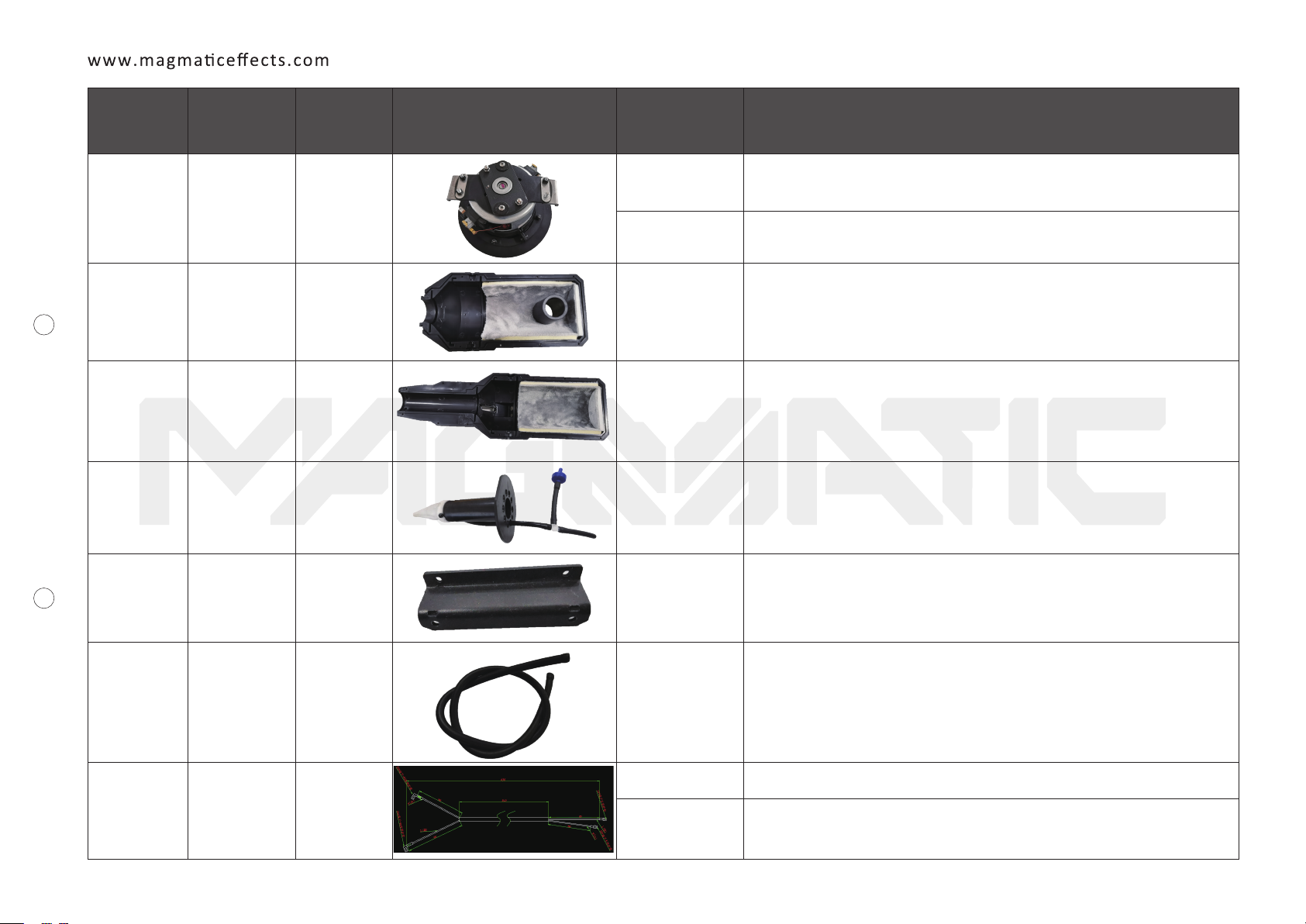

ET item no. ET2 item no.

Exploded

drawing

number

photo Item no. Description

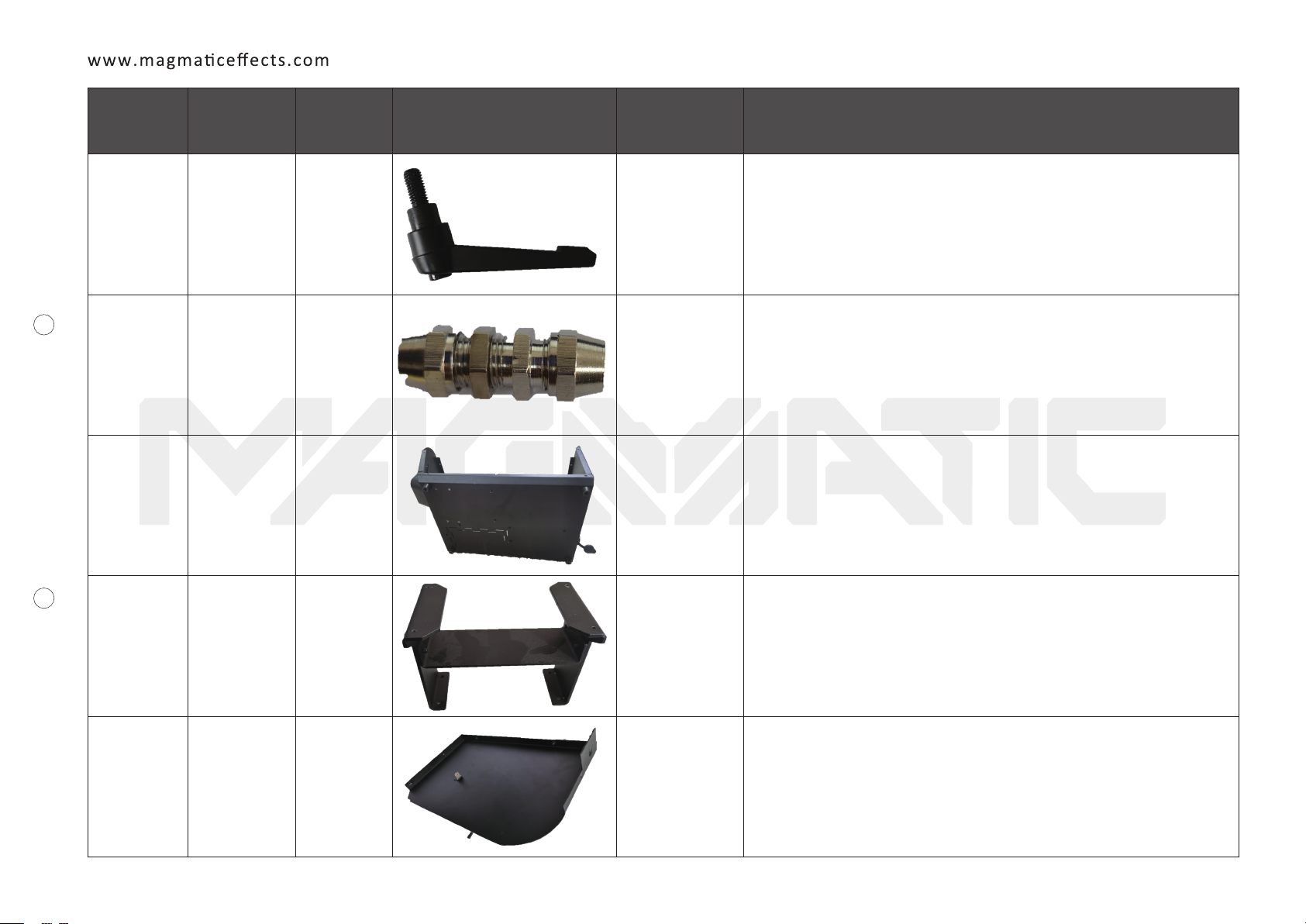

16A

AAXFN22X120Z Motor component for Crisp (120V)

AAXFN22X230Z Motor component for Crisp (230V)

16B AAXFN22CHPHZ Barrel cover A assembly for Crisp

16C AAXFN22XHPHZ Barrel cover C assembly for Crisp

16D AAXFN22PKZJZ Nozzle assembly for Crisp

16E FBXFN22A017Z Front motor bracket xing piece for Crisp

16F WIXFNX6X30BZ Black hose for Crisp

16G

PBXFN22E005B Fan power cord B 630mm for Crisp (EU-230V)

PBXFN22E005A Fan power cord A 340mm for Crisp (US-120V)

After Service Department 6

ET item no. ET2 item no.

Exploded

drawing

number

photo Item no. Description

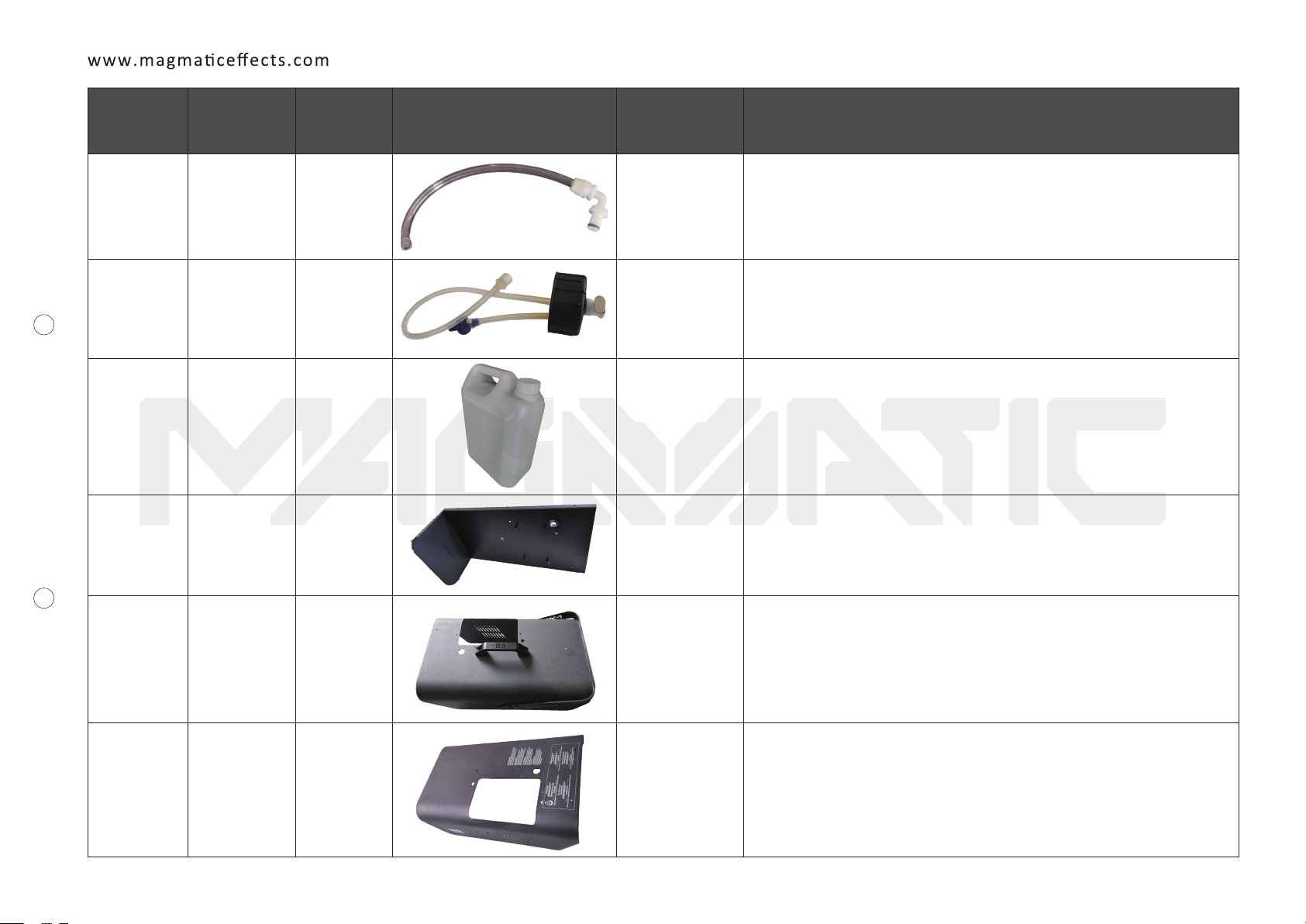

17 AAXFN22YGJTZ Fluid hose for Crisp

18 AAXFN22YTGJZ Tnak cap assembly for Crisp

19 YCXFN22XYTZZ Oil tank for Crisp

20 EXFN22XA003Z Partition for Crisp

21 AAXFN22ZYZJZ Top Cover Set for Crisp

21A EXFN22XA001Z Top Cover for Crisp

After Service Department 7

ET item no. ET2 item no.

Exploded

drawing

number

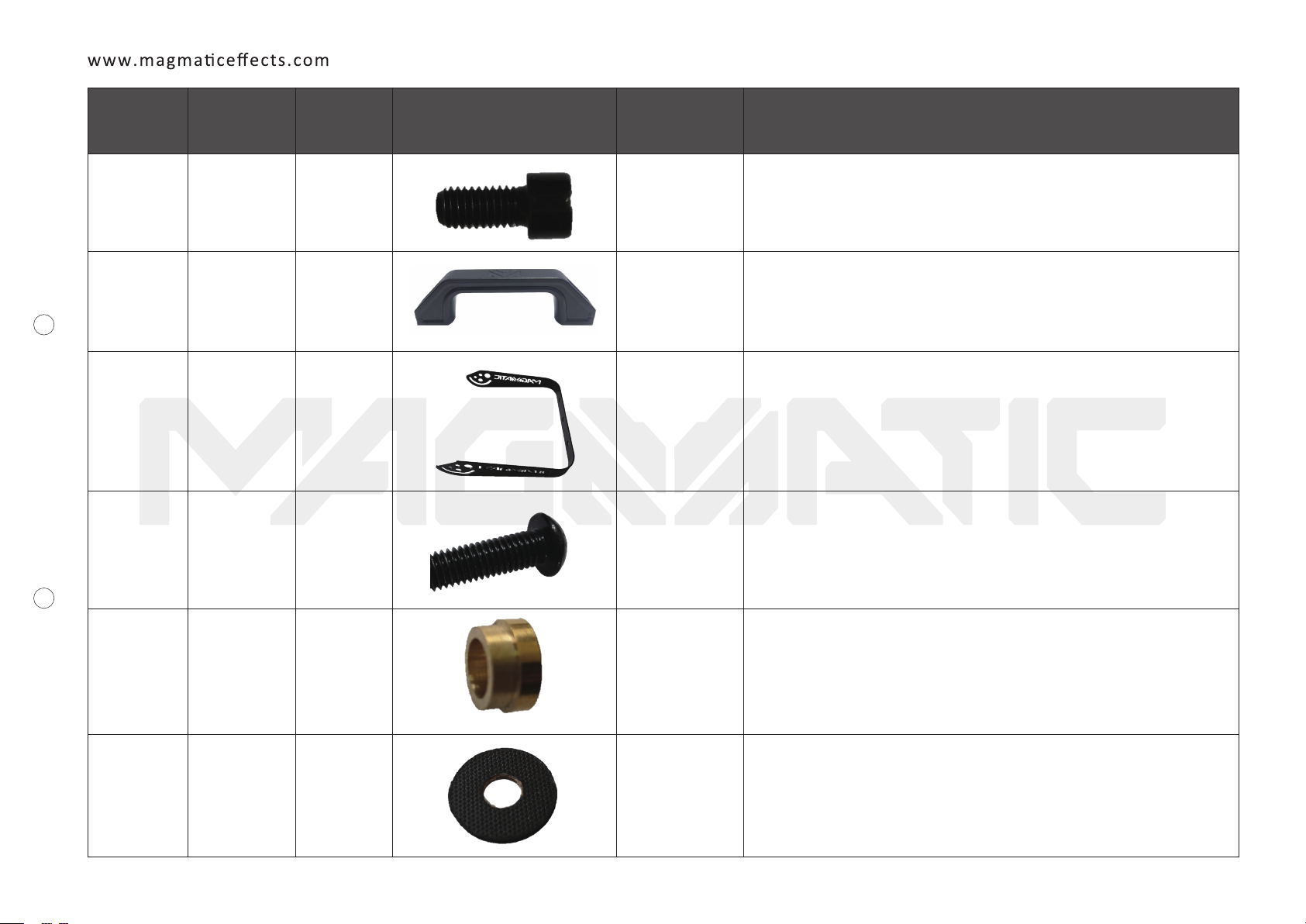

photo Item no. Description

21B QF1XM6X20ZZZ Screw for Crisp

21C AAXFN62WBBMG Handle for Crisp

21D EXFN22XA014Z bracket for Crisp

21E QDOXM8X16ZZZ Screw for Crisp

21F WHXSK50XC14Z Handle xing copper sleeve for Crisp

21G QGXM8X22X2ZZ Washer for Crisp

After Service Department 8

ET item no. ET2 item no.

Exploded

drawing

number

photo Item no. Description

21H QKXM8X16LHJZ Aluminum alloy adjustable screw for Crisp

21I NBXM5X00002Z Hose Connector for Crisp

22 EXFN22XA002Z Back Cover for Crisp

23 AAXFN22QDJZZ Front Motor brack for Crisp

24 EXFN22XA004Z Tank Partition for Crisp
