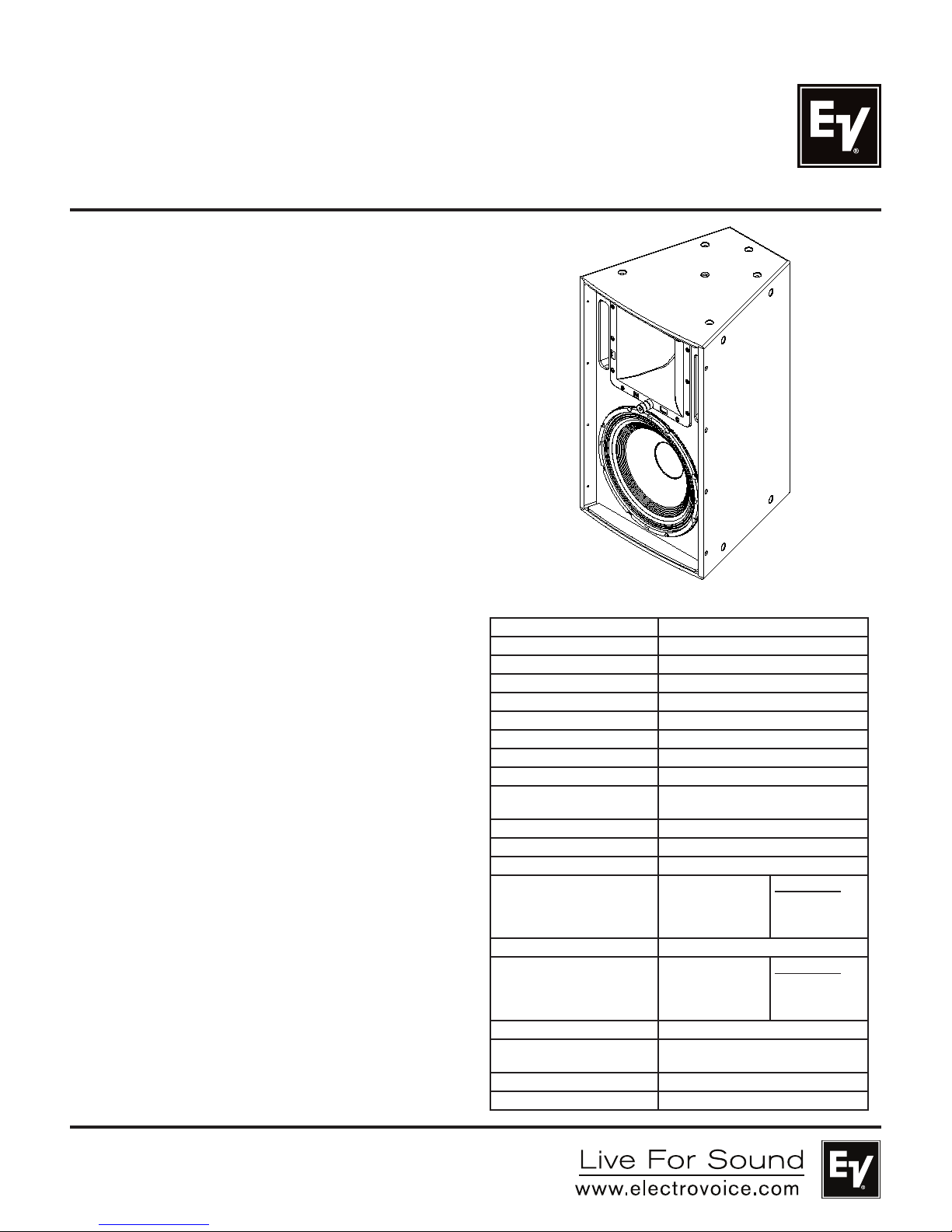

Electro-Voice EVF-1152S/94 Bedienungsanleitung
EVF-1152S/94
Single 15” Two-Way
90° x 40° Full-Range
Loudspeaker System
General Description: Technical Specifications:
Key Features:
ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit •
Pure Titanium Compression Driver
SMX2151 15” (381mm) LF Transducer with Fully •
Symmetric Drive
Advanced 4• th Order Crossover Network with HF
Protection
Coverage Pattern: 90° x 40° Constant •
DirectivityTM 12” Rotatable Waveguide
101 dB Sensitivity, 134 dB Maximum SPL •
System Rating: 500W Continuous, (2000W Peak)•
Active Rating: LF400W/HF40W Continuous •
(1600W/160W Peak)
(22) M10 Threaded Suspension Points•
PI Version Available with Gland Nut and Stain-•
less Steel Grille
The Electro-Voice® EVF-1152S/94 is a high power, 2-way loud-
speaker system that can be used in a variety of applications where
high quality sound reinforcement is required in a compact, light-
weight package.
The EVF-1152S/94 utilizes the ND2B, a high output 2” titanium
compression driver, coupled to a Constant Directivity™ 90° x 40°
waveguide. The SMX2151 15” woofer used FEA optimization for
motor, suspension, and electrical design for very low distortion,
high efficiency, and maximum intelligibility at high SPL levels. The
crossover uses steep 24 dB/octave slopes with equalization for
very smooth response in vocal range, linear off-axis response, and a
protection circuit for long term reliability.
The EVF-1152S/94 features make it ideal for many fixed install appli-
cations. The trapezoidal enclosure is constructed out of weather re-
sistant birch, and coated with EVCoatTM for maximum protection from
the elements. The unique acoustic and rigging design allows for
vertical and horizontal clusters to be built using any combination of
loudspeakers from the entire EVF & EVH Series, with 7 horn patterns
to choose from and an assortment of Low Frequency and subwoofer
loudspeakers, it gives you the tools to maximize flexibility of system
design, no matter what the application and budget. The innovative
input panel provides choice of phoenix style connector (included in
all standard models) or the ability to add; a dual NL4 type connector
cover plate or gland nut cover plate (for weatherizing applications).
An externally accessible jumper selects passive or active operation.
An available 70.7/100 Volt transformer kit simply mounts to the input
panel for use in distributed systems. All these features give you the
flexibility to do a large range of venues with fewer items in inventory
and quickly support your customer’s requirements.
Freq. Response1 (-3 dB): 70 Hz - 14 kHz
Freq. Range1 (-10 dB): 41 Hz - 18 kHz
Rec. Hipass Frequency: 45 Hz
Axial Sensitivity: 101 dB (1W/1m)
Max. Calculated SPL: 134 dB
Horizontal Coverage: 90° (or 40°)
Vertical Coverage: 40° (or 90°)
Power Handling: 500W Continuous, 2000W Peak
LF Transducer: SMX2151, 15 in (381mm) Driver
HF Transducer: ND2B, 2 in (51mm) Diaphragm
Compression Driver
Crossover Frequency: 1450 Hz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.0 Ohms
Connectors: (2) 4 Contact 10
AWG Phoenix/
EuroBlock Style
Screw Terminal
PI Version -
Gland Nut with
Included Input
Panel Cover
Enclosure Material: 13 Ply Weather Resistant Birch
Grille: 16 GA Galva-
nneal, Powder-
coat, with Rotat-
able Logo
PI Version -
Stainless Steel
with Hydropho-
bic Cloth
Suspension: (22) M10 Threaded Points
Dimensions (H x W x D): 30.26” x 18.50” x 18.37”
(768.6mm x 469.8mm x 466.6mm)
Net Weight: 70.9 lb (32.1 kg)
Shipping Weight: 81.2 lb (36.8 kg)
1 Half Space Measurement.
20000
10000
1000
100
20
0
10
20
30
1
10
100
1000
Frequency (Hz)
Directivity Index (DI), dB
Directivity
Factor (Q)
20
100
1000
10000
20000
360
100
20
3.6
Horizontal
Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
50
20000
10000
1000
100
50
20
316
100
10
3.16
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Passive Mode, Half Space
Impedance
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Vertical Down
20° Vertical Down 30° Vertical Down
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Vertical Up
20° Vertical Up 30° Vertical Up
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Horizontal
20° Horizontal 30° Horizontal
40° Horizontal 50° Horizontal
Frequency Response &
Impedance:
Beamwidth: Directivity:
Block Diagram (Biamp):
EVF-1152S/94 Loudspeaker System
Horizontal Off Axis Frequency
Response:
Vertical Off Axis Frequency
Response (Up):
Vertical Off Axis Frequency
Response (Down):
Block Diagram (Passive):
Polar Plots (1/3 Octave):
Engineering Data Sheet
Horizontal = Black
Vertical = Grey
400 Hz
500 Hz
630 Hz
800 Hz
1 KHz
1.25 KHz
1.6 KHz
2 KHz
2.5 KHz
3.15 KHz
4 KHz
5 KHz
6.3 KHz
8 KHz
10 KHz
12.5 KHz
16 KHz
20 KHz
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 04/2009
Part Number LIT000342094 Rev A
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice®
Dimension Drawings:
Front ViewEnd View
CAUTION
This EVF Loudspeaker should be suspended overhead
only in accordance with the procedures and limitations
specified in the EVF/EVH Users Manual and possible
manual update notices. This system should be suspended
with certified rigging hardware by an authorized rigging
professional and in compliance with local, state, and fed-
eral overhead suspension ordinances.
Accessories
ACC000084-000 CDNL4, Cover Plate, Dual NL4•
ACC000085-000 CSG, Cover Plate, Single Gland Nut•
ACC000086-000 CDG, Cover Plate, Dual Gland Nut•
ACC000087-000 TK-150, 70V Transformer, 150W•
ACC000089-001 HRK-1B, Horiz. Rigging Kit, EVF, Black•
ACC000089-002 HRK-1W, Horiz. Rigging Kit, EVF, White•
ACC000090-001 HRK-2B, Horiz. Rigging Kit, EVF-SUB, Black•
ACC000090-002 HRK-2W, Horiz. Rigging Kit, EVF-SUB, White•
ACC000091-001 HRK-3B, Horiz. Rigging Kit, EVH, Black•
ACC000091-002 HRK-3W, Horiz. Rigging Kit, EVH, White•
ACC000092-001 VRK-1B, Vert. Rigging Kit, EVF, Black•
ACC000092-002 VRK-1W, Vert. Rigging Kit, EVF, White•
ACC000093-001 VRK-2B, Vert. Rigging Kit, EVF-SUB, Black•
ACC000093-002 VRK-2W, Vert. Rigging Kit, EVF-SUB, White•
ACC000094-001 VRK-3B, Vert. Rigging Kit, EVH, Black•
ACC000094-002 VRK-3W, Vert. Rigging Kit, EVH, White•
EVF-1152S/94 Part Numbers
PRD000208-001 EVF-1152S/94-BLK, 90° x 40°, Black Finish•
PRD000208-002 EVF-1152S/94-WHT, 90° x 40°, White Finish•
PRD000208-003 EVF-1152S/94-PIB, 90° x 40°, Black Finish, •
Weather Resistant
PRD000208-004 EVF-1152S/94-PIW, 90° x 40°, White Finish, •
Weather Resistant
PRD000208-005 EVF-1152S/94-FGB, 90° x 40°, Black Finish, •
Weather Resistant Fiberglass
PRD000208-006 EVF-1152S/94-FGW, 90° x 40°, White Finish, •
Weather Resistant Fiberglass
Rear ViewSide View
Performance Match
PRD000199 EVF-1122S/64, 60° x 40° Coverage•
PRD000200 EVF-1122S/66, 60° x 60° Coverage•
PRD000201 EVF-1122S/94, 90° x 40° Coverage•
PRD000202 EVF-1122S/96, 90° x 60° Coverage•
PRD000203 EVF-1122S/99, 90° x 90° Coverage•
PRD000204 EVF-1122S/126, 120° x 60° Coverage•
PRD000205 EVF-1152S/43, 40° x 30° Coverage•
PRD000206 EVF-1152S/64, 60° x 40° Coverage•
PRD000207 EVF-1152S/66, 60° x 60° Coverage•
PRD000209 EVF-1152S/96, 90° x 60° Coverage•
PRD000210 EVF-1152S/99, 90° x 90° Coverage•
PRD000211 EVF-1121S, 12” Bass Element•
PRD000212 EVF-1151S, 15” Bass Element•
PRD000213 EVF-1181S, 18” Bass Element•
F.01U.076.843 CPS2.9, 120V Power Amplifier, 2 x 900W•
F.01U.076.844 CPS2.12, 120V Power Amplifier, 2 x 1200W•
D170469 CPS4.5, 120V Power Amplifier, 4 x 500W •
D170466 CPS4.10, 120V Power Amplifier, 4 x 1000W•
