Technical Specifications:

FRX+ series is designed for applications in highly

reverberant spaces where excellent directivity control down

to 500 Hz is critical. In a trapezoidal enclosure no taller

than a typical compact system and only a bit wider, they

maintain control of coverage angles down to 500 Hz. A 15"

LF transducer is coaxially horn loaded with a mouth nearly

the size of the enclosure to provide excellent LF pattern

control. These professional fixed install speakers deliver a

broad range of performance options including multiple

rotatable horn patterns, matching sub-woofer, easily

switchable passive or bi-amp operation, and EV’s advanced

transducer technology for response that is smooth and linear.

The FRX+ is an economical and flexible solution for the

most demanding installations.

Same size full-range and sub-woofer systems allow the

installer to construct arrays covering the most demanding

acoustical environments while maintaining an aesthetic

and uniform installation. The structural integrity of the

FRX+ cabinets allows for vertical arrays up to 2 boxes in

height. All FRX+ systems are available in black, white,

and unfinished. The PI version includes stainless steel

hardware and a multilayer stainless steel grille that

protects against rain, sprayed water, and dust to IEC 529

IP 44 Mil Spec 810 humidity, salt spray, and UV

specifications. External components and fasteners are

aluminum and stainless steel. Performance may be

further enhanced by bi-amping with the Electro-Voice Dx-

38 Digital Sound System Processor. A 300W line

transformer is available as a contractor installed item.

esnopseR.qerF

:)Bd3-(zHk51-zH06

egnaR.qerF

:)Bd01-(zHk61-zH25

:LPSdetaluclaCxaMBd431

:egarevoClatnoziroH°06

:egarevoClacitreV°04

:gnildnaHrewoPFLkaePW0061,suounitnoCW004

:gnildnaHrewoPFHkaePW042,suounitnoCW06

:gnildnaHrewoPevissaPkaePW0061,suounitnoCW004

:)pmA-iB(ytivitisneSFLm1/W1,Bd501

:)pmA-iB(ytivitisneSFHm1/W1,Bd011

metsySevissaP

:ytivitisneS

m1/W1,Bd501

:ecnadepmI).niM(smho2.7,)lanimoN(smho8

:recudsnarTFLsmho8,revirD)mm183("51X51LD

:recudsnarTFH.pmoCmgarhpaiD)mm15("2t2HD

smho8,revirD

revossorCevissaP

:ycneuqerF

zH0531

:srotcennoCspirtsreirrabowT

:lairetaMerusolcnEdoowylphcriBylp-31

:ellirG)leetSsselniatSnoisreVIP(leetsAG61

:cepSlatnemnorivnE)44PInoisreVIP(,42PI925CEI

018DTSLIM

:remrofsnarT4egaPeeS

:)DxWxH(miD"0.62x"3.82x"0.13

)mm066x917x787(

:)hcae(thgieWteN)gk0.96(sbl251

:thgieWgnippihS)gk2.17(sbl751

General Description:

FRX+640/FRX+640PI

15-Inch Two-Way

Horn-Loaded 60° x 40°

Coaxial Speaker System

Key Features:

• Pattern Control to 500 Hz

• 60° x 40° coverage

• Built-in L-track rigging

• Available in black, white and

unfinished

• Passive or bi-amp operation

• High sensitivity, 105 dB

• Ring-Mode Decoupling / RMDTM

• Full Coaxial Design

• Weatherized Version Available (FRX+640PI)

1 Full Space measurement. Half Space use will improve LF response.

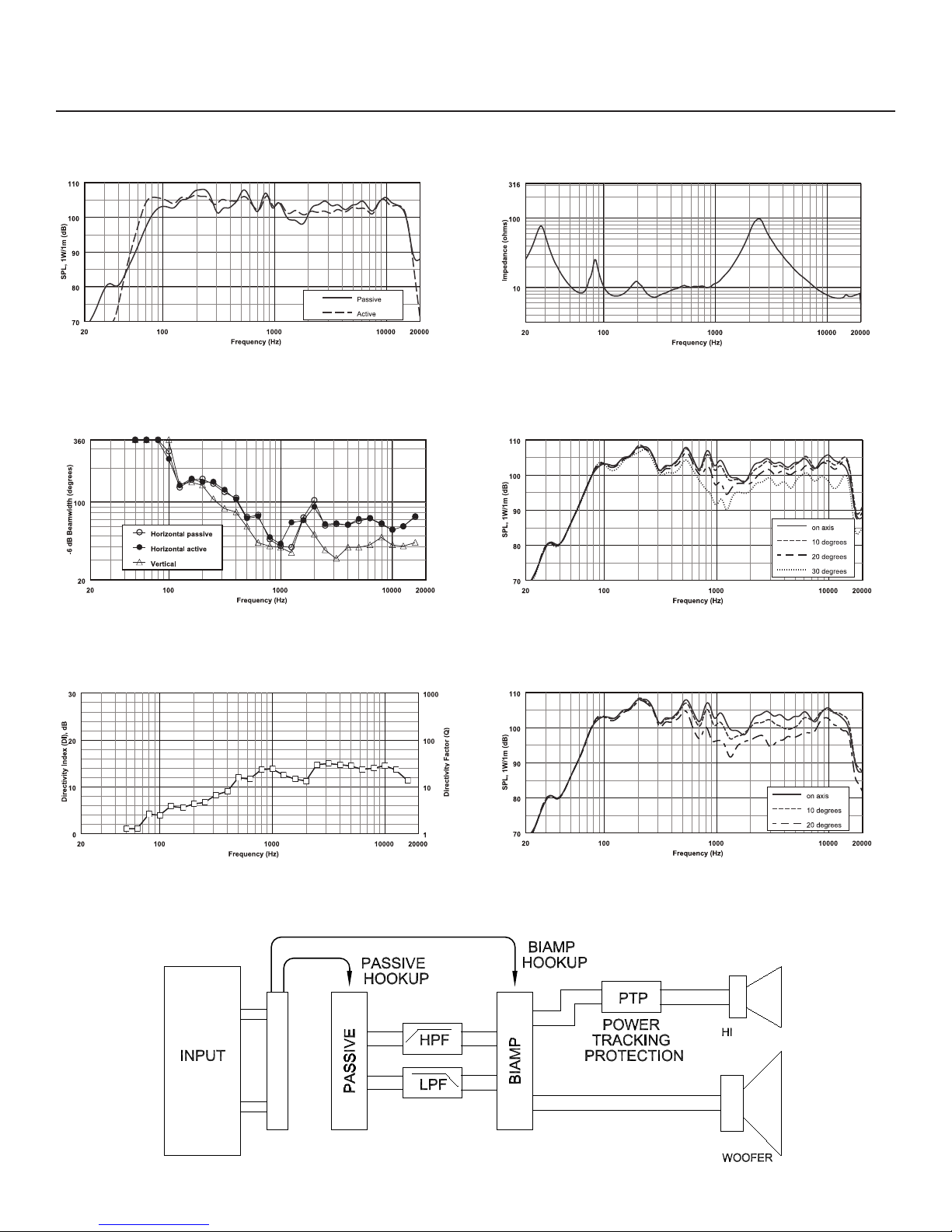

Impedance:Frequency Response (Full Space):

Horizontal Off Axis Frequency Response:Beamwidth:

Vertical Off Axis Frequency Response

(up/down):

Directivity:

Block Diagram:

FRX+640/FRX+640PI Full Range Loudspeaker

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number 38110-086 Rev. E

Architectural & Engineering Specs:

The loudspeaker system shall be a coaxial, two-way full range design consisting of a 15-inch woofer, a high-frequency compression

driver on a molded constant-directivity horn and a dividing network providing an acoustic crossover frequency of 1,350 Hz. The

system shall be configurable in a biamp mode by moving a single connector in the crossover network. The loudspeaker shall meet

the following performance criteria; power-handling, 400 watts, based upon ANSI/EIA RS-426-A 1980 standard for full-range loudspeaker

systems; frequency response, smooth and usable at high SPL levels from 60 Hz to 15 kHz; pressure sensitivity, 105 dB SPL

(passive mode) or 105 dB (LF)/110 dB (HF) in biamp mode for 1W at 1m; impedance, 8 ohms nominal, 7 ohms minimum. The

system shall have a distribution pattern of 60° nominal horizontally from 500 Hz to 15 kHz and 40° nominal vertically from 500

Hz to 15 kHz. The enclosure shall be constructed from 13-ply birch plywood and braced appropriately, and the grille shall be

constructed from 16 GA powder-coated steel backed by acoustically transparent fabric. The PI version shall have multilayer

stainless steel grille, stainless steel fasteners, and aluminum hardware. The dimensions shall be 78.7 cm (31.0 in.) high by 71.9

cm (28.3 in.) wide by 66.0 cm (26.0 in.) deep. Net weight shall be 68.95 kg (152 lb).

The two-way loudspeaker shall be the Electro-Voice FRX+640 or FRX+640PI.

Dimension Drawings:

Front View Side View

Top View

FRX+640 Part Numbers

• 301234-000 - Unfinished

• 301234-001 - Black

• 301234-002 - White

FRX+640PI Part Numbers

• 301392-001 - Black

Part number 301401-000 transformer kit is available to mount

internally to any FRX+ System. The kit includes a special 300 Watt

line transformer for operating on 70, 100, and 140 volt distributed

line systems, wiring harness, instructions, and hardware. At 300

Watts it has a bandwidth of 35 Hz to 15 kHz ±1dB.

Line Transformer Kit:
