Electro-Voice SxA100+ Bedienungsanleitung

KeyFeatures:

• Compact, Ergonomic Size

• Integral Monitor Stand

• Mic and Line Inputs with Mix Capability

• 350 W Dynamic LF Power

• 80 W Dynamic HF Power

• LF and HF Equalization

• Line Output for Additional Speakers

• 65° x 65° Constant Coverage Horn

• High Sensitivity, 124 dB Maximum SPL

• Dynamic Filters Provide Overload Protection

and Linear Response

• Molded-in Pole Mount, Easily Suspended

SxA100+

Compact Powered Sound

Reiforcement Speaker for

Live Sound, Speech, Playback, DJ,

A/V, Institutional Venues

GeneralDescription:

The Electro-Voice ® SxA100+ sets a new standard for

powered speakers. Its design provides the user multiple

inputs with mix capability, an easy to use EQ section, and

plenty of power in very compact, attractive package.

This is a full range loudspeaker ideal for most applications

requiringhigh-quality sound.Careful attentionto thedynamic

requirements of music guided the amplifier design to provide

highSPLwithoutexcessiveheat.Thehighqualitymicrophone

preamplifier provides great sounding vocals or speech. A

master level control sets the desired SPL, and the line input

can be mixed and balanced with a microphone with its level

control. Its linear response is easily optimized for speech or

music with the on board multiband equalization.

Built-in suspension points and pole mount make it easy to

position for your application without expensive accessories.

Thehigh-frequencysection oftheSxA100+ utilizesamolded-

in, 65° x 65° constant-directivity horn. This unique pattern

contributes to high intelligibility, vocals sound natural yet “cut

through” in reverberant, noisy rooms. Coverage pattern is

uniform, sound quality off-axis is very well maintained, even

at 45° off axis (a 90° total coverage angle). The SxA100+’s

high-frequency horn is driven by the DH2010A, a one-inch-

throat, wide-bandwidth, titanium-diaphragm driver using a

unique,convex-driveTimePathTM phasing plugstructure(U.S.

Patent #4,525,604) for smooth and extended high-frequency

response.

Technical Specifications:

:)Bd01-(esnopseR.qerFzHk02-zH05

:LPSxaMBd421

:egarevoClatnoziroH°56

:egarevoClacitreV°56

:rewoPreifilpmAFLsuounitnoCW051,tsrubsm01W053

:rewoPreifilpmAFHsuounitnoCW05,tsrubsm01W08

:LPSxaMBd421

:ytivitisneStupnIciMtuptuollufrofuBd0otuBd53-

:ytivitisneStupnIeniLtuptuollufrofuBd0otuBd21-

:recudsnarTFL)mm003("21

:recudsnarTFHrevirD.pmoCA0102HDtixe)mm52("1

:srotcennoC :stupnIeniL,ciMdecnalaB :tuptuOdecnalaB noitanibmoCenohp"¼dnaRLX,RLX RLX

:noitazilauqEzH041@Bd6±FL;gnivlehS zHk5@Bd4±FH

:tnemeriuqeRrewoP042-022ro,zH06-05,CAV031-011 sttaW006zH06-05,CAV

:lairetaMerusolcnEremylopoC

:ellirGhtolChtiwleetSdetaoCredwoP

:)DxWxH(miD3.21x"9.61x"1.32 )mm213x924x685"(

:)hcae(thgieWteN)gk5.91(sbl34

:thgieWgnippihS)gk3.12(sbl74

Frequency Response & Impedance:

Beamwidth:

PerformanceMatch:

• SxA180 Subwoofer

• SbA760 Subwoofer

IncludedAccessories:

• F200 Monitor Feet (Qty. 2)

AvailibleAccessories:

• TSS-1 Tripod Stand

• MB100 Eyebolt Suspension Kit

• MB200 Bracket Suspension Kit

• MB300 Bracket Suspension Kit

SxA100+PartNumbers:

• SxA100+ (120V) -- 301360-001

• SxA100+ (230V) -- 301360-003

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumber 38110-193 RevC

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

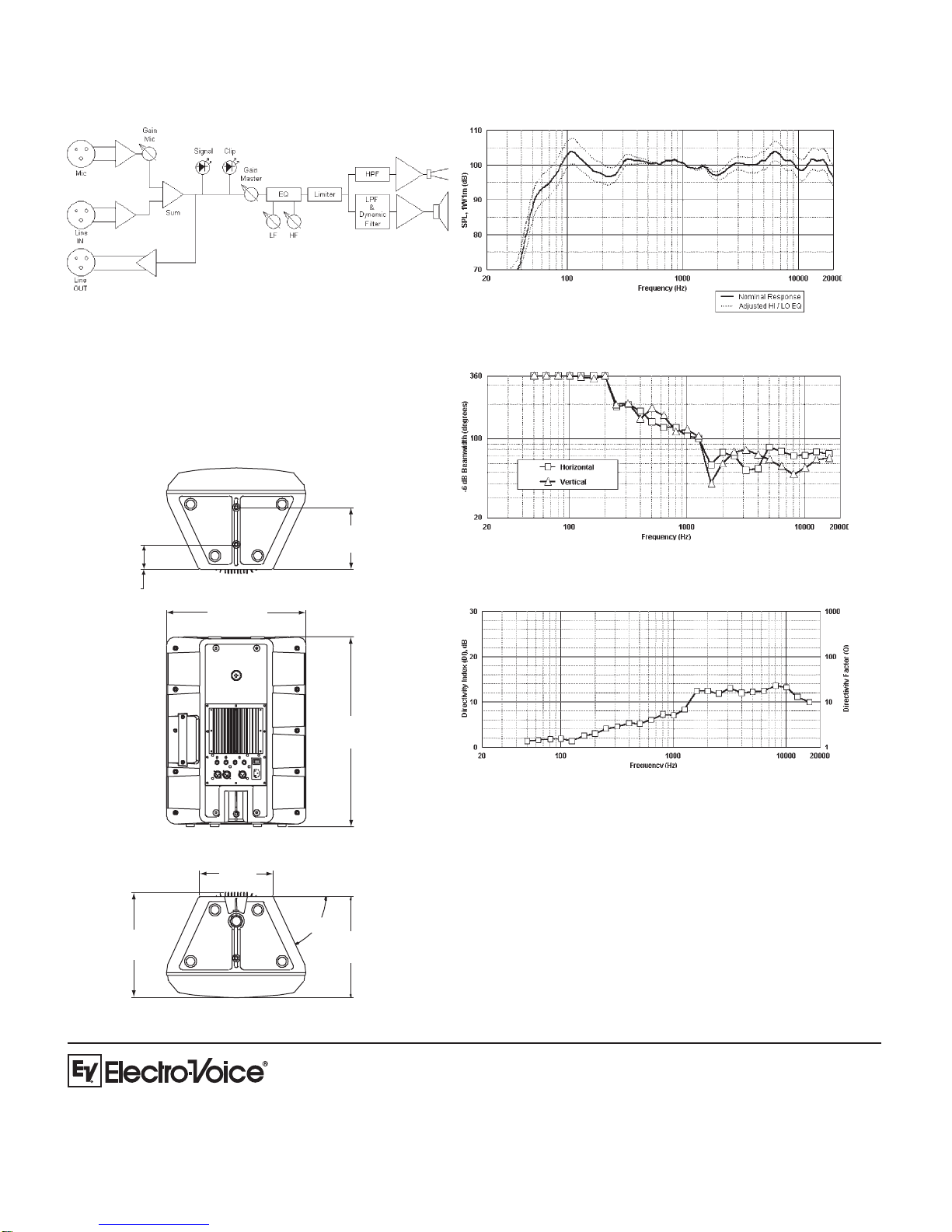

Dimension Drawings:

Block Diagram:

Directivity:

76 mm

(

3.0 in.)

190 m

(7.5 in

429 mm

(16.9 in.)

586 mm

(23.1 in

228 mm

(9.0 in.)

337 mm

(13.3 in.) 213 mm

(12.3 in

65˚
