Electro-Voice Variplex II Bedienungsanleitung

Key Features:

• 3-Way Design for Intelligibility, Clarity

and Extended Dynamic Range

• Asymmetric Directed Coverage tm

Technology for even coverage and

simple installation

• Very Linear Frequency Response

• Digital Dynamic Capable tm, wide

dynamic range

• Compact and Fully assembled

• Triamp or Biamp Operation

VariplexTM II

Tri-Amplified or Bi-Amplified

Variplex 3-Way High-Power

Screen Channel Speaker

General Description:

The Electro-Voice Variplex is designed to provide

perfect coverage, wide bandwidth, and extended

dynamic range in today’s Cinemas. It uses second-

generation asymmetric directed coverage to uniformly

cover every seat in stadium or traditional theaters. This

design greatly reduces energy wasted by focusing it on

the audience, not walls and ceiling where it can be

reflected to degrade clarity. Ring-Mode Decoupling

(RMDtm) incorporated into the transducers improves

system transient detail that further refines system sound

quality at all SPLs. The Variplex’s 3-way design allows

each frequency range’s transducers to be optimized for

low distortion, high power handling, and smooth

frequency response. Two high power 8-inch midrange

transducers clearly and accurately reproduce dialog,

music and effects in detail. A neodymium 3-inch

diameter compression driver with titanium diaphragm

delivers high level response past 16 kHz. Careful

attention to crossover and waveguide design further

enhances coverage and response. Variplex’s

asymmetric coverage directs energy for uniform

coverage from front to rear, simply placing the aiming

axis at the row two thirds from the front provides each

seat exceptional sound. The easily adjustable bracket

provides aiming versatility for difficult installations. The

product line of EV cinema speakers includes

subwoofers and surround speakers that provide

excellent performance to match the screen system.

Technical Specifications:

:)Bd01-(egnaR.qerFzHk81-zH43

:)Bd3-/+(esnopseR.qerFzHk61-zH14

:ytivitisneSmetsySBd901:FH/FM,Bd101:FL

:LPSdetaluclacxaMBd141:FH/FM,Bd631:FL

:).tnoC(sgnitaRrewoP

:)kaeP(sgnitaRrewoP

W57:FH,W004:FM,W008:FL

W003:FH,W0061:FM,W0023:FL

:egarevoClatnoziroH°09

:egarevoClacitreV)°03-,°02+(°05

:tliTtekcarBpU°51,nwoD°5

:)ID(xednIytivitceriD01

dednemmoceR

:revossorC

RLBd42;zH005

:stnenopmoC

TS606LT

:gnitaRrewoP)kaePW0023(W008

)reifilpmAdednemmoceRW0001(

:srotcennoCtupnIpirtsreirrablanimretwercS

:ecnadepmItupnIsmhO4

:srecudsnarT.aiD"51,TS51LDx2

:)DxWxH(snoisnemiD"5.71x"5.52x"5.93

)mm544xmm846xmm3001(

:thgieWteN)gk9.94(sbl011

:thgieWgnippihS)gk4.45(sbl021

IIxelpiraVKPH

:gnitaRrewoPW57/W004FH/FM

)kaePW003/W0061(

)reifilpmAdednemmoceRW006(

:srotcennoCtupnIpirtsreirrablanimretwercS

:ecnadepmItupnIsmhO4

:srecudsnarT8-6DN,.aiD"8,HD-8VEx2

:)DxWxH(snoisnemiD"4.51x"5.52x"3.63

)mm293xmm846xmm129(

:thgieWteN)gk5.92(sbl56

:thgieWgnippihS)gk1.43(sbl57

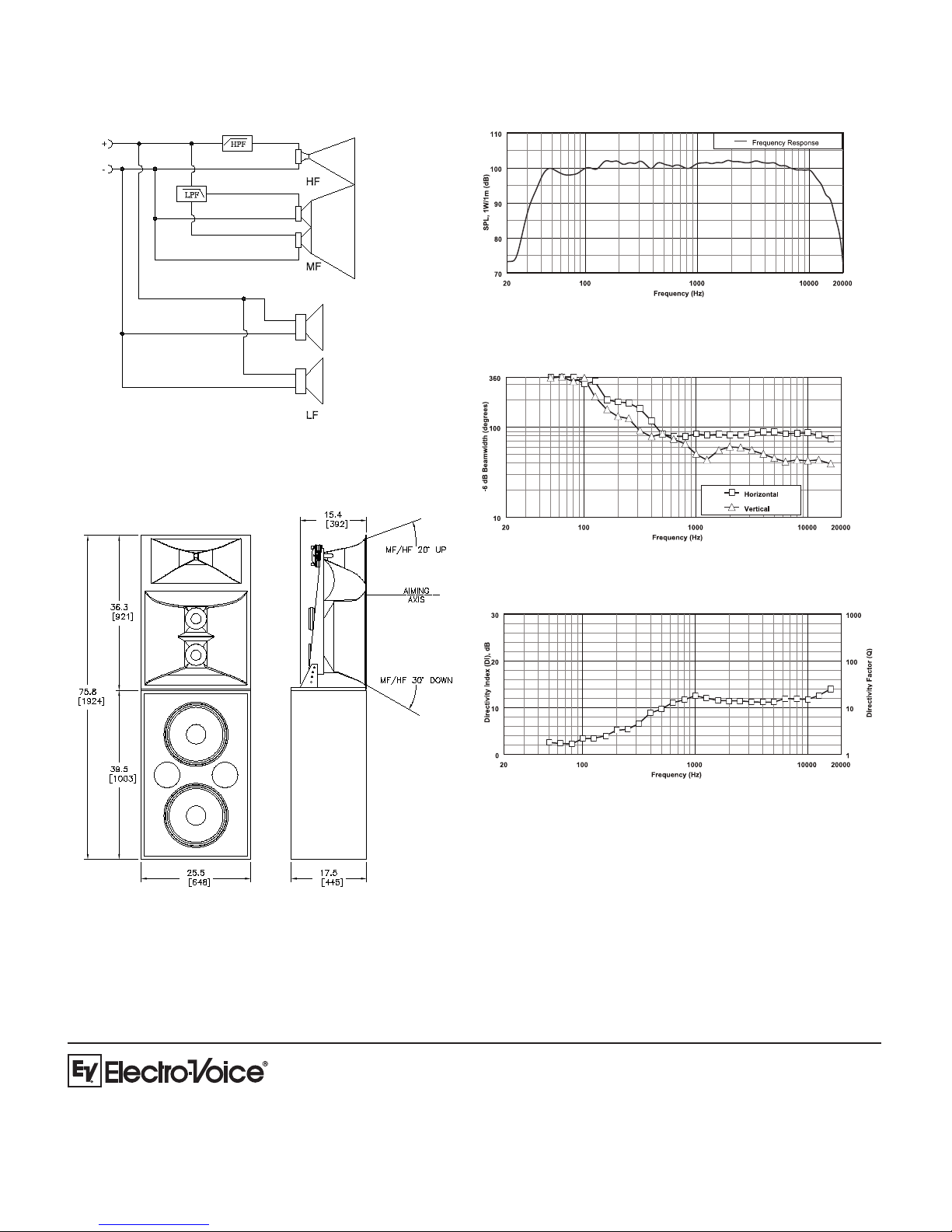

Block Diagram: Frequency Response:

Dimension Drawings:

Beamwidth:

Directivity:

Performance Match:

• Dx38 Digital Processor

• TL440 Subwoofer

• TL880 Subwoofer

• TL440M Subwoofer

• TL880DM Subwoofer

• CPS Series Amplifiers

• SL10-2V Surround Speaker

• SL12-2V Surround Speaker

• SL6.2M Surround Speaker

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

Part Number 38110-172 Rev A

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.
