Electrolux EFC 9510 Bedienungsanleitung

Libretto Istruzioni

Instruction Manual

Manuel d’Instructions

Bedienungsanleitung

Gebruiksaanwijzing

EFC 6510

EFC 9510

NL 38

DE 29

FR 20

GB 11

IT 2

11GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual,

your appliance will give you constant

high performance and will remain

efficient for many years to come.

RECOMMENDATIONS AND SUGGESTIONS 12

CHARACTERISTICS 13

INSTALLATION 14

USE 17

MAINTENANCE 18

12GB

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• Iftheextractorisusedinconjunctionwithnon-electricalappliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have an opening communicating

directly with the open air in order to guarantee the entry of clean

air.

USE

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben

designed.

• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

13GB

2.1

2.2

8b 8a

12c

12a 7.2.1 1

12a

14.1

598 - 898

62 - 72 545

300

260

433

740

740 min

940 max

CHARACTERISTICS

Dimensions

Components

Thedescribedequipmentcouldchangeaccordingtothedifferentcountries.

Ref. Q.ty ProductComponents

11 Hood Body, complete with: Controls, Light,

Blower, Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

8a 1 Right Air Outlet Grill

8b 1 Left Air Outlet Grill

91 Reducer Flange ø 150-120 mm

14 1 HoodBodyAirOutletExtensionPiececonsisting

of two Half Shells

14.1 2 Air Outlet Connection Extension

15 1 Air Outlet Connection

16 1 Air Outlet Deflector

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets

11 6 Wall Plugs

12a 6 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

14GB

INSTALLATION

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre

of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning

the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 332 mm above

the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-

6 mm between the wall and the head of the screw.

12a

332 X

116

650 min.

7.2.1

15GB

Mounting the hood body

• Before attaching the hood body, tighten the two

screws Vr located on the hood body mounting

points.

• Hook the hood body onto the screws 12a

• Fully tighten support screws 12a

• Adjust screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

• Fix the pipe in position using sufficient pipe

clamps (not supplied).

• Remove any activated charcoal filters.

Lateral air exhaust on ducted version

(connection to exhaust flue above wall

cupboards)

• Assemble the half-shells of the hood body

extension piece 14.

• Push fit the assembled hood body extension 14

onto the air exhaust outlet.

• Insert the deflector 16into the air exhaust fitting

15 to close off the unused outlet.

• Push fit connection piece 15 to the hood body

extension piece 14, ensuring that the free end

matches up with the opening of the required

outlet duct.

• Remove any activated charcoal filters.

12a

ø 120ø 150

16GB

RECIRCULATION VERSION AIR OUTLET

• Assemble the two halves of the hood body

extension piece 14.

• Push fit the assembled hood body extension

piece 14 onto the air outlet.

• Push fit connection 15 onto the hood body

extension piece 14.

• Insert the connection extension pieces laterally

14.1 in connection 15.

• Makesure that the outlet of the extensionpieces

14.1 is horizontally and vertically aligned with

the chimney outlets. Ifthis is not thecase, adjust

the position by either reversing the connection

extension pieces 14.1 or by cutting the hood

body extension 14 along one of the thinner

section channels denoting the pre-fixed lengths,

then reassemble as described previously.

• The air outlet directional grills 8a - 8b must be

fitted after the lower outlet duct has been

installed.

• Ensure that the activated charcoal filters have

been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue

and hook them behind the brackets 7.2.1,

making sure that they are well seated.

• Secure the sides to the brackets using the 4

screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

• Slightlywidenthetwosidesofthe flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

• Fix the lower part laterally to the hood body

using the 2 screws 12c (2,9 x 9,5) supplied.

• On the recirculation version, fit the directional

grids8a – 8b in their housings making sure that

the directional symbols are towards the top and

front of the hood. Also make sure that they are

correctly inserted in the connection extension

pieces 14.1.

12c

14.115

2.1

2.2

28b

7.2.1

17GB

LM V3S1 S2V2V1

USE

Control panel

LLight Switches the lighting system on and off.

S1 Led Motor running led. Flashes when the grease filters are saturated.

S2 Led Intensivespeed led.Flasheswhentheactivatedcarbon odour filters are exhausted.

MMotor Switches the extractor motor on and off at low speed. Used to provide a contin-

uos and silent air change in the presence of light cooking vapours.

V1 Speed Reduces the operating speed.

V2 Speed Increases the operating speed.

V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission.

speed Switches off automatically after 10 minutes operation. Can also be switched off

manually by pressing the button.

18GB

MAINTENANCE

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button V2 for at least 3 seconds, until the

leds start to flash.

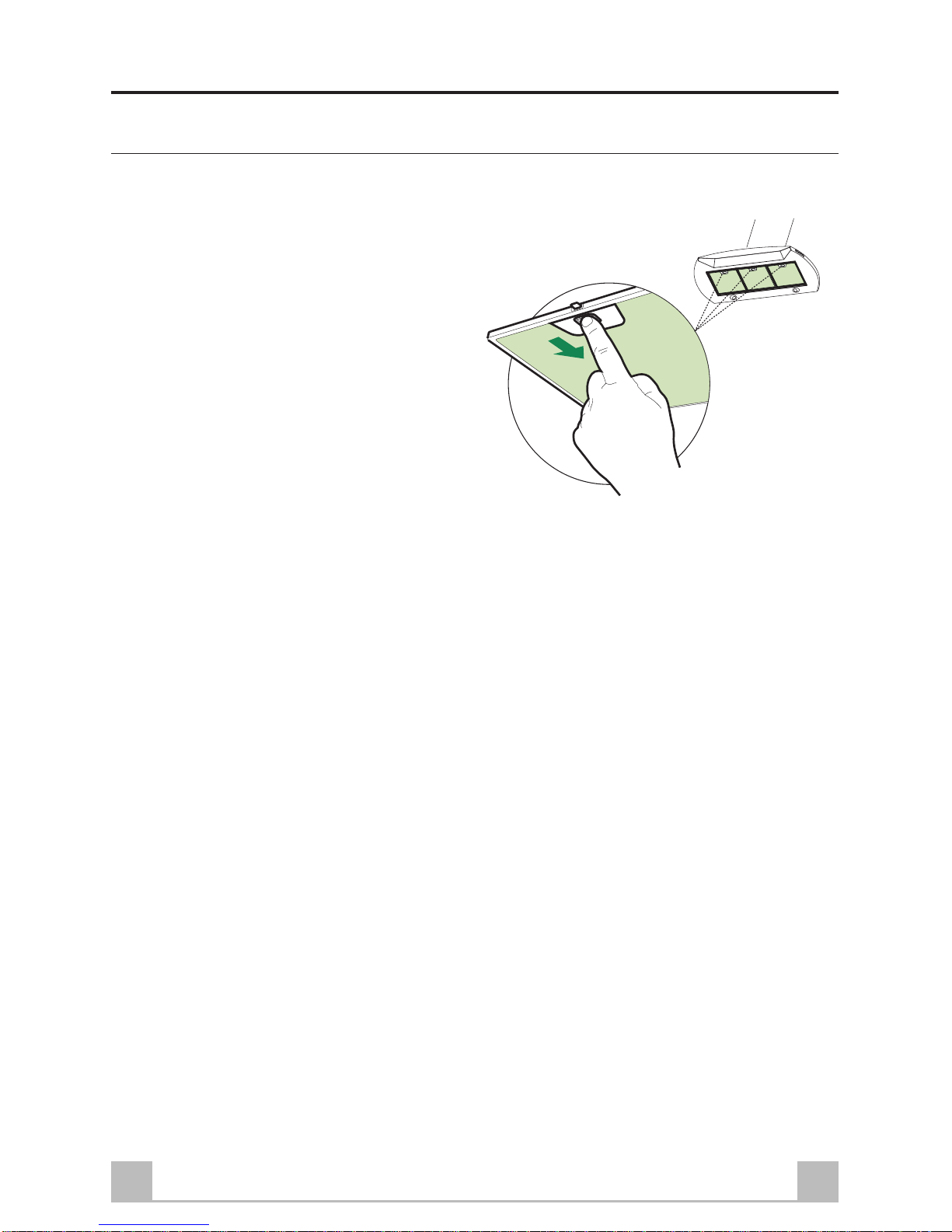

Cleaning the filters

• The filters are washable and must be cleaned

when led S1 flashes or at least every 2 months

of operation, or more frequently for particularly

heavy usage.

• Removethefiltersoneatatimebypushingthem

towards the back of the group and pulling down

at the same time.

• Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

• When refitting the filters, make sure that the

handle is visible on the outside.

19GB

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be

regenerated. It must be replaced when led S2

flashes or at least every 4 months. The alarm

signal will only light up when the extractor

motor is switched on.

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button V2 for at least 3 seconds, until the

leds start to flash.

Replacing the Filter

• Remove the metal grease filters

• Remove the saturated activated carbon filter by

releasing the fixing hooks

• Fit the new filter by hooking it into its seating

• Replace the metal grease filters.

Alarm signal activation

• On the recirulcation version extractor hood, the

filter saturation alarm is activated during

installation or at a later date.

• Switch off the lights and extractor motor.

• Press button V2 for at least 10 seconds, until

the leds start to flash:

• 2 flashes of the activated carbon odour filter

saturation alarm led = filter ACTIVATED

• 1 flash of the activated carbon odour filter

saturation alarm led = filter DEACTIVATED

Lighting

LIGHT REPLACEMENT

• 20 W halogen light.

• Remove the 2 Screws fixing the Lighting

support, and pull it out of from the Hood.

• Extract the Lamp from the Support.

• Replace with another of the same type, making

sure that the two pins are properly inserted in

the lamp holder socket holes.

• Replace the Support, fixing it in place with the

two Screws removed as above.

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux ICON RH30WC60GS Bedienungsanleitung

Electrolux

Electrolux EFG60750X Bedienungsanleitung

Electrolux

Electrolux EFP 6460 Bedienungsanleitung

Electrolux

Electrolux EFA90950 Bedienungsanleitung

Electrolux

Electrolux EFP 646 Bedienungsanleitung

Electrolux

Electrolux EFP 6400 Bedienungsanleitung

Electrolux

Electrolux EFDP 90690 Bedienungsanleitung

Electrolux

Electrolux Husqvarna QFC 60350 Bedienungsanleitung

Electrolux

Electrolux EFC 9461 Bedienungsanleitung

Electrolux

Electrolux EFL10566DX Bedienungsanleitung

Electrolux

Electrolux EFC90565OX Bedienungsanleitung

Electrolux

Electrolux LFP216S Bedienungsanleitung

Electrolux

Electrolux DMPL0140SW Bedienungsanleitung

Electrolux

Electrolux EFC 90244 Bedienungsanleitung

Electrolux

Electrolux EFC 90505 Bedienungsanleitung

Electrolux

Electrolux LFV439K Bedienungsanleitung

Electrolux

Electrolux DVK5510SW Bedienungsanleitung

Electrolux

Electrolux EFC 9420 Bedienungsanleitung

Electrolux

Electrolux RCD990S Bedienungsanleitung

Electrolux

Electrolux ERHC1238S Bedienungsanleitung

Electrolux

Electrolux LFU326W Bedienungsanleitung

Electrolux

Electrolux ICON E30DD75ESS Bedienungsanleitung

Electrolux

Electrolux EFC 60671 Bedienungsanleitung

Electrolux

Electrolux WHGL9030CN Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
