Electrolux EFC 9543 Bedienungsanleitung

EFC 9543

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................3

CHARACTERISTICS..............................................................................................................................................................4

INSTALLATION......................................................................................................................................................................6

USE.........................................................................................................................................................................................9

MAINTENANCE....................................................................................................................................................................11

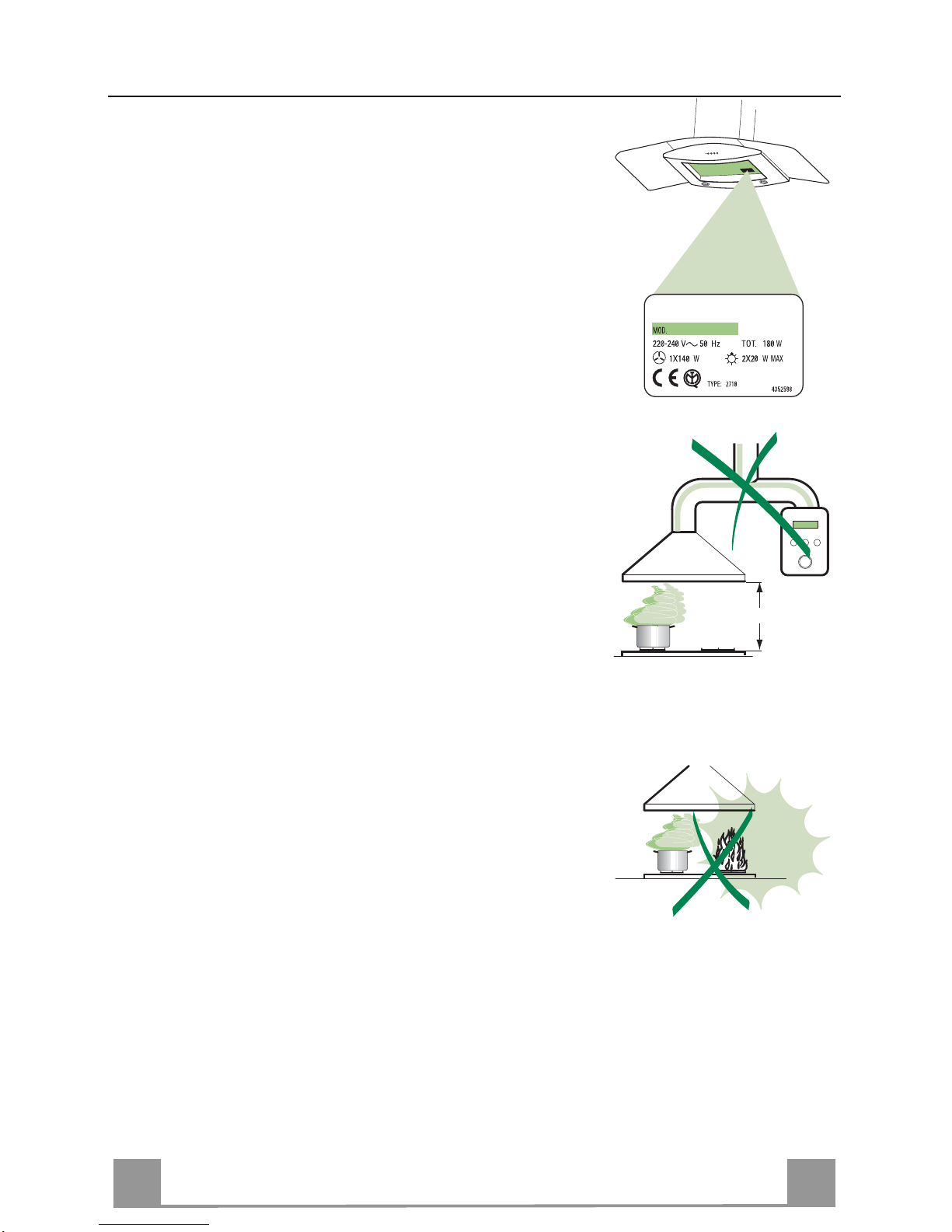

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

• The appliance is not intended for use by young children or infirm per-

sons without supervision.

• Young children should be supervised to ensure that they do not play

with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

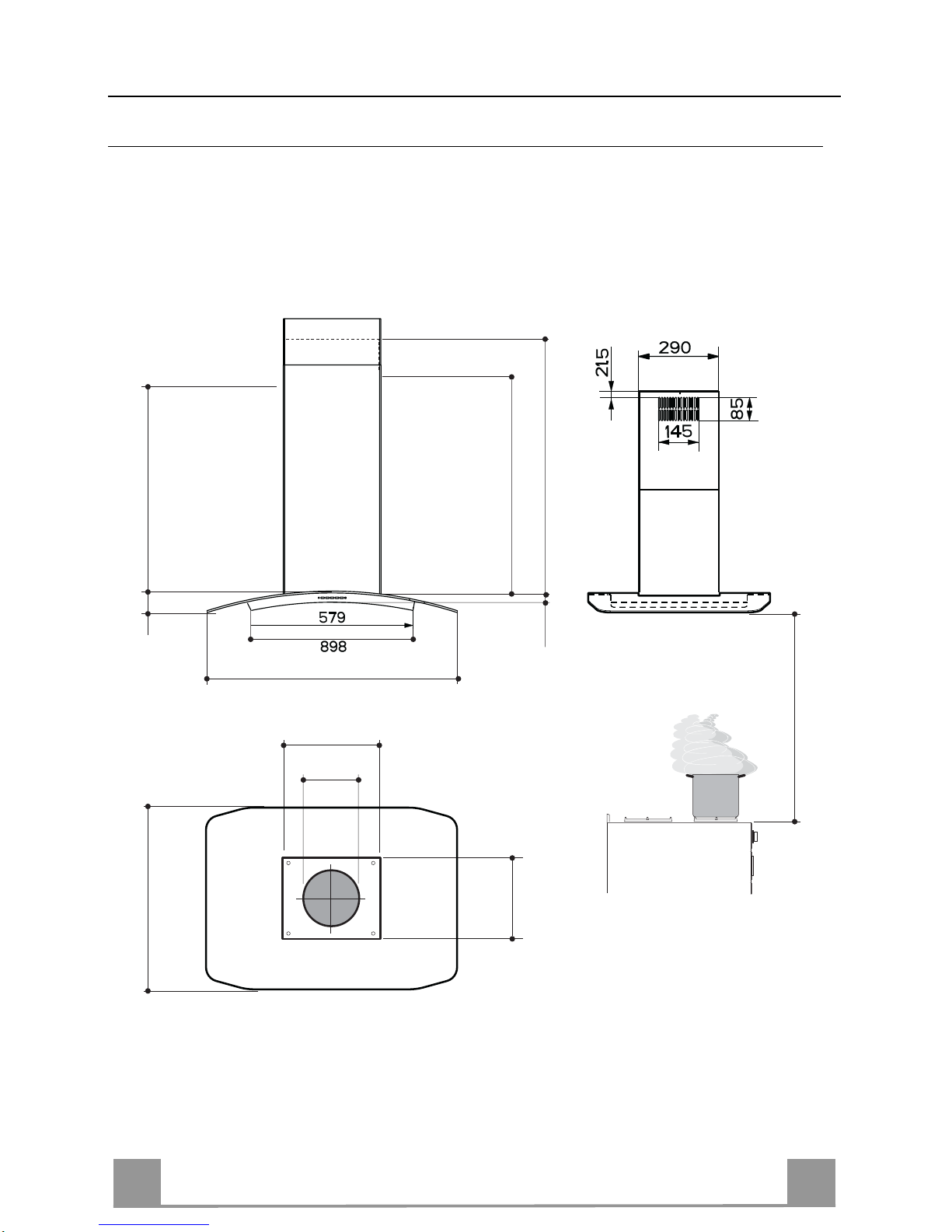

CHARACTERISTICS

Dimensions

650 min.

650

290

150

350

700

Min 810

Max 1150

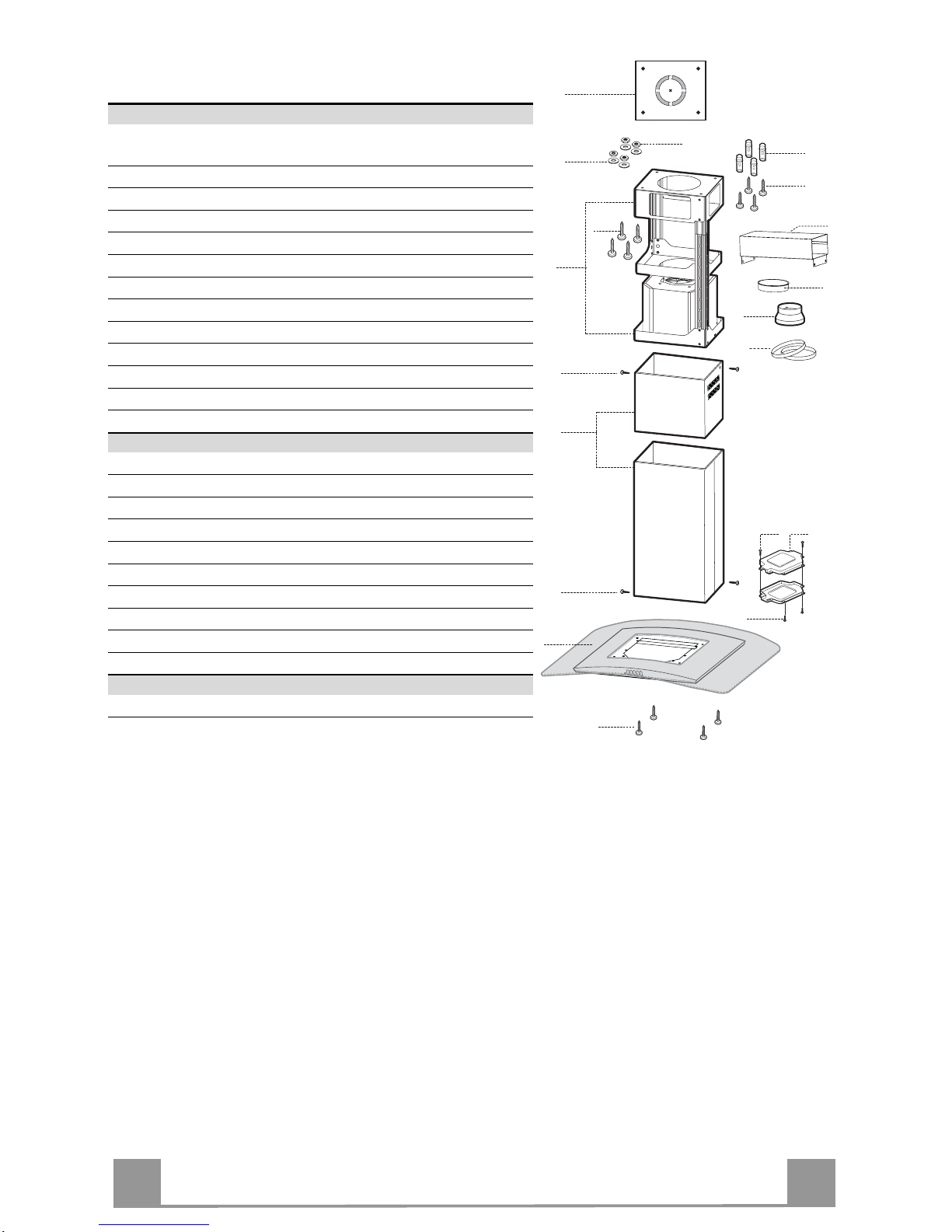

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

91 Reducer Flange ø150-120 mm

10 1Flange ø 150

15 1 Air Outlet Connection

24 1 Junctionbox

25 2 Pipe clamps

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 6 Screws 2,9 x 6,5

12e 2 Screws 2,9 x 9,5

12f 4 ScrewsM6 x 10

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

21 1 Drilling template

22 4 6.4 mm int. dia washers

23 4 M6 nuts

Q.ty Documentation

1 Instruction Manual

12c

7.1a

7.1

12h

7.1b

2.1

2.2

12c

12g

12f

12e

12c

INSTALLATION

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the

template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert

the Dowels 11 supplied).

• For wooden beam ceilings, drill according to the wood screws used.

• For wooden shelf, drill ø 7 mm.

• For the power supply cable feed, drill ø 10 mm.

• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-

haust duct connection.

• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,

supplied.

• For wooden beam ceilings, use 4 wood screws (not provided).

• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

FIXING THE frame

• Loosen the two screws fastening the lower chimney and re-

move this from the lower frame.

• Loosen the two screws fastening the upper chimney and re-

move this from the upper frame.

If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the eight metric screws joining the two columns, lo-

cated at the sides of the frame.

• Adjust the frame to the height required, then replace all the

screws removed as above.

• Insert the upper chimney stack from above, and leave it run-

ning free on the frame.

• Lift up the frame, fit the frame slots onto the screws up to the

slot end positions.

• Tighten the two screws and fasten the other two screws pro-

vided with the hood.

Before tightening the screws completely it is possible to adjust

the frame by turning it. Make sure that the screws do not come

out of their seats in the slotted holes.

• The frame mountings must be secure to withstand the weight

of the hood and any stresses caused by the occasional side

thrust applied to the device.

On completion, check that the base is stable, even if the frame

is subjected to bending.

• In all cases where the ceiling is not strong enough at the sus-

pension point, the installer must provide strengthening using

suitable plates and backing pieces anchored to the structurally

sound parts.

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe using the pipe clamps 25 provided.

• Remove any activated charcoal filters.

ø 150 ø 120

Recirculation version air outlet

• Fix the connection 15 to the frame using the 4 screws pro-

vided.

• Fix the flange 10 to the lower opening of the connection 15.

• Connect the hood air outlet to the flange in the lower part of

the junction using a rigid or flexible ø 150 tube (by installer’s

choice).

Flue assembly - Mounting the hood body

• Position the upper chimney section and fix the upper part to the

frame using the 2 screws 12c (2,9 x 6,5) provided.

• Similarly, position the lower chimney section and fix the

lower part to the frame using the 2 screws 12c (2,9 x 6,5) pro-

vided.

Before fixing the hood body to the frame:

• Remove the grease filters from the hood body.

• Remove any activated charcoal filters.

• From below, use the 4 screws 12f (M6 x 10)provided to fix the

hood body to the frame.

12f

12c

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

• Connect the control connector Cmd.

• Connect the lights connector Lux.

• Place the connectors in the junction box 24 and close it using

the 2 screws 12e (2,9 x 9,5) provided.

• Fix the junction box to the hood body using the 2 screws 12c

(2,9 x 6,5) provided.

• For the recirculation version, fit the activated carbon odour fil-

ter.

• Replace the grease filters.

12e

Cmd

12c

Lux

USE

L T1 T2 T3 T4 T5 F

The hood can be switched on pushing directly onto the requested speed without firstly hav-

ing to select 0/1 button .

Basic functions

Touch

control

Dual Function

Indicator lights

When briefly pressed it switches the lighting system

on and off. Touch control unlit Lights off

Touch controllit Lightson

When pressed for 2 seconds it starts the lighting

system in “courtesy light” mode. The lamps are

fed at a reduced power of approximately 5W.

Such function can be stopped by pressing the

touch control for 2 seconds or just by pressing it

shortly in order to return to the normal lighting

mode. In courtesy light mode the touch control is

not lit.

Touch control unlit

Courtesy light on

Touch controllit Motoron

T1 When pressed the motor is stopped, regardless of the

speed it is set to. Touch control unlit Motoroff

T2 When pressed the motor is set to the first speed Touch control lit

By a brief pressing the motor is set to the second

speed. Touch controllit Second speedon

By pressing the touch control for approximately 2

seconds the Delay function is enabled, i.e dela-

yed shutdown of the appliance ensuring a com-

plete elimination of the residual odours. This fun-

ction can be activated at OFF-position and at 1°,

2° and 3°speeds. It can be stopped in advance

by pressing any of the touch controls (T) with the

exception of T3. The Delay function works accor-

ding to the following scheme:

1°speed / OFF = 20 minuets

2°speed = 15 minutes

3°speed = 5 minutes

Flashing touch

control Delay function on

T4 When pressed the motor is set to the third speed Touch control lit

Touch

control

Basic functions Indicator lights

T5 When pressed the motor is set to the intensive speed

timed to 5 minutes. At the end of 5 minutes of intensi-

ve speed the hood starts again at the speed it was set

to previously. In case the hood is set to the intensive

speed directly from OFF-state it will then start from

the first speed after 5 minutes of intensive speed.

Touch control lit

Touch cont

rol lit

Metal grease filters satu-

ration alarm. Metalgrease

filtersneed to be washed.

The alarm starts up after

100 working hours.

F When pressed for 4 seconds it resets the filter alarm

signal indicated by flashing of the touch control T1.

This procedure can be carried out only when the

motor is stopped.

Flashing touch

control Charcoalodour filter satu-

ration alarm. Charcoal

filter hasto be replaced

and metal grease filters

washed. The alarm starts

up after 200 working

hours. (Activation; check

the paragraph “Odour

filter”)

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux EFP6500X Bedienungsanleitung

Electrolux

Electrolux IHGL9030CN Bedienungsanleitung

Electrolux

Electrolux ERI712SA Bedienungsanleitung

Electrolux

Electrolux RH36WC55GSA Bedienungsanleitung

Electrolux

Electrolux EFG90750X Bedienungsanleitung

Electrolux

Electrolux ICON RH30WC60GS Bedienungsanleitung

Electrolux

Electrolux EFL12680BX Bedienungsanleitung

Electrolux

Electrolux DVK7990HB Bedienungsanleitung

Electrolux

Electrolux IHL9028CN Bedienungsanleitung

Electrolux

Electrolux CFG516W Bedienungsanleitung

Electrolux

Electrolux CH 700 Bedienungsanleitung

Electrolux

Electrolux ICON RH30WC60GS Bedienungsanleitung

Electrolux

Electrolux EFC 1460 Bedienungsanleitung

Electrolux

Electrolux WOSL9062CN Bedienungsanleitung

Electrolux

Electrolux EFC 950 Technisches Datenblatt

Electrolux

Electrolux EI30HI55K Bedienungsanleitung

Electrolux

Electrolux ERC930SA Bedienungsanleitung

Electrolux

Electrolux EFT 600-2 Bedienungsanleitung

Electrolux

Electrolux ICON E30DD75ESS Bedienungsanleitung

Electrolux

Electrolux EFC 650 Bedienungsanleitung

Electrolux

Electrolux LFC419X Bedienungsanleitung

Electrolux

Electrolux LFP216S Bedienungsanleitung

Electrolux

Electrolux EFP 6400 Technisches Datenblatt

Electrolux

Electrolux U30306 CH1200-600-900 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
