110216-ESA www.elitescreens.com 1

Manual Pull-Down Projection Screen

Elite Manual Series

USER’S GU DE

Pre-installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

INSTA ATION

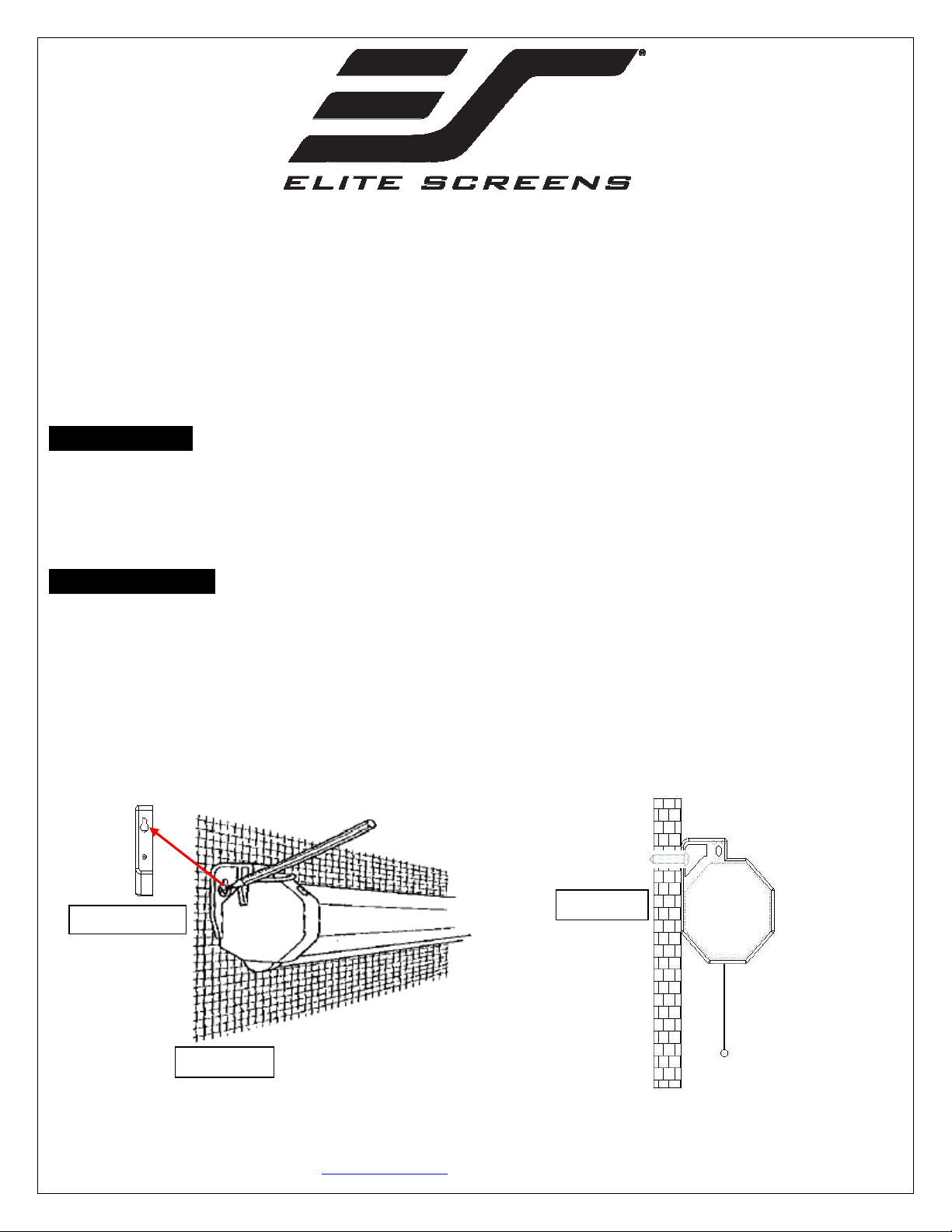

Flush Wall Mounting

1. Measure the distance between the keyholes located on the back of the end cap

2. Mark the location of where the screen is to be installed for the pre-drilled hole.

3. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave

about 1/8” of an inch from the wall to mount the screen.

4. Mount your screen from the keyhole located on back of screen’s left and right end cap.

Back of end cap

Front view

Side

view

110216-ESA www.elitescreens.com 2

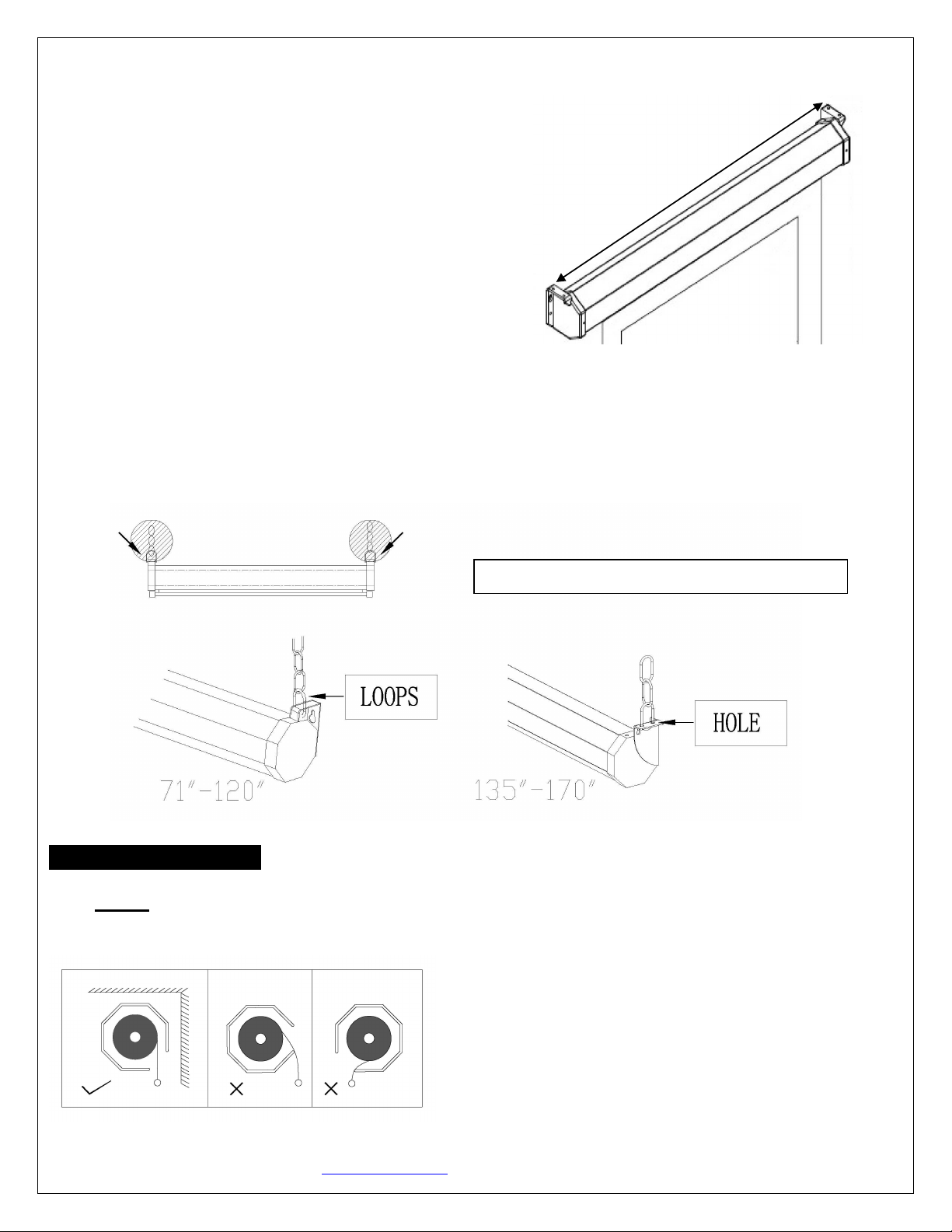

Flush Ceiling Mounting

1. Measure the distance between the top screw holes located on

the top of the end caps.

2. Mark the location of where the screen is to be installed

for the pre-drilled hole.

3. Drill your hole, use a hollow wall anchor if needed

4. nsert the proper screw into the drilled hole and secure the

screen to the ceiling.

Ceiling Suspended Mounting (additional hardware required)

Optional installation using a chain to hang the screen from the ceiling.

1. You can also hang the screen on a ceiling by using a chain and hang it by the two loops (models 71-120)

located on each end of the case or by the end cap’s ears (models 135-170).

SCREEN OPERAT ON

Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch

the screen case when the screen goes up or comes down to avoid damaging the screen material.

Note: Chain and U bolt/D ring not included.

110216-ESA www.elitescreens.com 3

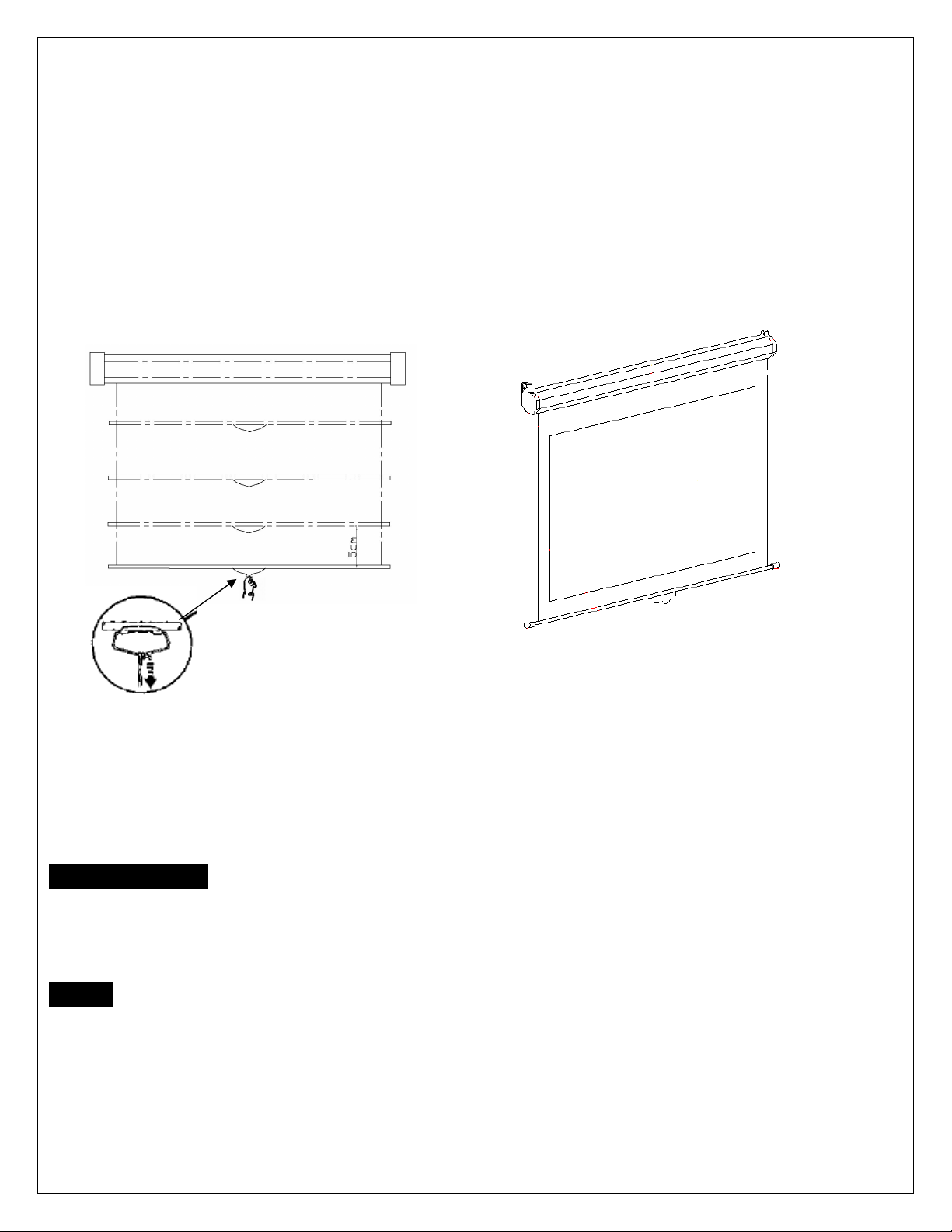

1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to pull

the screen down by the surface or touch the screen, as it will damage the screen and void the warranty.

Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position at

intervals.

2. f you want to the screen to retract back, simply pull the screen down more than 2 inches and retract the

screen back by quickly and smoothly releasing it up gently.

Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the case

If ever the screen feels stuck, keep in mind that the screen’s mechanism is new and needs to be run

up/down a few times to loosen up. If this happens, carefully with a little force yank the screen straight

down to unlock the screen.

Note: Improperly bringing the screen up down will damage the screen material or rolling system.

RETRACT ON T P: f you are not able to pull the screen down two inches when attempting to retract it, give

the screen a quick yank downwards with a little bit of force. Please be sure to not stand directly under the

housing of the unit when yanking down on the screen.

MA NTENANCE

Clean matte white screen material with a soft cloth and mild soap with water.

When not in use, retract screen in its housing to keep the screen material surface clean.

NOTE:

Regardless of mounting method, the screen should be securely supported so that vibration or even abusive

pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the

fasteners used are of adequate strength and suitable for the mounting surface chosen.
