Manual Pull-Down Projection Screen

Elite Manual Series

USER’S GUIDE

Ver. 1.2

www.elitescreens.com info@elitescreens.com

Pre-installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

INSTALLATION

Flush Wall Mounting

1. Mark the location of where the screen is to be installed for the pre-drilled hole.

2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave

about 1/8” of an inch from the wall to mount the screen.

3. Mount your screen from the keyhole located on back of screen’s left and right end cap.

Ceiling Mounting (additional hardware required)

Optional installation using a chain to hang the screen from the ceiling.

1. You can also hang the screen on a ceiling by using a chain (not included) and hang it by the two loops

(models 71-120) located on each end of the case or by the end cap’s ears (models 135-170).

Back of end cap

Front view

Side view

www.elitescreens.com info@elitescreens.com

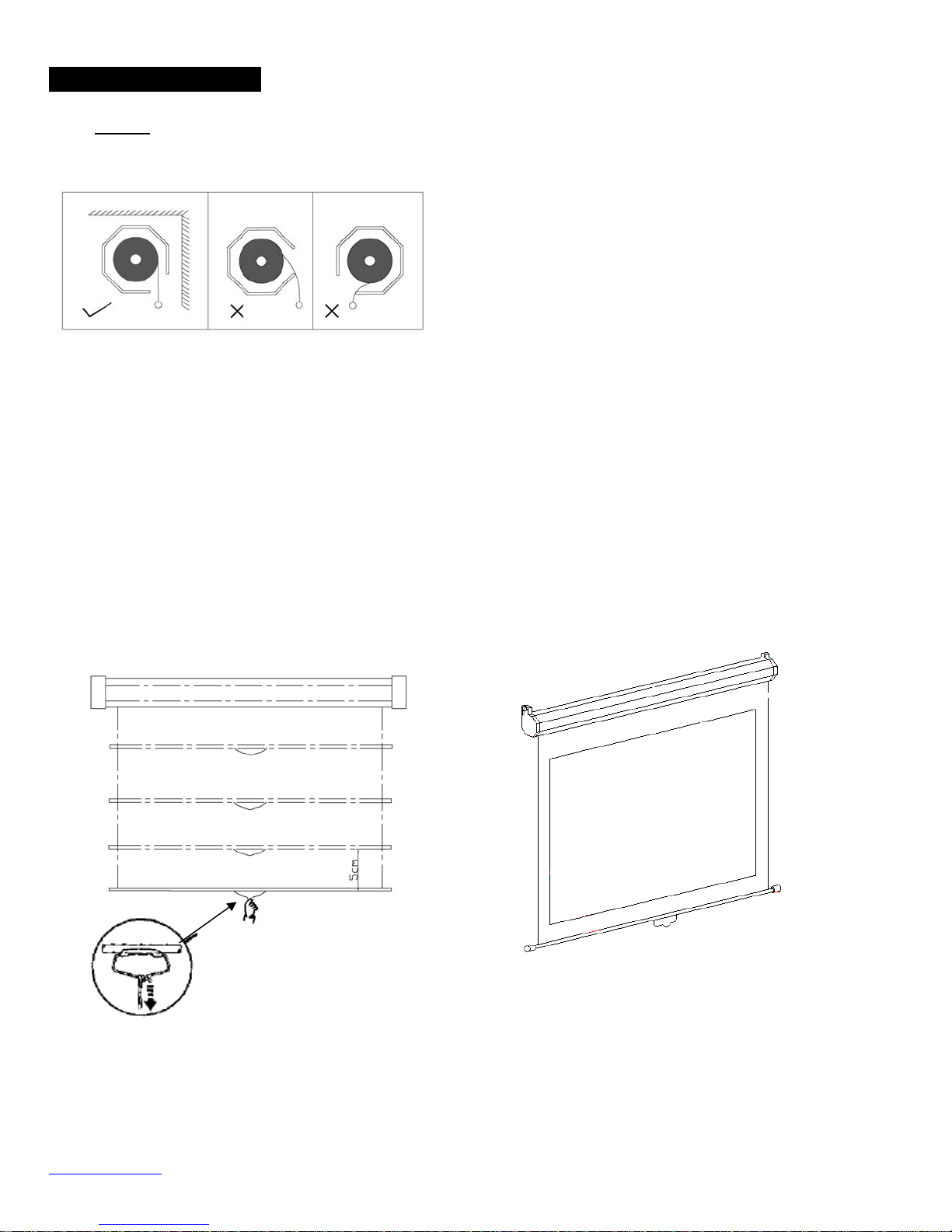

SCREEN OPERATION

Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch

the screen case when the screen goes up or comes down to avoid damaging the screen material.

1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to pull

the screen down by the surface or touch the screen, as it will damage the screen and void the warranty.

Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position at

intervals.

2. If you want to the screen to retract back, simply pull the screen down more than 2 inches and retract the

screen back by quickly and smoothly releasing it up gently.

Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the case

If ever the screen feels stuck, keep in mind that the screen’s mechanism is new and needs to be run

up/down a few times to loosen up. If this happens, carefully with a little force yank the screen straight

down to unlock the screen.

Note: Improperly bringing the screen up/down will damage the screen material or rolling system.

www.elitescreens.com info@elitescreens.com

MAINTENANCE

Clean matte white screen material with a soft cloth and mild soap with water.

When not in use, retract screen in its housing to keep the screen material surface clean.

NOTE:

Regardless of mounting method, the screen should be securely supported so that vibration or even abusive

pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the

fasteners used are of adequate strength and suitable for the mounting surface chosen.

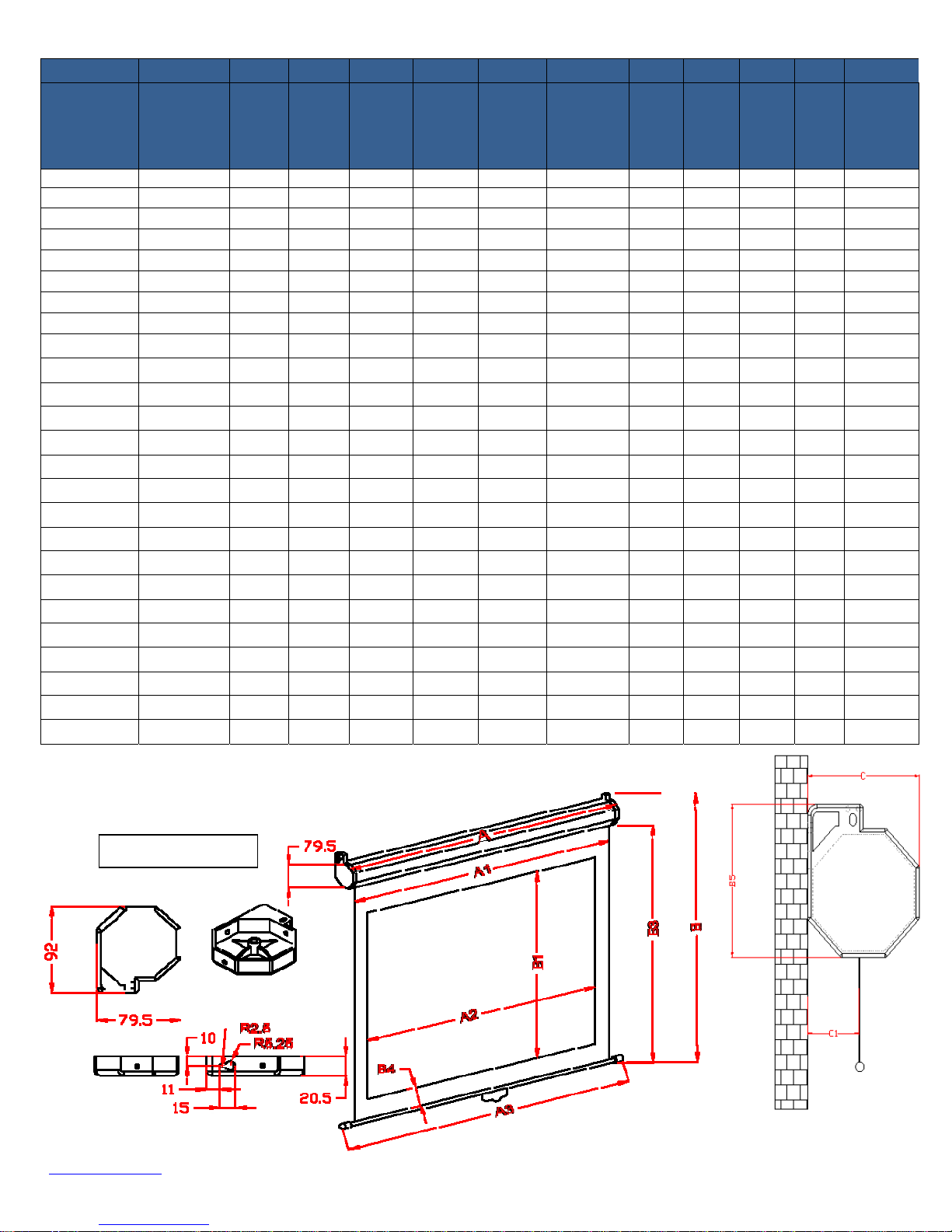

Manual Series Dimensions Table

Unit: mm

Models

Screen

Diag. &

Aspect

Ratio

Case

Length

(A)

Screen

Width

(A1)

View

Width

(A2)

Weight

Bar

Length

(A3)

Bottom

Edge

Distance

(B4)

Screen

Material to

Weight Bar

Height (B3)

View

Height

(B1)

Overall

Height

(B)

End

cap

Height

(B5)

End

cap

Width

(C)

Distance

from

screen

material to

the wall

(C1)

M84H 84" (16:9) 2085 1961 1860 2079 62 1222 1046 1304 82 69 20

M84H-E30 84" (16:9) 2085 1961 1860 2079 62 1222 1046 1304 82 69 20

M92UWH 92" (16:9) 2197 2138 2037 2191 62 1322 1146 1404 82 69 20

M100UWH 100" (16:9) 2379 2315 2214 2373 62 1421 1245 1503 82 69 20

M100H-E24 100" (16:9) 2379 2315 2214 2373 62 1421 1245 1503 82 69 20

M106H 106" (16:9) 2511 2448 2347 2505 62 1496 1320 1588 92 79.5 20

M120H 120" (16:9) 2821 2758 2657 2815 62 1670 1494 1762 92 79.5 20

M120H-E24 120" (16:9) 2821 2758 2657 2815 62 1670 1494 1762 92 79.5 20

M135H 135" (16:9) 3180 3090 2989 3147 62 1857 1681 1962 105 88 20

M150H 150" (16:9) 3556 3422 3321 3483 62 2044 1868 2149 105 88 20

M80V 80" (4:3) 1838 1727 1626 1832 62 1395 1219 1477 82 69 20

M84V 84" (4:3) 1933 1808 1707 1927 62 1456 1280 1538 82 69 20

M100V 100" (4:3) 2197 2133 2032 2191 62 1700 1524 1782 82 69 20

M120V 120" (4:3) 2603 2539 2438 2597 62 2005 1829 2097 92 79.5 20

M135V 135" (4:3) 2939 2844 2743 2906 62 2233 2057 2338 105 88 20

M150V 150" (4:3) 3244 3149 3048 3211 62 2462 2286 2567 105 88 20

M71S 71"(1:1) 1520 1376 1275 1514 62 1451 1275 1533 82 69 20

M85S 85"(1:1) 1768 1628 1527 1762 62 1703 1527 1785 82 69 20

M99S 99" (1:1) 1996 1879 1778 1937 62 1954 1778 2046 92 79.5 20

M113S 113" (1:1) 2197 2131 2030 2191 62 2206 2030 2298 92 79.5 20

M119S 119" (1:1) 2352 2235 2134 2346 62 2313 2137 2405 92 79.5 20

M136S 136" (1:1) 2603 2544 2443 2597 62 2619 2443 2711 92 79.5 20

M170S 170" (1:1) 3244 3149 3048 3211 62 3224 3048 3329 105 88 20

M94UWX 94" 16:10 2192 2101 2025 2188 62 1441 1265 1523 82 69 20

M128UWX 128" 16:10 2907 3327 3251 2903 62 1899 1723 1991 92 79.5 20

www.elitescreens.com info@elitescreens.com

*Measurement dimensions are intended as a reference only and subject to change without notice

Note: Data Error ±1"

Unit: Inches

Models Screen Diag.

& Aspect

Ratio

Case

Length

(A)

Screen

Width

(A1)

View

Width

(A2)

Weight

Bar

Length

(A3)

Bottom

Edge

Distance

(B4)

Screen

Material to

Weight Bar

Height (B3)

View

Height

(B1)

Overall

Height

(B)

End

cap

Height

(B5)

End

cap

Width

(C)

Distance

from

screen

material

to the wall

(C1)

M84H 84" (16:9) 82.1 77.2 73.2 81.9 2.4 48.1 41.2 51.3 3.2 2.7 0.8

M84H-E30 84" (16:9) 82.1 77.2 73.2 81.9 2.4 48.1 41.2 51.3 3.2 2.7 0.8

M92UWH 92" (16:9) 86.5 84.2 80.2 86.3 2.4 52.0 45.1 55.3 3.2 2.7 0.8

M100UWH 100" (16:9) 93.7 91.1 87.2 93.4 2.4 55.9 49.0 59.2 3.2 2.7 0.8

M100H-E24 100" (16:9) 93.7 91.1 87.2 93.4 2.4 55.9 49.0 59.2 3.2 2.7 0.8

M106H 106" (16:9) 98.9 96.4 92.4 98.6 2.4 58.9 52.0 62.5 3.6 3.1 0.8

M120H 120" (16:9) 111.1 108.6 104.6 110.8 2.4 65.7 58.8 69.4 3.6 3.1 0.8

M120H-E24 120" (16:9) 111.1 108.6 104.6 110.8 2.4 65.7 58.8 69.4 3.6 3.1 0.8

M135H 135" (16:9) 125.2 121.7 117.7 123.9 2.4 73.1 66.2 77.2 4.1 3.5 0.8

M150H 150" (16:9) 140.0 134.7 130.7 137.1 2.4 80.5 73.5 84.6 4.1 3.5 0.8

M80V 80" (4:3) 72.4 68.0 64.0 72.1 2.4 54.9 48.0 58.1 3.2 2.7 0.8

M84V 84" (4:3) 76.1 71.2 67.2 75.9 2.4 57.3 50.4 60.6 3.2 2.7 0.8

M100V 100" (4:3) 86.5 84.0 80.0 86.3 2.4 66.9 60.0 70.2 3.2 2.7 0.8

M120V 120" (4:3) 102.5 100.0 96.0 102.2 2.4 78.9 72.0 82.6 3.6 3.1 0.8

M135V 135" (4:3) 115.7 112.0 108.0 114.4 2.4 87.9 81.0 92.0 4.1 3.5 0.8

M150V 150" (4:3) 127.7 124.0 120.0 126.4 2.4 96.9 90.0 101.1 4.1 3.5 0.8

M71S 71"(1:1) 59.8 54.2 50.2 59.6 2.4 57.1 50.2 60.4 3.2 2.7 0.8

M85S 85"(1:1) 69.6 64.1 60.1 69.4 2.4 67.0 60.1 70.3 3.2 2.7 0.8

M99S 99" (1:1) 78.6 74.0 70.0 76.3 2.4 76.9 70.0 80.6 3.6 3.1 0.8

M113S 113" (1:1) 86.5 83.9 79.9 86.3 2.4 86.9 79.9 90.5 3.6 3.1 0.8

M119S 119" (1:1) 92.6 88.0 84.0 92.4 2.4 91.1 84.1 94.7 3.6 3.1 0.8

M136S 136" (1:1) 102.5 100.2 96.2 102.2 2.4 103.1 96.2 106.7 3.6 3.1 0.8

M170S 170" (1:1) 127.7 124.0 120.0 126.4 2.4 126.9 120.0 131.1 4.1 3.5 0.8

M94UWX 94" (16:10) 86.3 82.7 79.7 86.1 2.4 56.7 49.8 60.0 3.2 2.7 0.8

M128UWX 128" (16:10) 114.4 131.0 128.0 114.3 2.4 74.8 67.8 78.4 3.6 3.1 0.8

Unit of measure: mm

www.elitescreens.com info@elitescreens.com

Warranty Policy

•Two (2) year warranty parts and labor (as of June 2007) from defects in workmanship from purchase date as

follows (except for refurbished units as specified below):

•Refurbished units carry a 90-day parts and labor warranty.

•Demo units or open box items are AS IS items and do not carry a warranty.

•Each party will be responsible for one way shipping during the warranty period. Elite Screens is not

responsible for applicable International tariffs such as broker fees and customs duties.

•A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or

to authorize a return for warranty repair. Elite Screens will, at its sole option, replace or repair the defective

unit with a replacement *(see exceptions below) after the defective unit is received. Once the product is

received, Elite Screens will send out a replacement *unit to the customer by ground service (subject to

inventory availability). Please do not return any unauthorized items to Elite Screen, as they will be

refused. The RMA number must be included on the outside label of your shipping box. Our warehouse

is not authorized to accept returns without an RMA number on the shipping label. RMA numbers are

valid for 45 days from the date of issue.

•Missing Parts must be reported within the 7-day grace period. If reported after 7 days, customer will be

only be responsible for shipping and handling fees. If reported after 30 days of receipt, customer is responsible

for cost of the parts and shipping & handling fees.

*A new or refurbished replacement will be sent out to the customer depending on the type of purchase (new or refurbished) or based

on stock availability.

Please visit link below for full warranty information

For Customer Service and Technical questions, please contact Elite Screens at:

Telephone: 562-483-8198

Fax: 562-483-8498

For Warranty and Service requests please fill out a RMA /Service Form at:

http://www.elitescreens.com/service_form.htm.

Please Visit this link for full Warranty information:

http://www.elitescreens.com/service.htm

www.elitescreens.com info@elitescreens.com

REMEMBER TO REGISTER YOUR WARRANTY AT

WWW.ELITESCREENS.COM/REGISTER.HTM

US & Canada Tech Support & Warranty Claim

Please contact us at [email protected] or call +1 877-511-1211 #3 Service

Europe Tech Support & Warranty Claim

Please contact us at [email protected] or call +49-(0) 40-30392958

Asia Tech Support & Warranty Claim

Please contact us at [email protected] or call +86-(0) 755-8461-7989

Taiwan Tech Support & Warranty Claim

Please contact us at [email protected].tw or call +886-(02) 2747-8979
